Line Heater, 1.5 mmbtu, 2.5", 5000
Line Heater, 1.5 mmbtu, 2.5", 5000
$5,500 (USD)
Pennsylvania
orCall 1 (844) 564-4237
Description

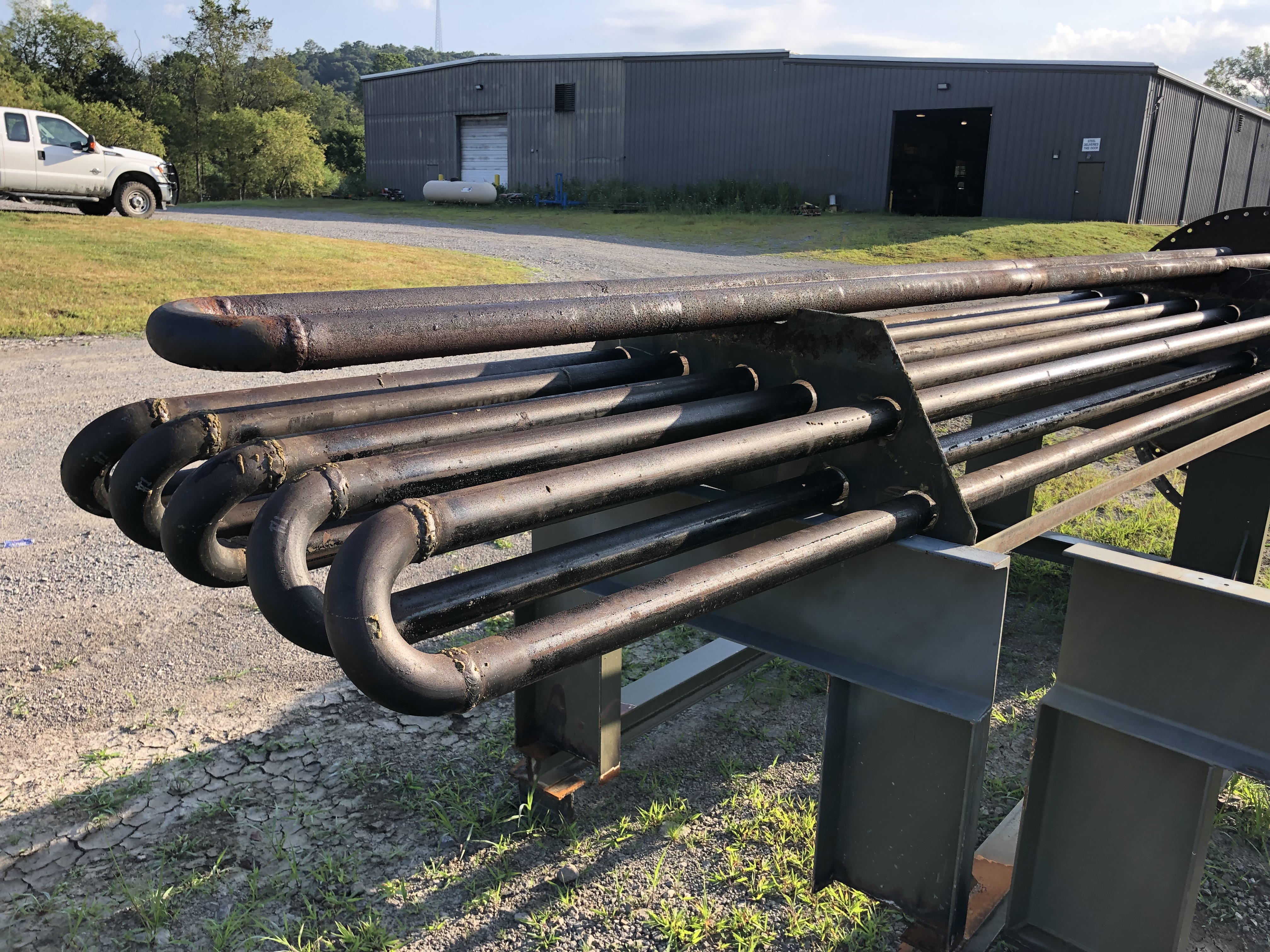

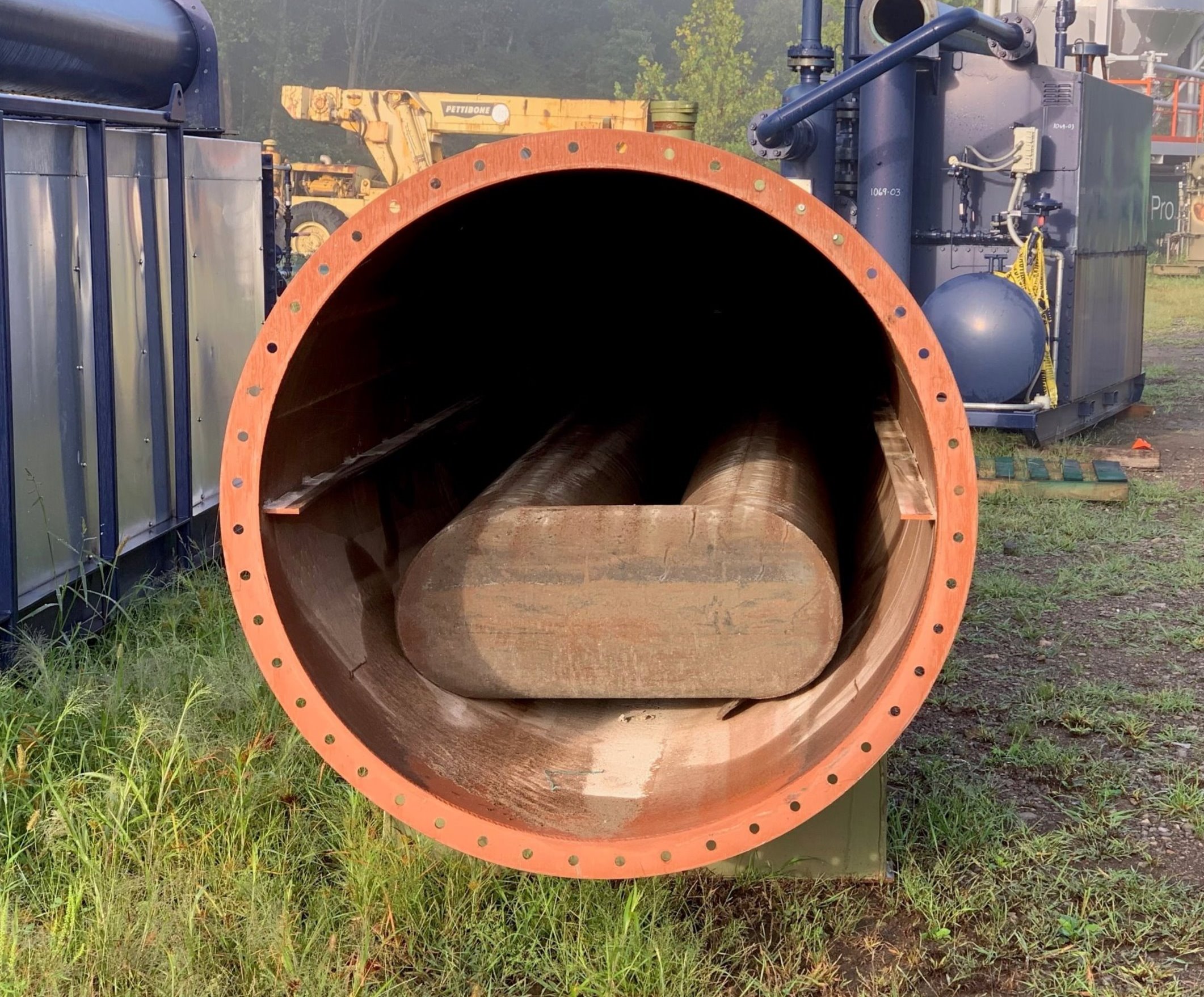

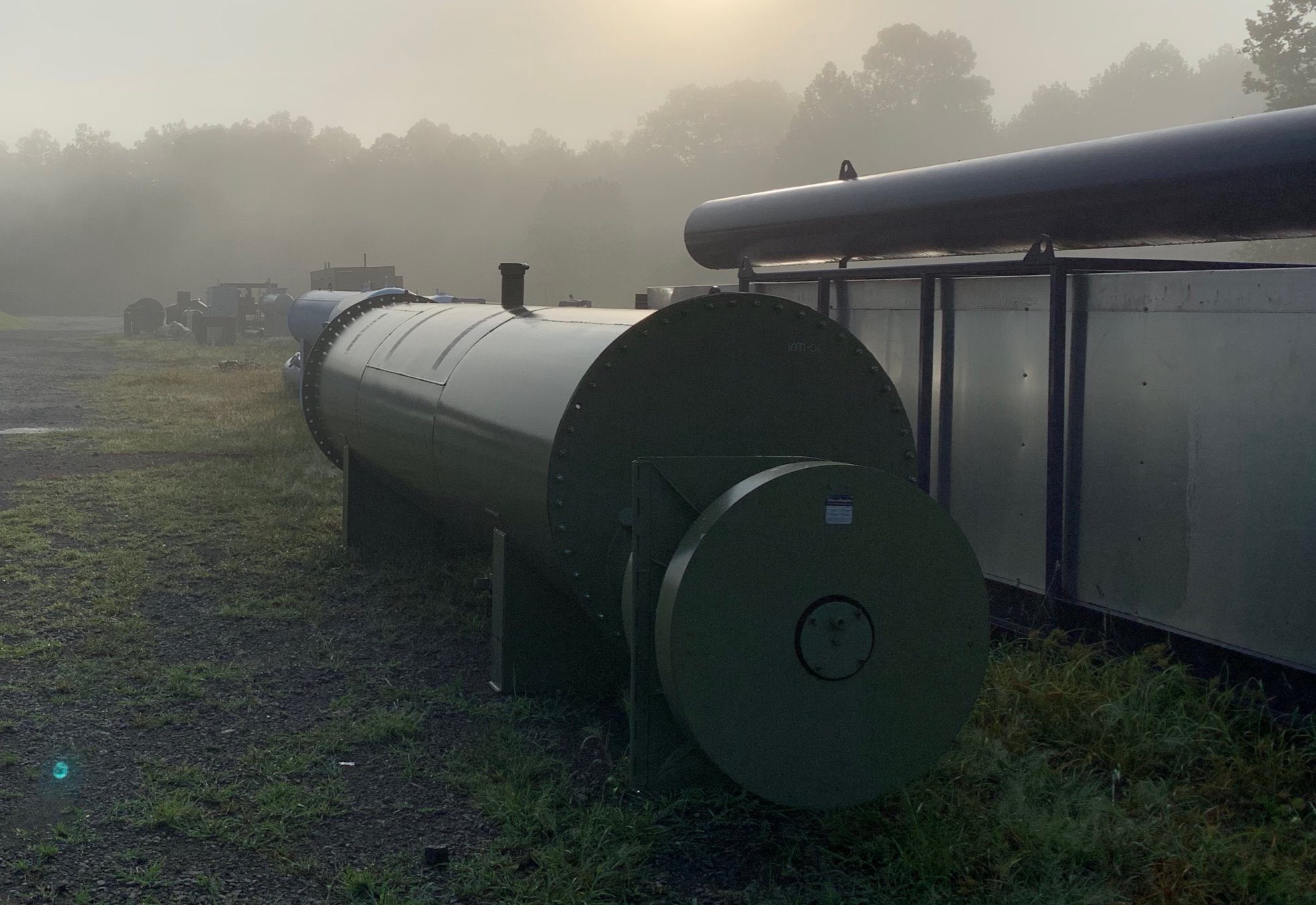

Line heater with a 1.5 mmbtu/hr heater and 149 square feet of firetube surface area. The bath cylinder is 48" OD x 18' long. The preheat coil is XXH 2.5" with 4 passes, and the expansion coil is XXH 2.5" with 8 passes.
Specifications
| Manufacturer | National Oilwell Varco |
| Model | 2.5", 5000# Coil |
| Year | 2011 |
| Condition | Used |
| Serial Number | 4454 |
| Stock Number | 1071-01 |
| Heater Rating | 1.5 mmbtu/hr |
| Pre-Heat Coil Diameter (in.) | 2.5 |
| Pre-Heat Coil MAWP (psi) | 5,000 |
| Expansion Coil Diameter (in.) | 2.5 |
| Expansion Coil MAWP (psi) | 5,000 |
| Inlet & Outlet Connection Type | Hammer Union |
| Accessories | National Oilwell Varco 2 9/16 10,000 WP Adjustable Choke Eclipse 4" Mixer Full Fuel Train |
| Overall Dimensions | 90"W x 378"L x 89"T |

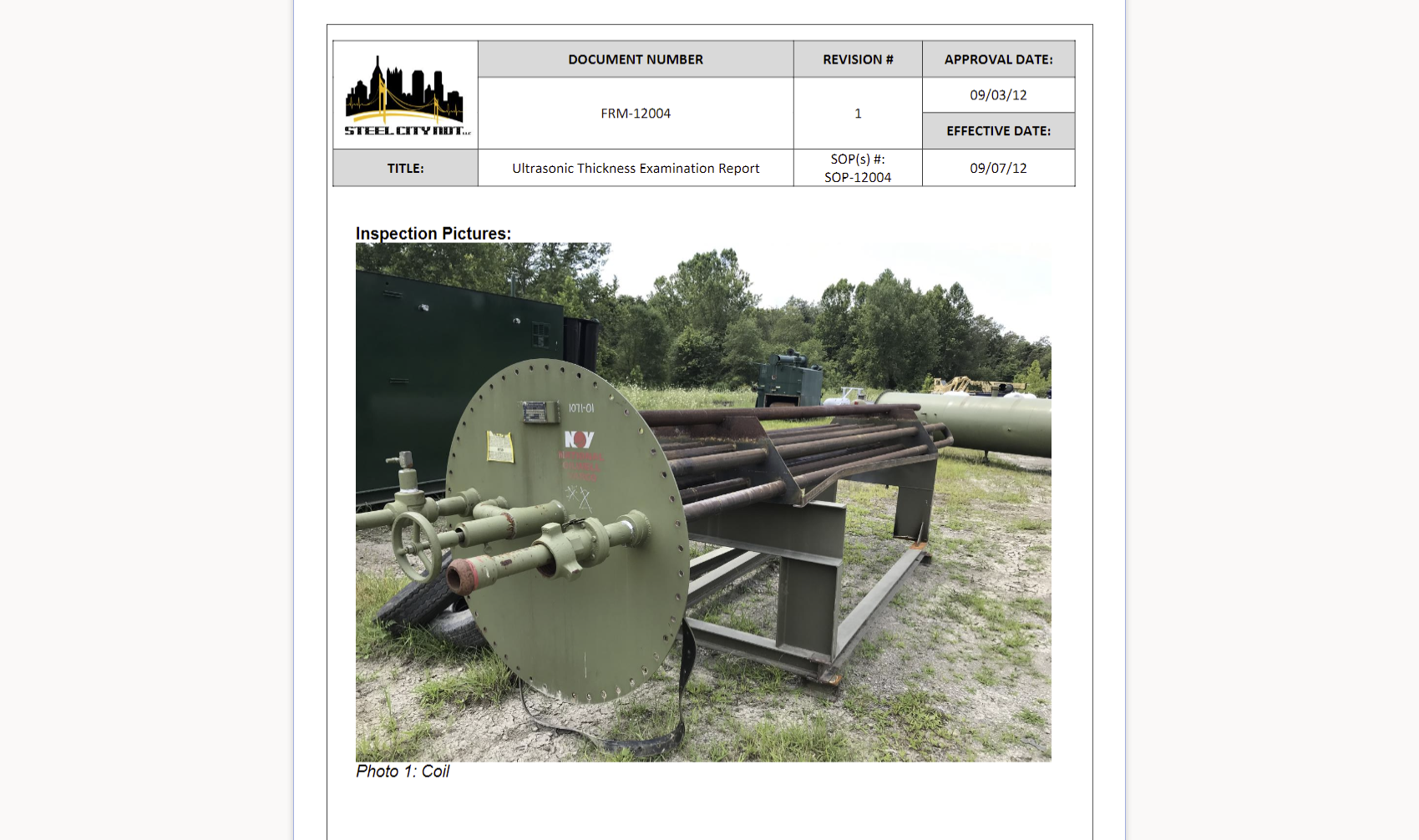

| Work Recently Performed | Removed coil and UT tested. |
| Wear and Tear | Unit is used, but in very good condition. Coil rail for sliding into glycol bath is slightly bent, but does not affect the coil position or support in the bath. |
| Tests | UTT coil |
| Notes | None |
| Origin Code | OC01 |
