Separator, Vertical, 2P, 36"x9', 100#
Separator, Vertical, 2P, 36"x9', 100#
Location:Colorado
or
Call 1 (844) 564-4237
Description

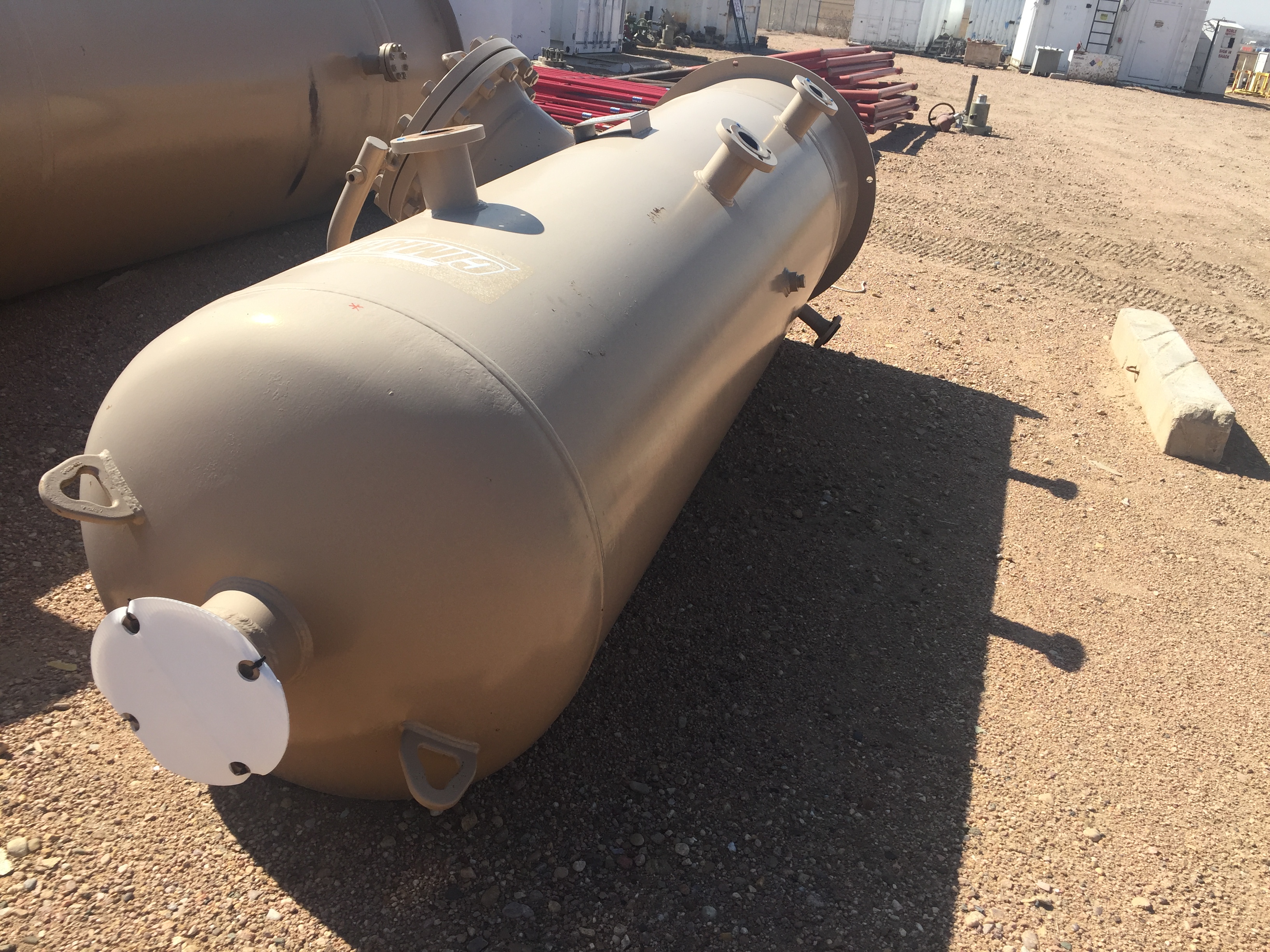

Vertical 2-phase 36"x9' 100# separator with 6" RFWN flanged inlet and outlet, 2" RFWN flanged siphon drain. 18" manway with davit arm assembly. Mist pad design is 8-1/4" thick and 36" diameter. Drawings available. Call (844) 564-4237 or email sales@tri-logic.net for pricing.
Specifications

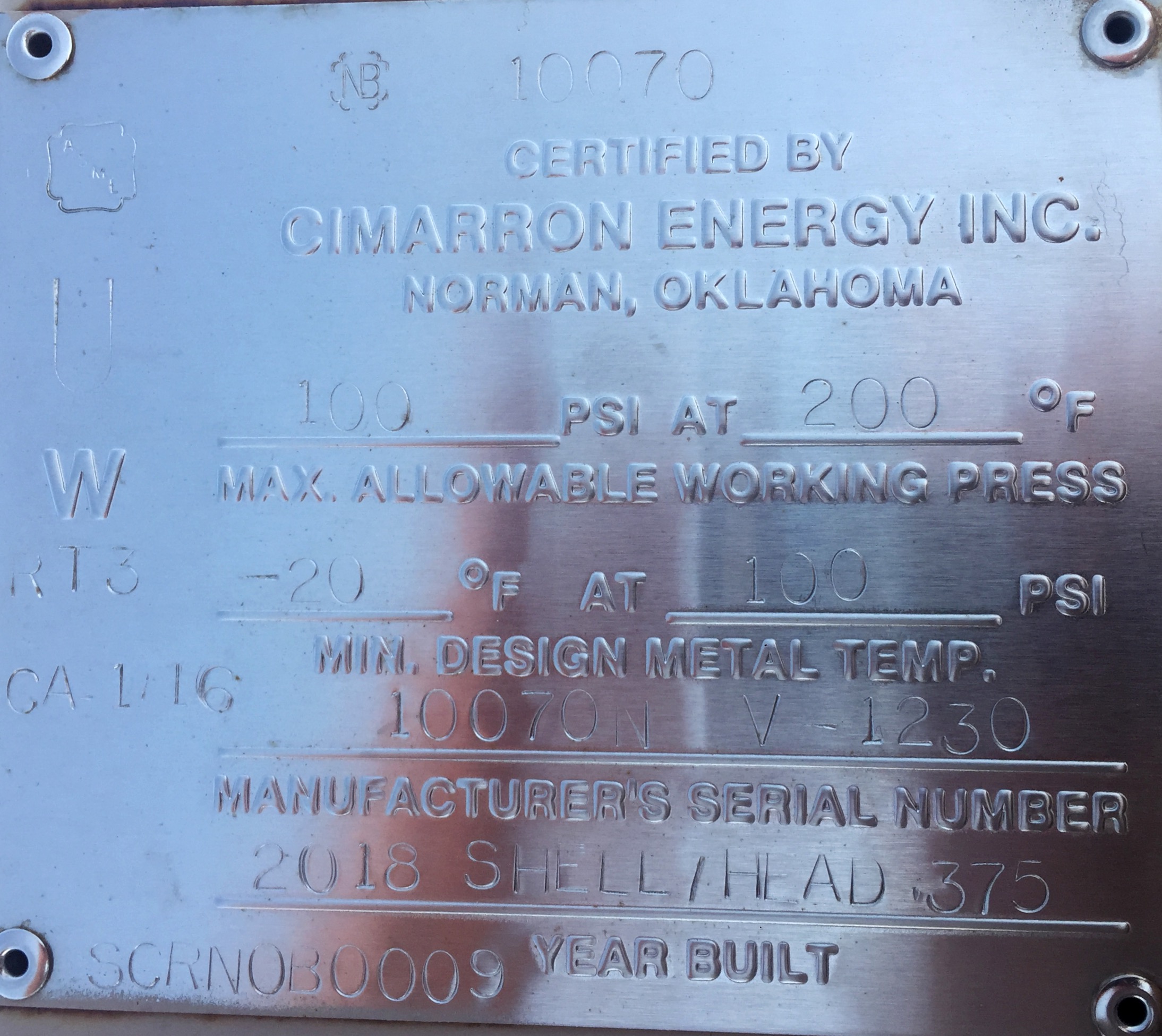

| Manufacturer | Cimarron Energy |
| Model | 36"x9', 100# |
| Year | 2018 |
| Condition | New |
| Serial Number | 10070 |
| Stock Number | V-1230 |
| Separator Design | 2-Phase |
| Subcategory 2 | ASME |
| Vessel Orientation | Vertical |
| Vessel Pressure Rating (psi) | 100 |
| Vessel Outside Diameter (in.) | 36 |
| Vessel s/s Length (in.) | 108 |
| Inlet & Outlet Diameter (in.) | 4 |
| Inlet & Outlet Connection Type | Flange |
| Accessories | None |
| Certification | ASME "U" |
| Shipping Dimensions | 12'-0"W x 4'-10"L x 4'-3"T |
| Weight | 2,300 lbs |
| Work Recently Performed | None |
| Wear and Tear | Unit is in great condition. |
| Test | None |
| Notes | None |
| Origin Code | OC03 |
