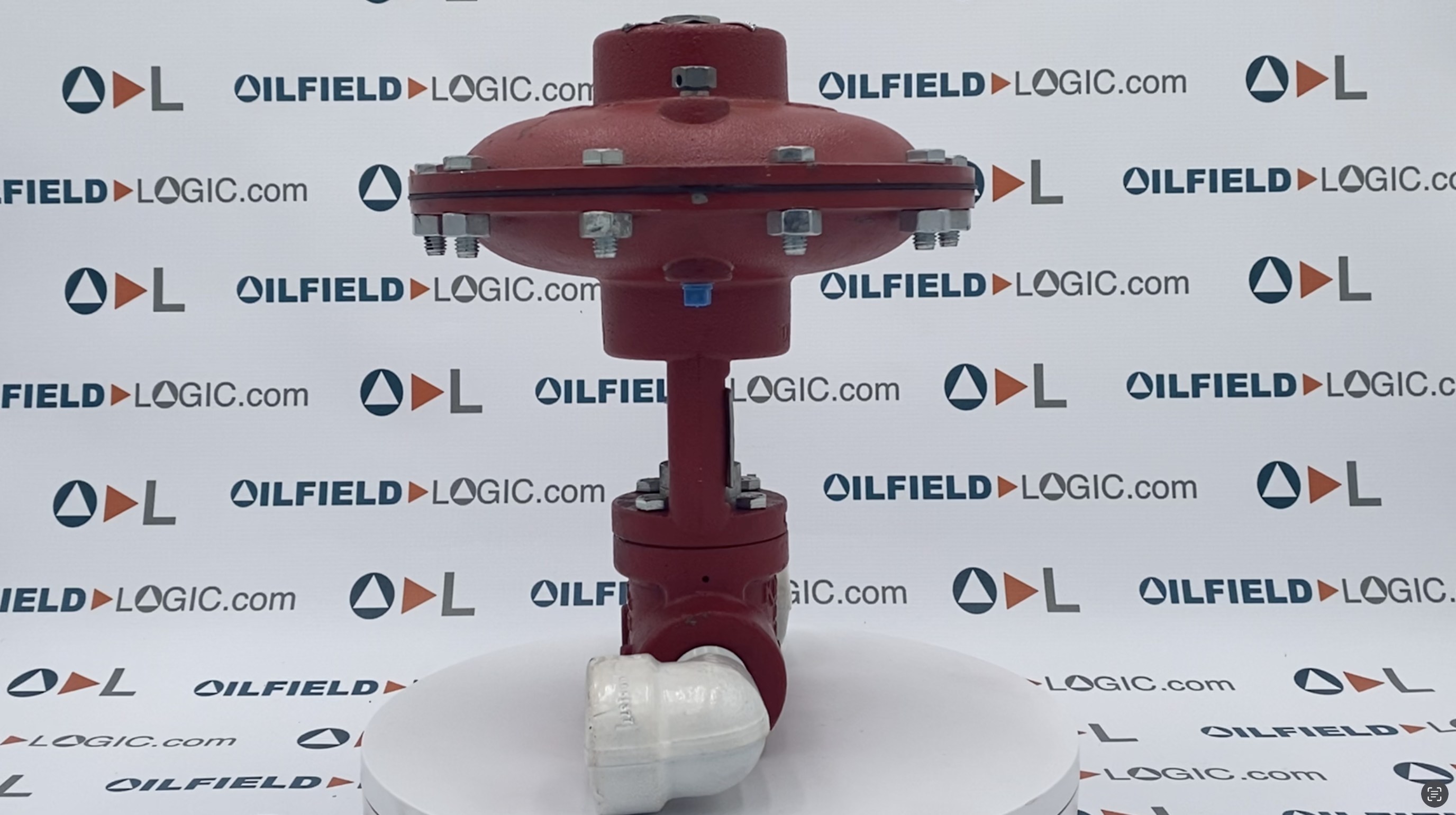

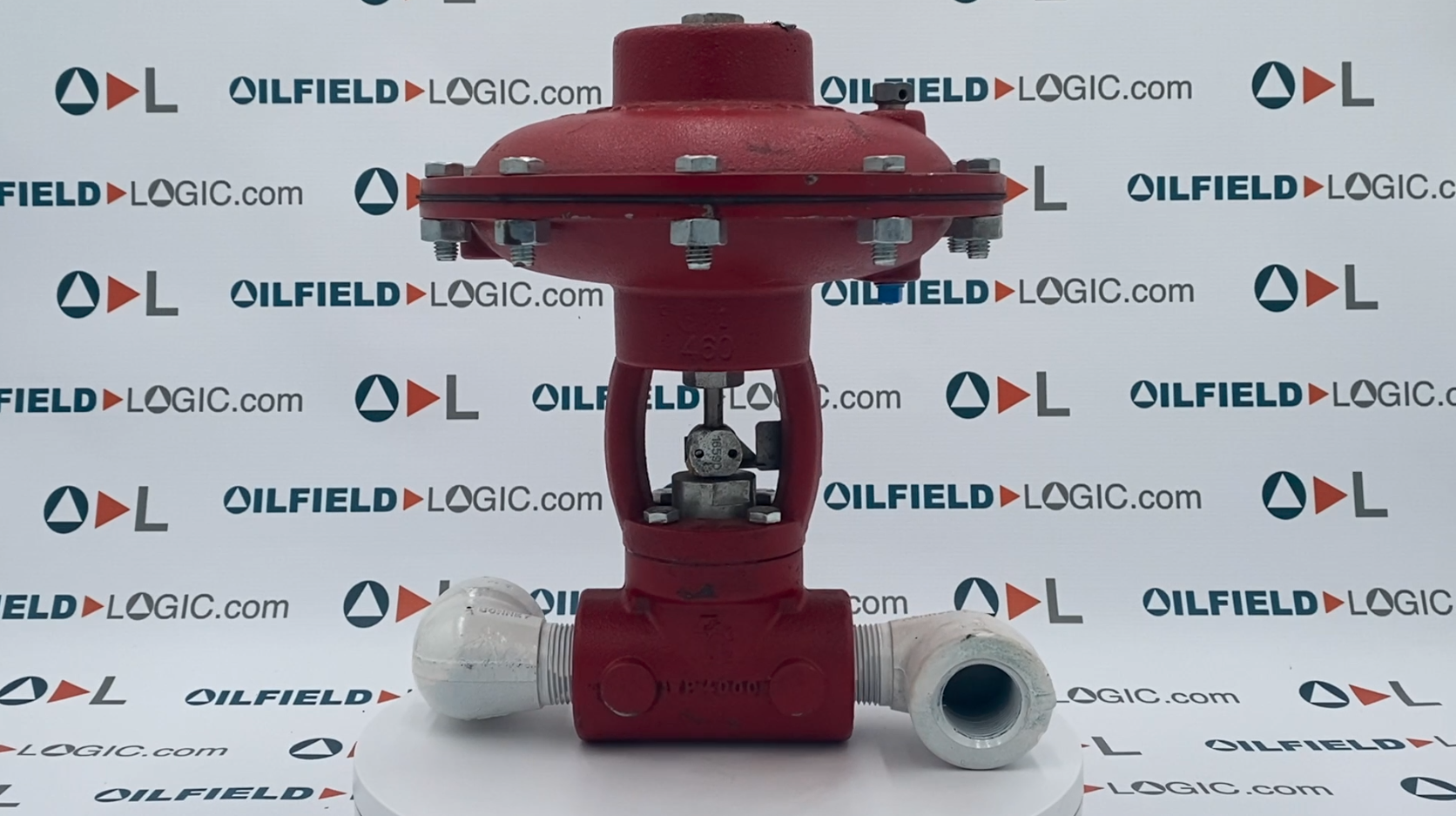

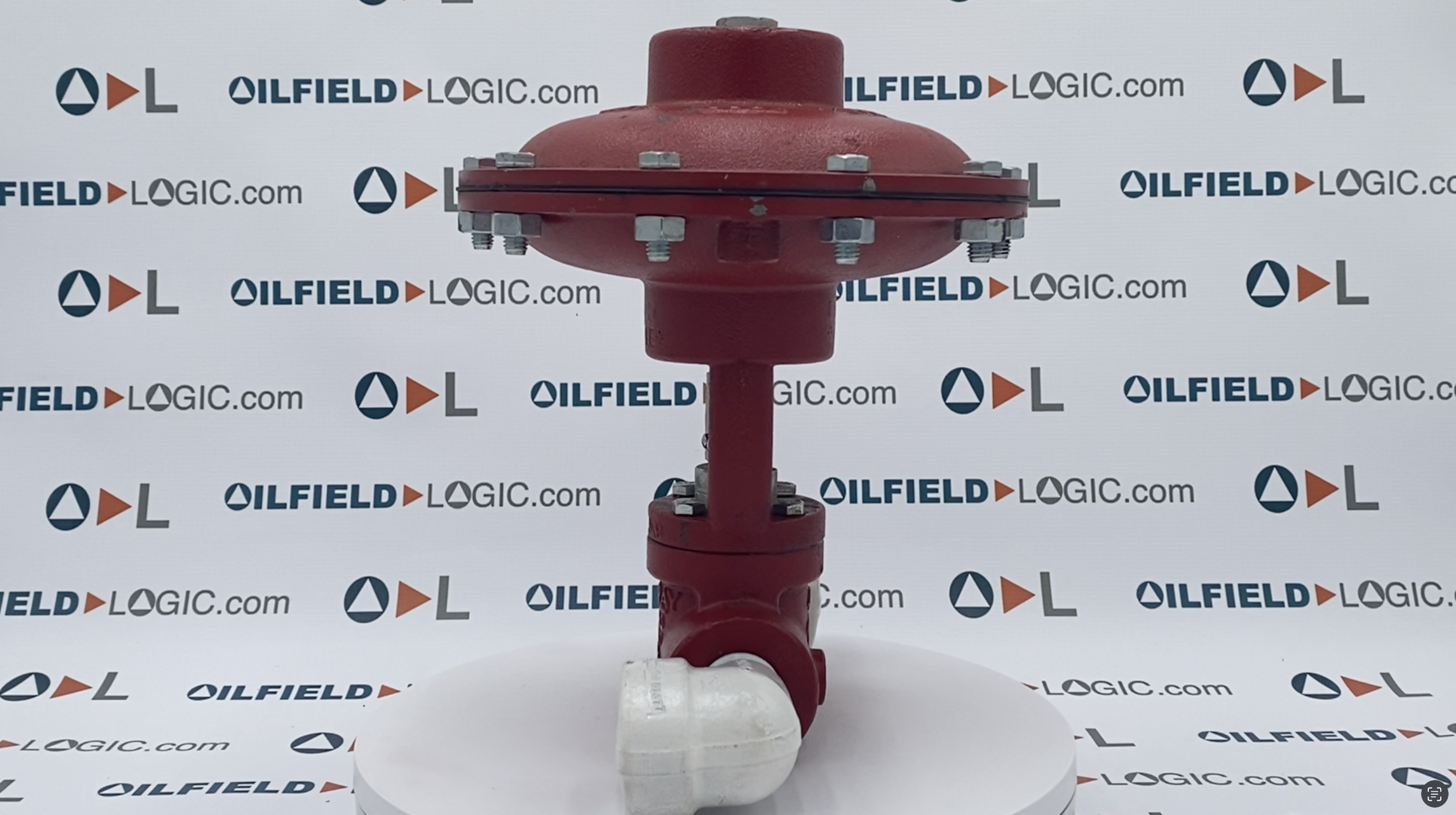

Valve, Control, Kimray, 1" Body, 1/2" Trim, 4000#
Valve, Control, Kimray, 1" Body, 1/2" Trim, 4000#
$394 (USD)
Location:Pennsylvania
Available quantity:8
or
Call 1 (844) 564-4237
Description

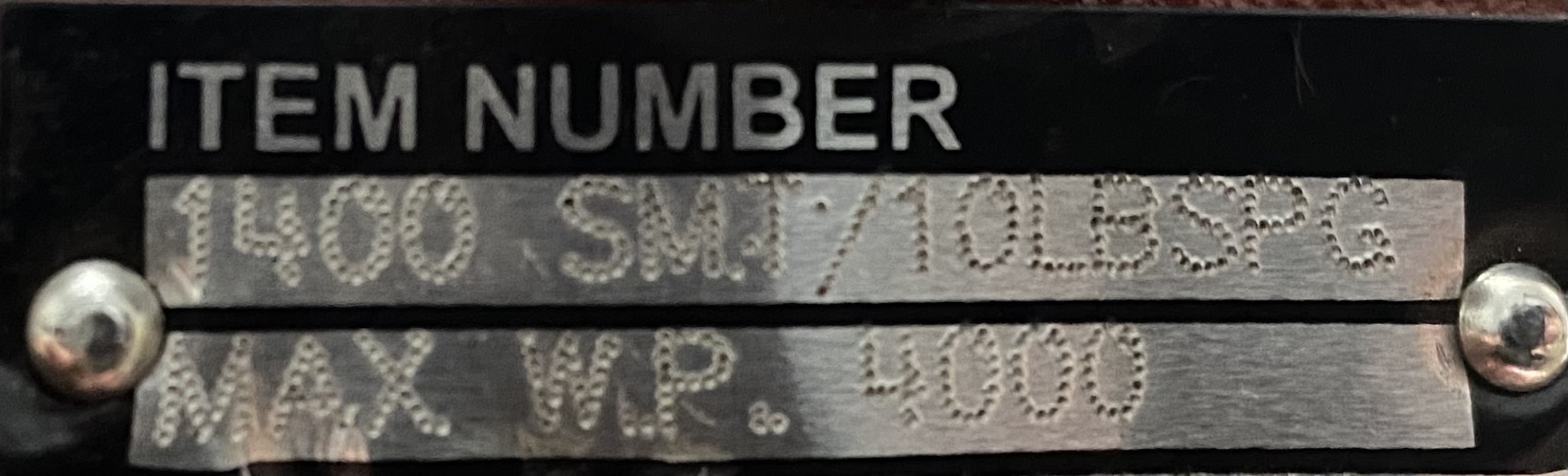

1400 SMT. The Stem-Guided High Pressure Control Valve is a non-balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications. The Stem-Guided Control Valve has smaller trim sizes (available in 1" and 2" end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. "Stem-guided" refers to the stem itself guiding the trim into its seat. It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.
Specifications
| Manufacturer | Kimray |
| Model | 1", 4000# |
| Condition | New |
| Stock Number | EAIEP10 |
| Connection Size (in.) | 1 |
| Subcategory 2 | Control |
| Warehouse Location | PA2A3 & PA2E5 & PA4C3 |
| Connection Type | FNPT |
| Body Style | Through Body |
| Body Material | Steel |
| Max Working Pressure (psi) | 4000 |
| Operation | Pneumatic |
| Trim Size (in.) | .5 |
| Trim Type | Linear (Nominal) |
| Process Fluid | Liquid and Gas |
| Actuator Spring Pressure (psi) | 10 |
| Fail Position | Closed-Field Reversible |
| Origin code | OC01 |
