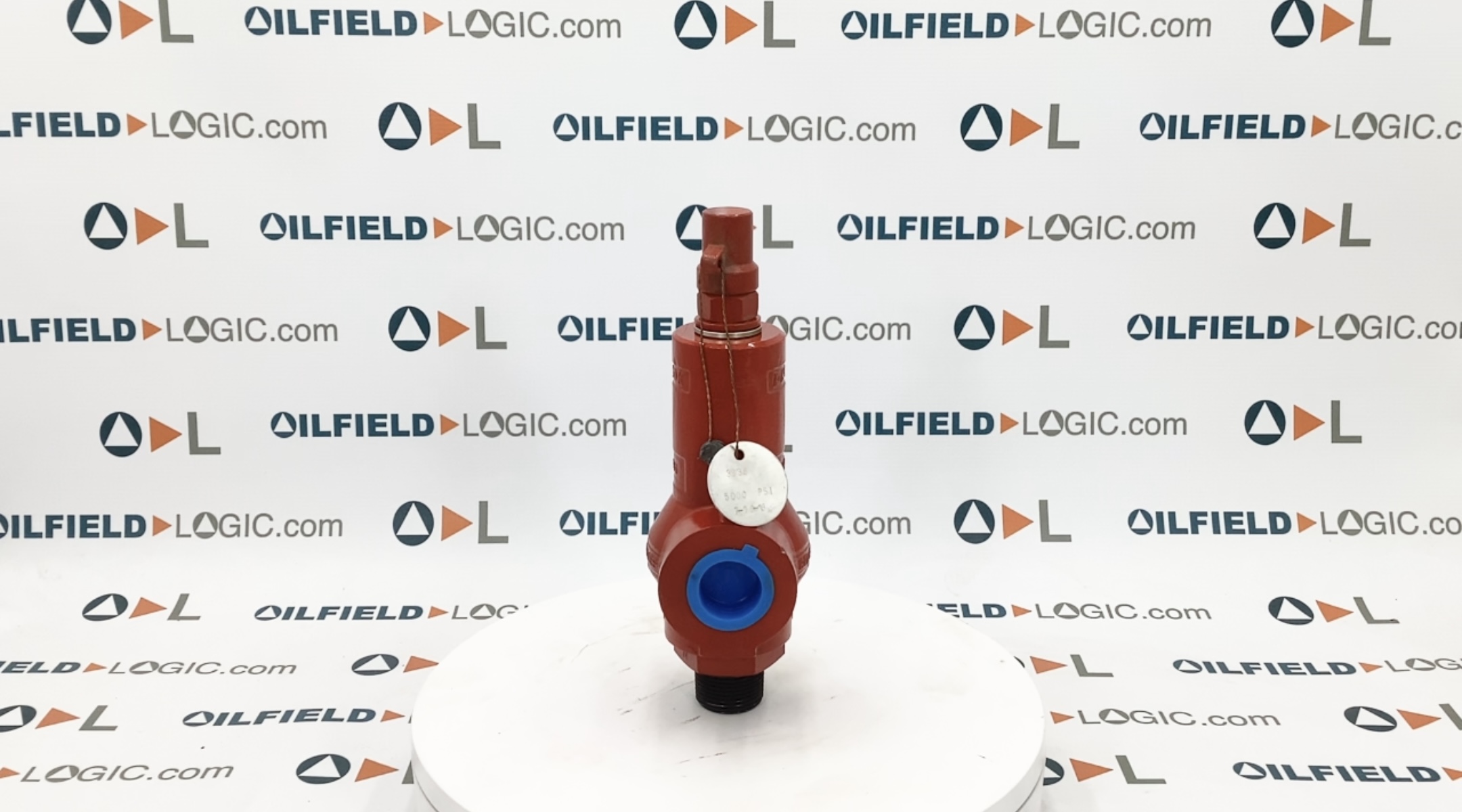

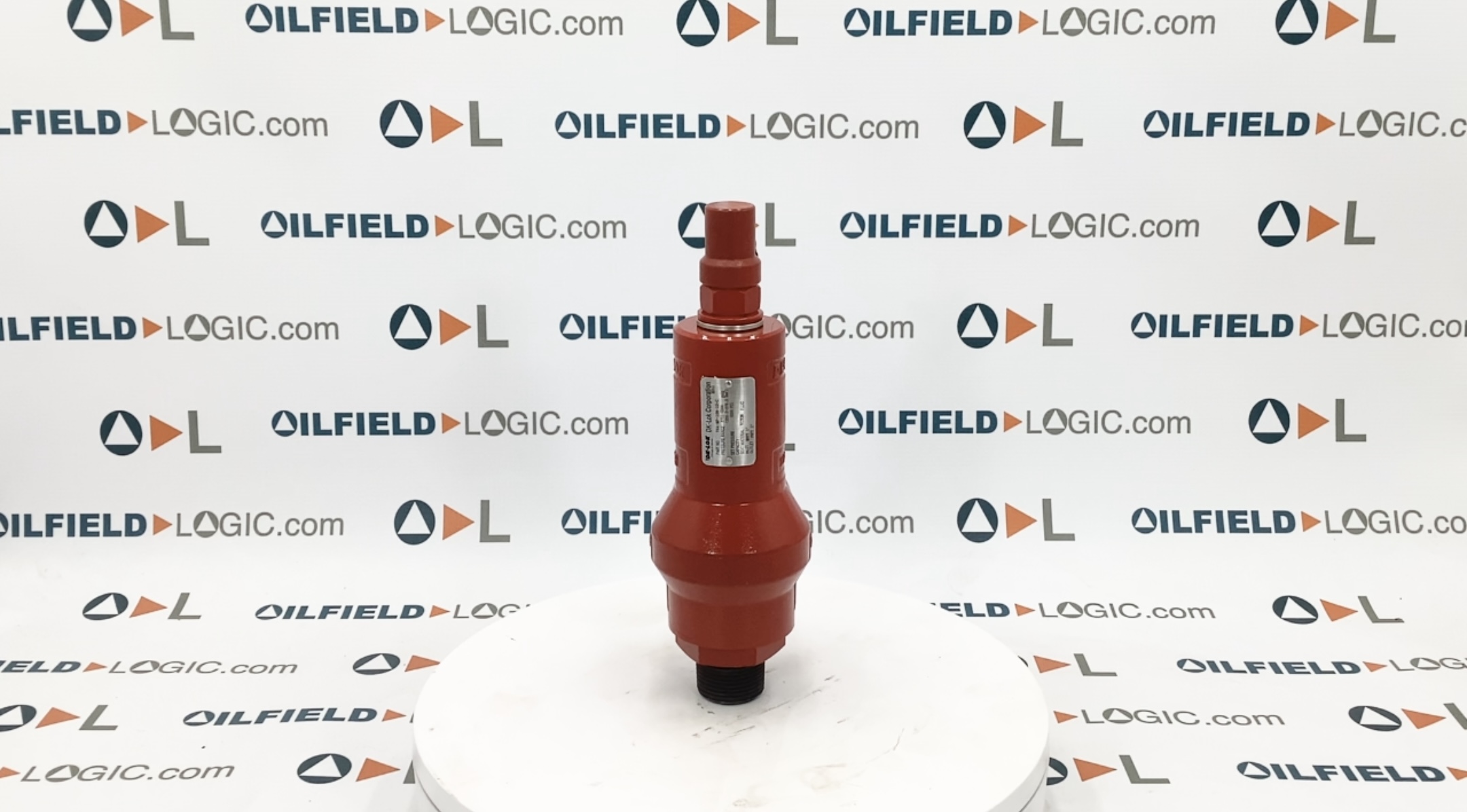

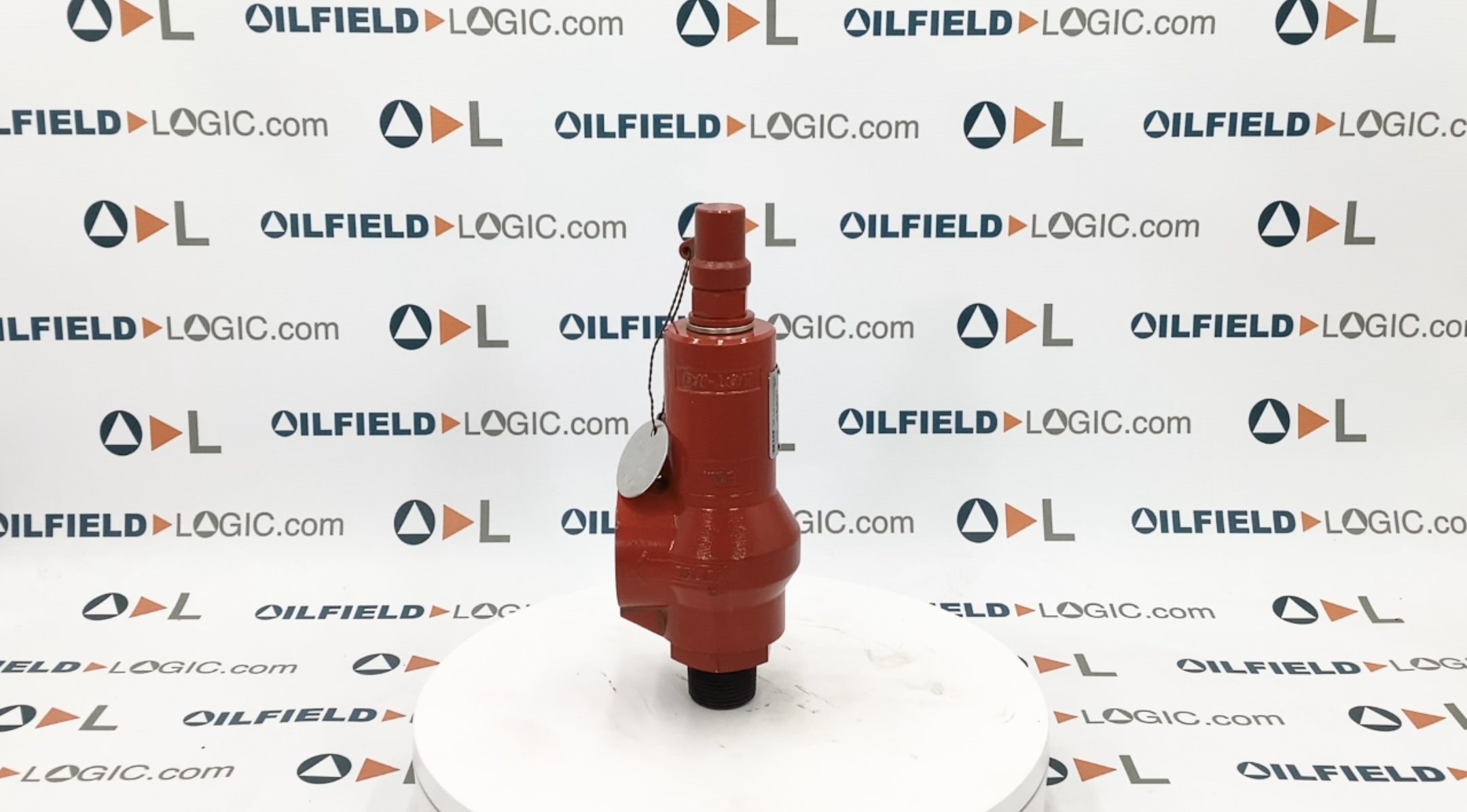

PRV, 1"x1", 5000#
PRV, 1"x1", 5000#
$225 (USD)
Location:Pennsylvania
Available quantity:3
or
Call 1 (844) 564-4237
Description
- Wide Media Applications: Air, Gas, CNG, and Liquid Relief applications
- High-Performance Soft Seat: provides repetitive and reliable bubble-tight seal
- Constructed of Stainless Steel and Carbon Steel, along with a protective painted surface
- Working Pressure: 6,000 psig (413 bar); Cracking Pressure Range: 15 to 5,500 psig (1.03 to 379 bar)
- Every valve is factory tested for cracking and reseal performance
- When the inlet pressure overcomes the spring set pressure, it causes the V64 valve to open, releasing flow to bypass and thereby balancing the pressure system.
Specifications
| Manufacturer | DK-LOK |
| Model | 1", 5000# |
| Condition | New |

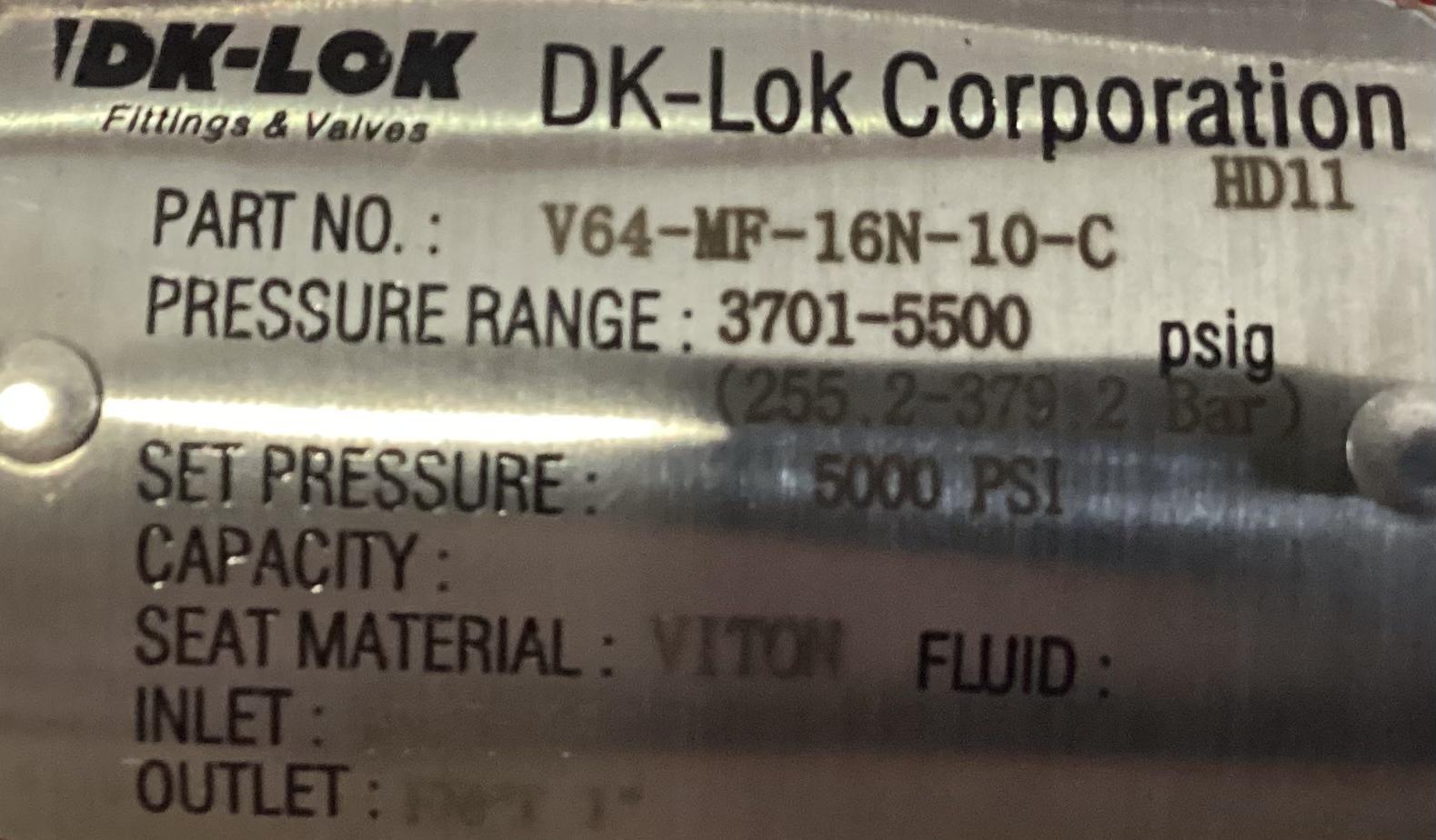

| Stock Number | V64-MF-16N-10-C |
| Valve Size (in.) | 1x1 |
| Connection Type | MNPT x FNPT |
| Set Pressure (psi) | 5000 |
| Capacity (scfm) | 13541 |
| Notes | New Surplus |
| Origin Code | OC01 |
| Warehouse Location | PA1A2 |
| Subcategory 2 | Relief |
