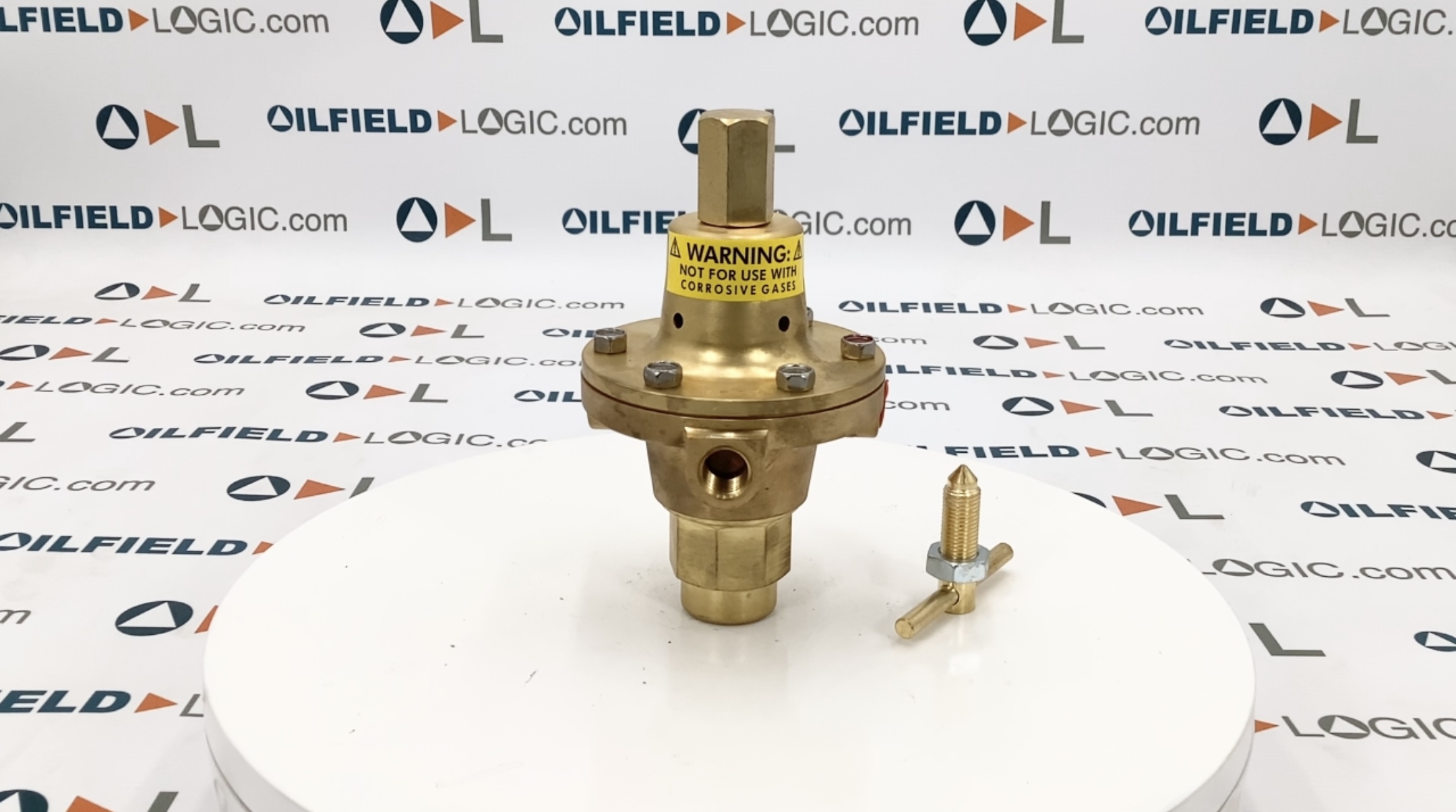

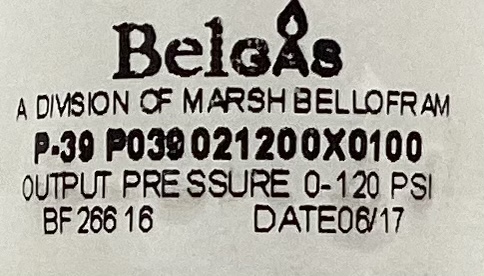

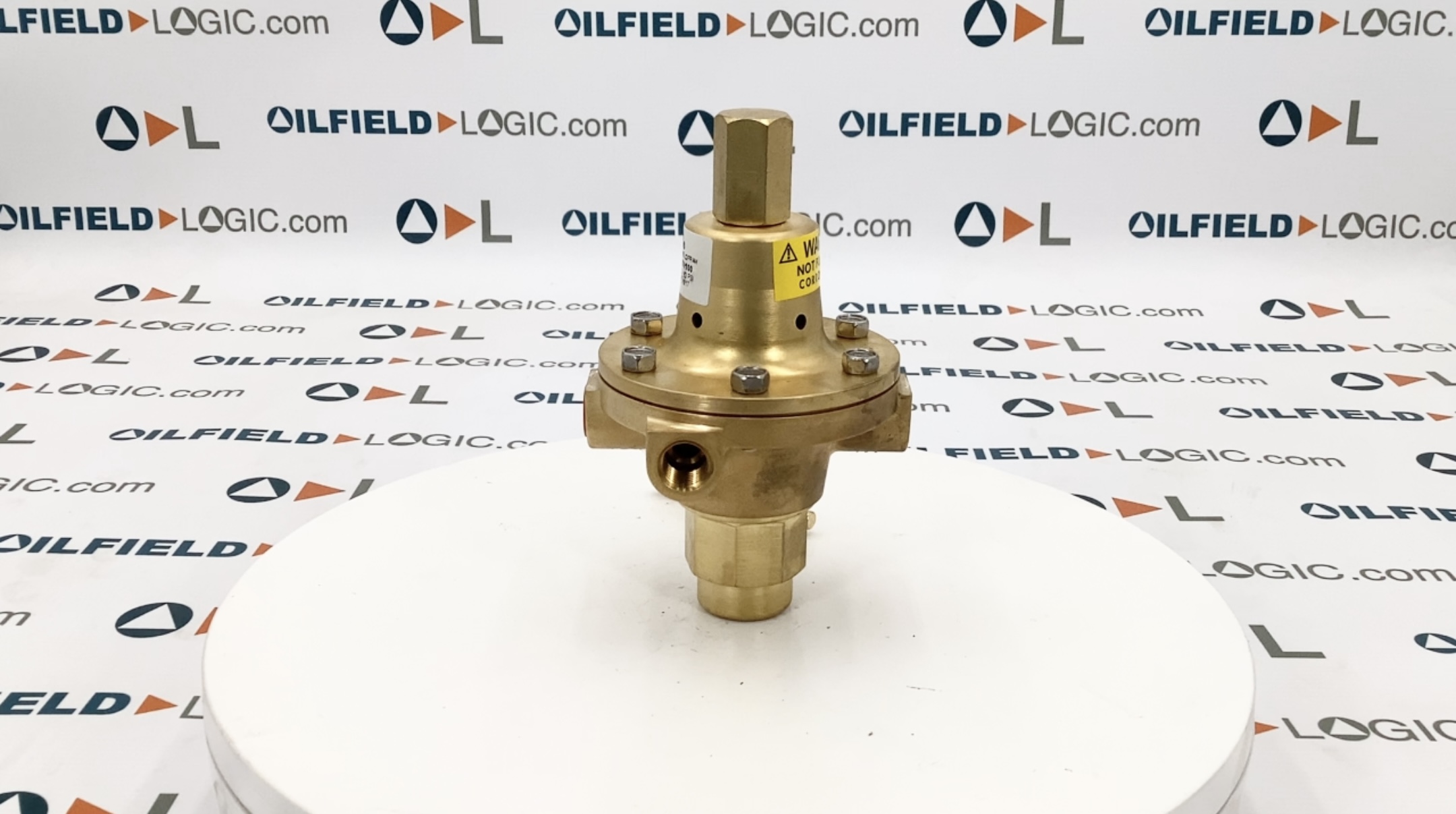

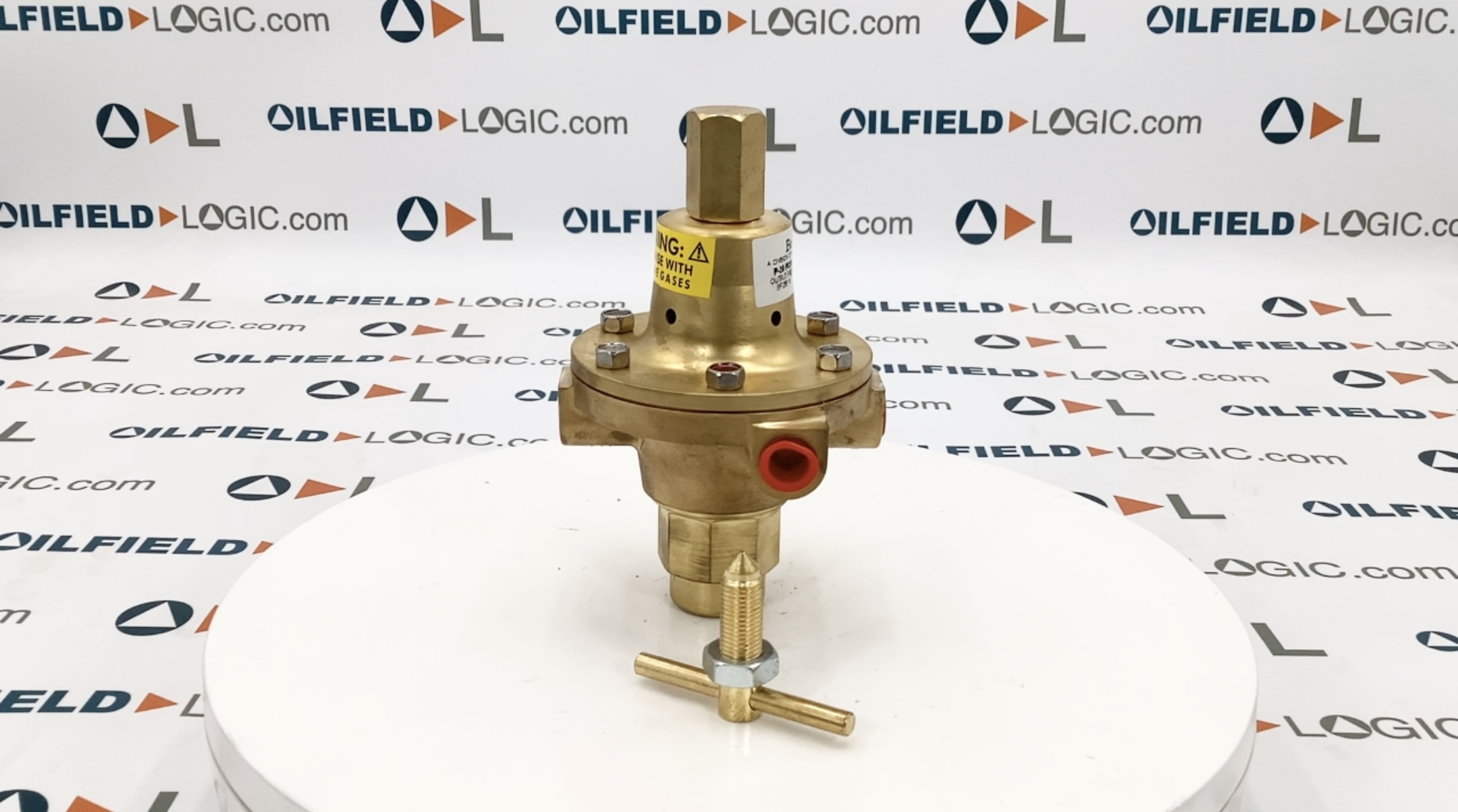

Regulator, Belgas, 1/4", 0-120#

The BelGAS P39 gas pressure regulator has the industry’s largest selection of outlet pressures. Units are offered with a choice of three different seat materials, allowing the user to meet unique application requirements. In addition, our broad selection of six different outlet pressure spring ranges allows for more precise regulation of downstream pressure for better process control. Piping designs can be simplified by using any one (or all) of the regulator’s three standard outlet ports.

Features:

• Industry’s largest selection of outlet pressures
• Only regulator of its type with three outlet ports
• Four-seat valve disk block with 90° rotation capabilities
• Choice of easily interchanged tamper-resistant or T-handle adjustment
• Optional tapped vent on bonnet
• Stainless steel version (P39SS) is compliant with NACE MR0175
• Choice of seat materials allows users to meet unique application requirements

Applications:

• First Cut of High-Pressure Natural Gas to Control Valve Supply
• Natural Gas Instrumentation Columns
• First Cuts to Any Downstream, Low Flow Application, such as: Catalytic Heaters, Valve Actuators, Pressure Controllers, Chemical Injection Pumps
