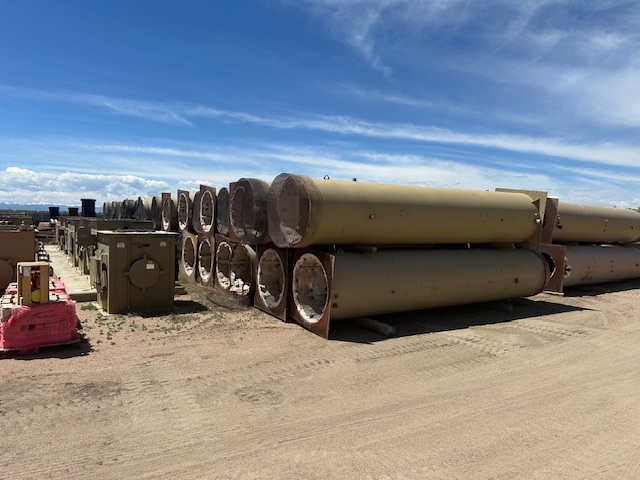

Combustor / Flare, 48"x25', 11.7 MMBtu/hr
Combustor / Flare, 48"x25', 11.7 MMBtu/hr
$7,188 (USD)
Location:Colorado
Available quantity:10
orCall 1 (844) 564-4237
Description
- Model 1: 48” HV ECD
- Max Flow Rate: 109.0 MSCFD
- Min Flow Rate: 13.7 MSCFD
- Max Heat Release: 11.7 MMBtu/hr
- Inlet Pressure Range: 1 to 16 oz/in2
- Pilot fuel required: 5-7 psig
- Pilot fuel consumption: 14-17 SCFH
- Stack Temperature: 500-1200 Deg F
- Turndown ratio: 8 : 1
- VOC destruction efficiency: Min. 95 DRE (98 DRE Avail.)
- Dimensions: 56″ square base x 25′ high
Application:
Oil and gas tank vapor management
Specifications
Manufacturer | Cimarron Energy |
Model | 11.7 MMbtu/hr |
Year | 2013 |
Condition | Used |
Serial Number | 5902095 |
Stock Number | 5902095 |
Stack Diameter (in.) | 48 |
Max Flow Rate (mscfd) | 109 |
Min Flow Rate (mscfd) | 13.7 |
Max Heat Release (mmbtu/hr) | 11.7 |
Inlet Pressure Range (oz.) | 1-16 |
Turndown | 8:1 |
Work Recently Performed | None |
Wear and Tear | Stack insulation likely needs repaired or replaced |
Test | None |
Notes | Combustor consists of a base and stack. Refurb service is available; please inquire for quote. |
Origin code | OC03 |
