Sand Trap, Gravity, 28"x8', 5000#
Sand Trap, Gravity, 28"x8', 5000#
$12,000 (USD)
Ask Us About Our Leasing Options!
Location:Pennsylvania
Description

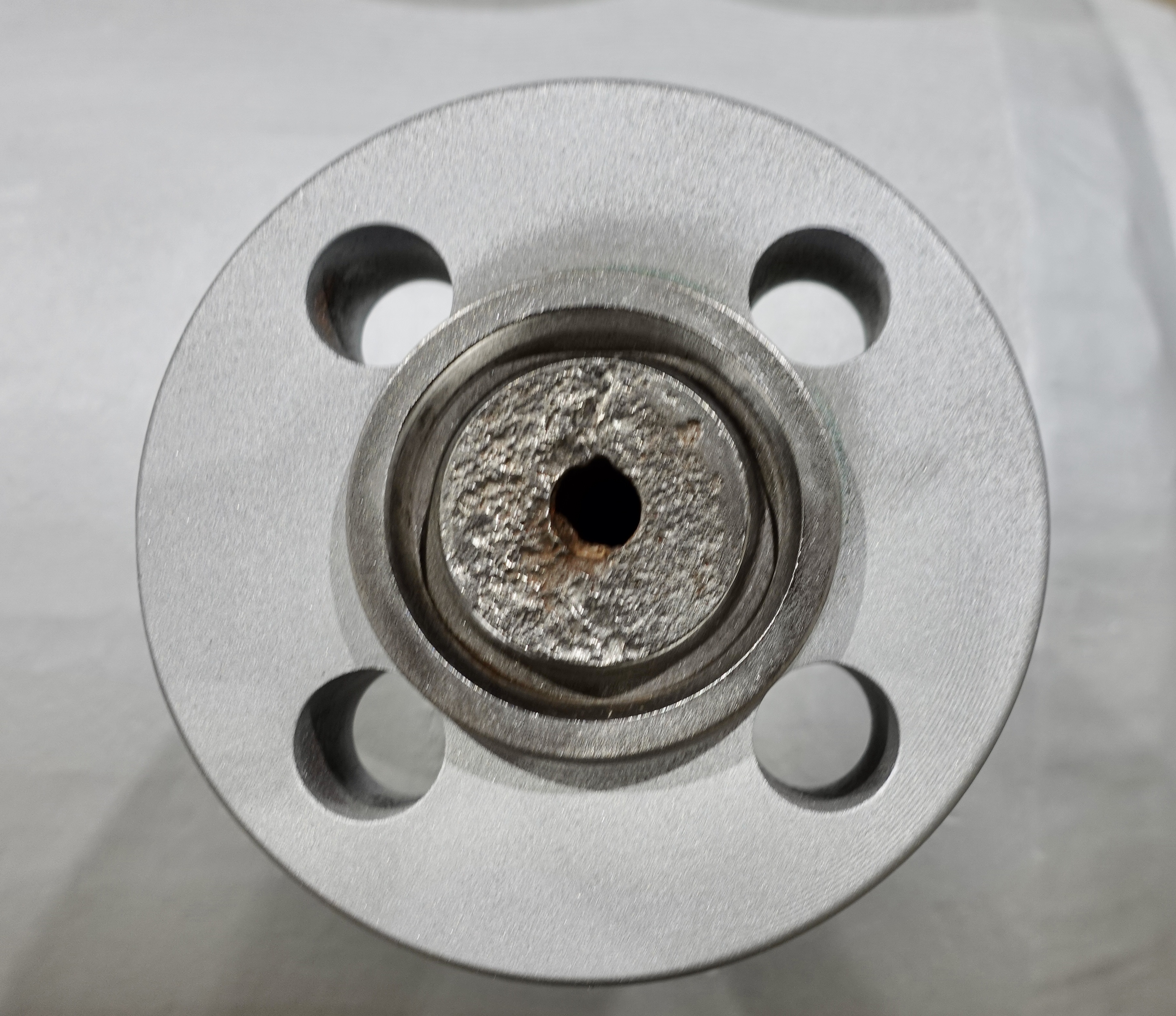

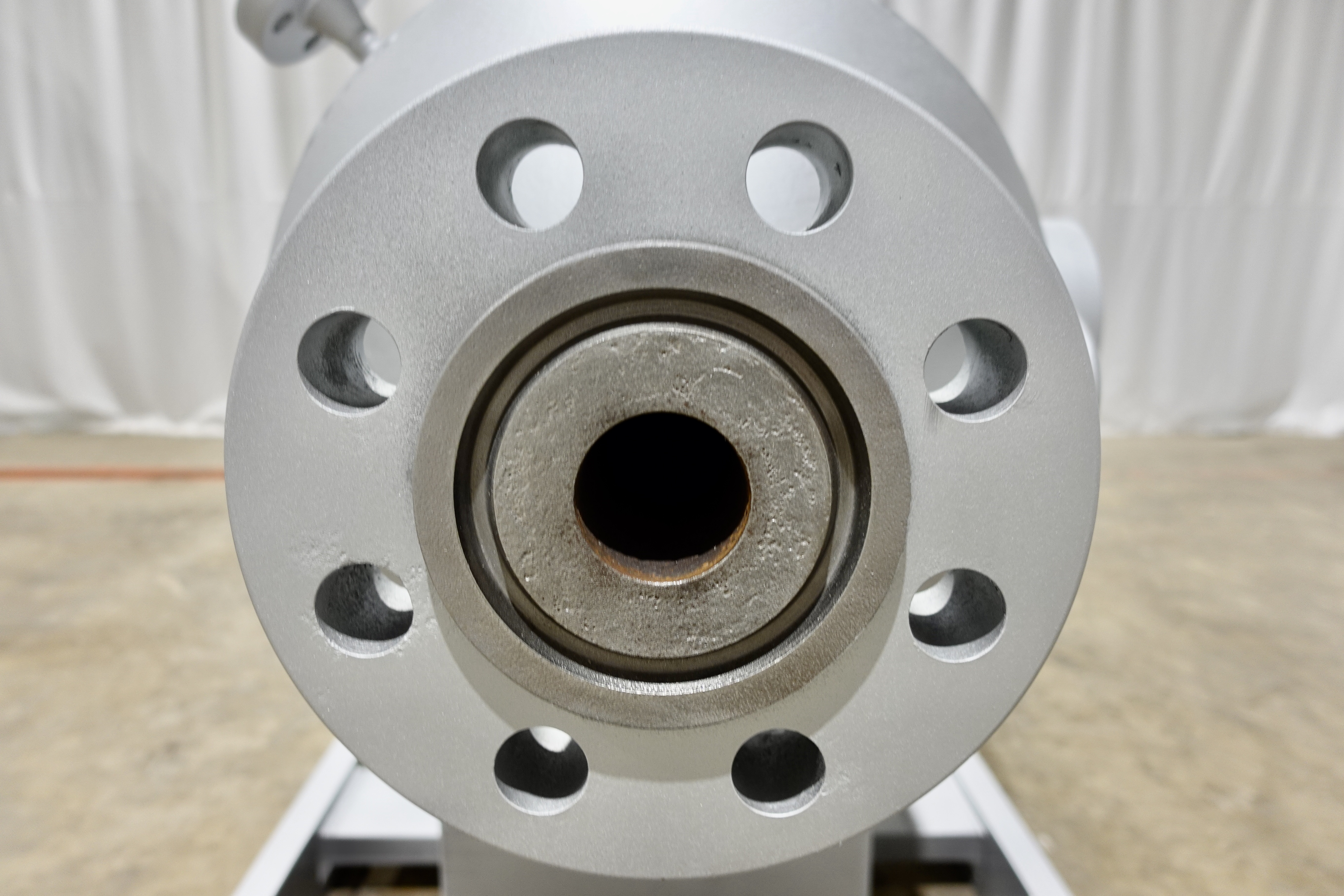

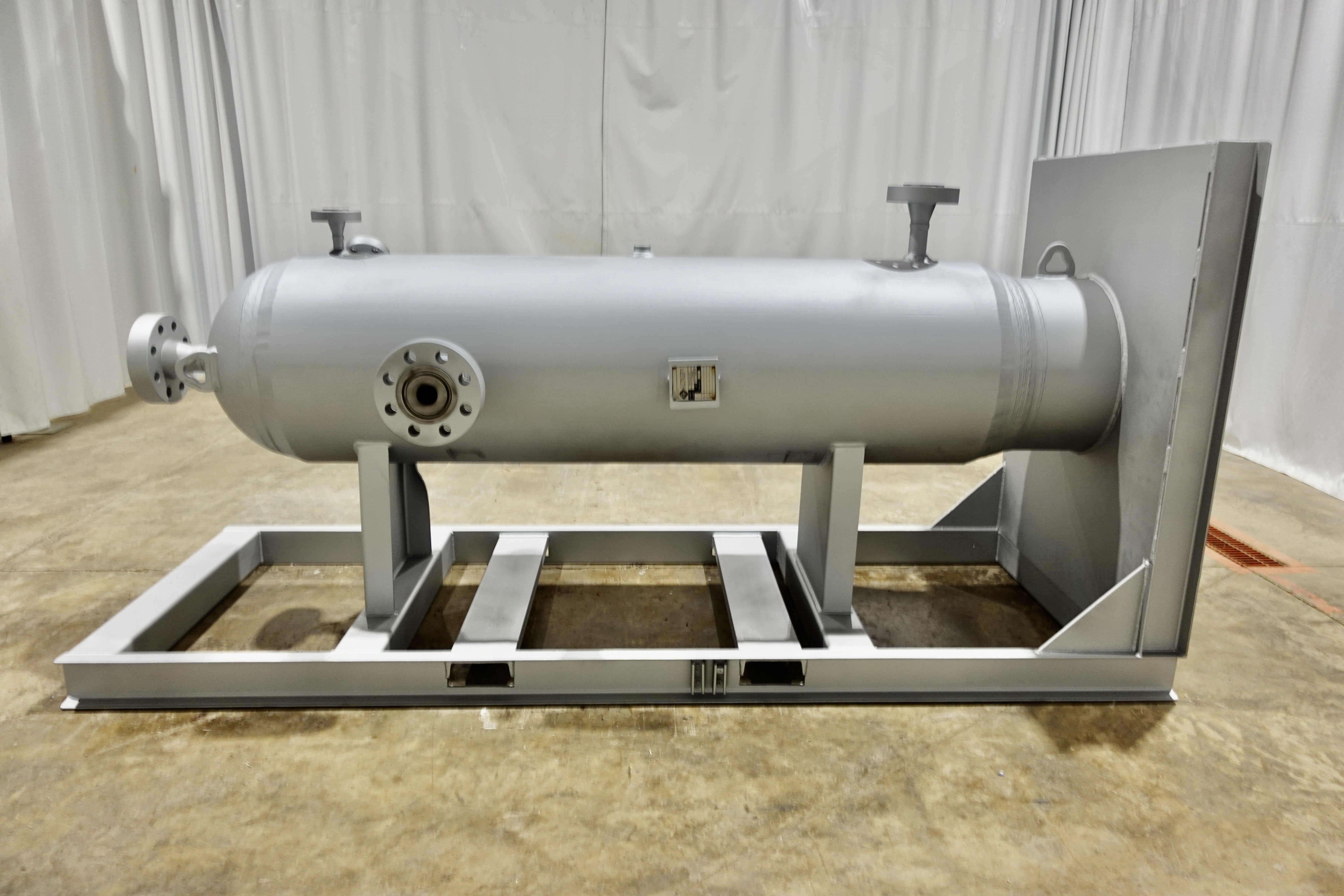

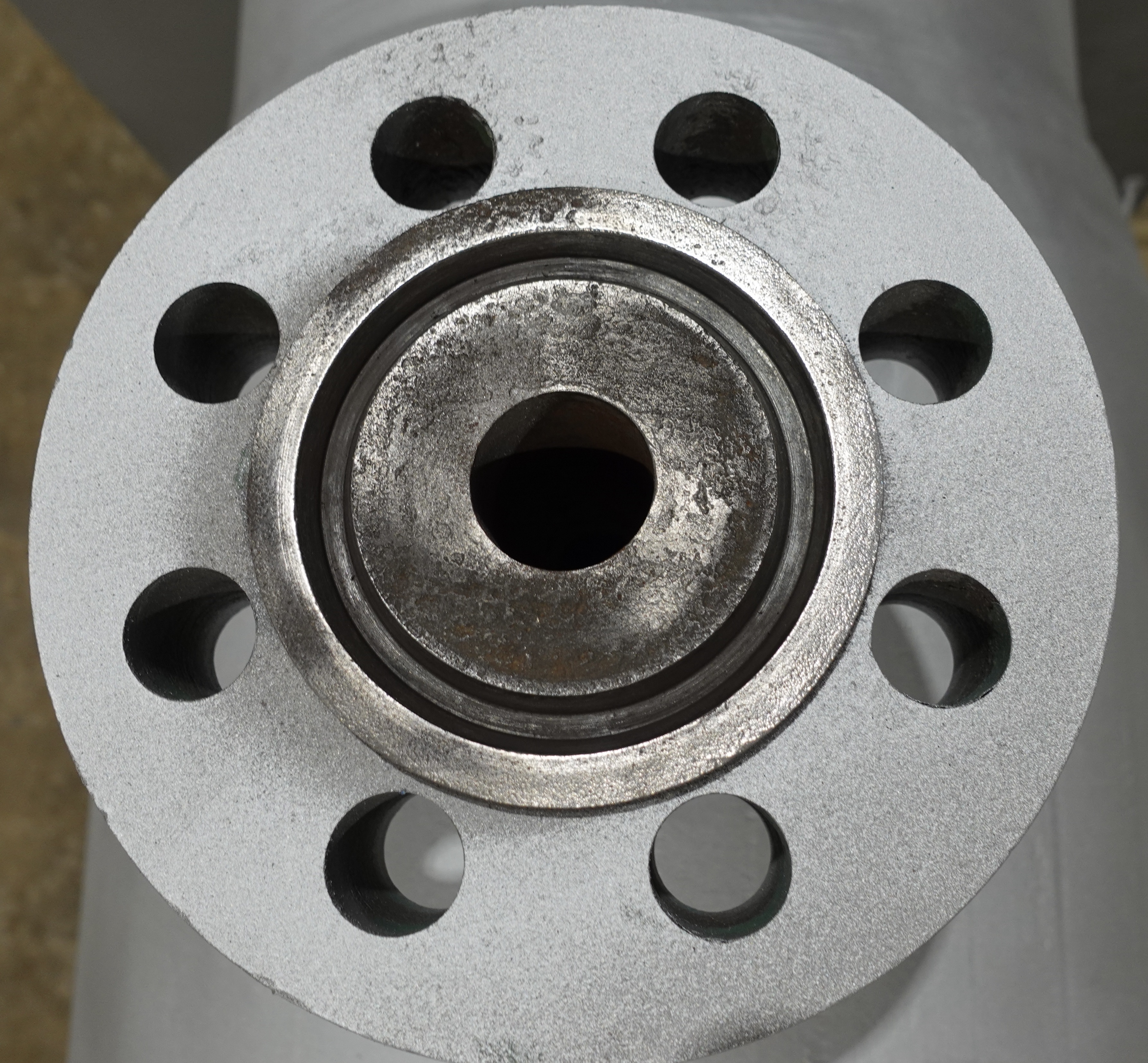

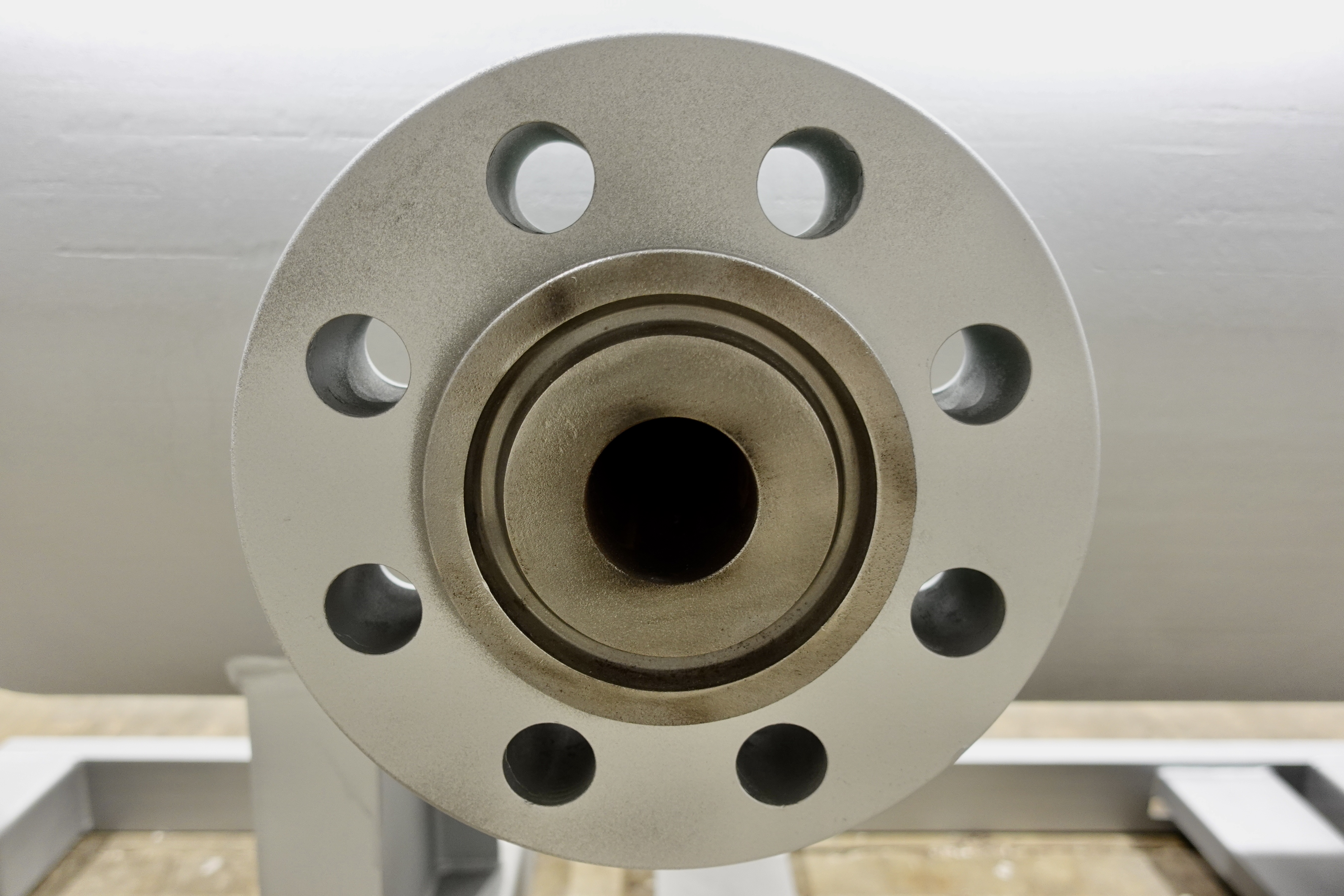

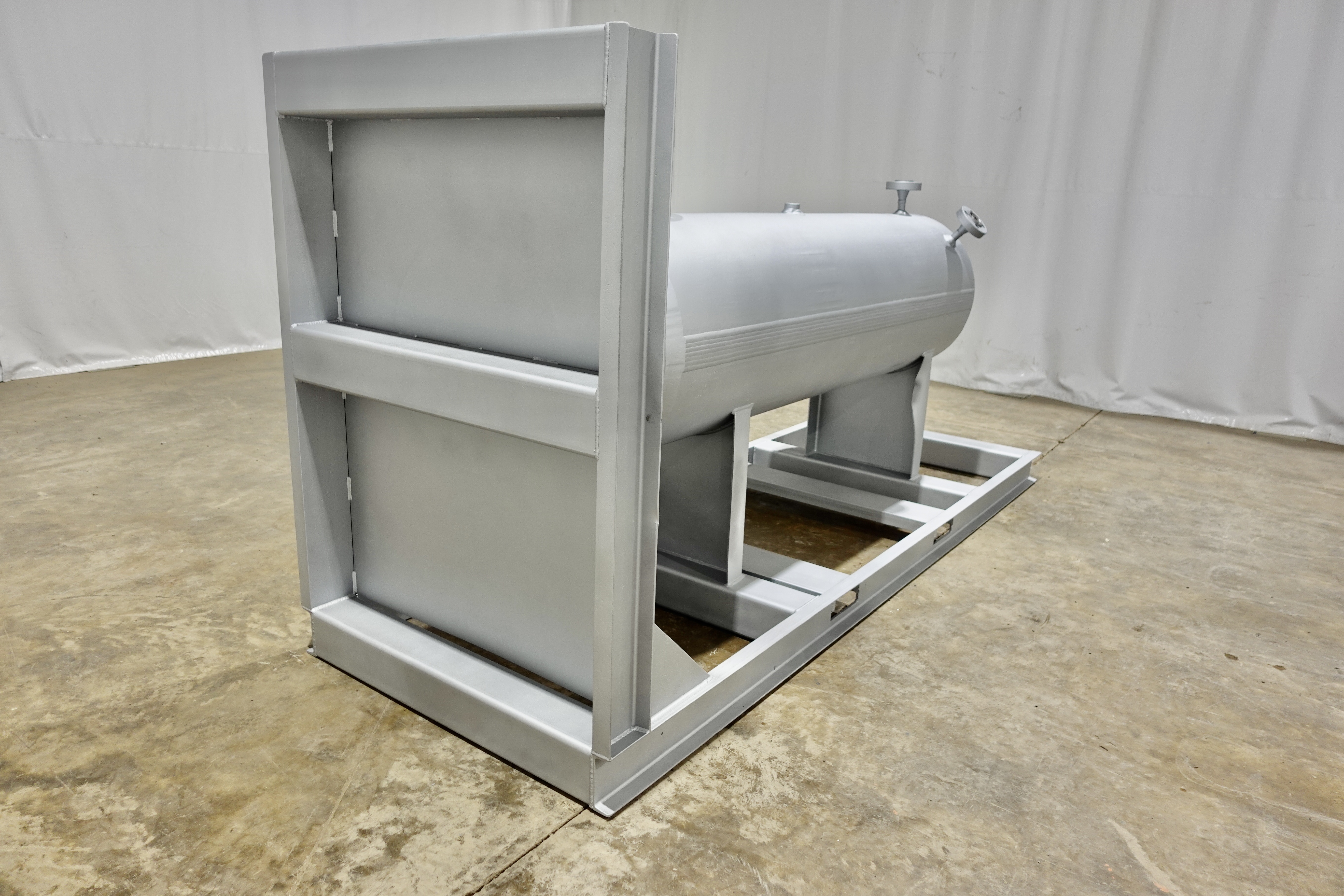

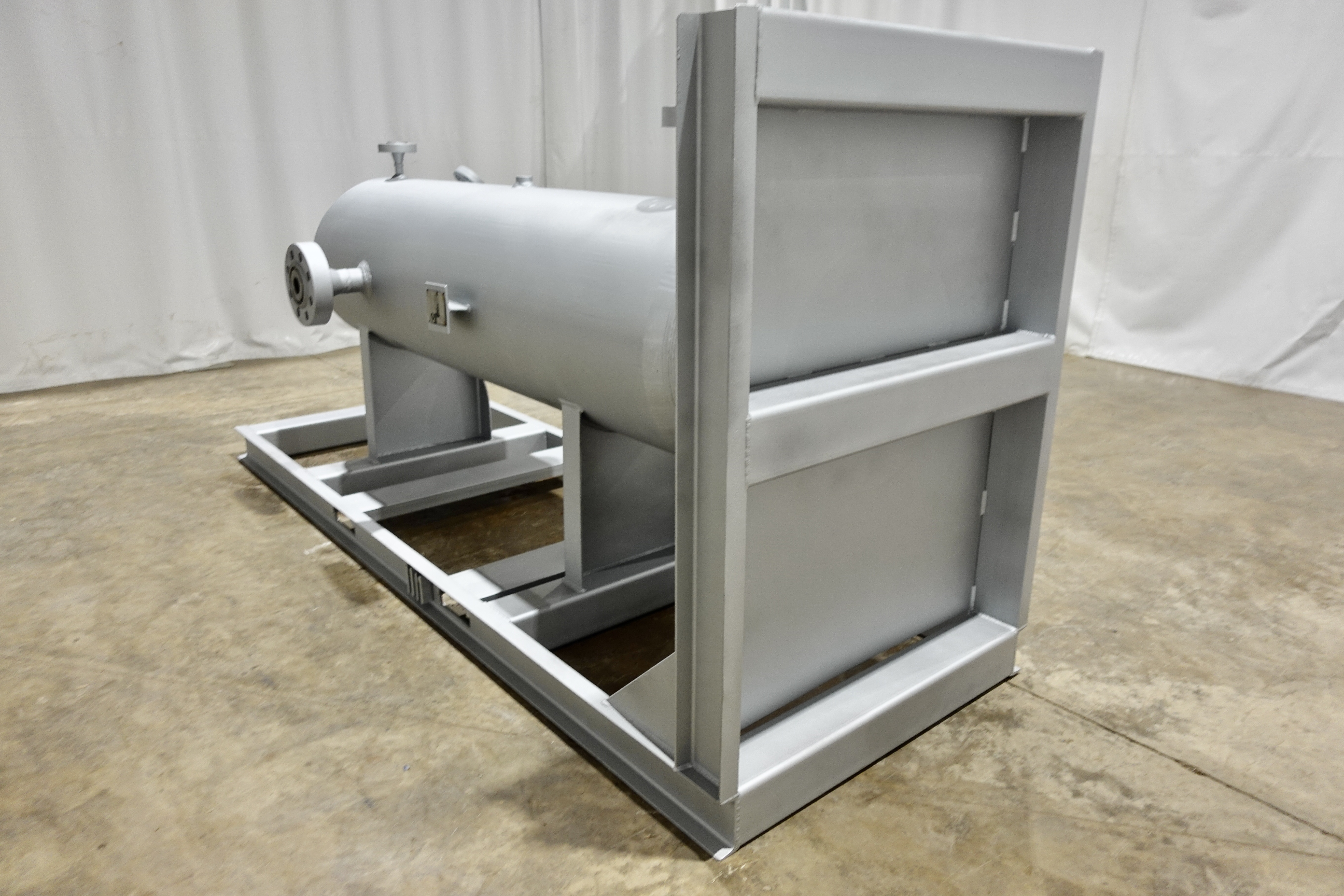

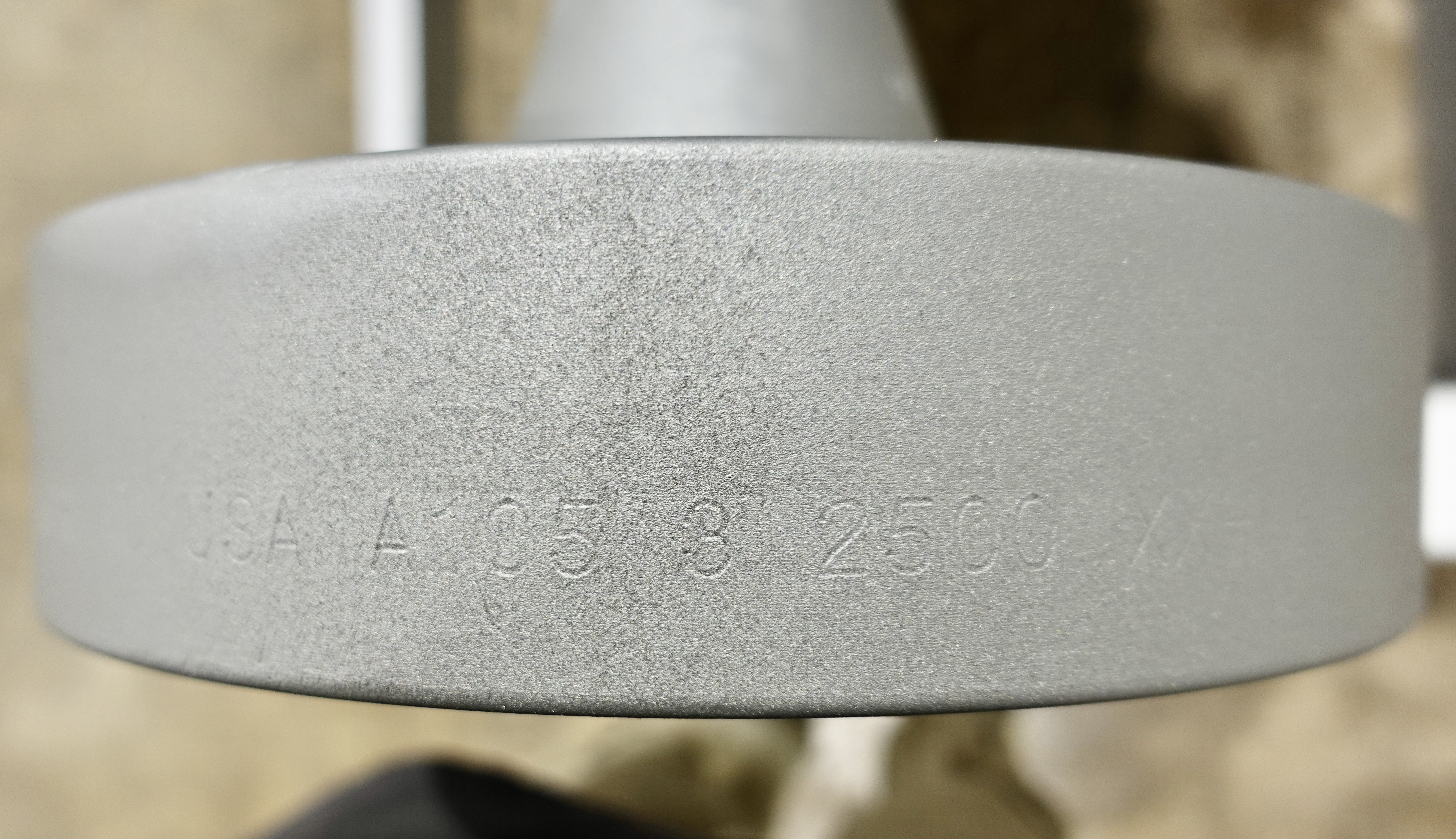

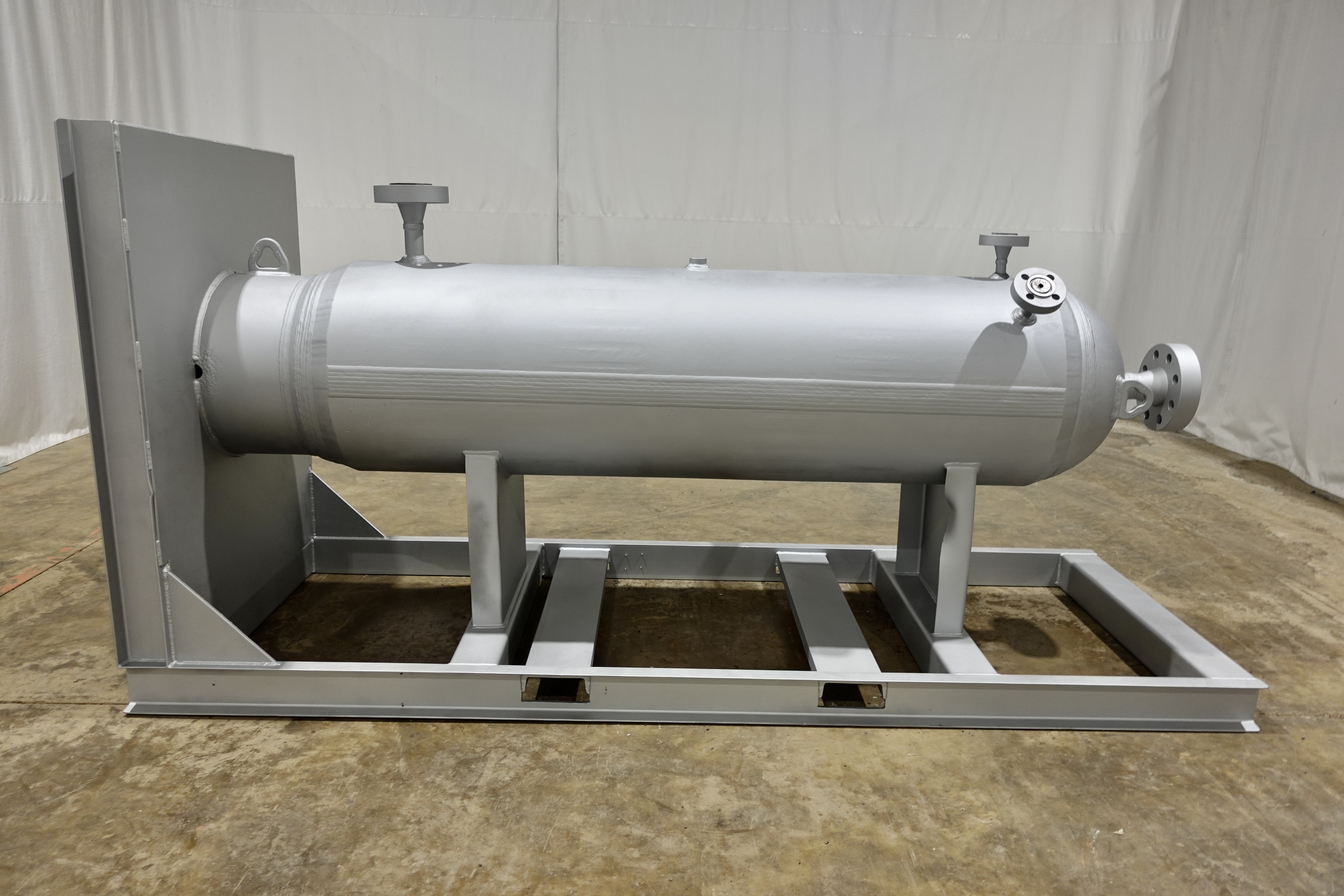

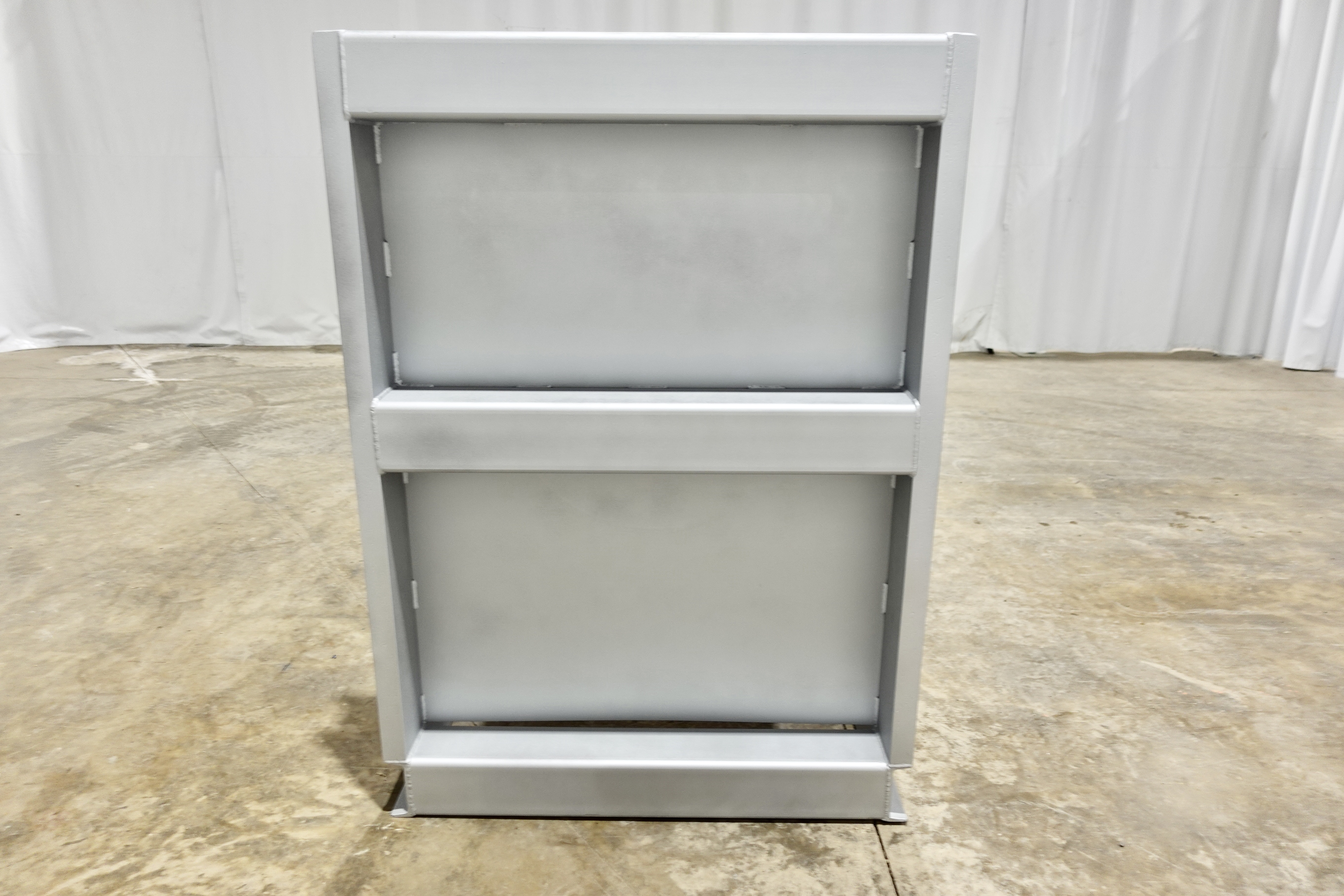

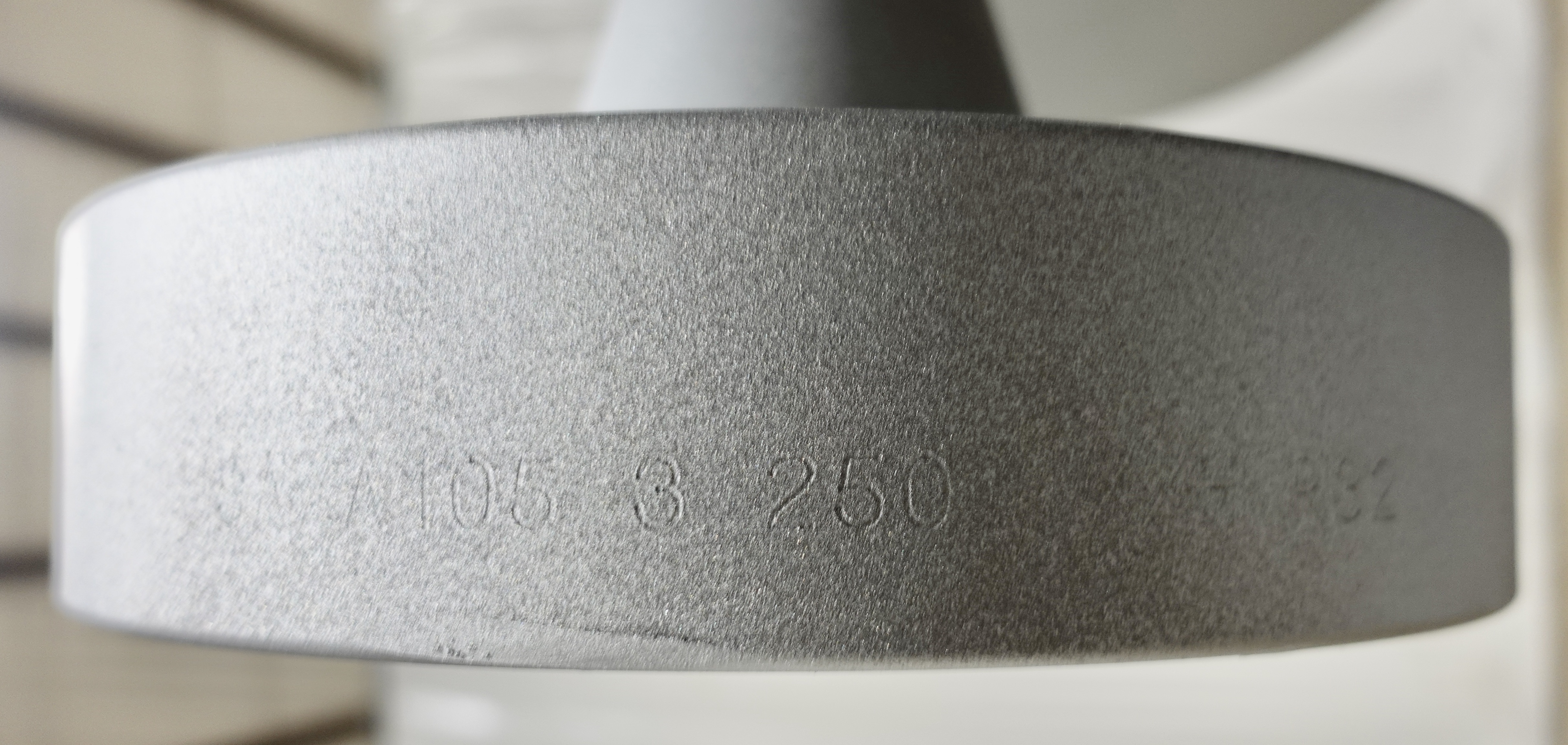

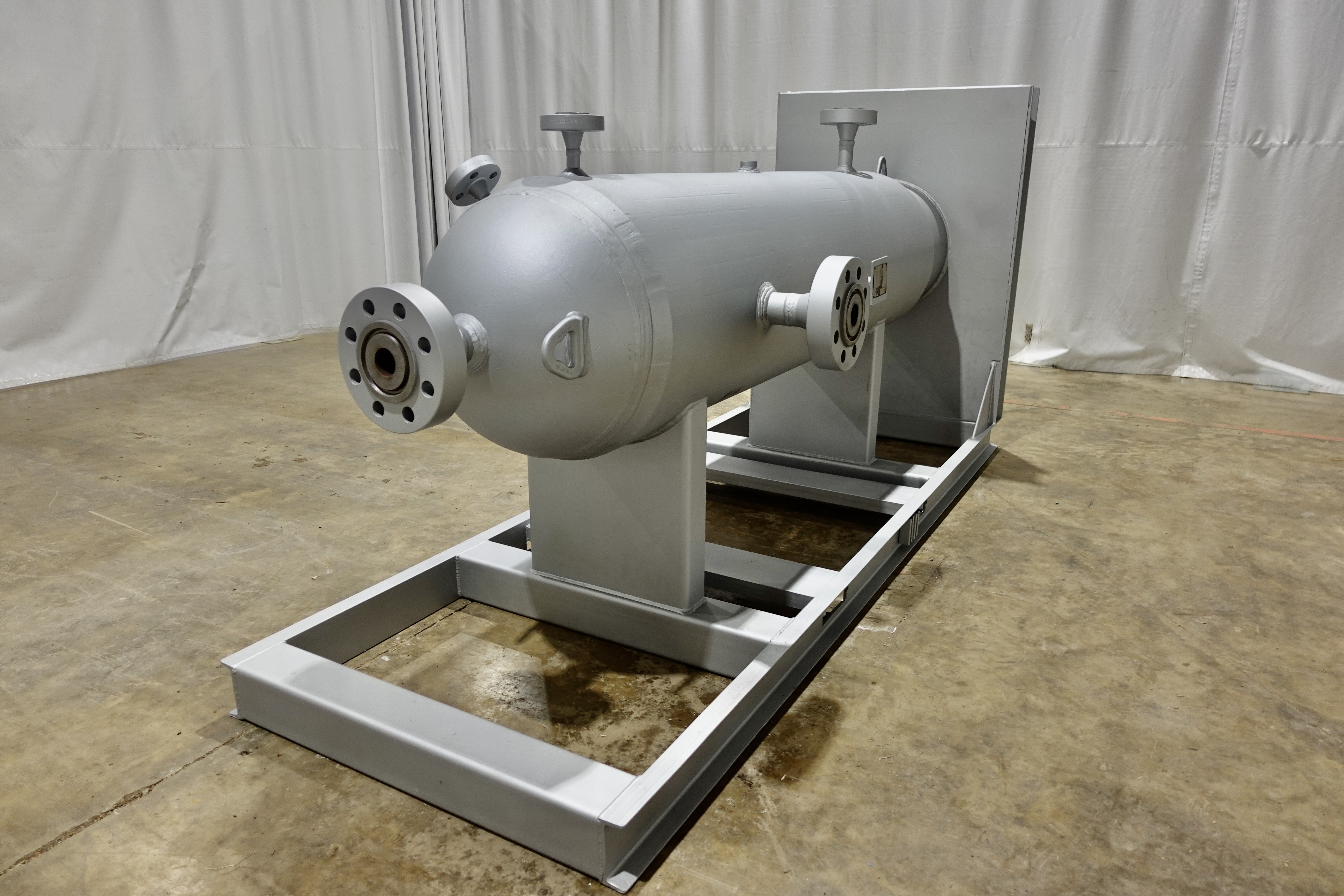

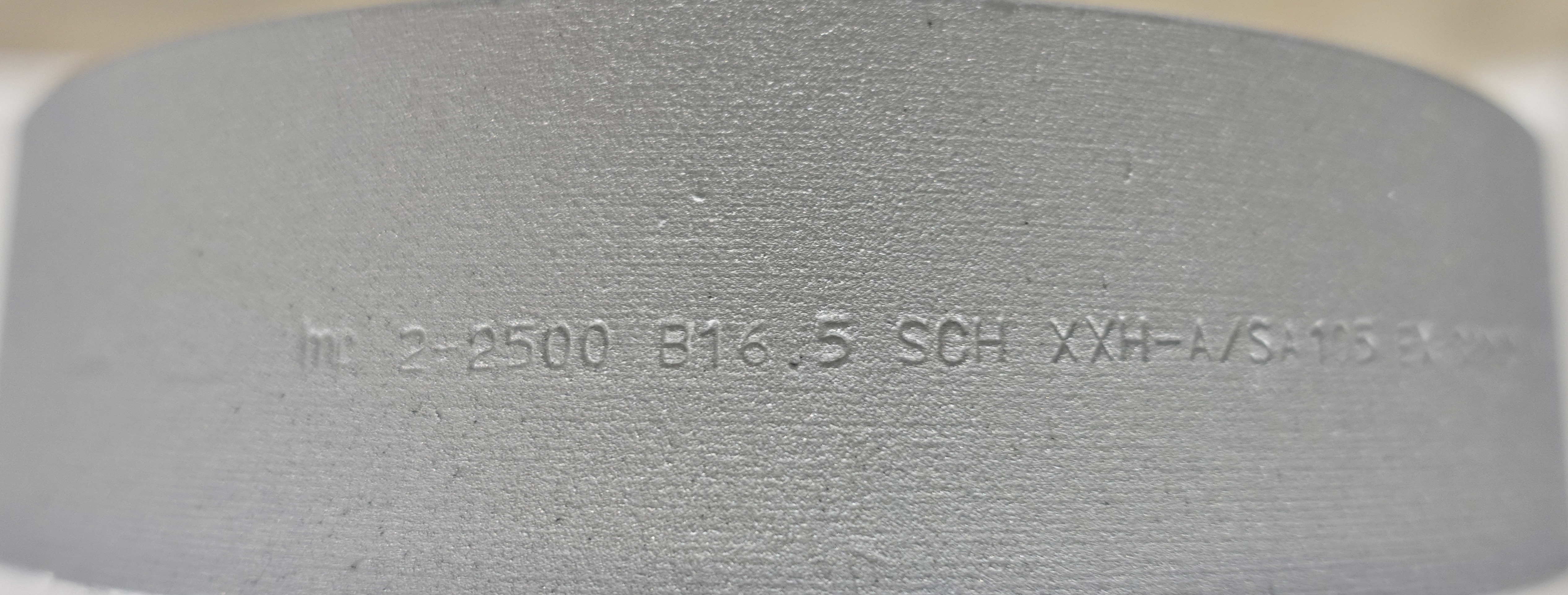

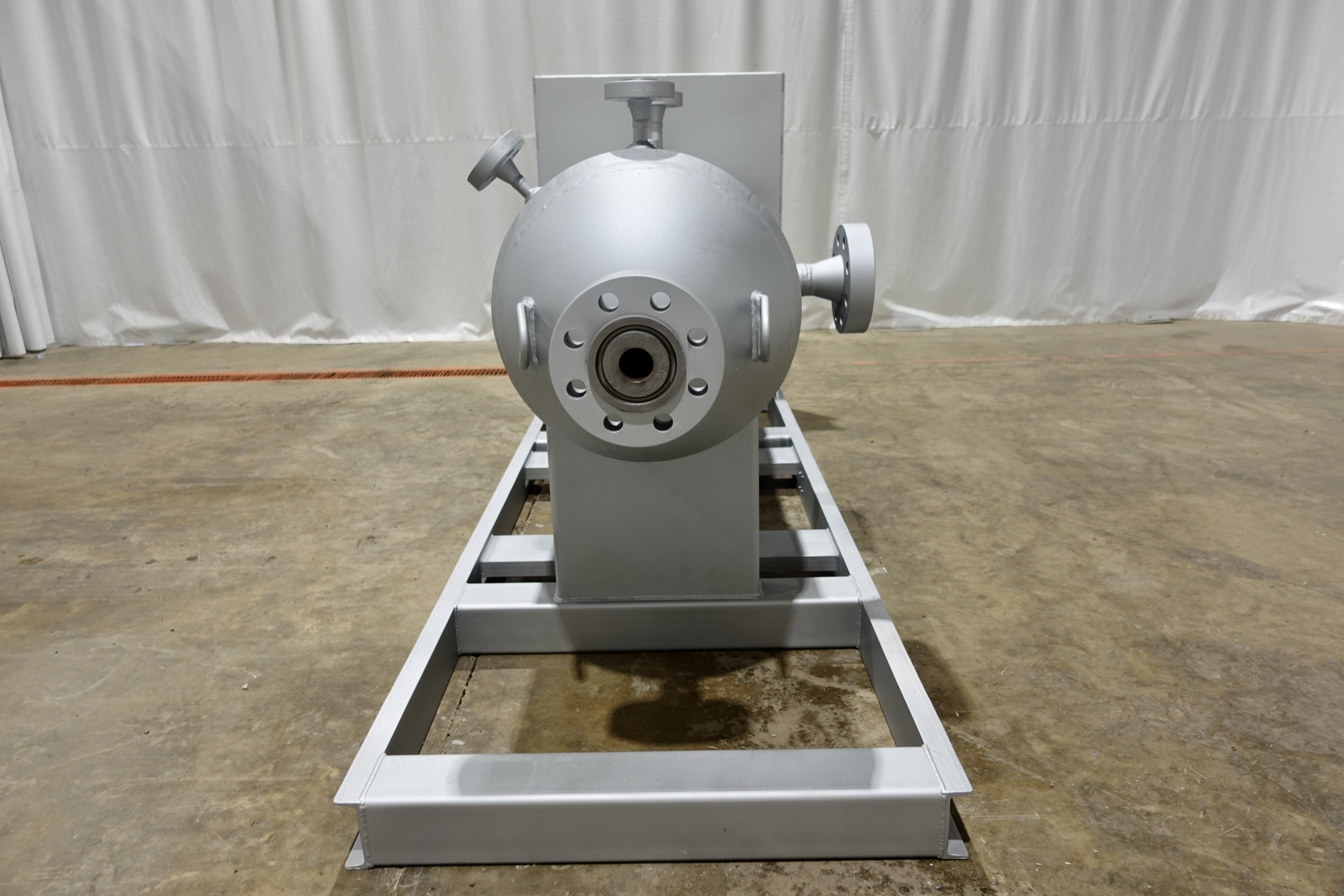

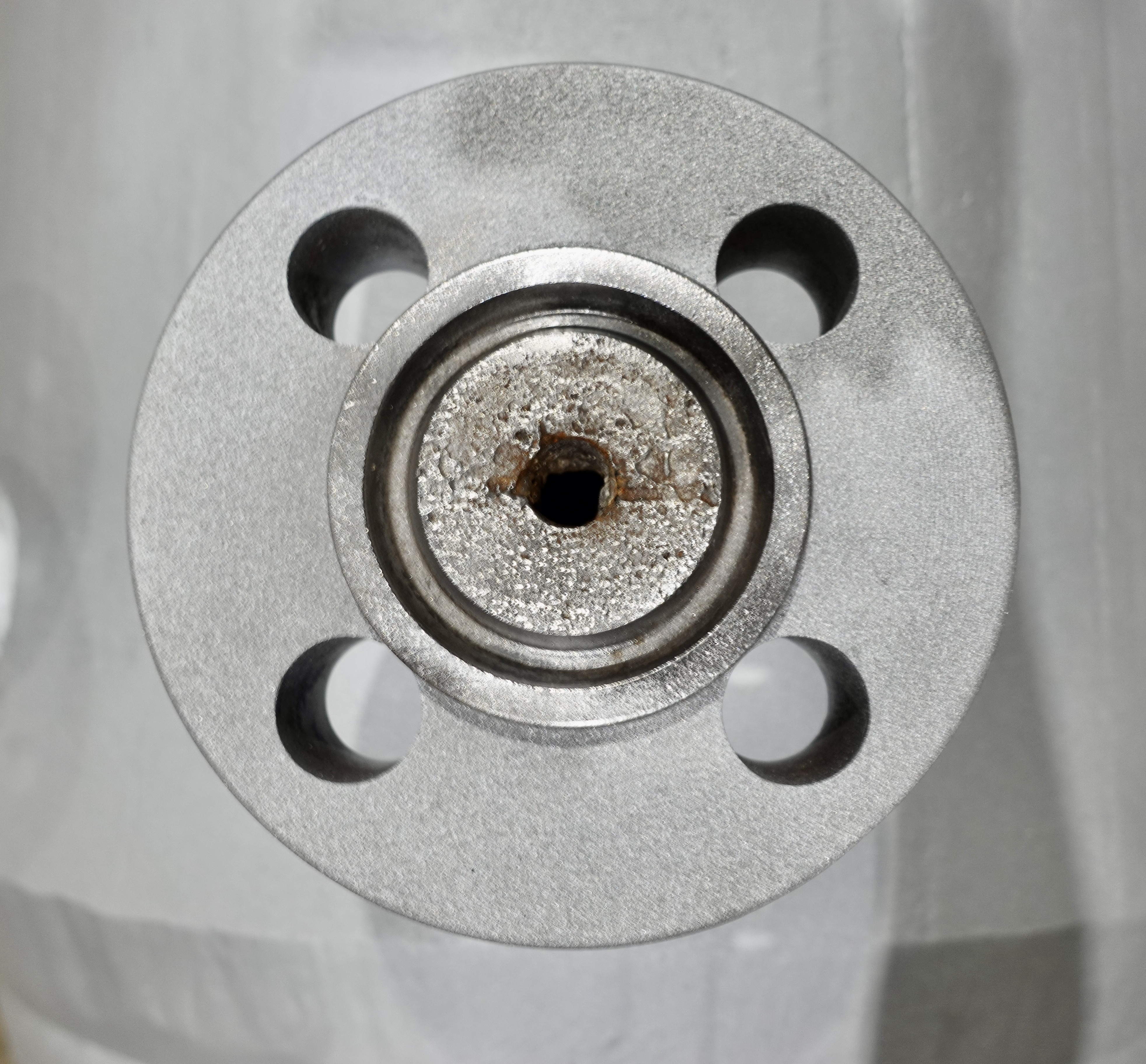

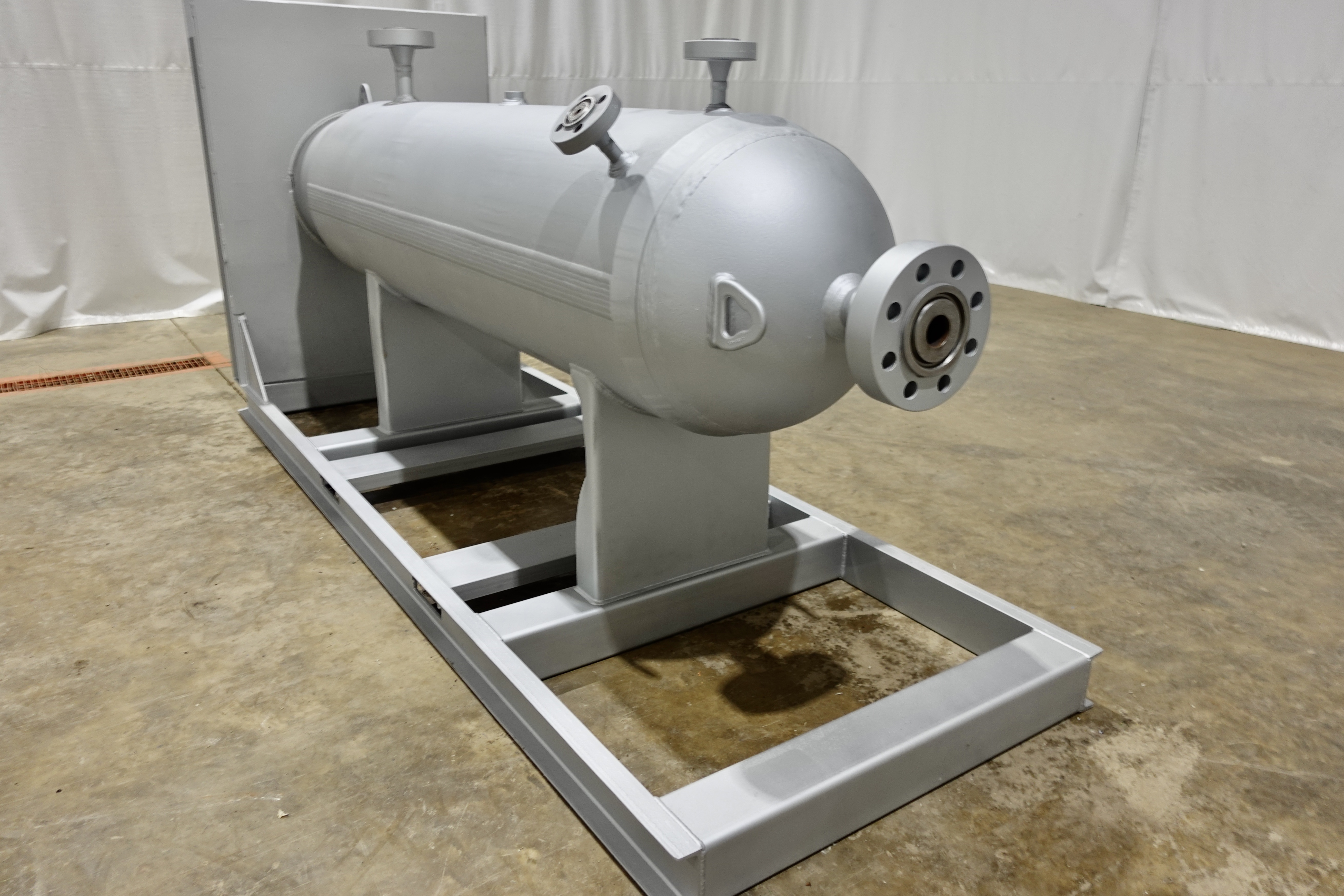

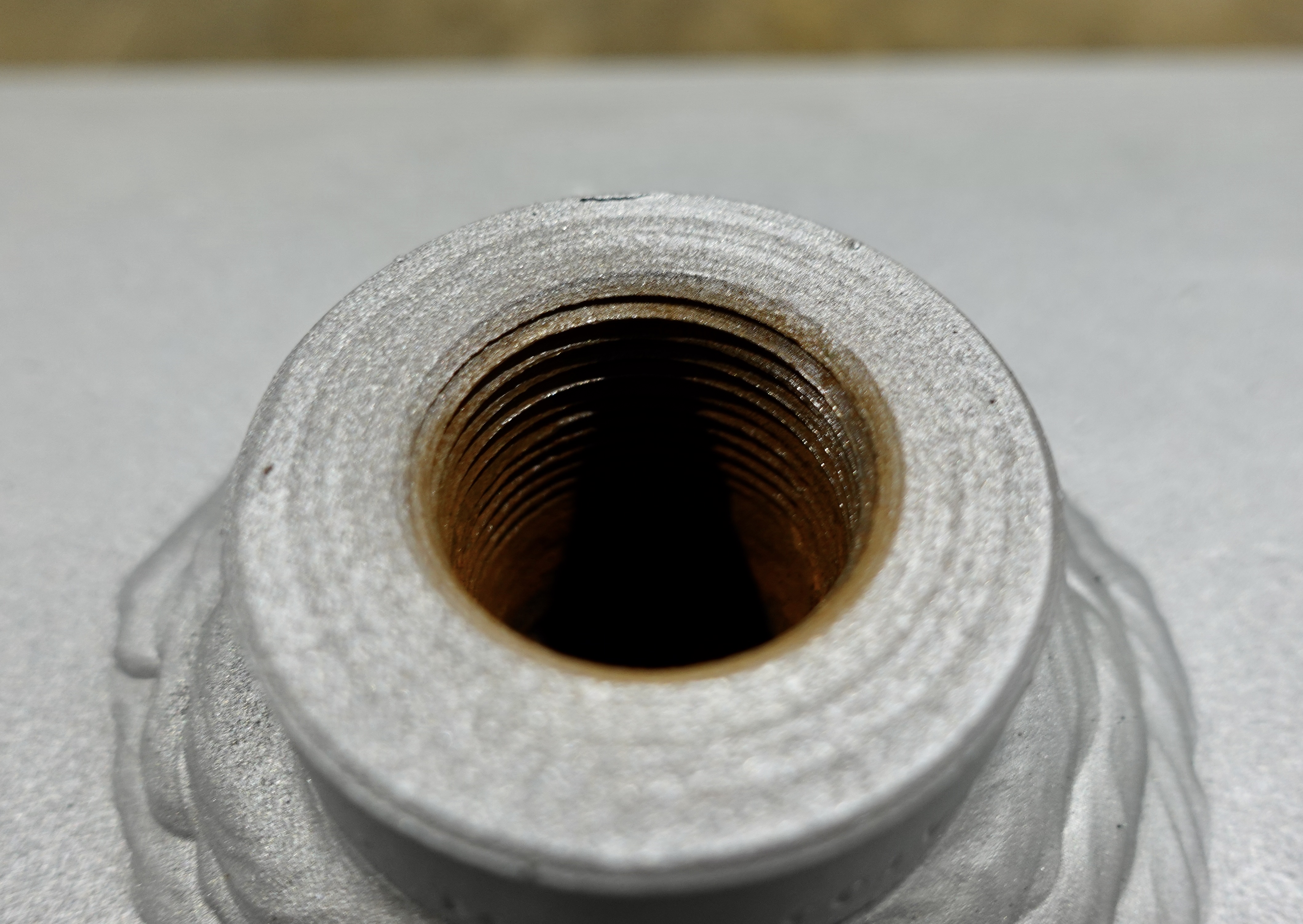

28"x8' 5000 psi Gravity Sand Trap mounted to an L-Skid. Inlet and Outlet are flanged 3" 2500 RTJ with a 2" 2500 RTJ drain port, (1) 1" accessory port and (2) 1" 2500 PRV port. Unit has been recently steam flushed, UT tested, Sandblasted, and primed with an industrial rust inhibitor.
Call us at 844-564-4237 to schedule a walk through at our yard.
Ask us about additional services we offer to get this unit ready for your use. We can perform any level of modification to make the process easy and seamless, or ship as-is anywhere in the world.
Specifications
| Manufacturer | CTJ Energy Solutions |
| Model | 28"x8', 5000# |
| Year | 2015 |
| Condition | Refurbished |

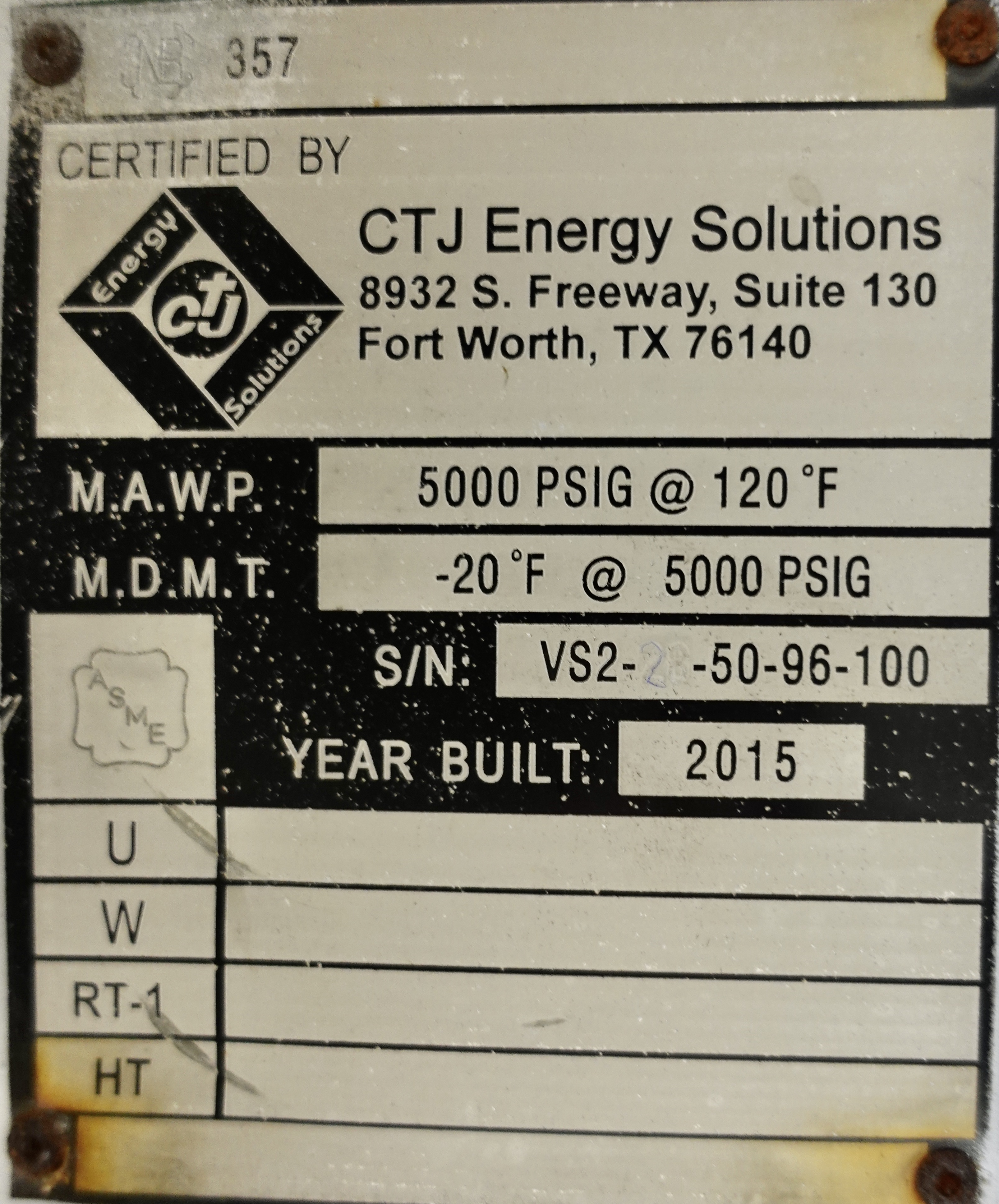

| Serial Number | VS2-28-50-96-100 |
| Stock Number | NB357 |
| Sand Trap Design Type | Gravity |
| Subcategory 2 | ASME |
| Vessel Orientation | Vertical |
| Vessel Pressure Rating (psi) | 5000 |
| Vessel Outside Diameter (in.) | 28 |
| Vessel s/s Length (in.) | 96 |
| Inlet & Outlet Diameter (in.) | 3 |

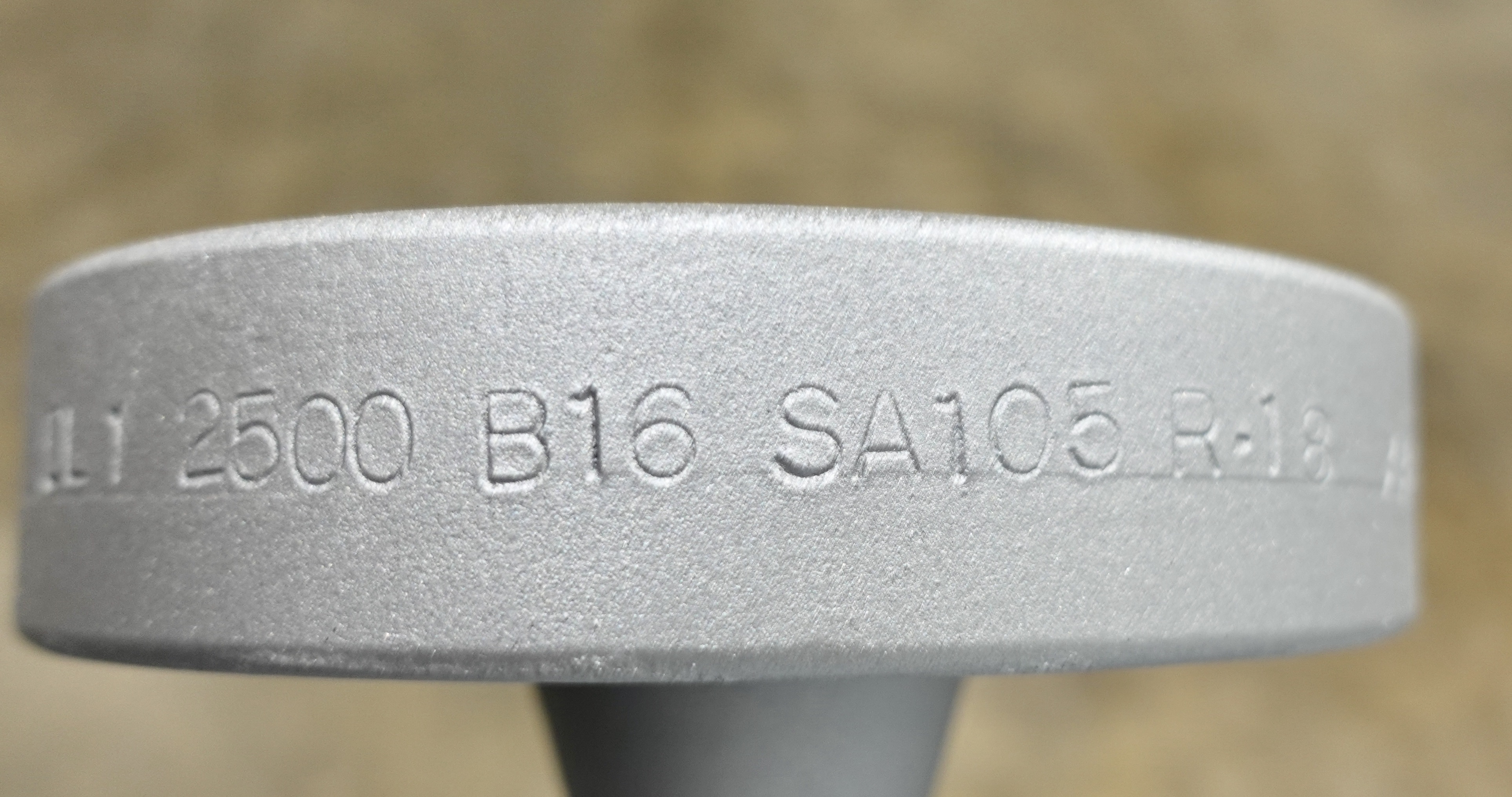

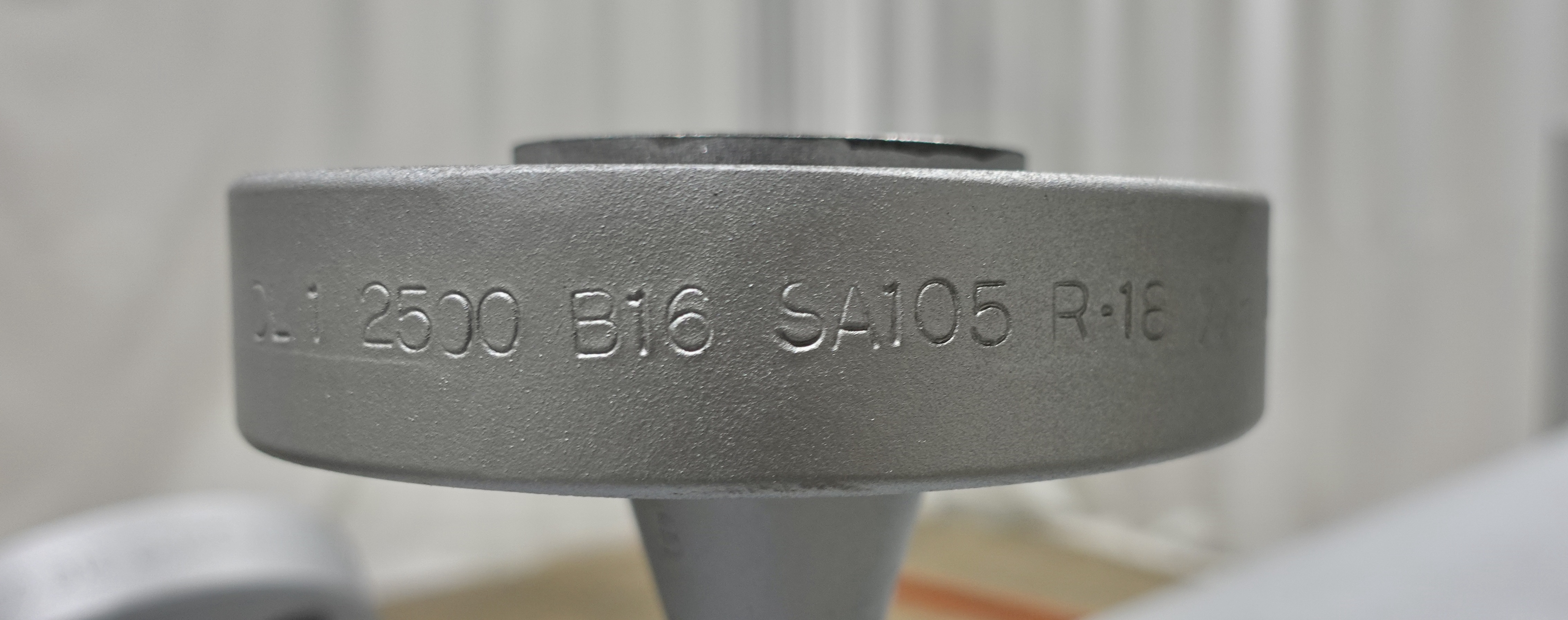

| Inlet & Outlet Connection Type | RTJ ANSI 2500 |
| PRV Connecton Type | RTJ ANSI 2500 |
| PRV Connection Size (in.) | 1 |
| Work Recently Performed | None |
| Wear and Tear | Normal |
| Test | Ultrasonic Thickness Test |
| Certification | ASME "U" |
| Notes | None |
| Origin Code | OC01 |
