Line Heater, 2.5 mmbtu, 4", 5000#
Sold
Line Heater, 2.5 mmbtu, 4", 5000#
Location:Pennsylvania
Description

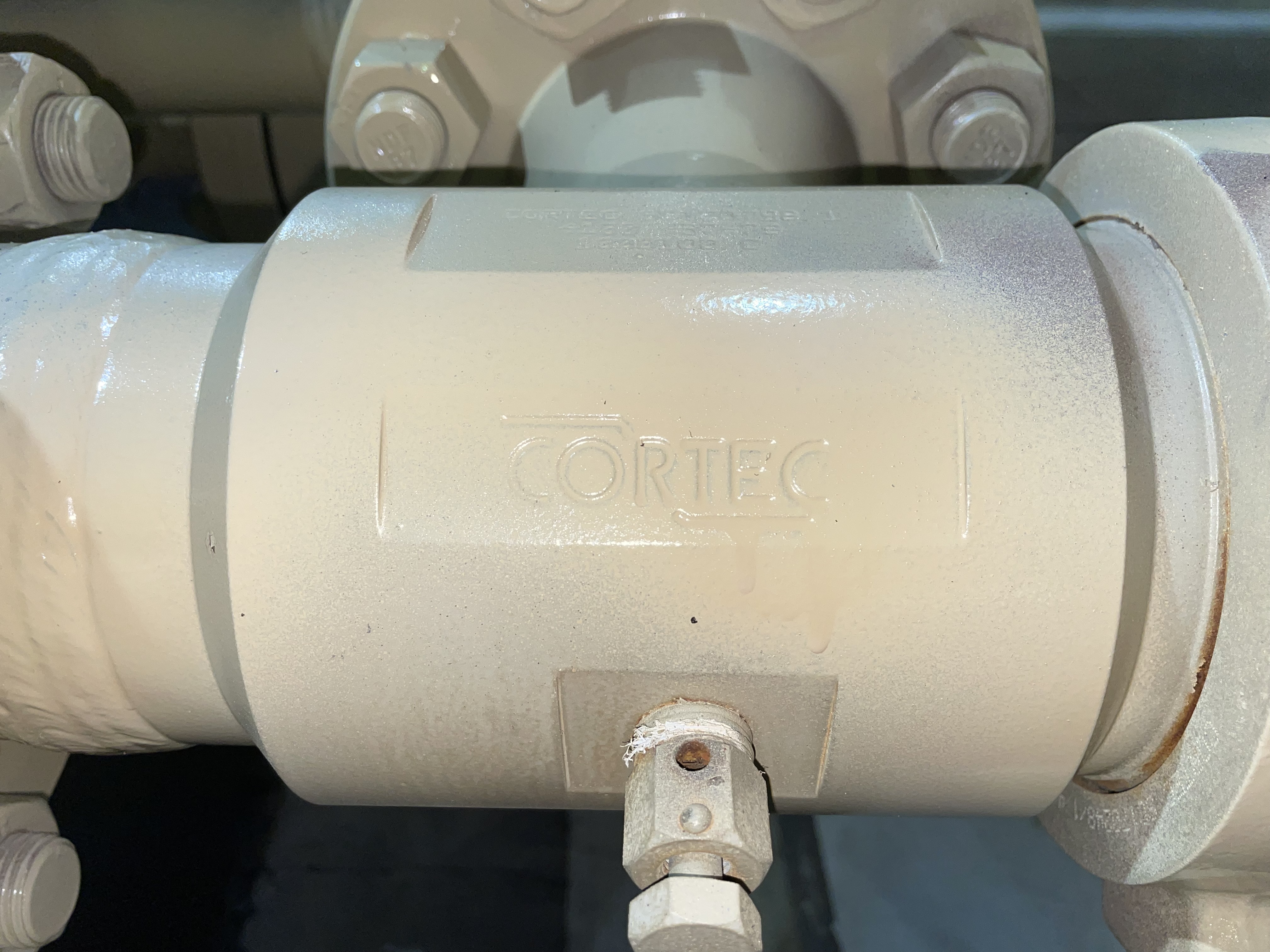

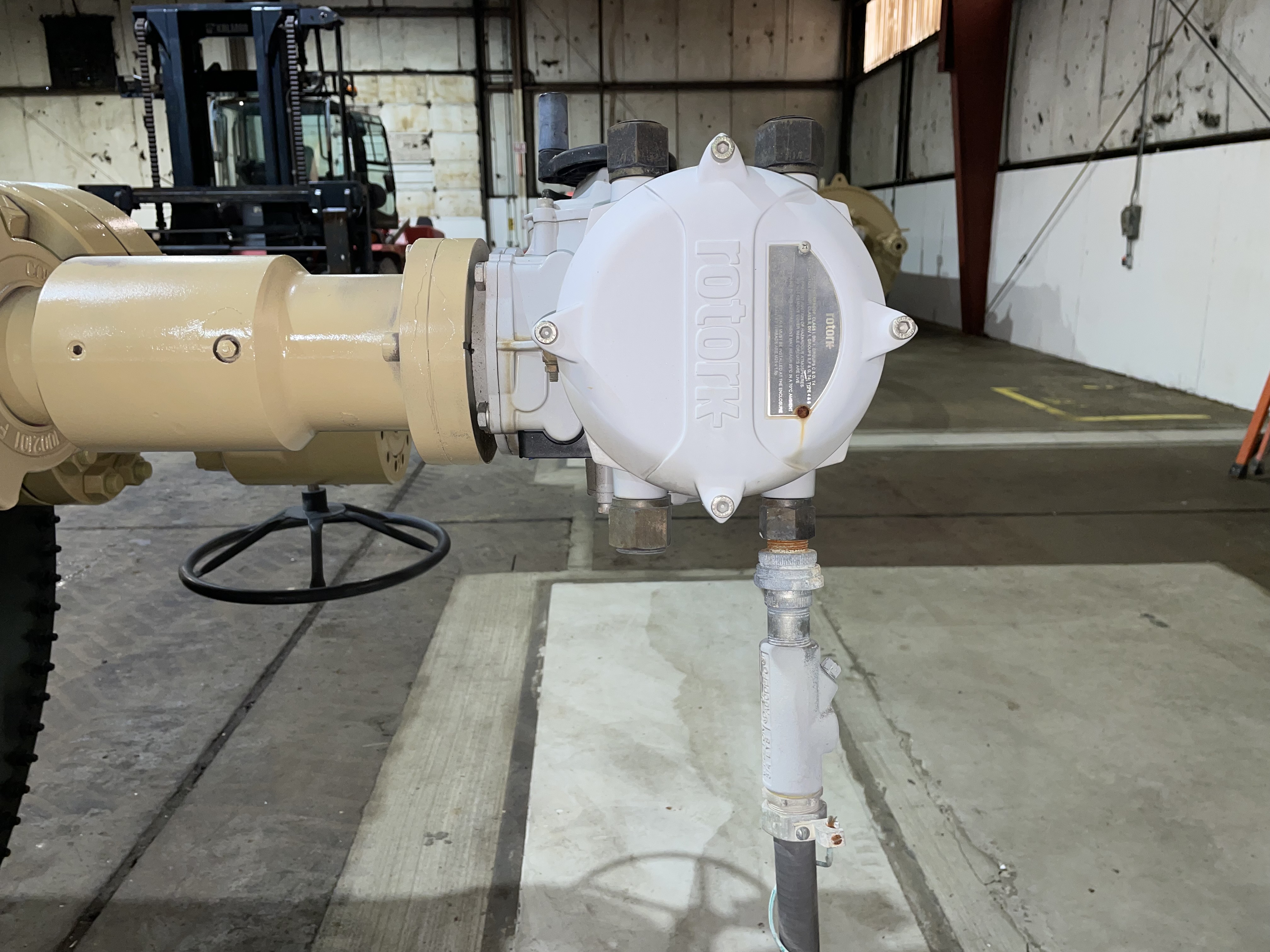

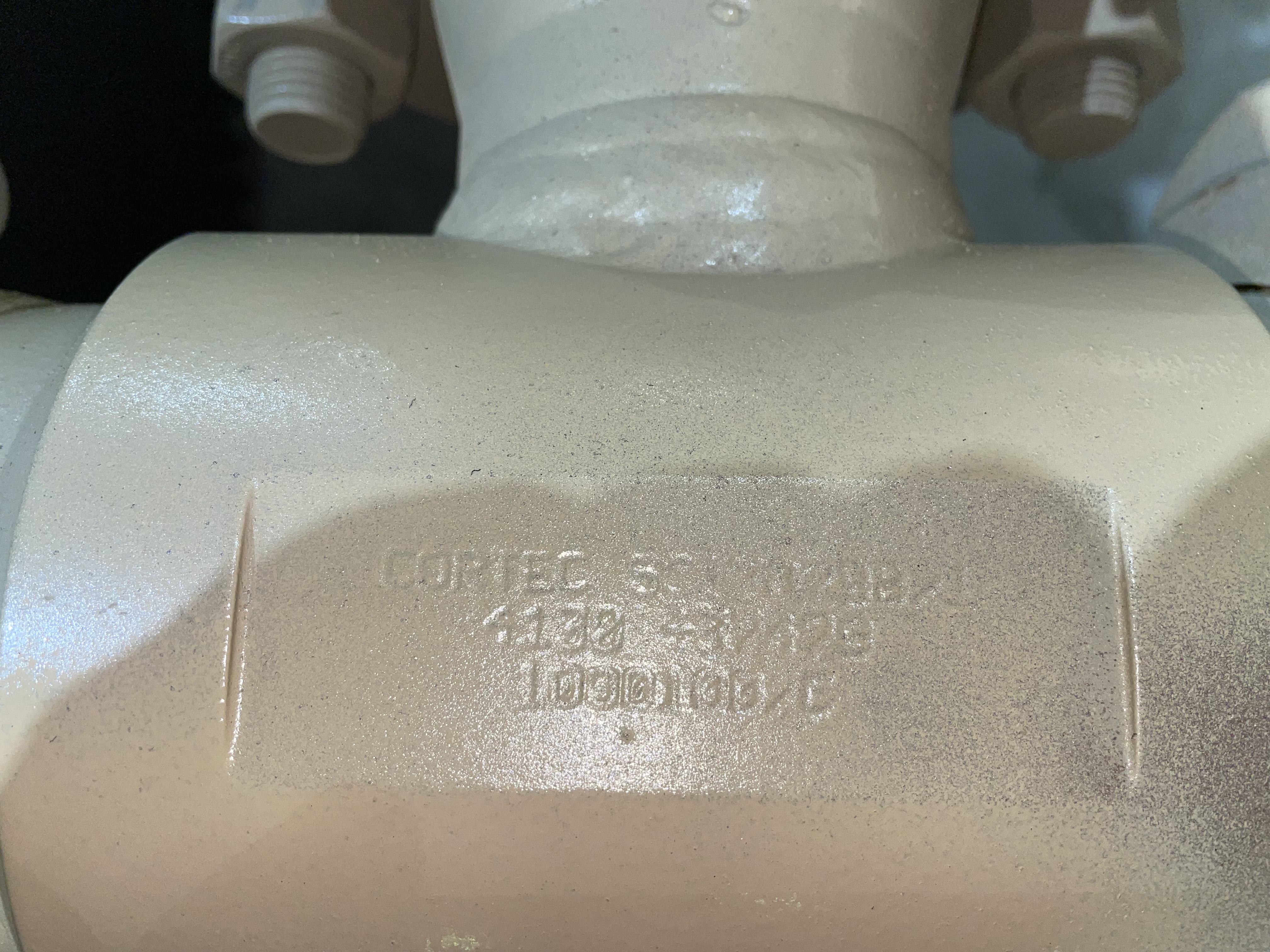

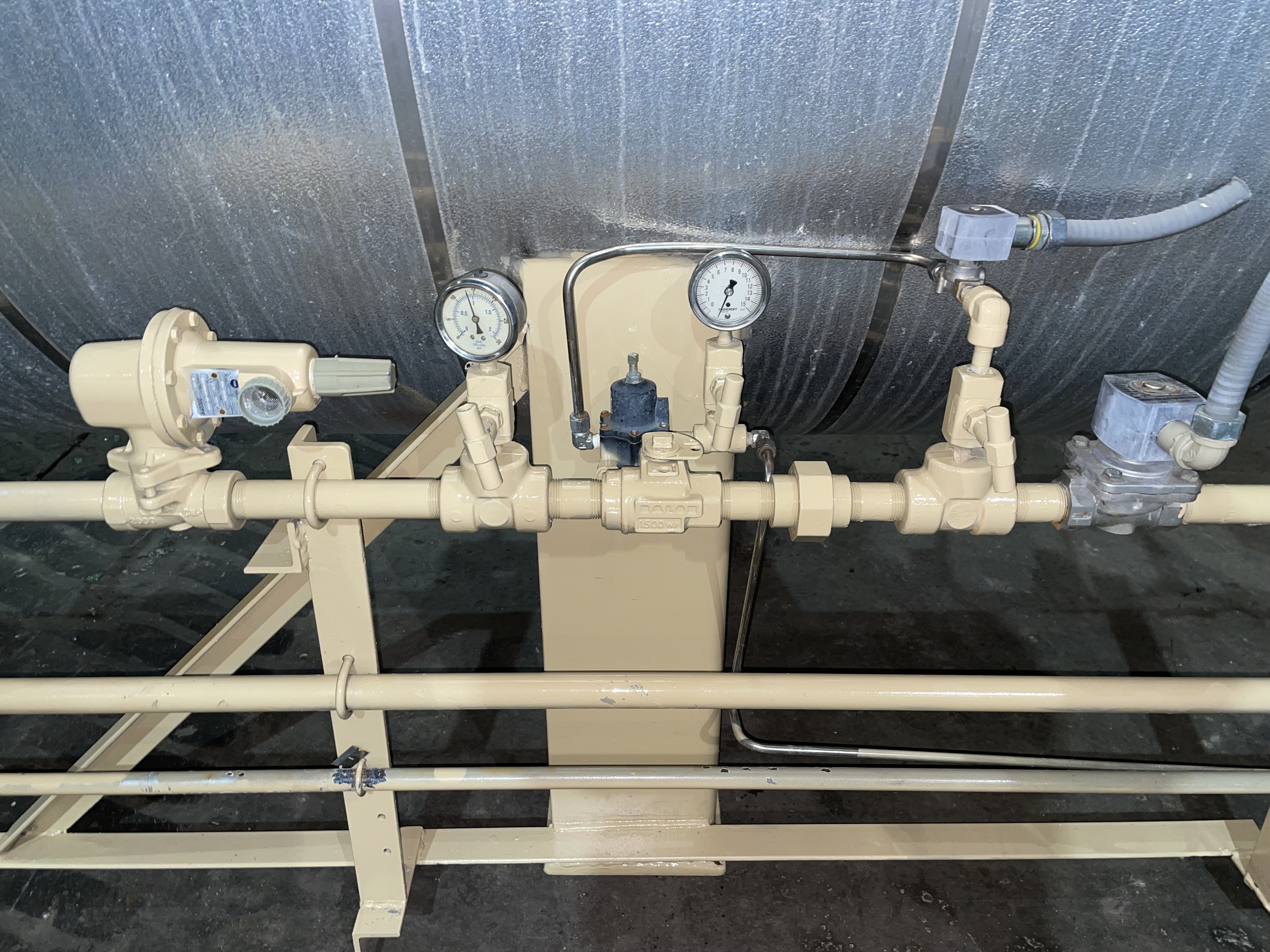

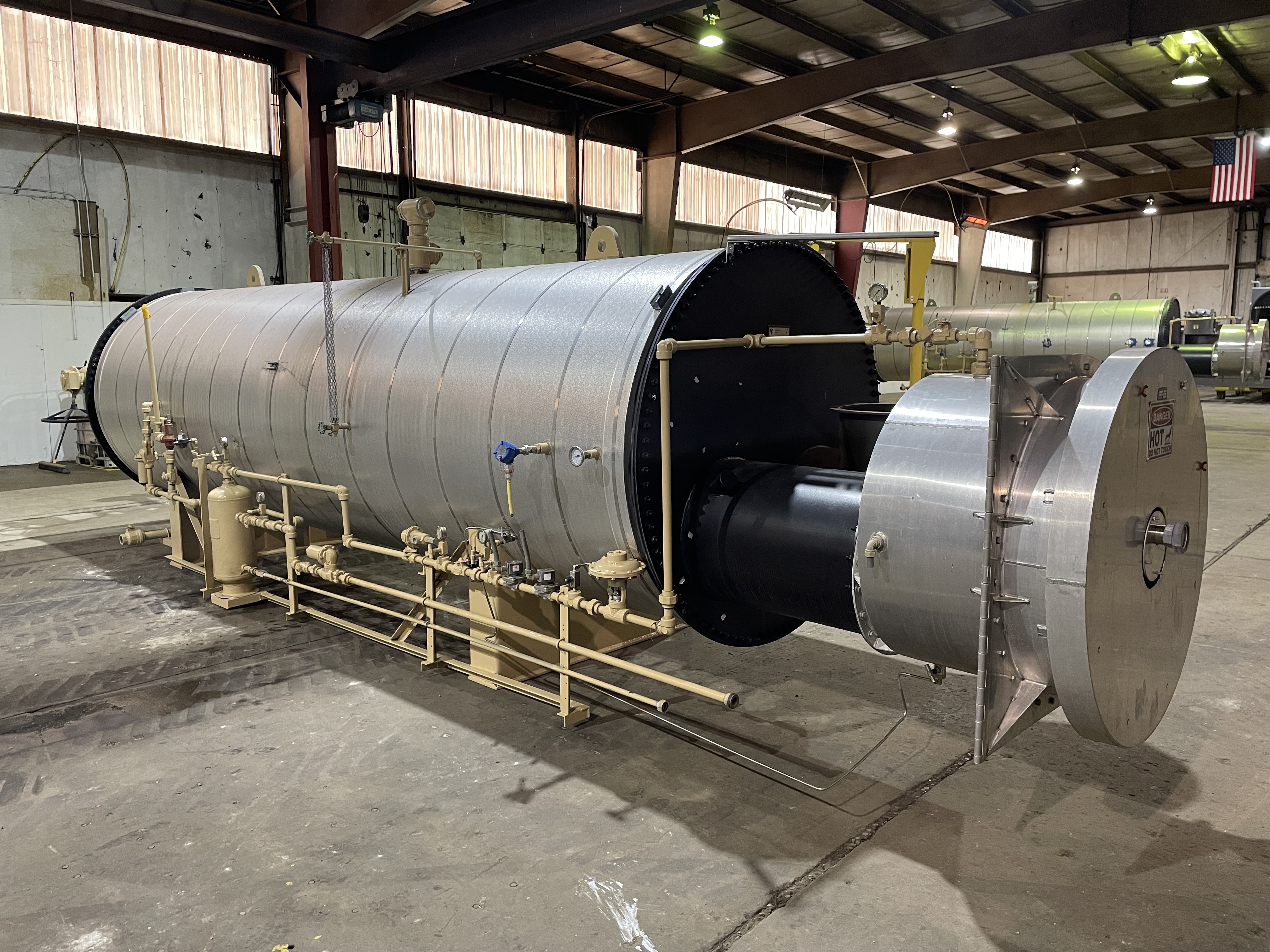

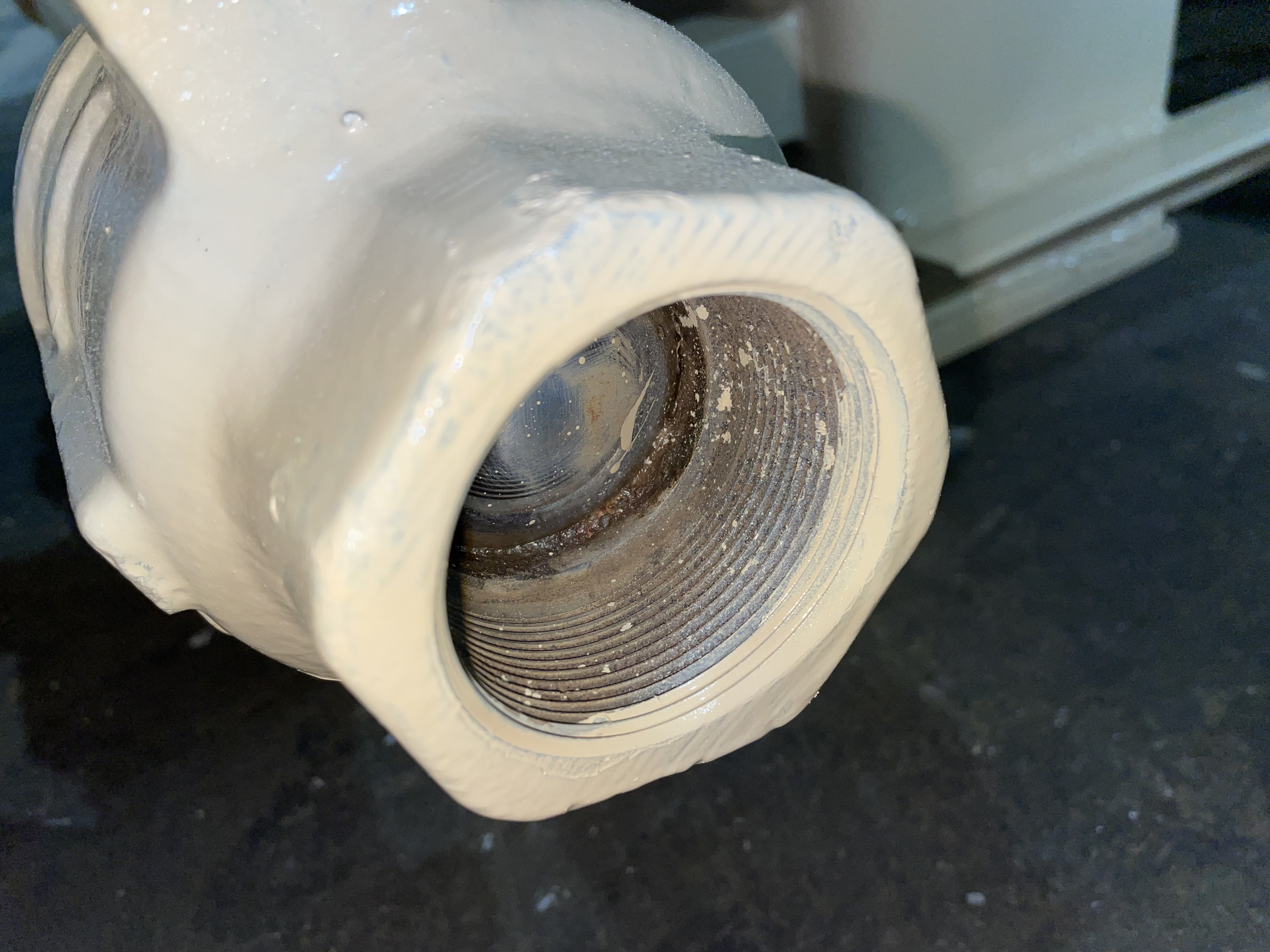

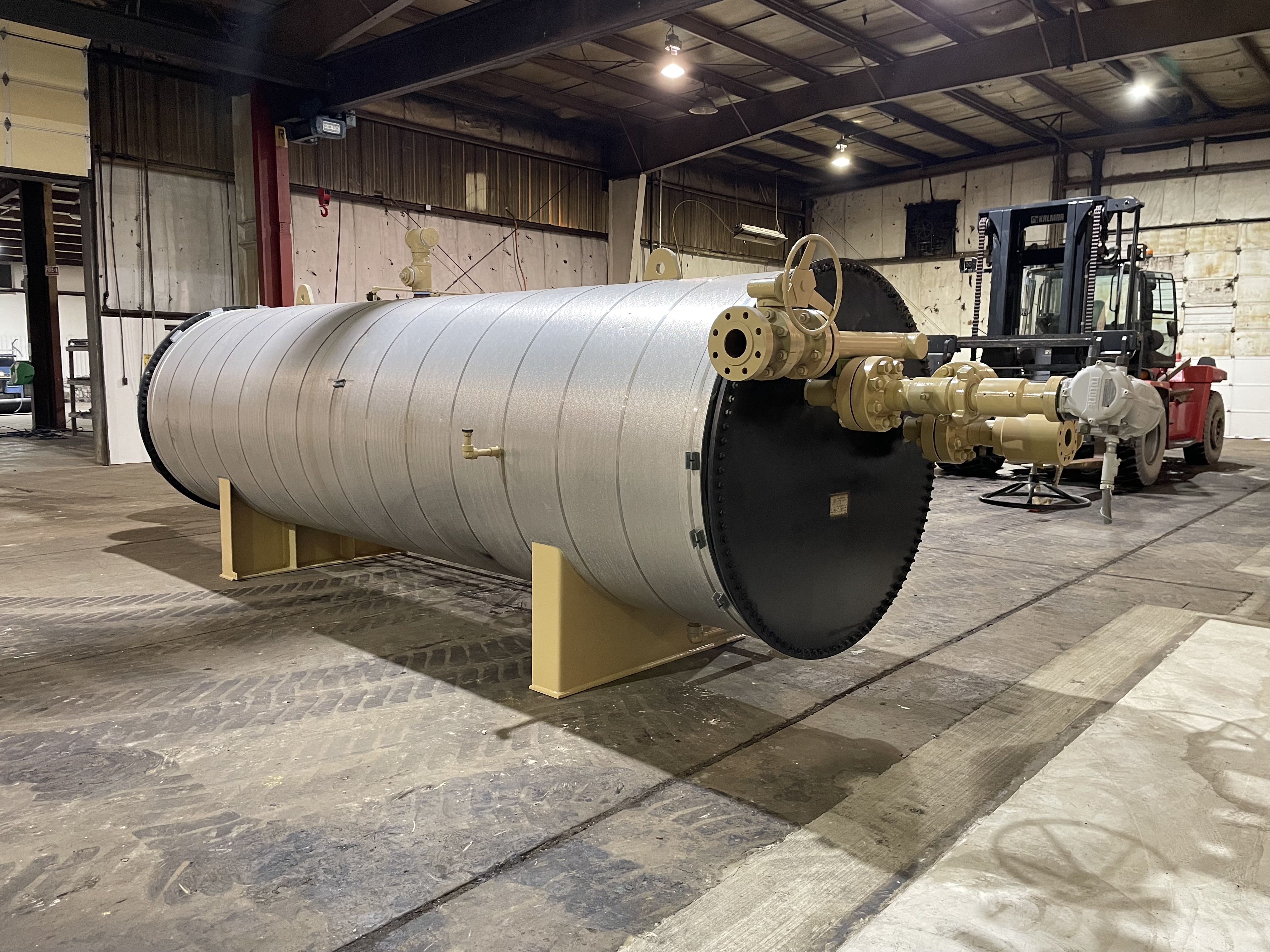

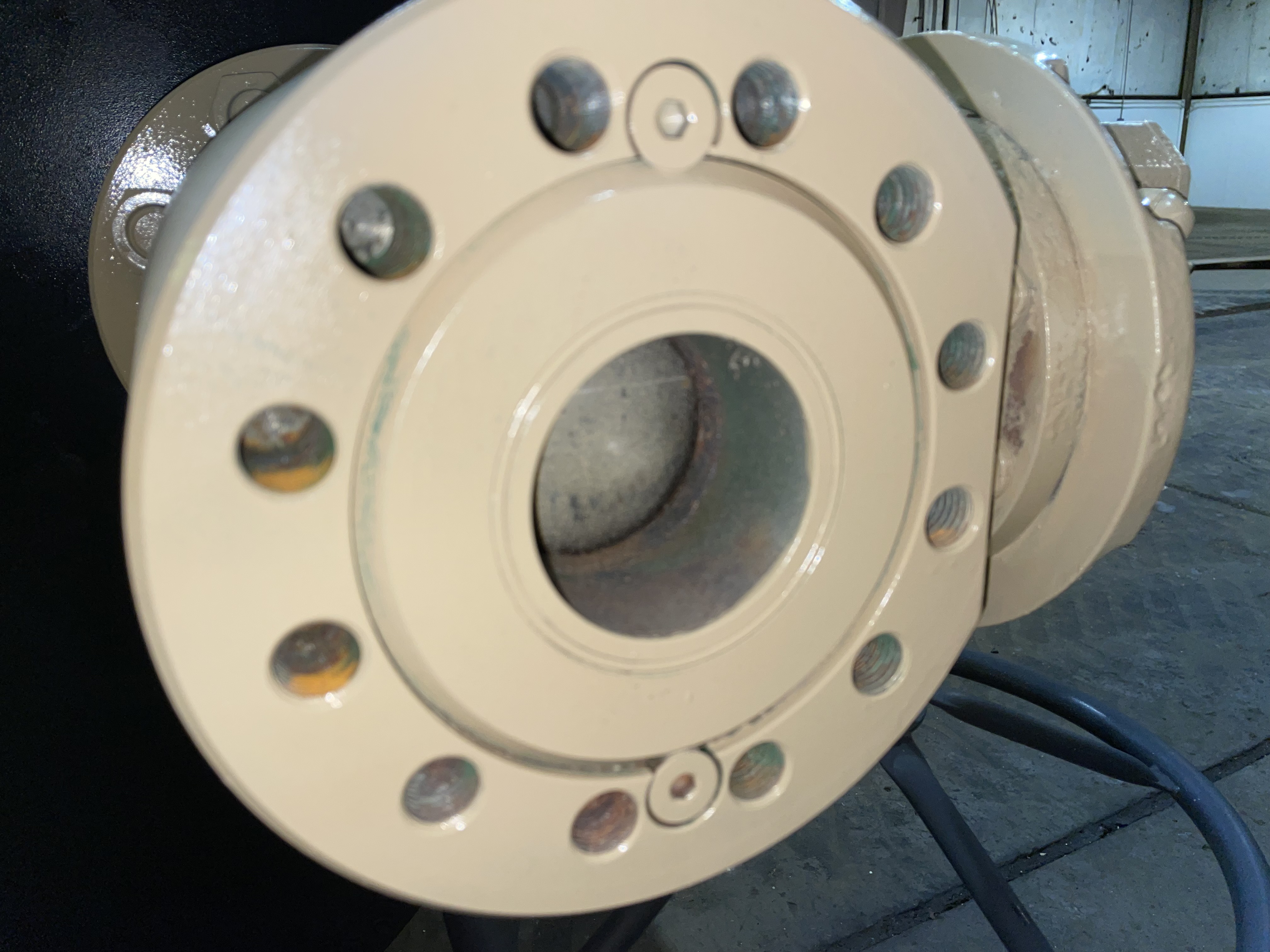

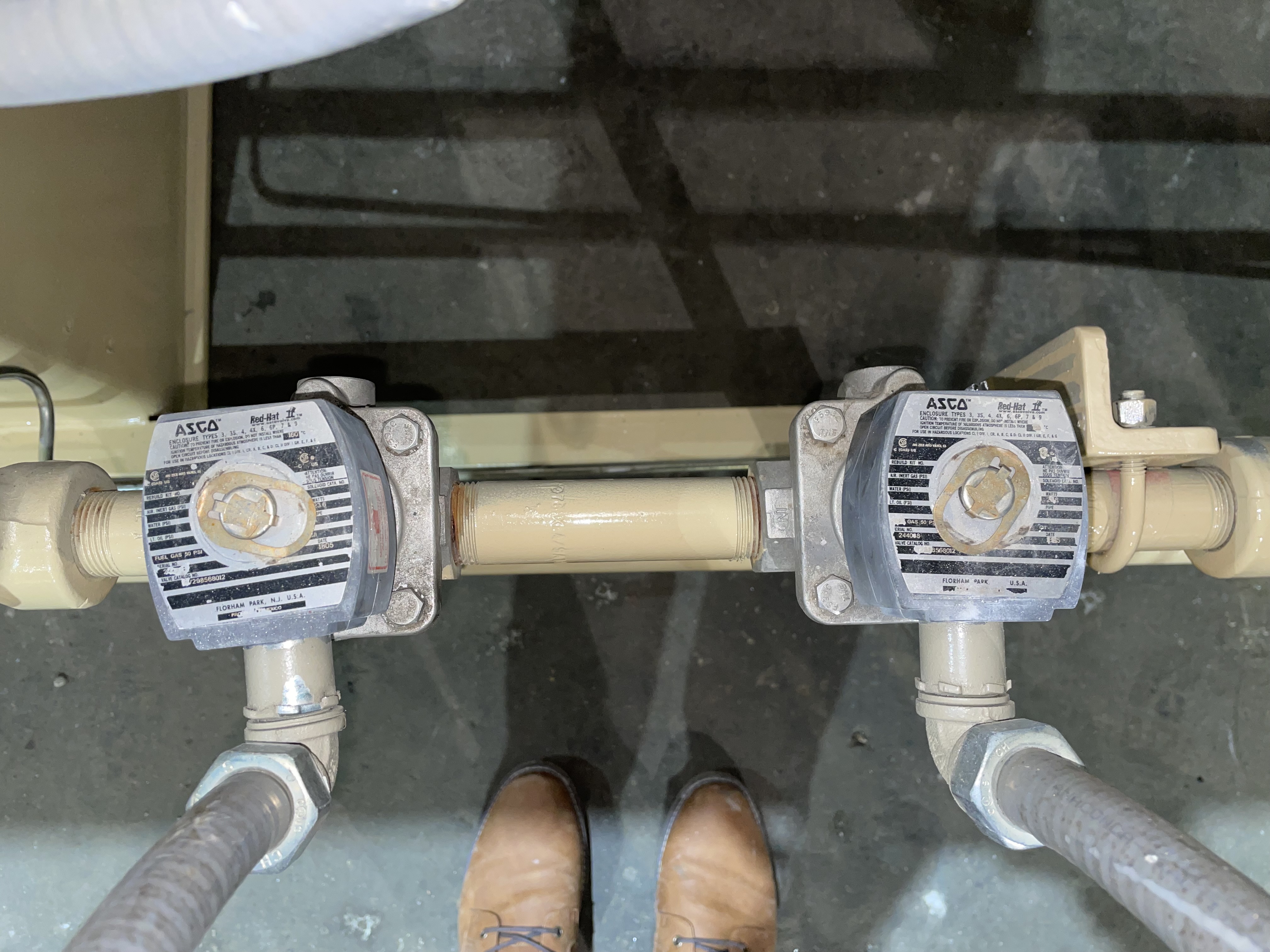

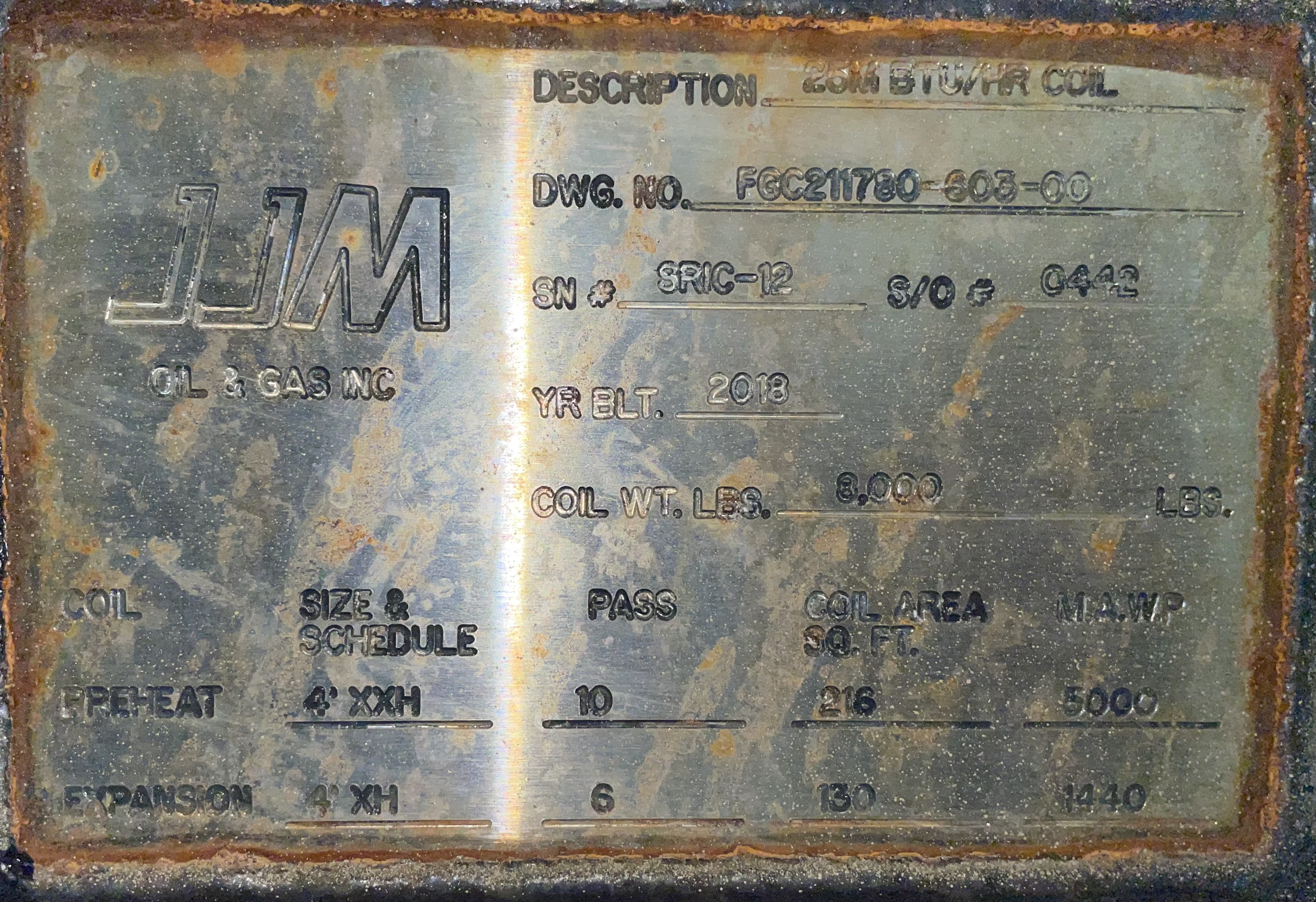

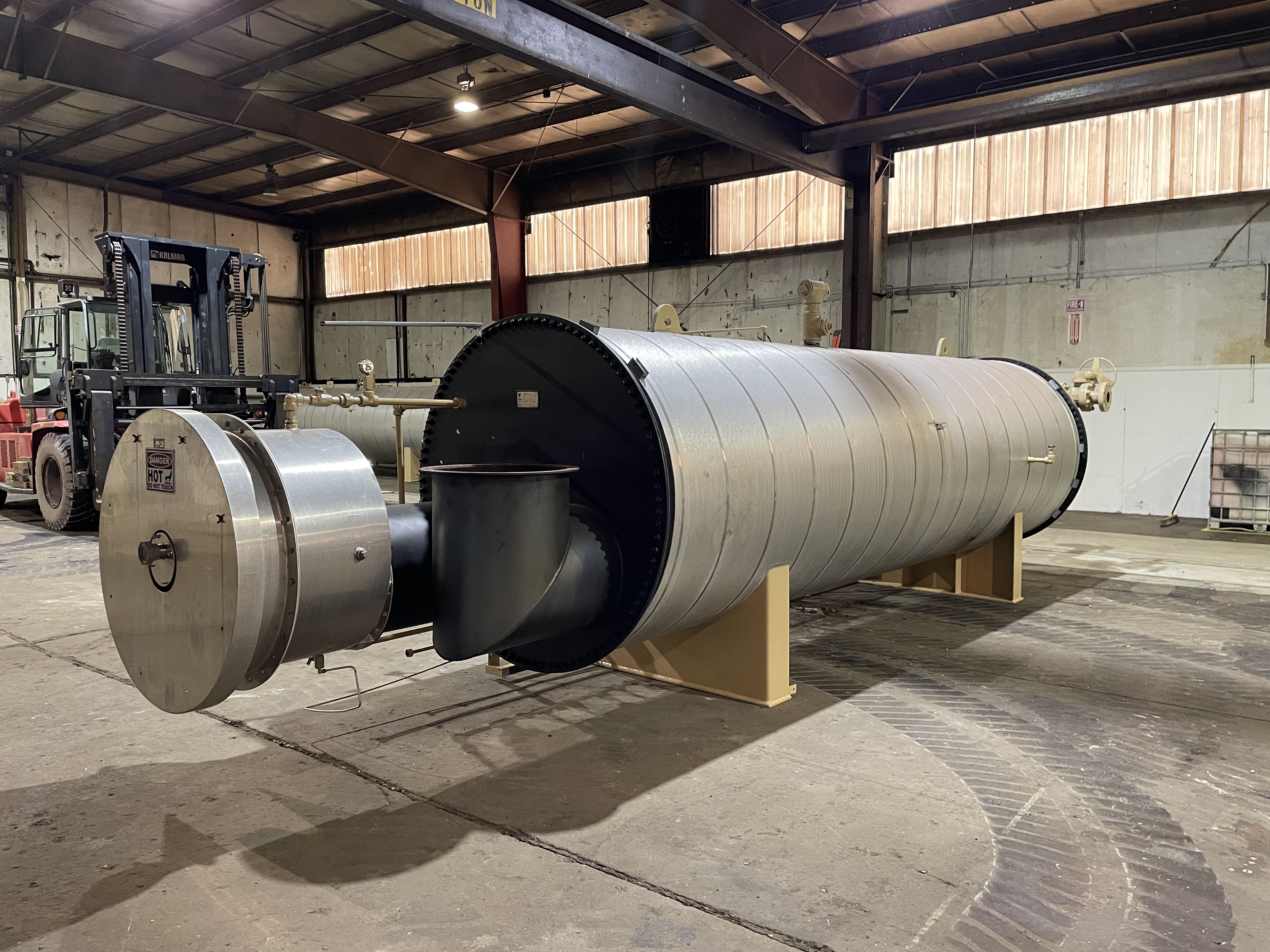

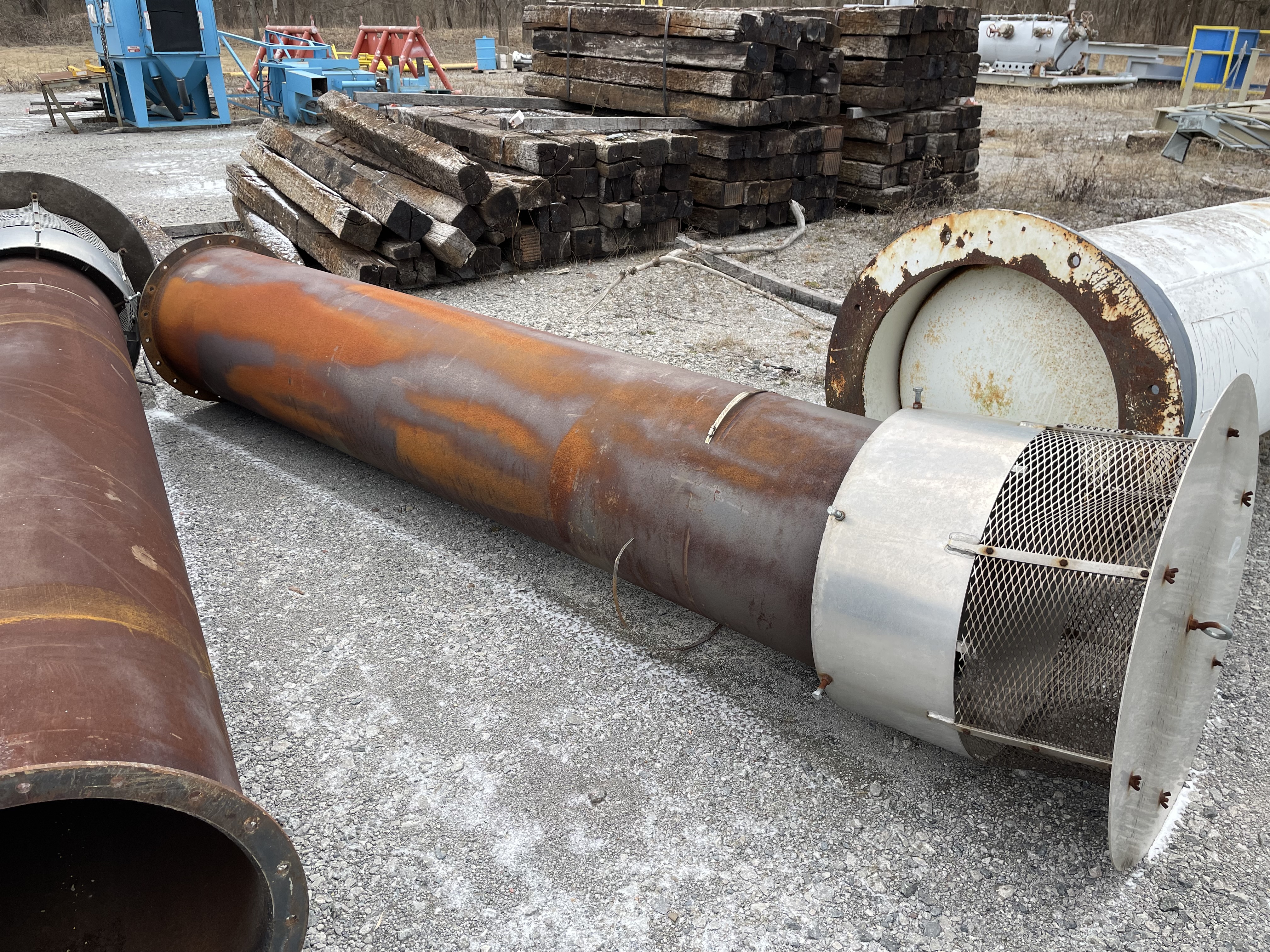

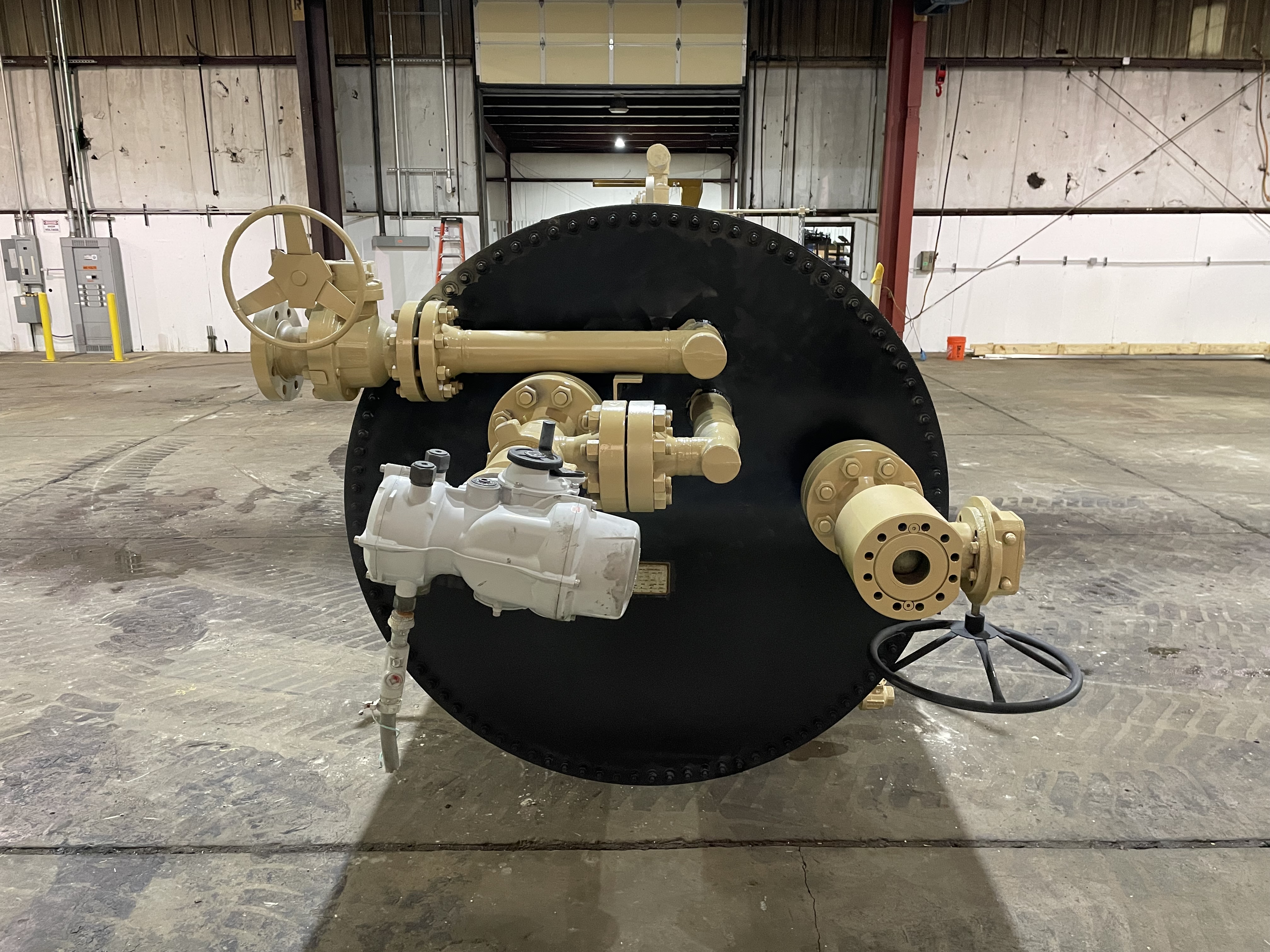

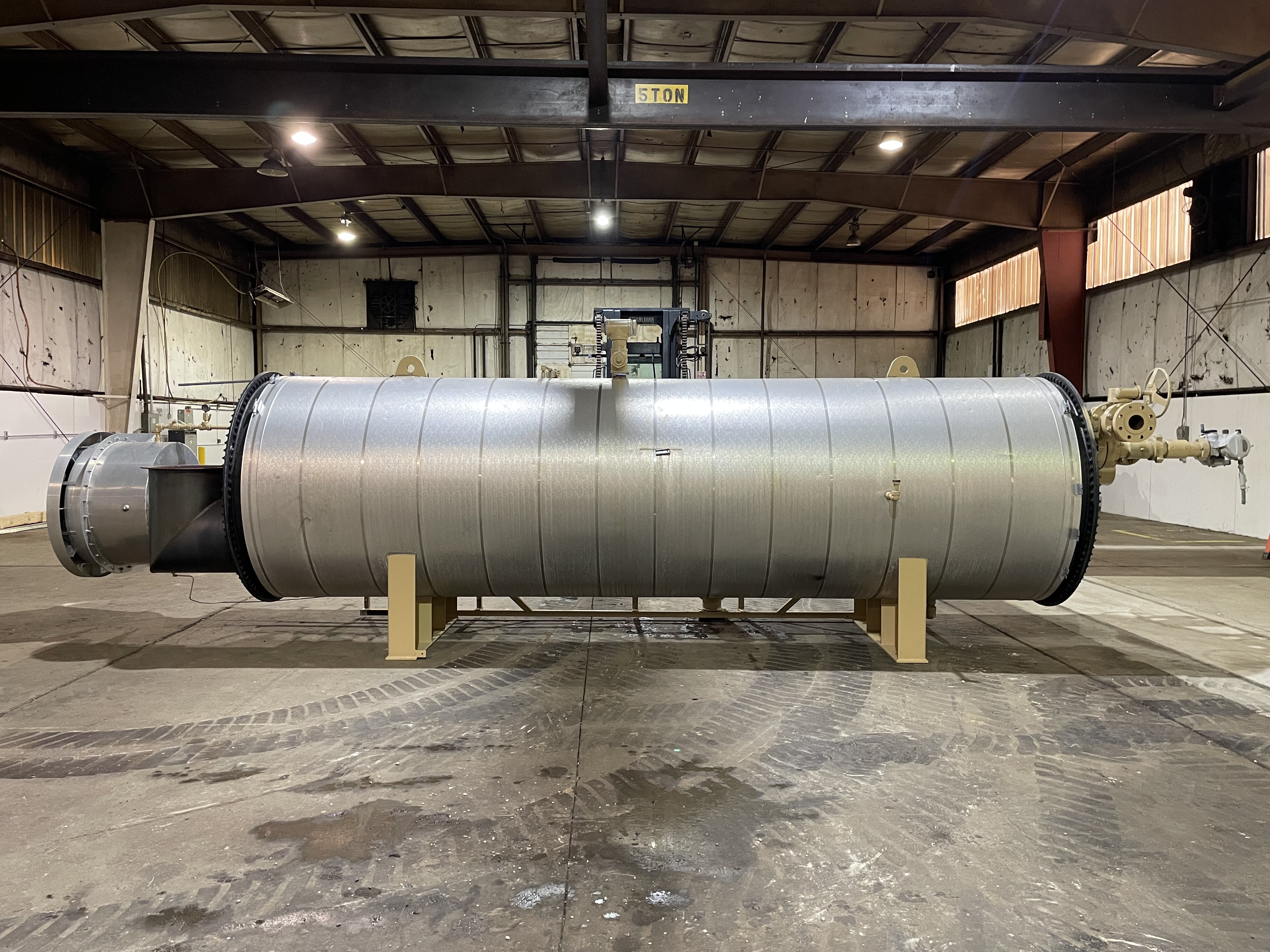

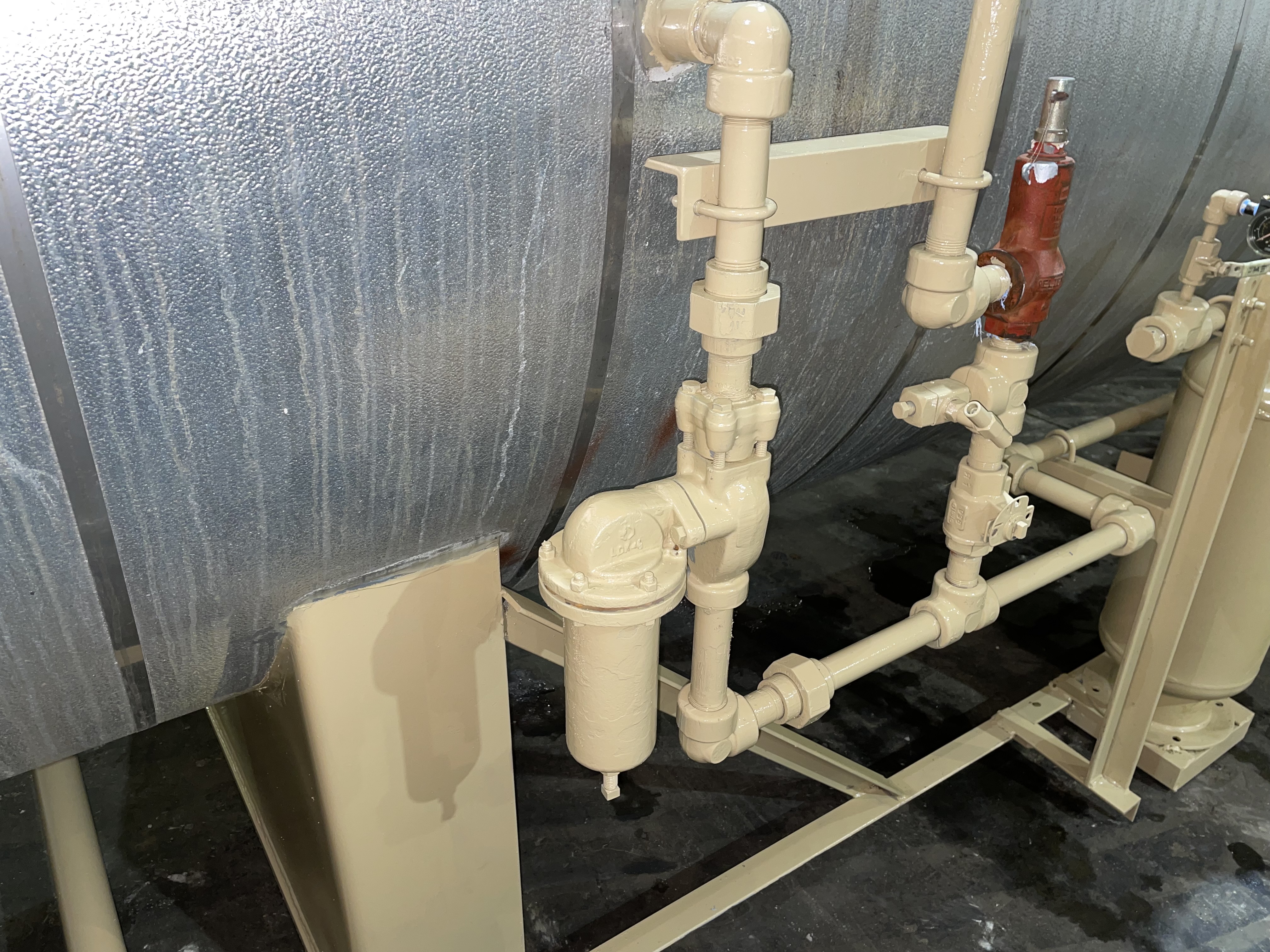

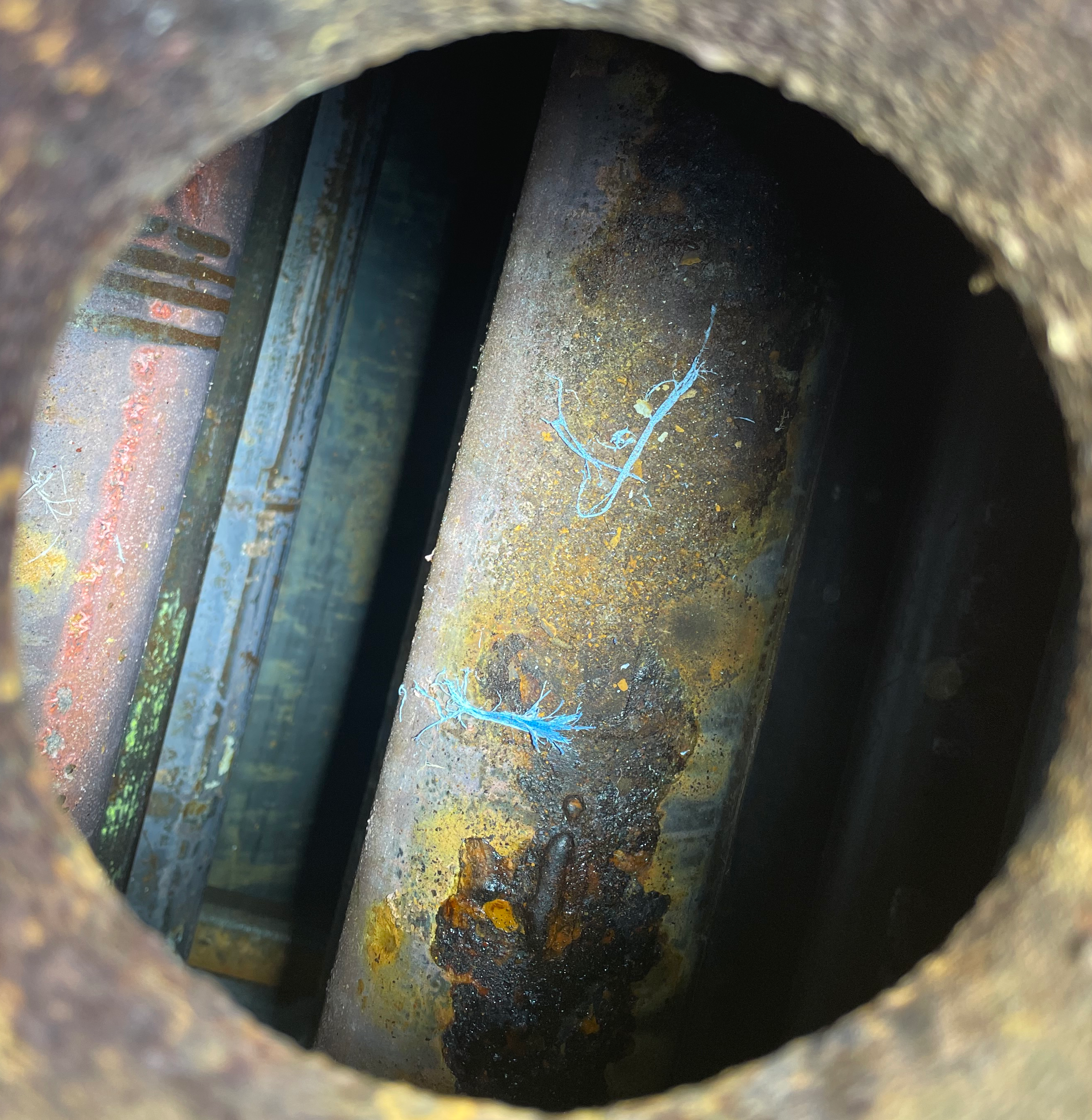

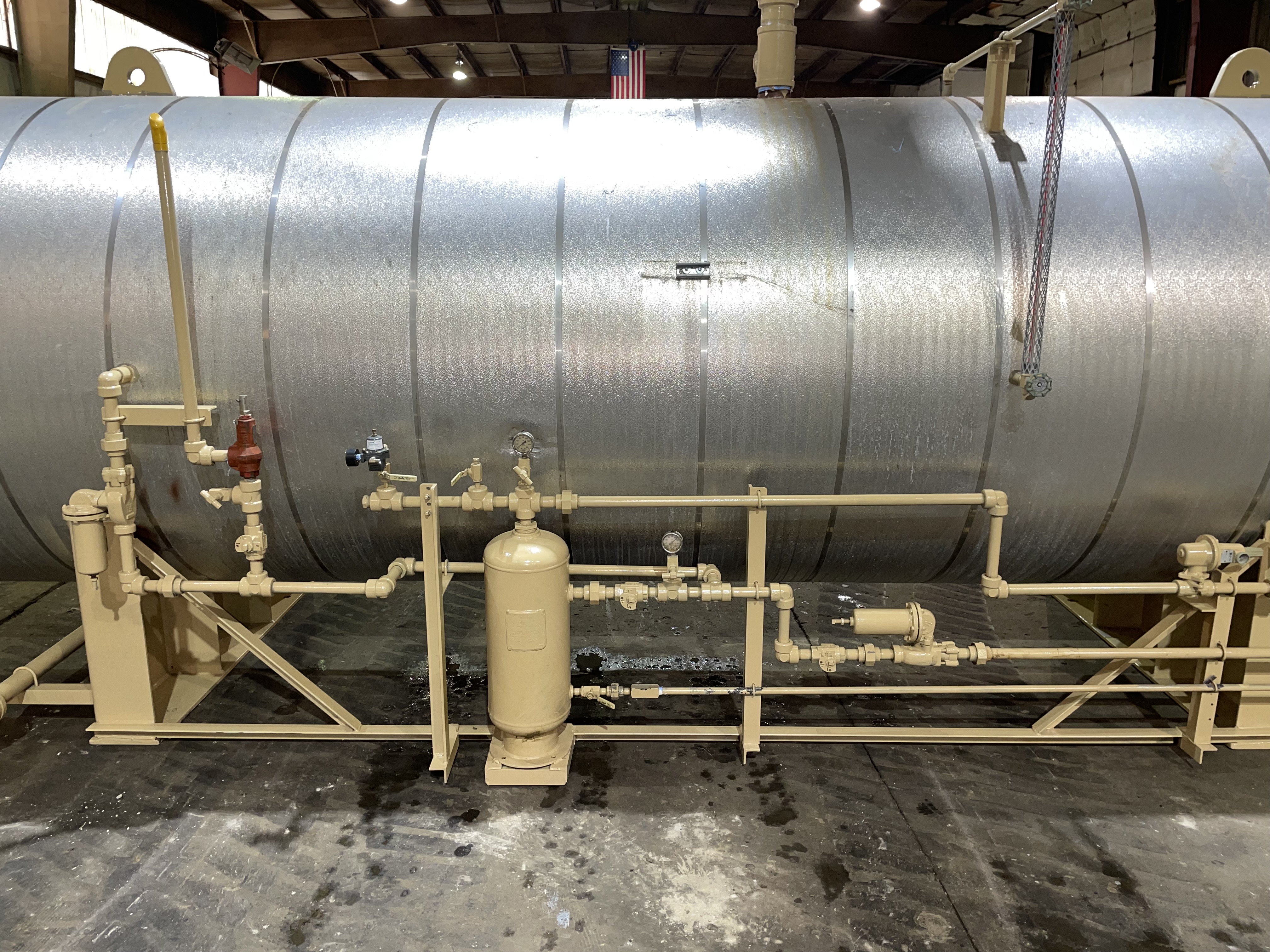

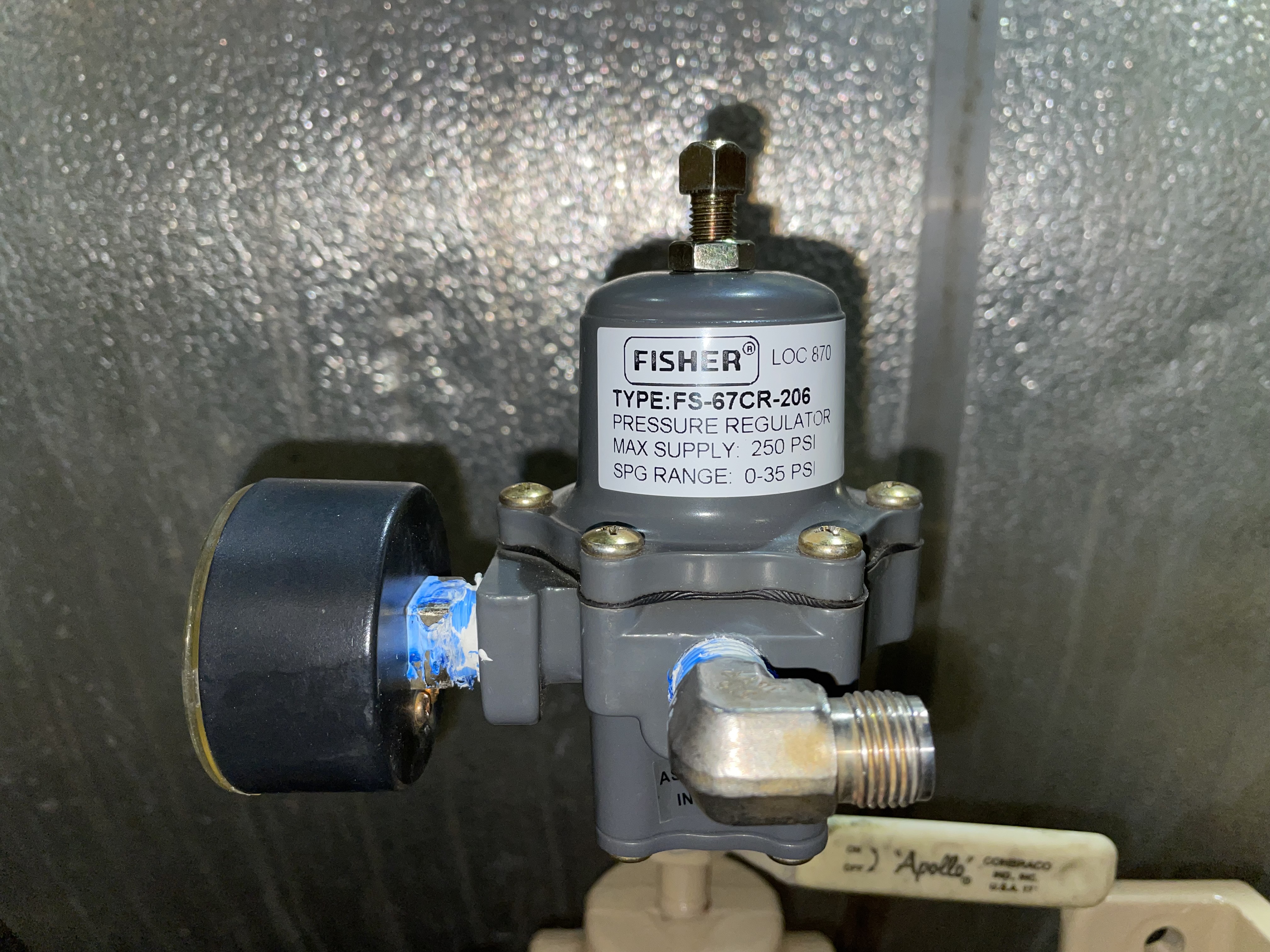

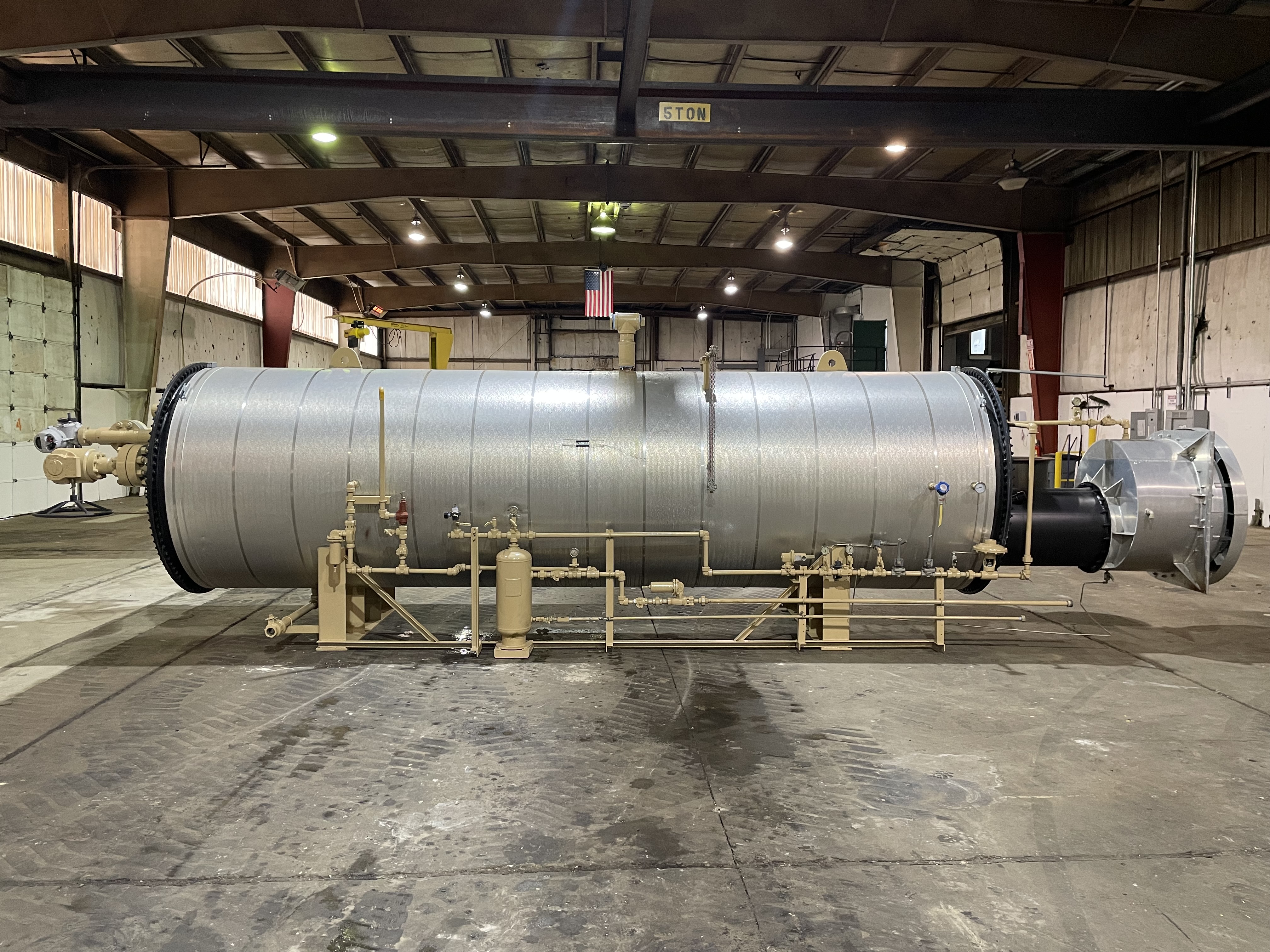

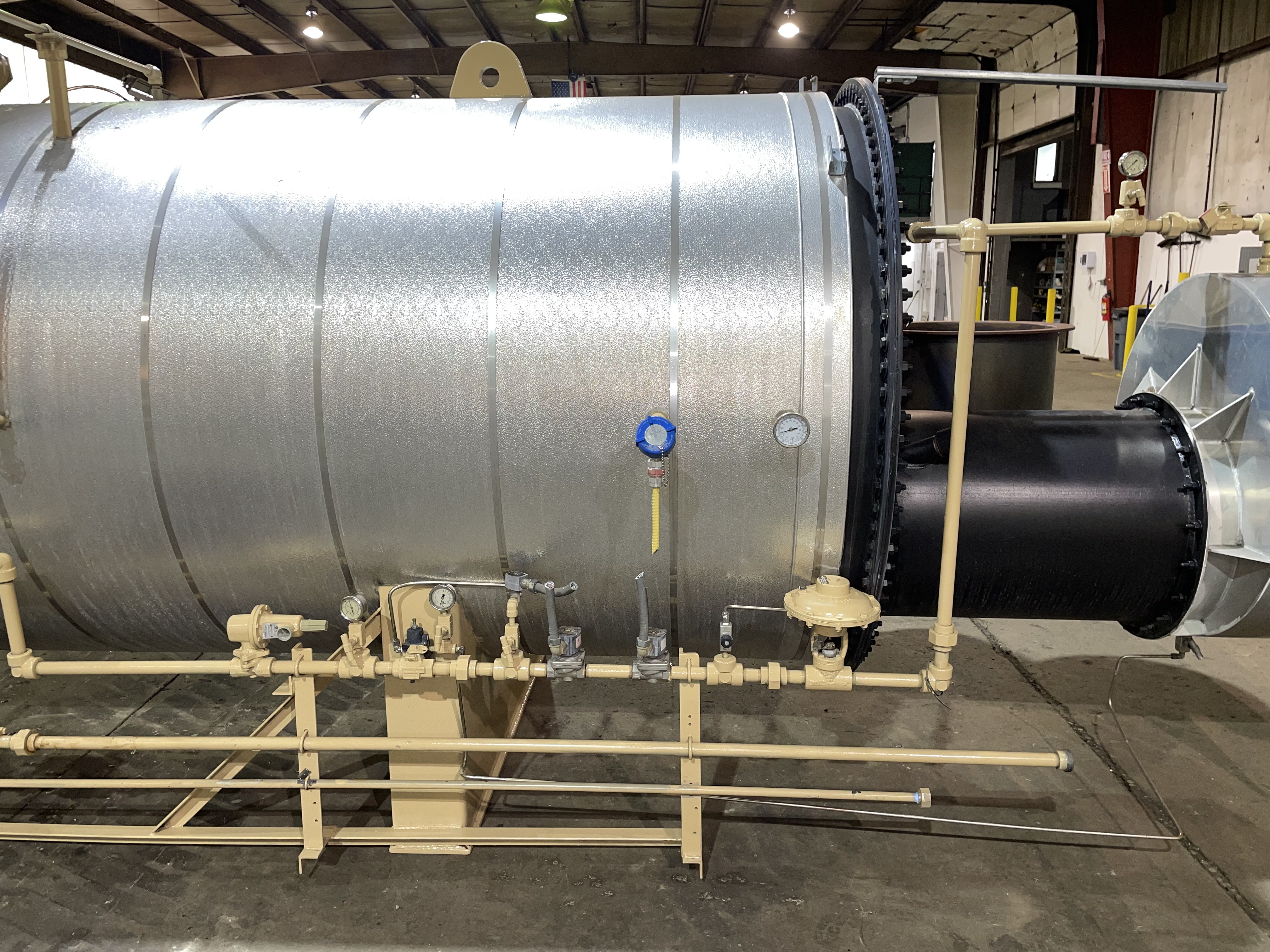

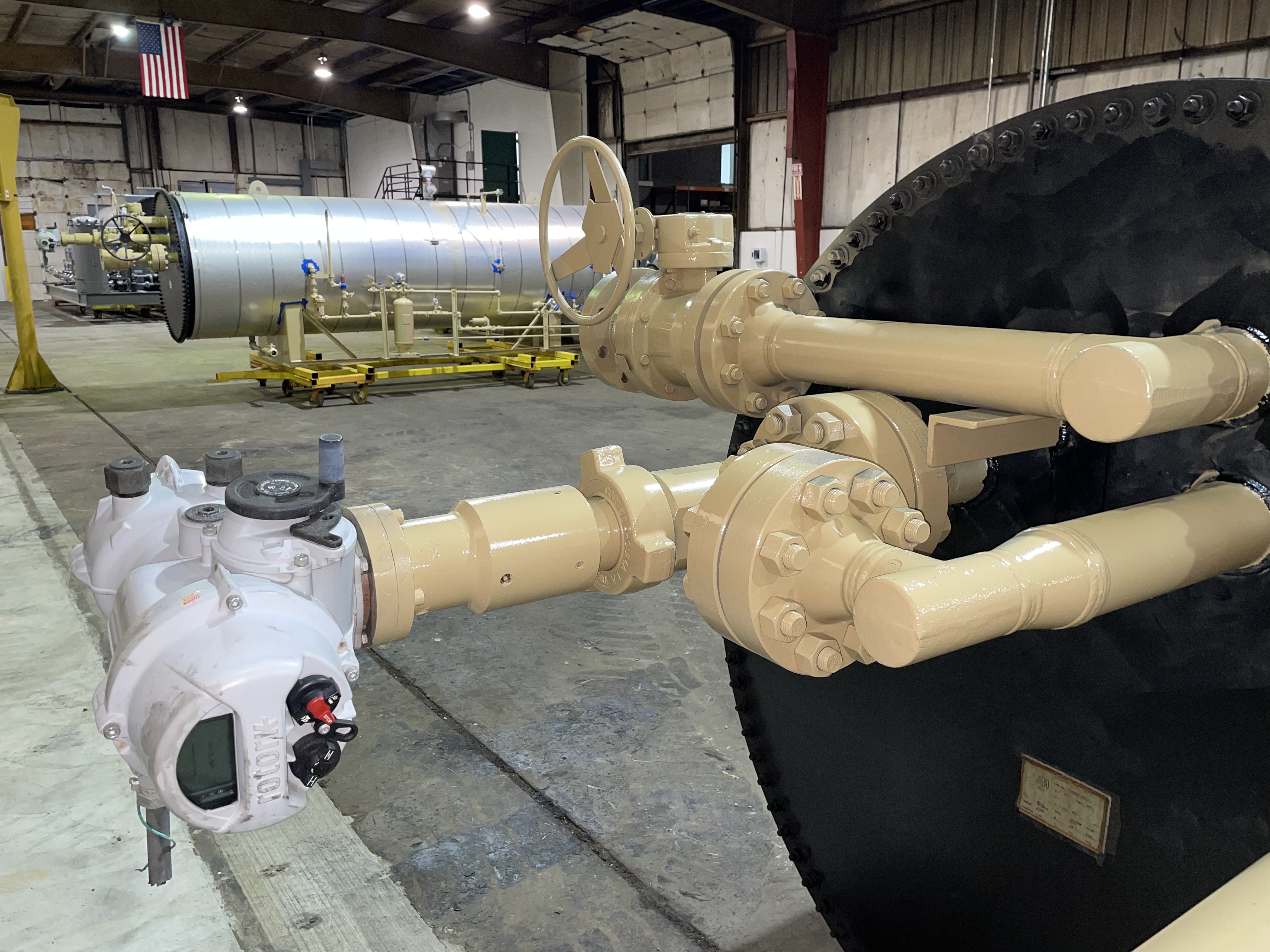

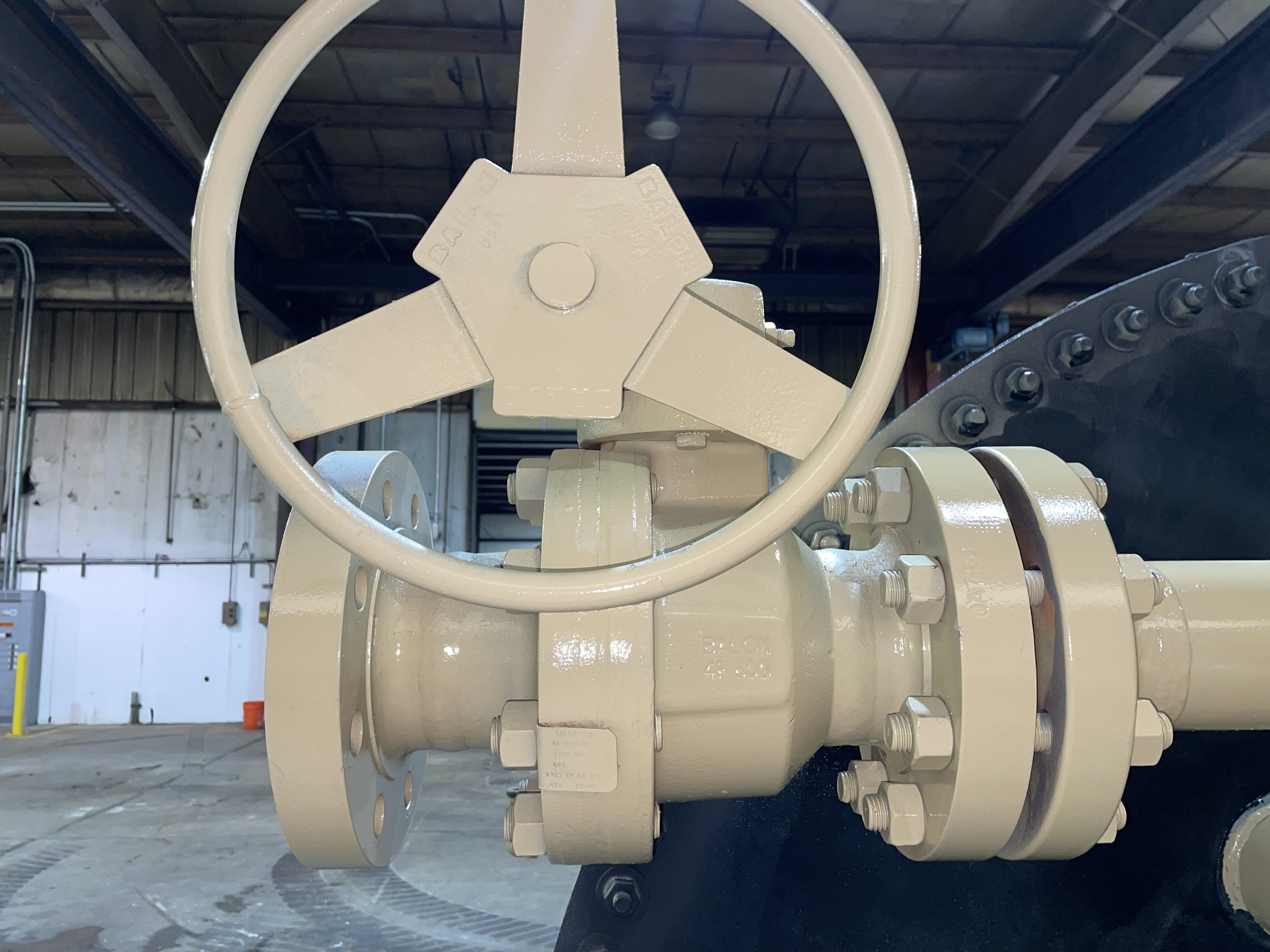

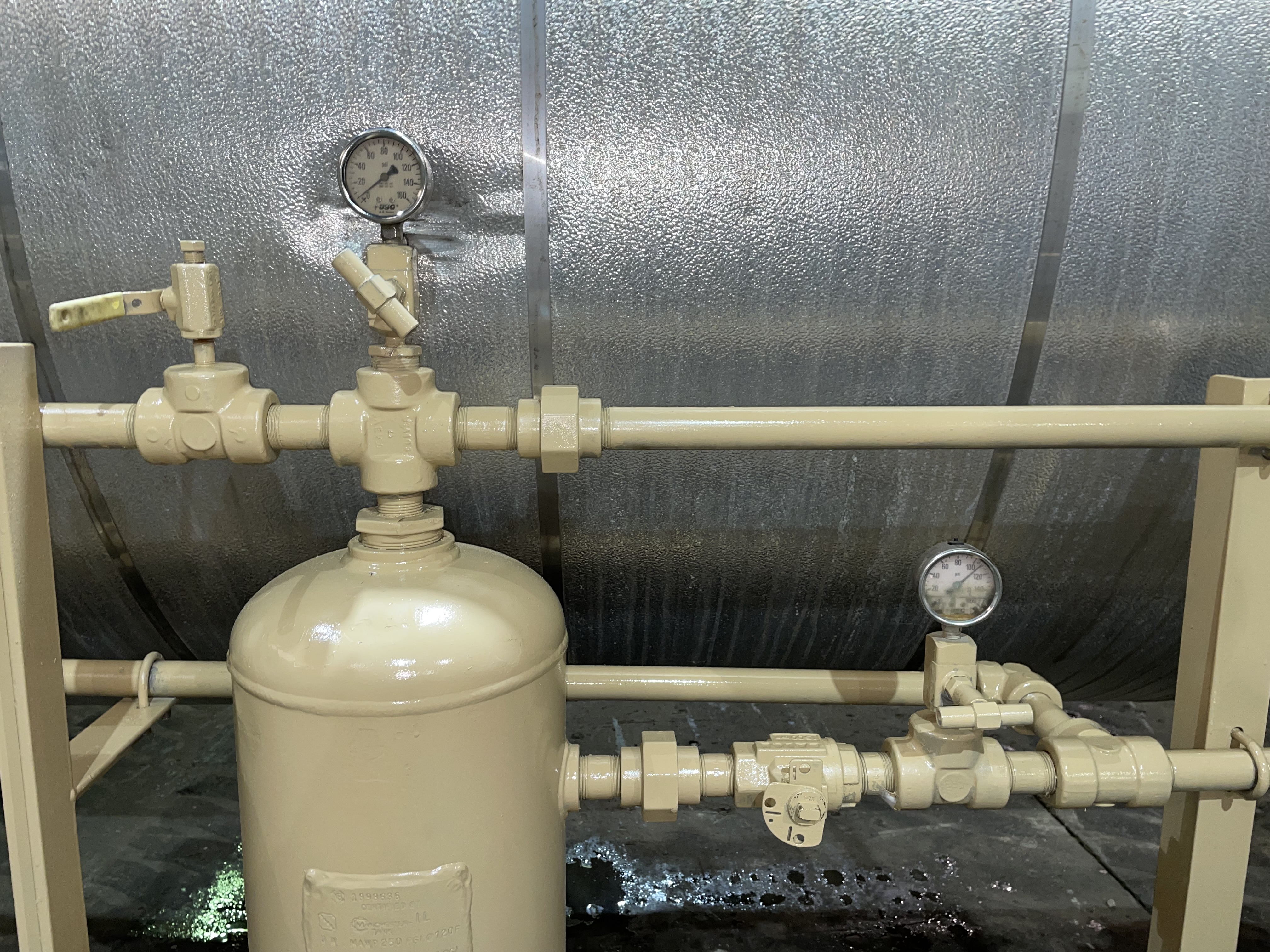

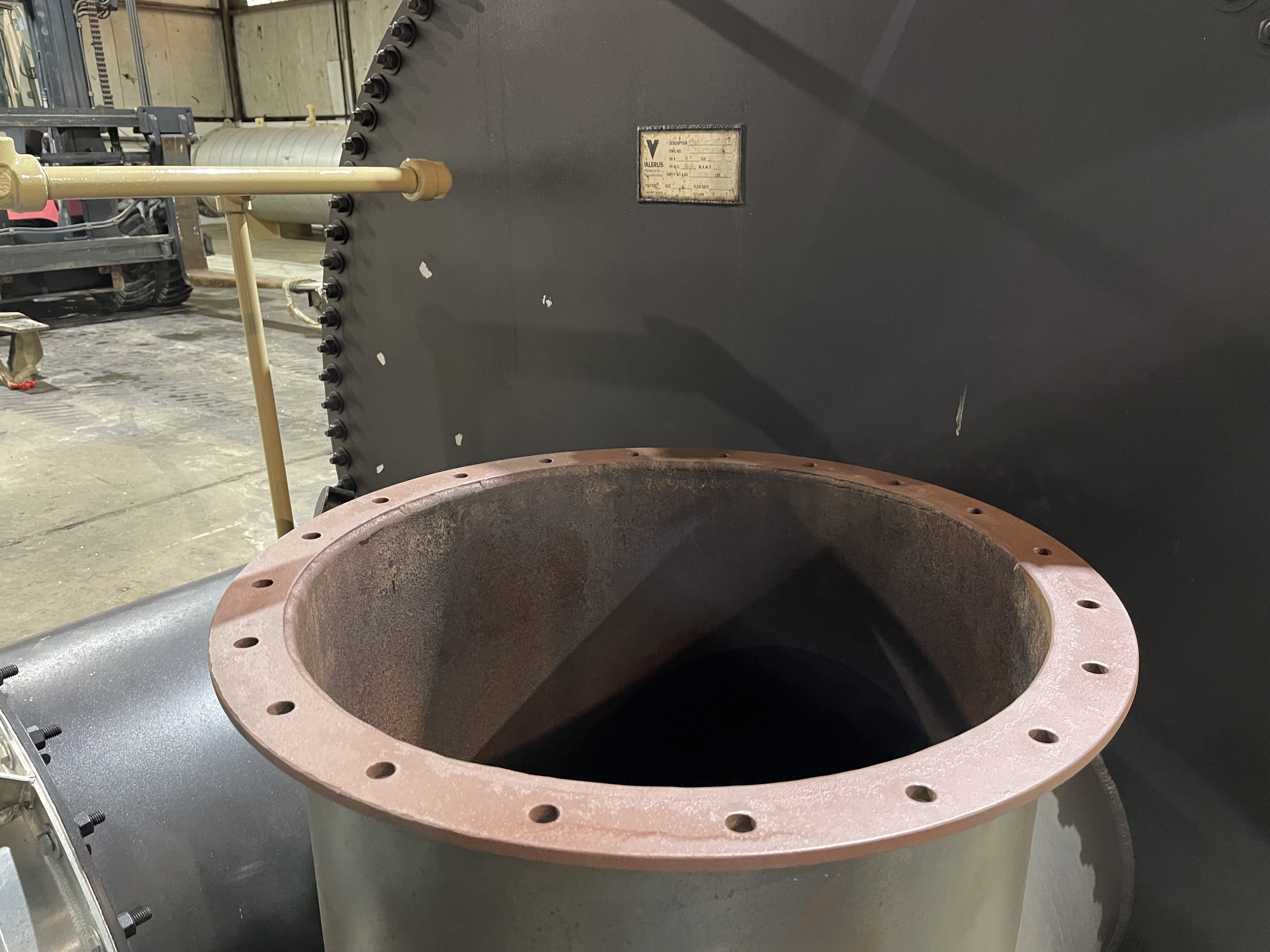

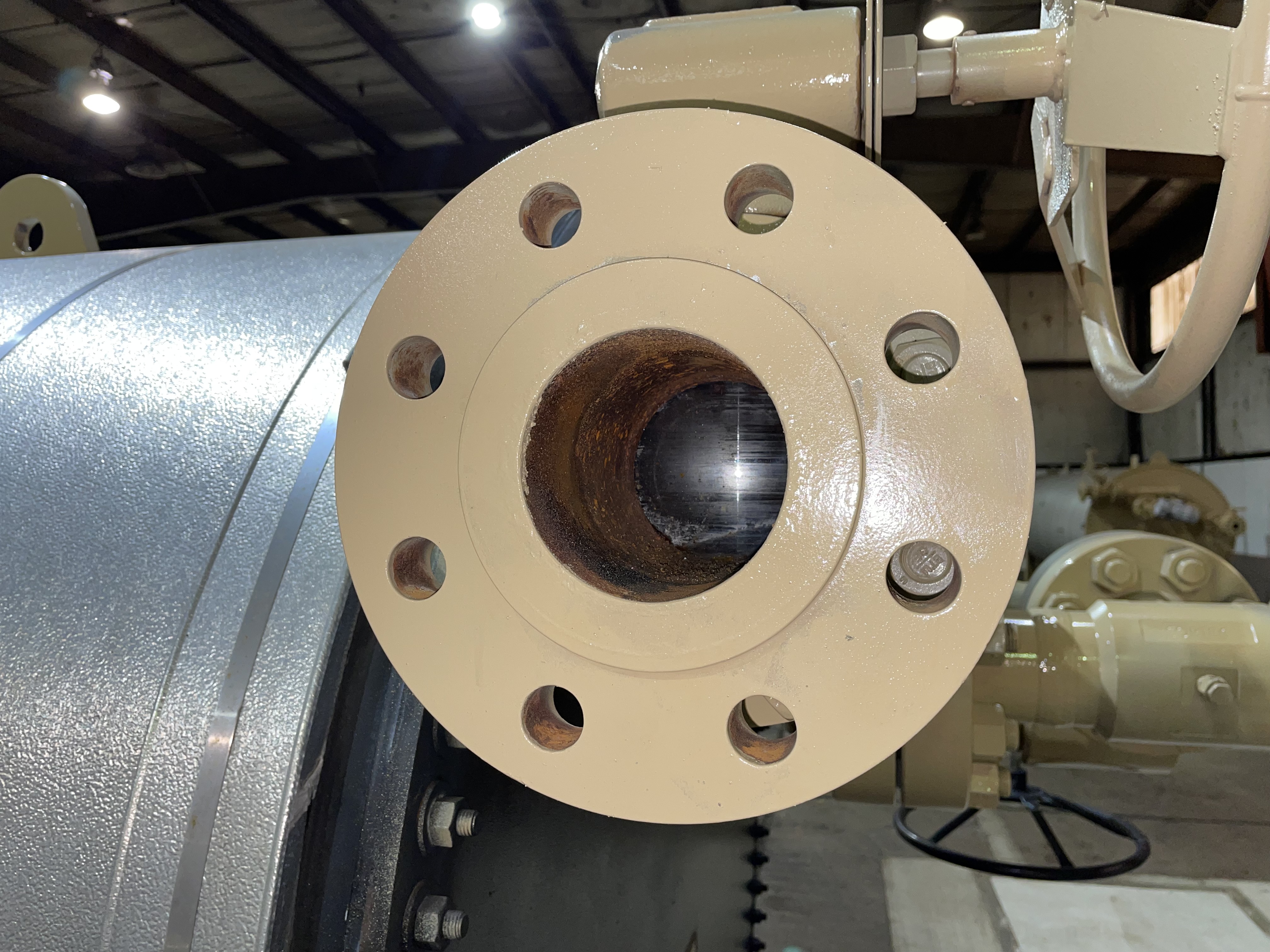

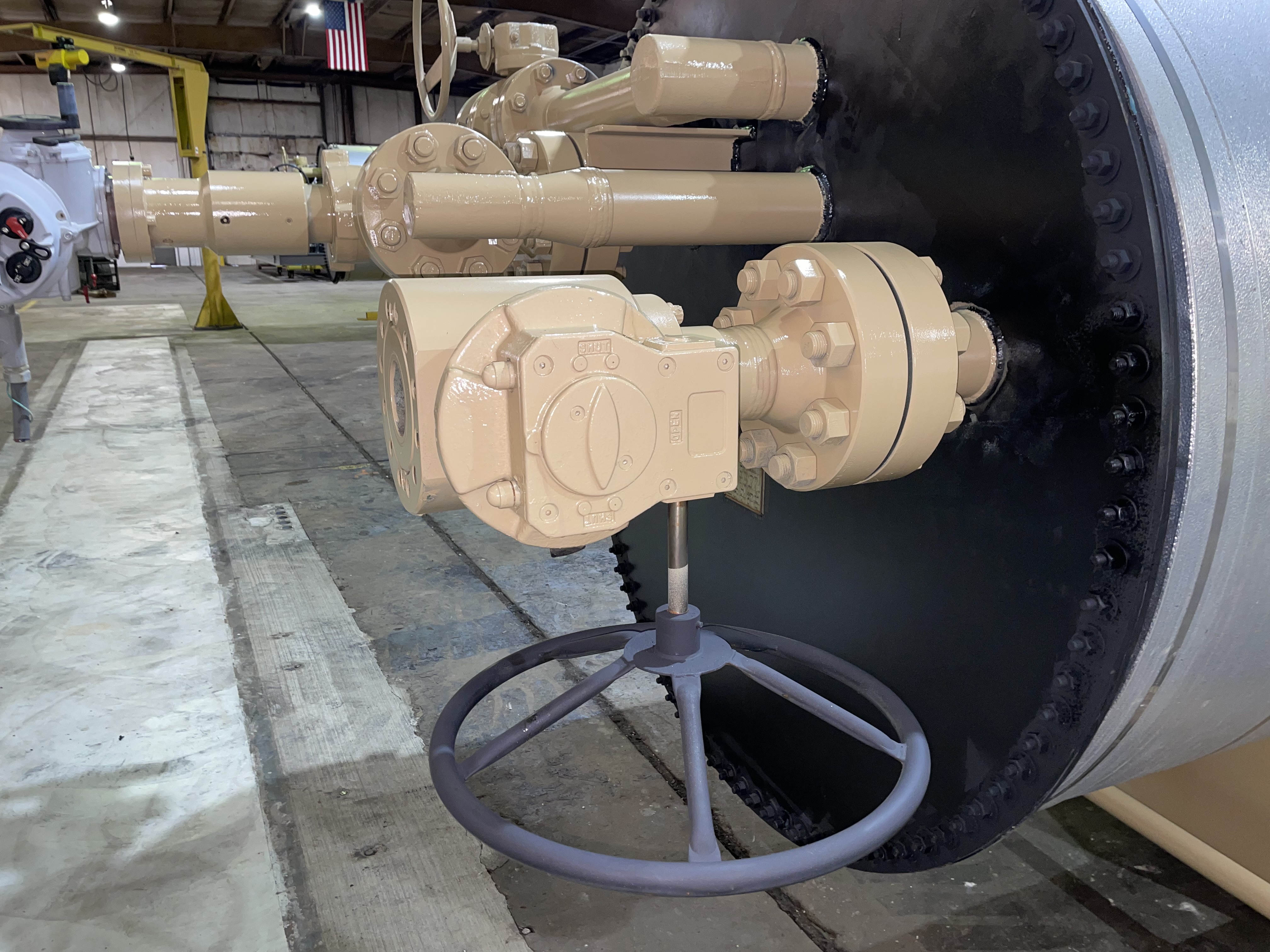

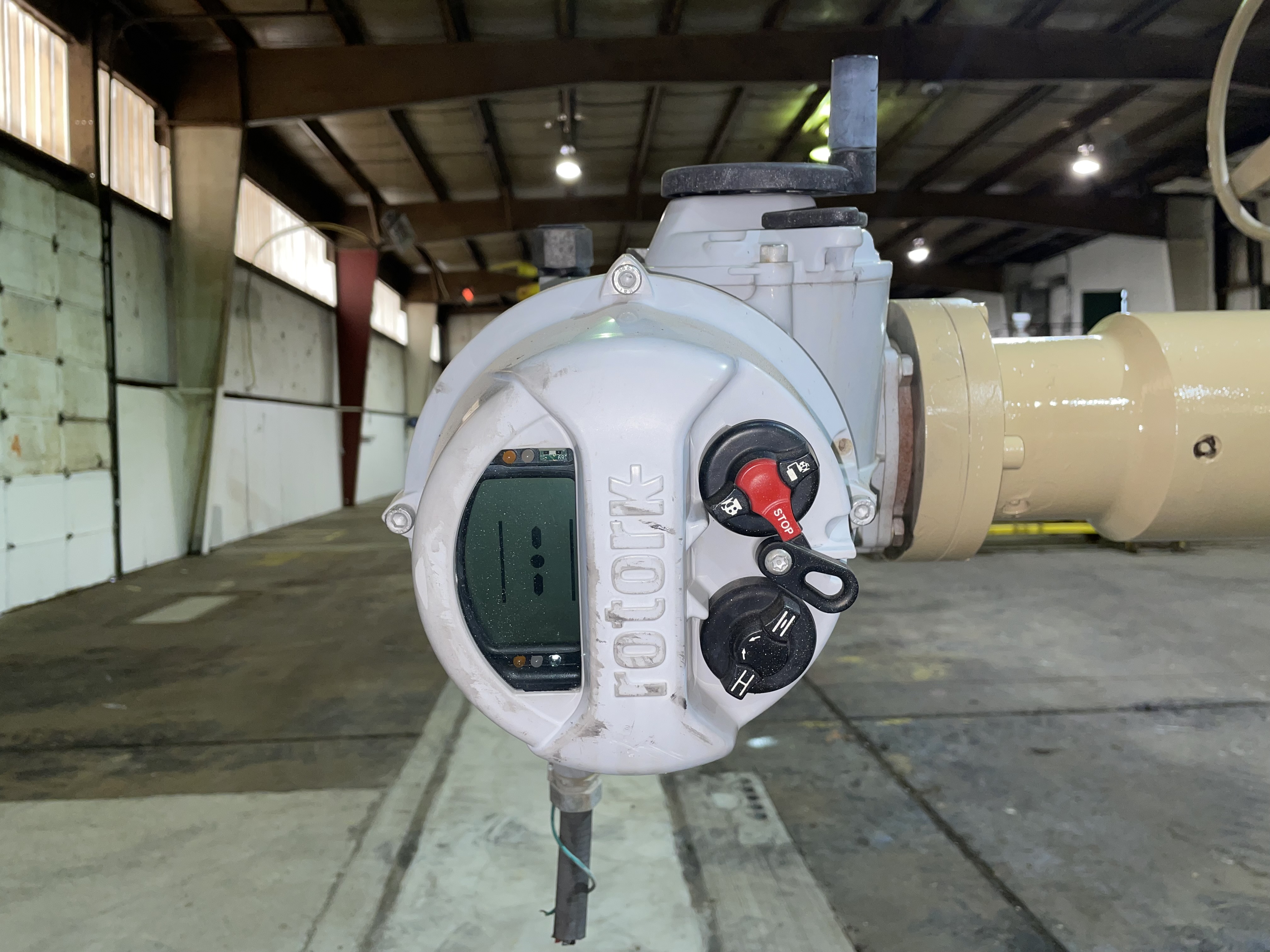

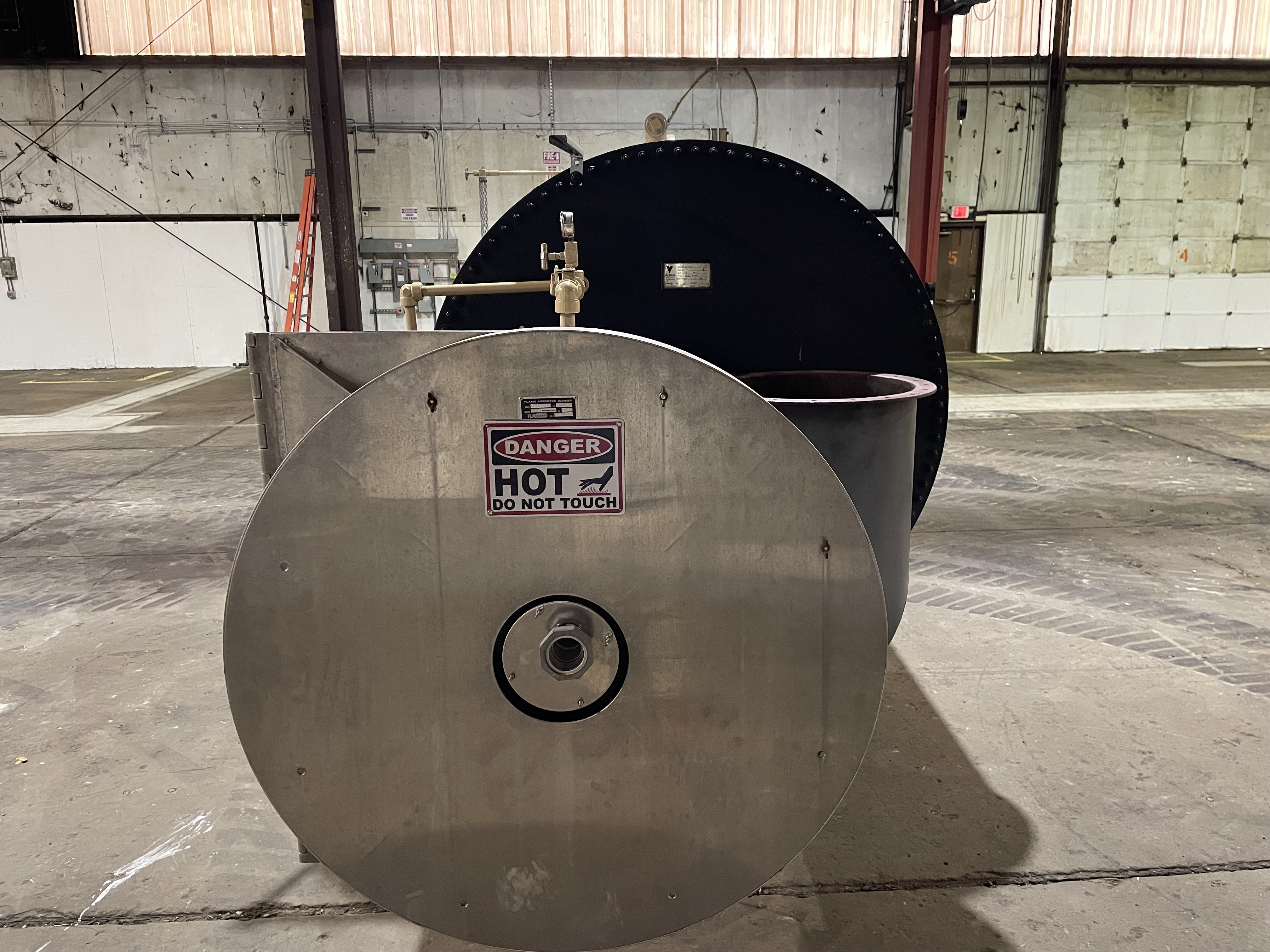

Used 2018 line heater with a 2.5 mmbtu/hr heater. The preheat coil is 4" XXH 5000# with a total of 10 passes and the expansion coil is 4" XH 1440# with a total of 6 passes. Unit has a 4 1/16 API inlet with a Piper valve attached and a 4" 600 RF outlet with a 4" Balon ball valve attached. Unit includes a Cortec choke with a Rotork actuator, burner stack, fuel train, and all accessories shown in photos.
Specifications

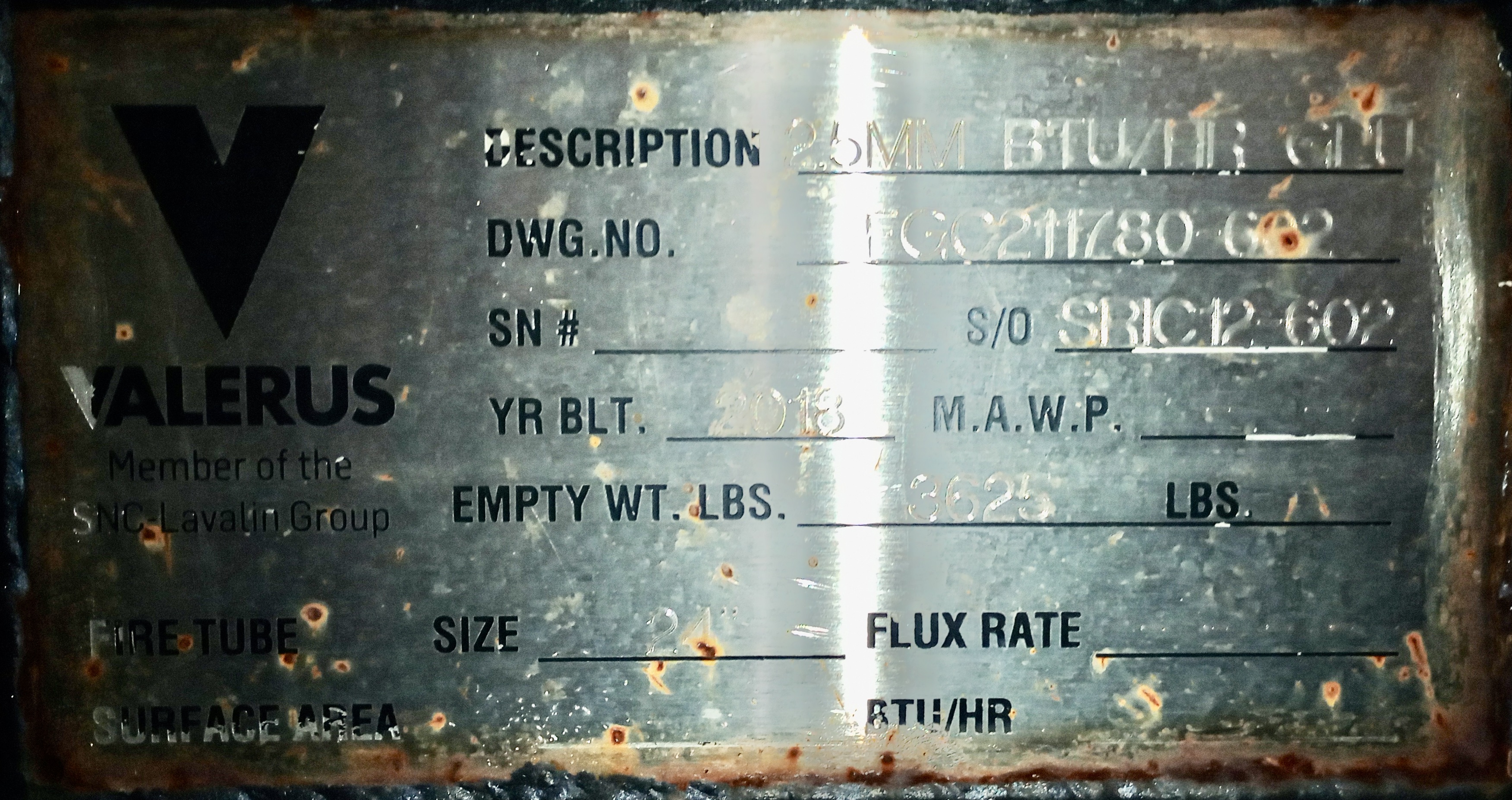

| Manufacturer | Valerus |
| Model | 4", 5000# Coil |
| Year | 2018 |
| Condition | Used |
| Stock Number | SRIC12-602 |
| Heater Rating | 2.5 mmbtu/hr |
| Pre-Heat Coil Diameter (in.) | 4" |
| Pre-Heat Coil MAWP (psi) | 5,000 |
| Expansion Coil Diameter (in.) | 4" |
| Expansion Coil MAWP (psi) | 1,440 |
| Inlet & Outlet Connection Type | Flanged |
| Wear and Tear | Normal |
| Tests | Fuel Train Function Test |
| Origin Code | OC01 |
| Work Recently Performed | Inspection, Paint, Function test, Bracket Fabrication |
