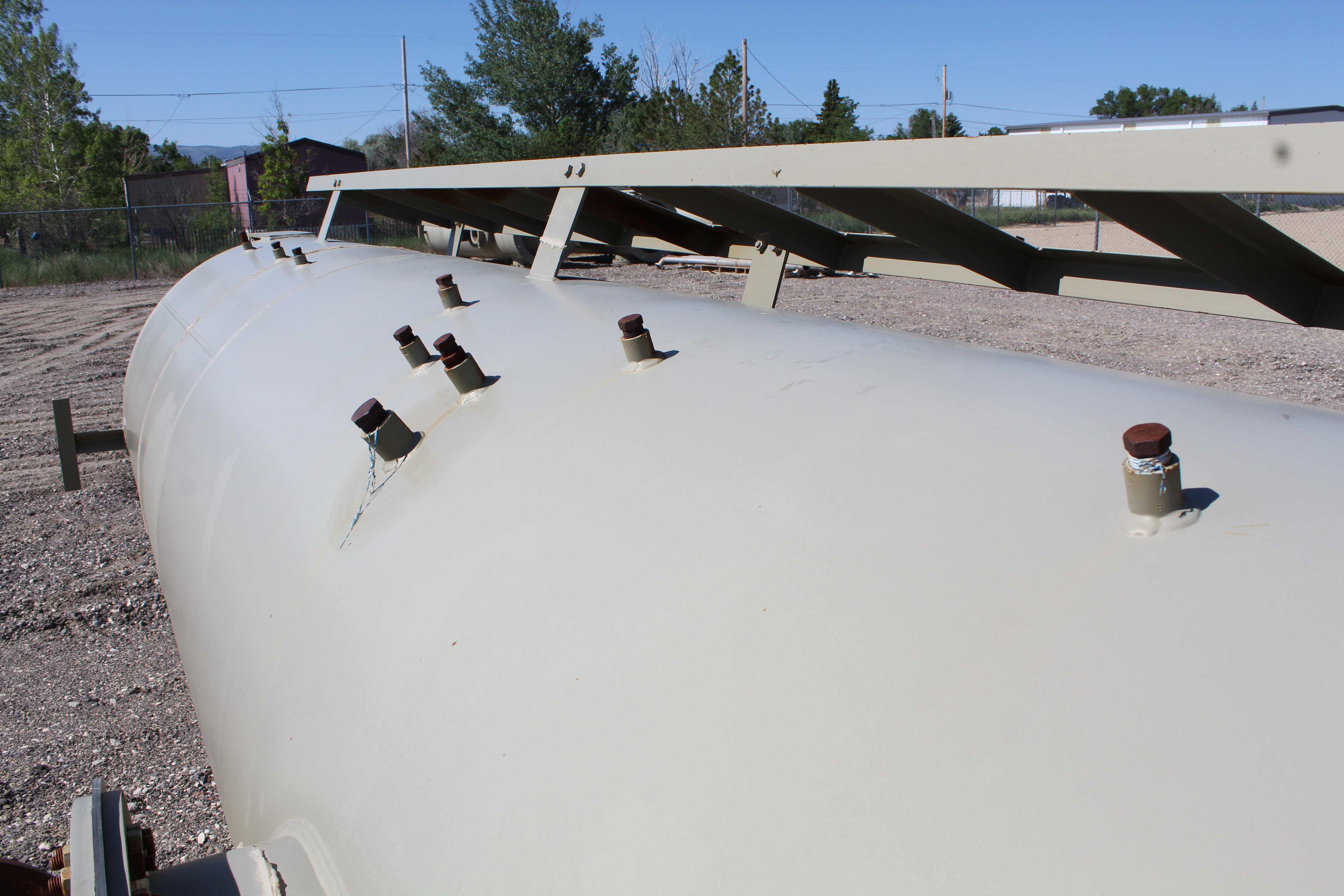

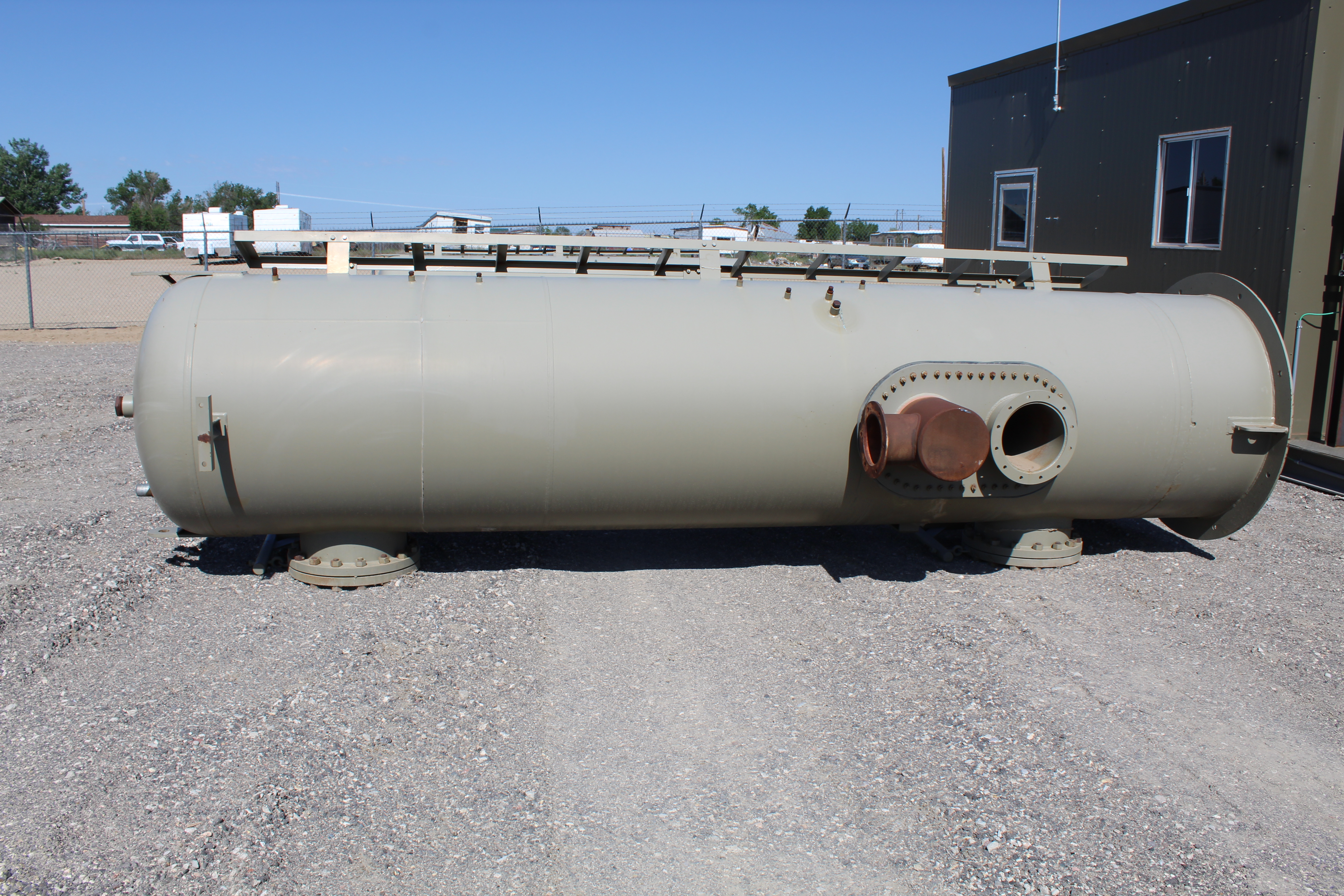

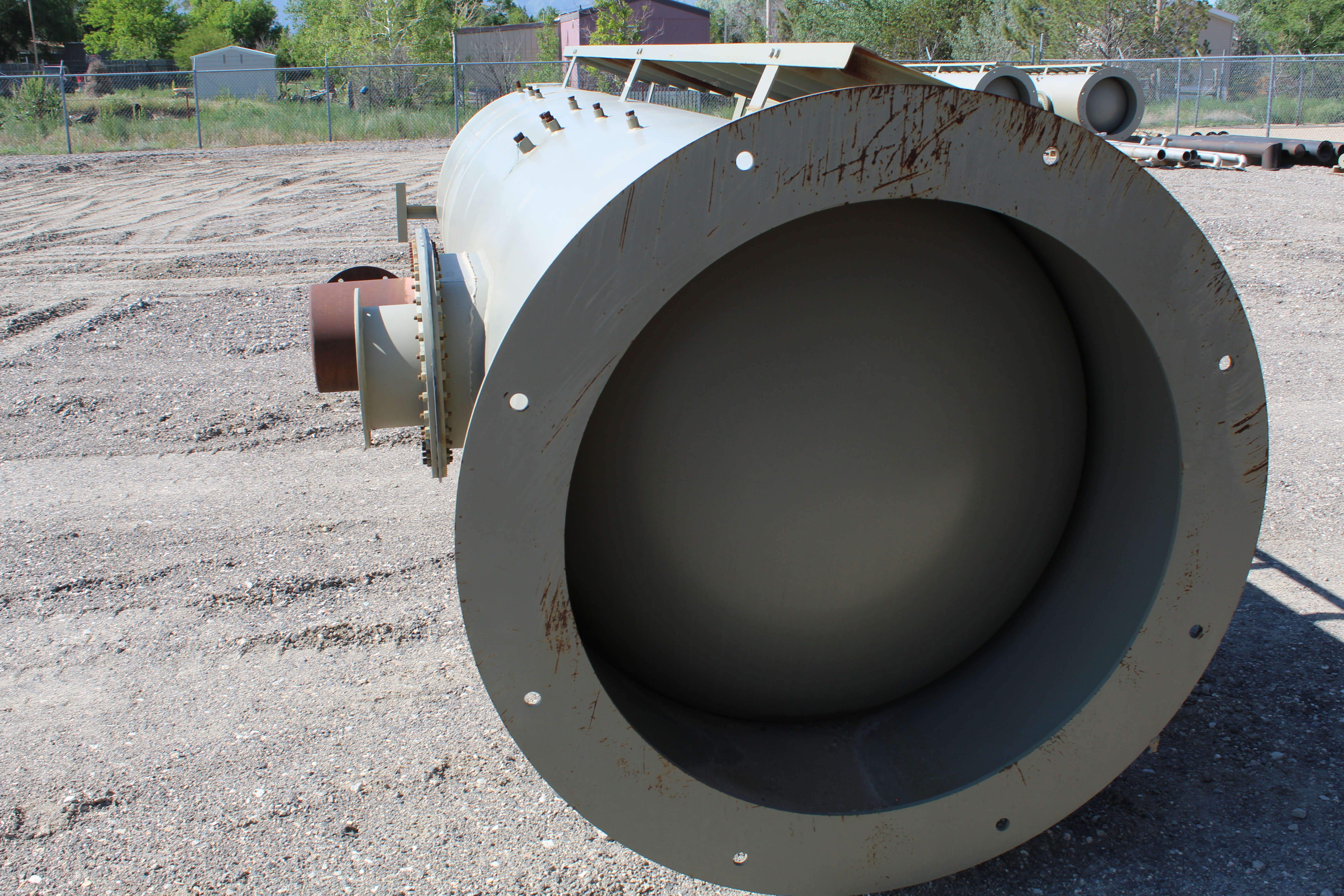

Heater Treater, Vertical, 4'x15', 125#
Heater Treater, Vertical, 4'x15', 125#
$16,000 (USD)
Location:Wyoming
or
Call 1 (844) 564-4237
Description

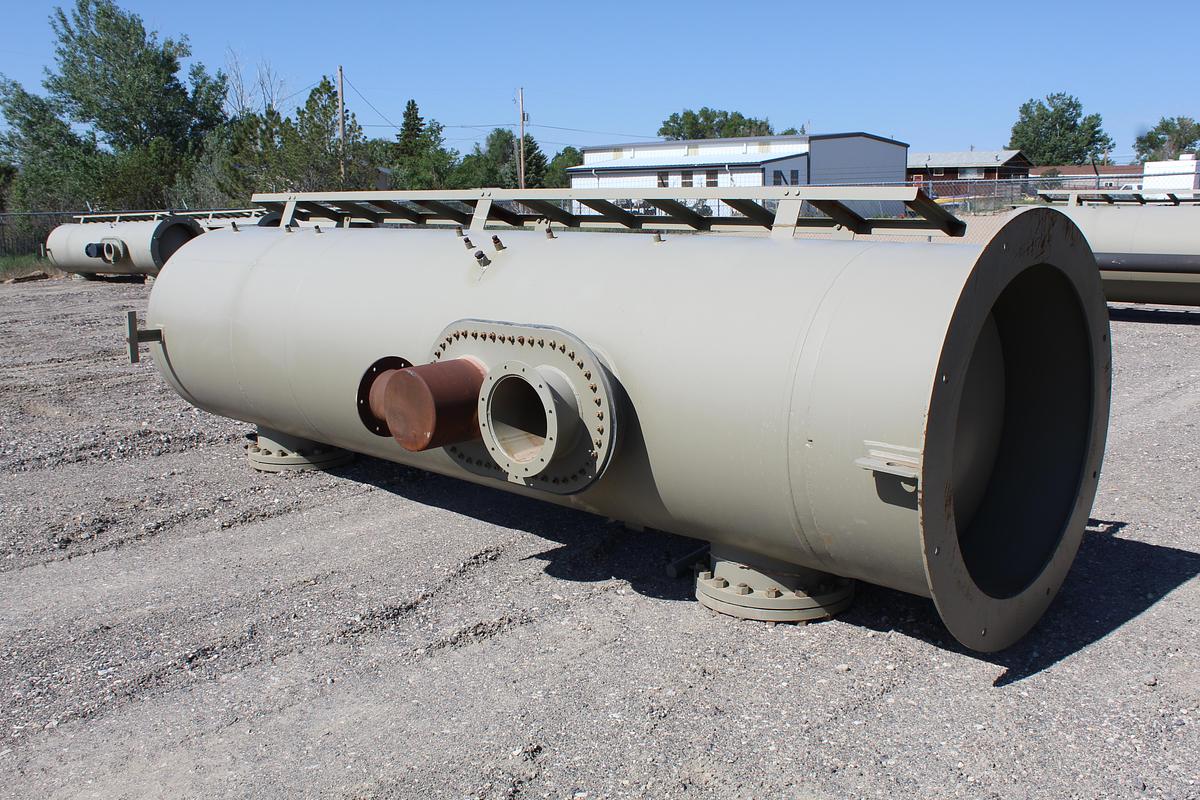

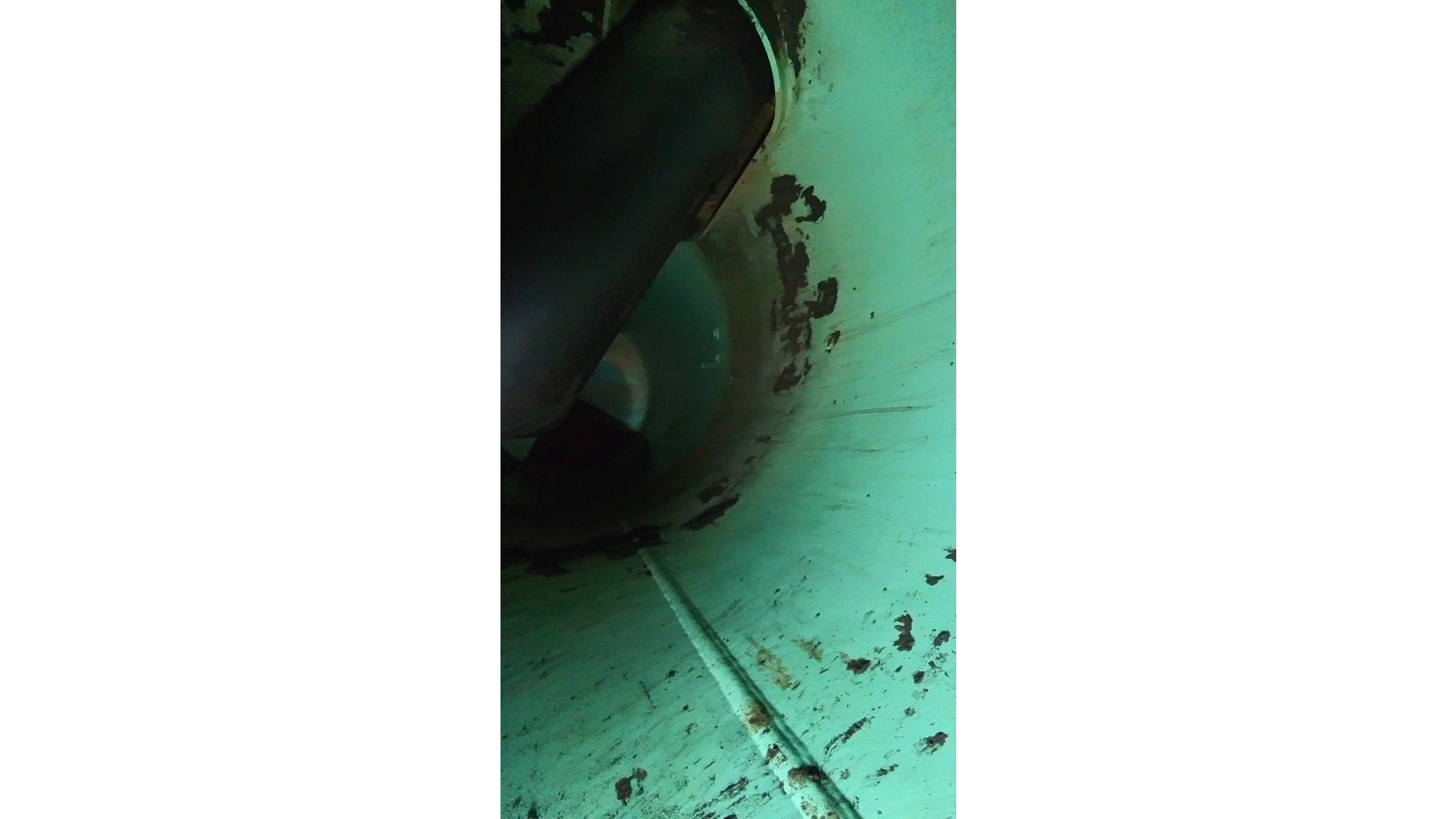

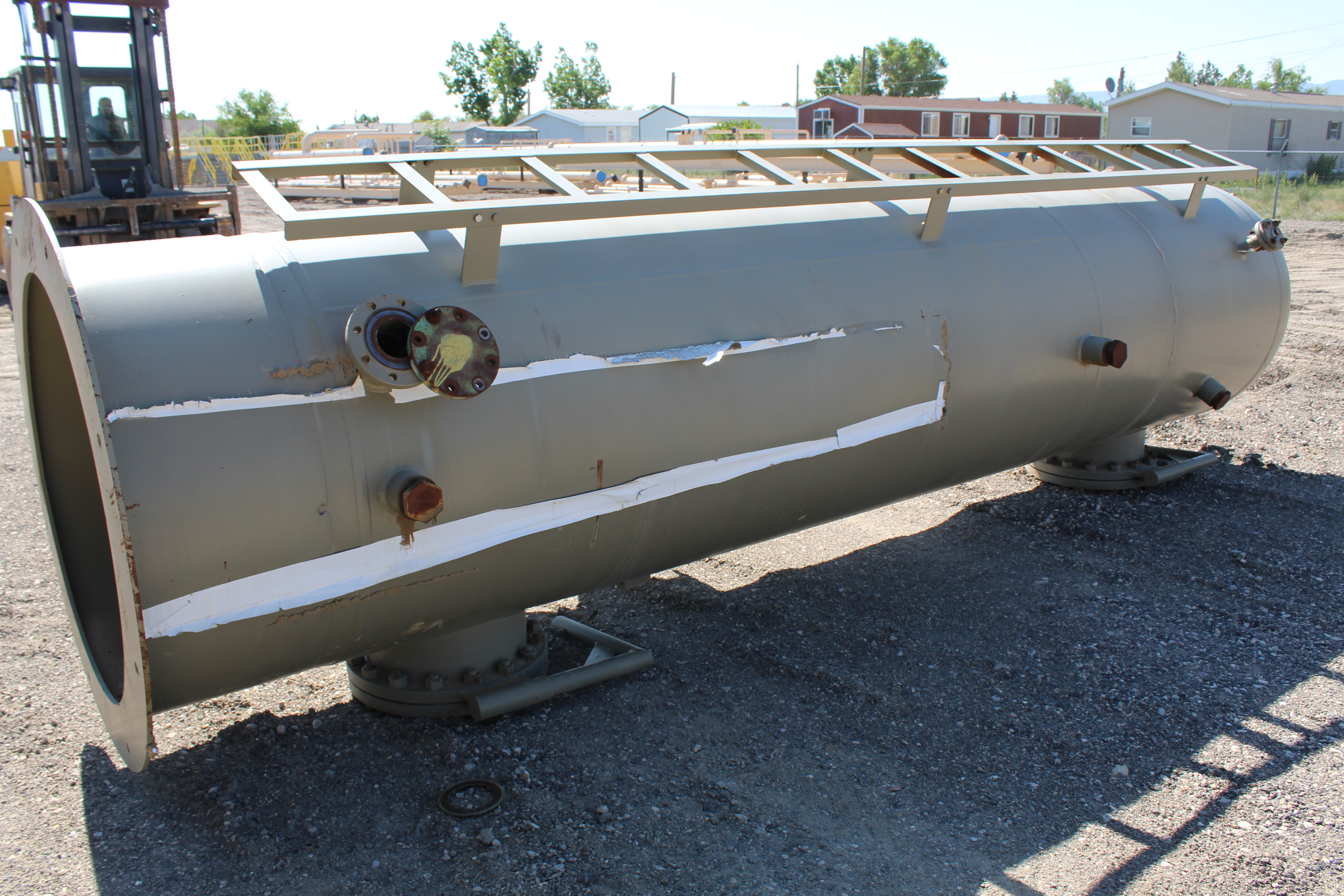

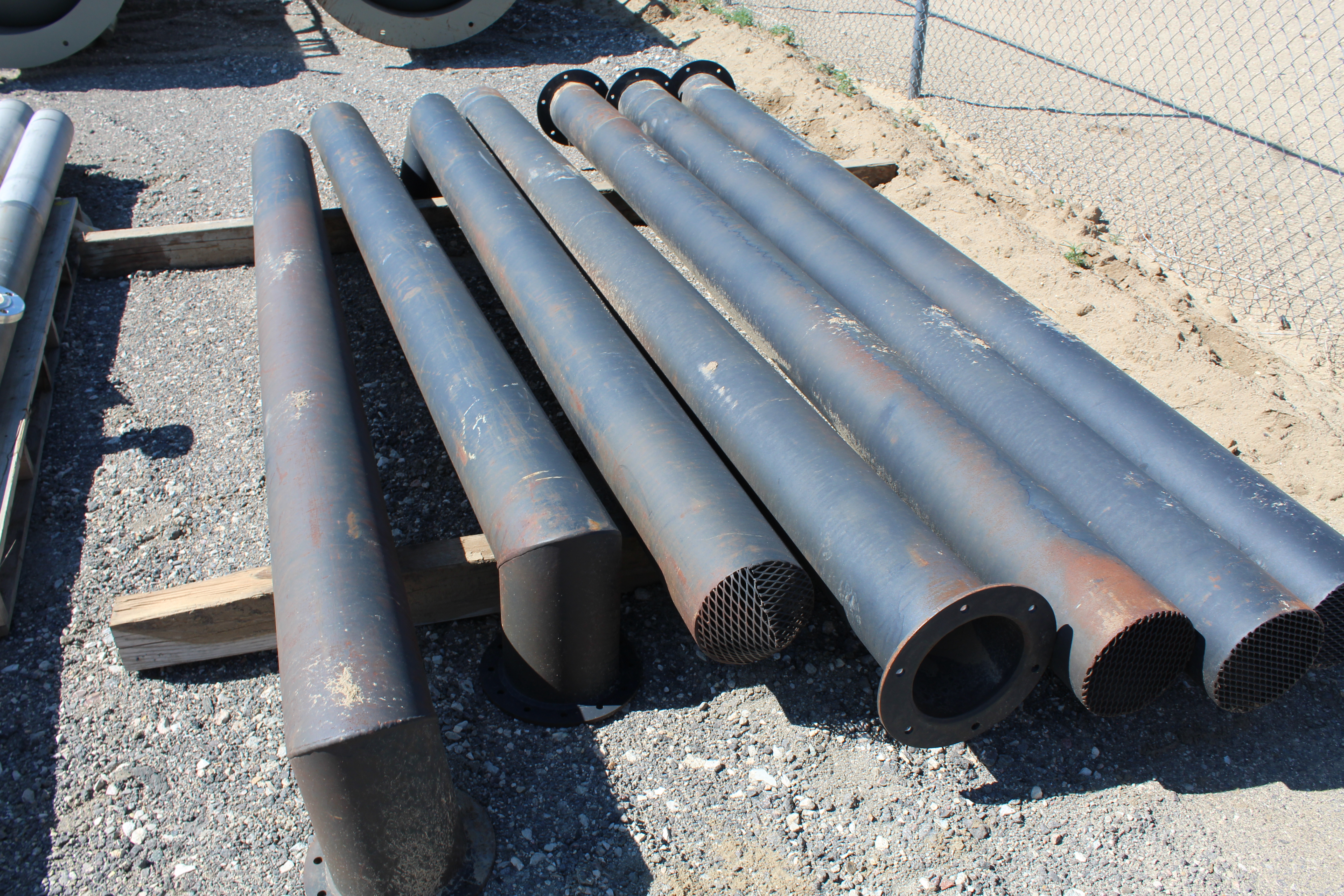

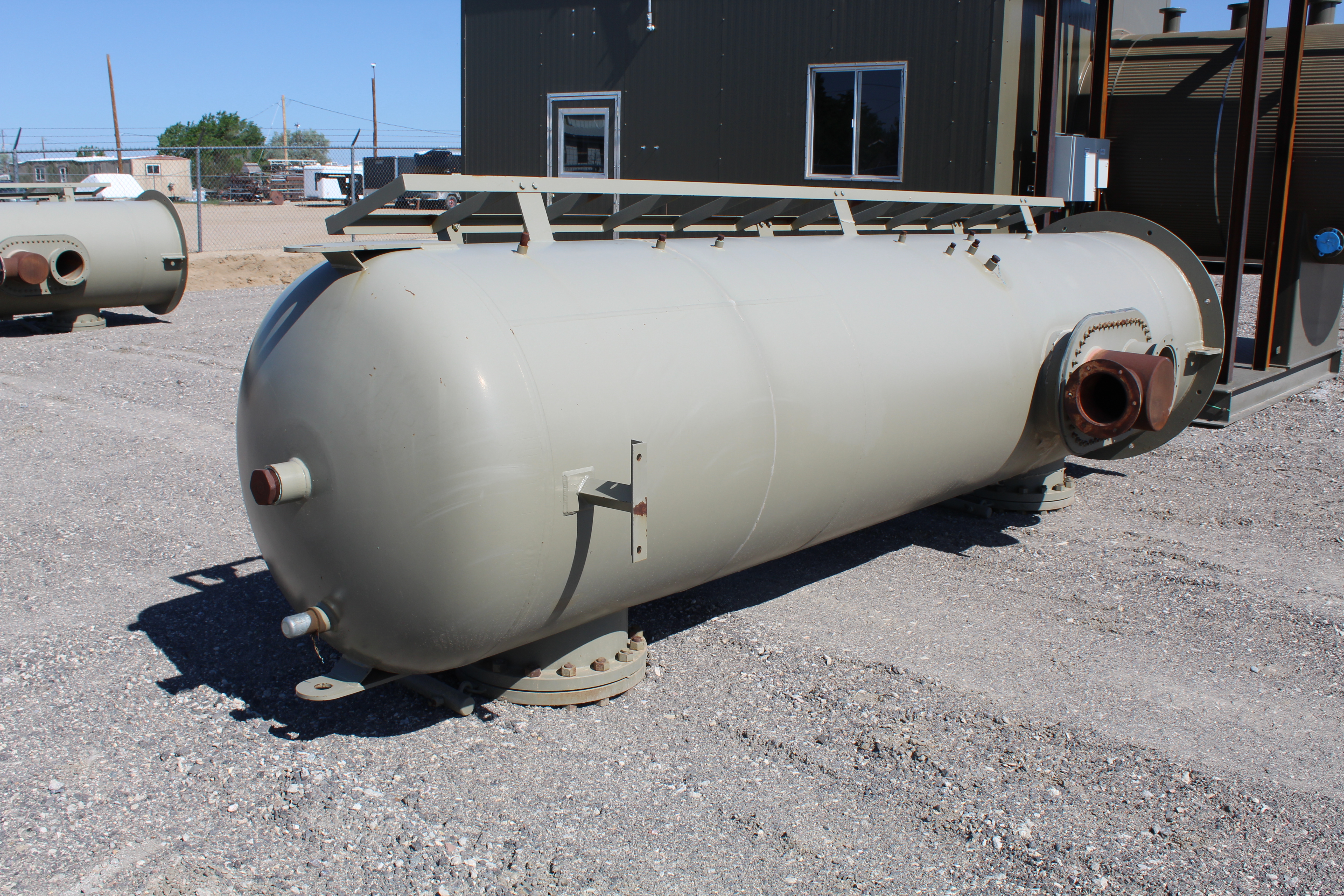

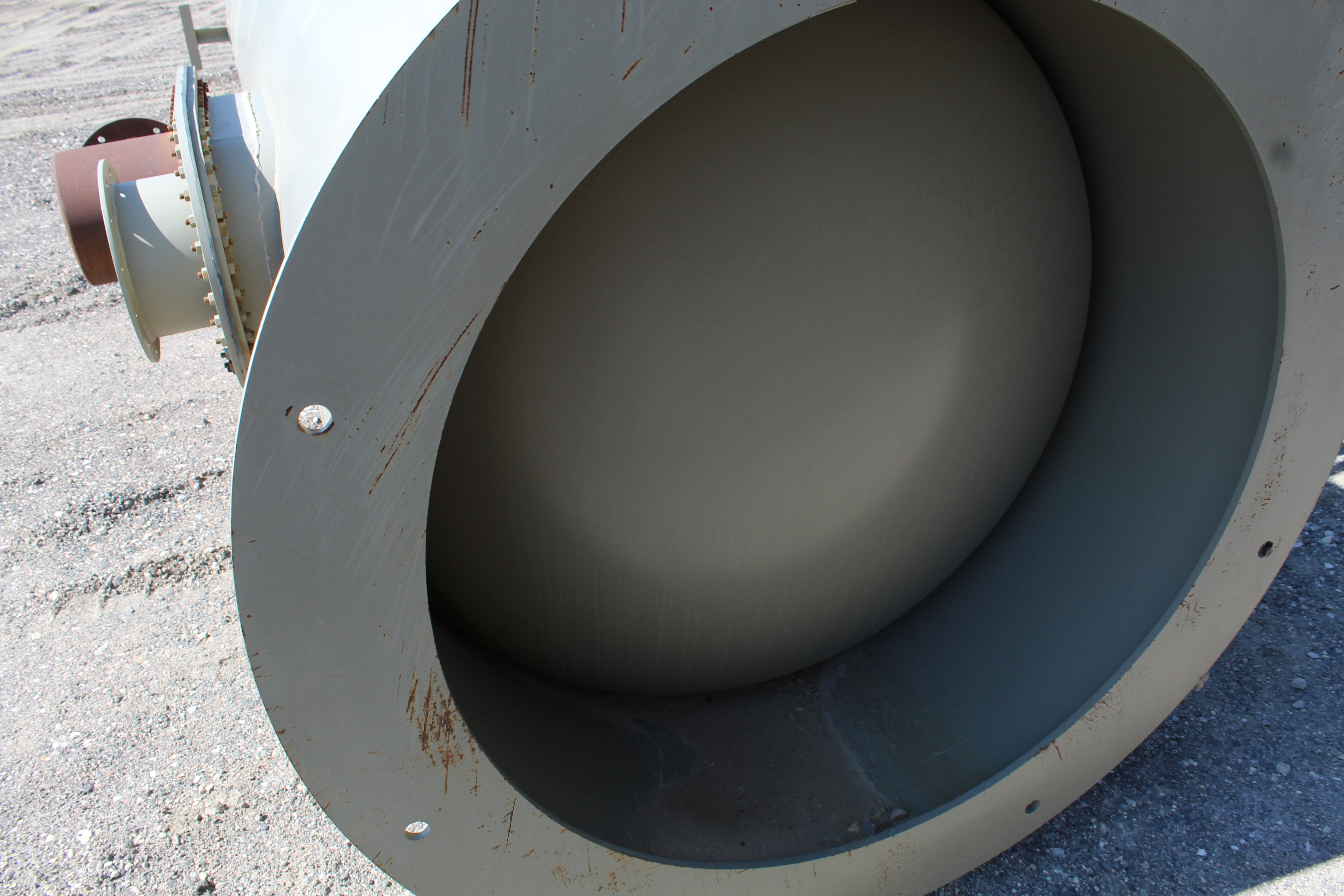

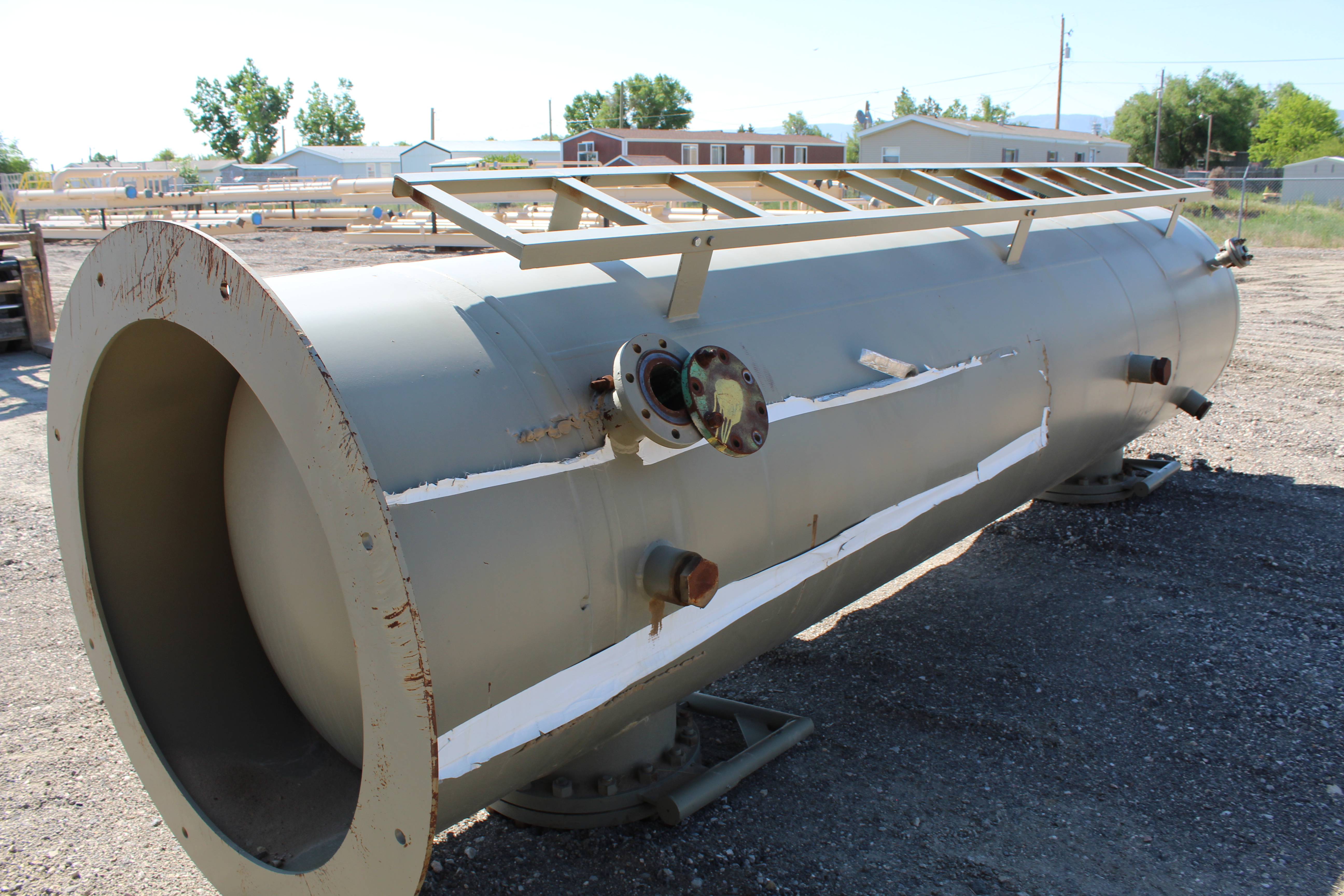

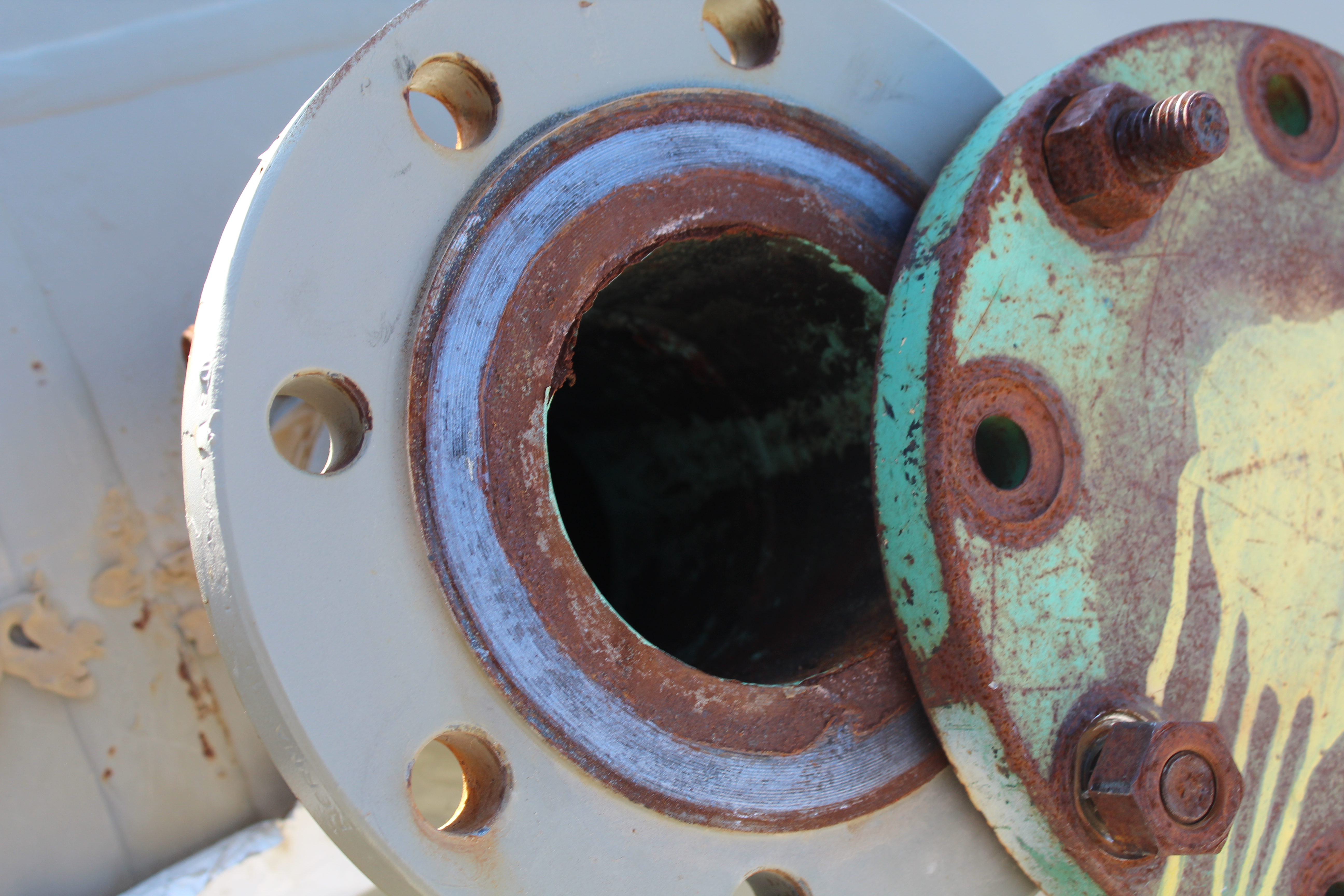

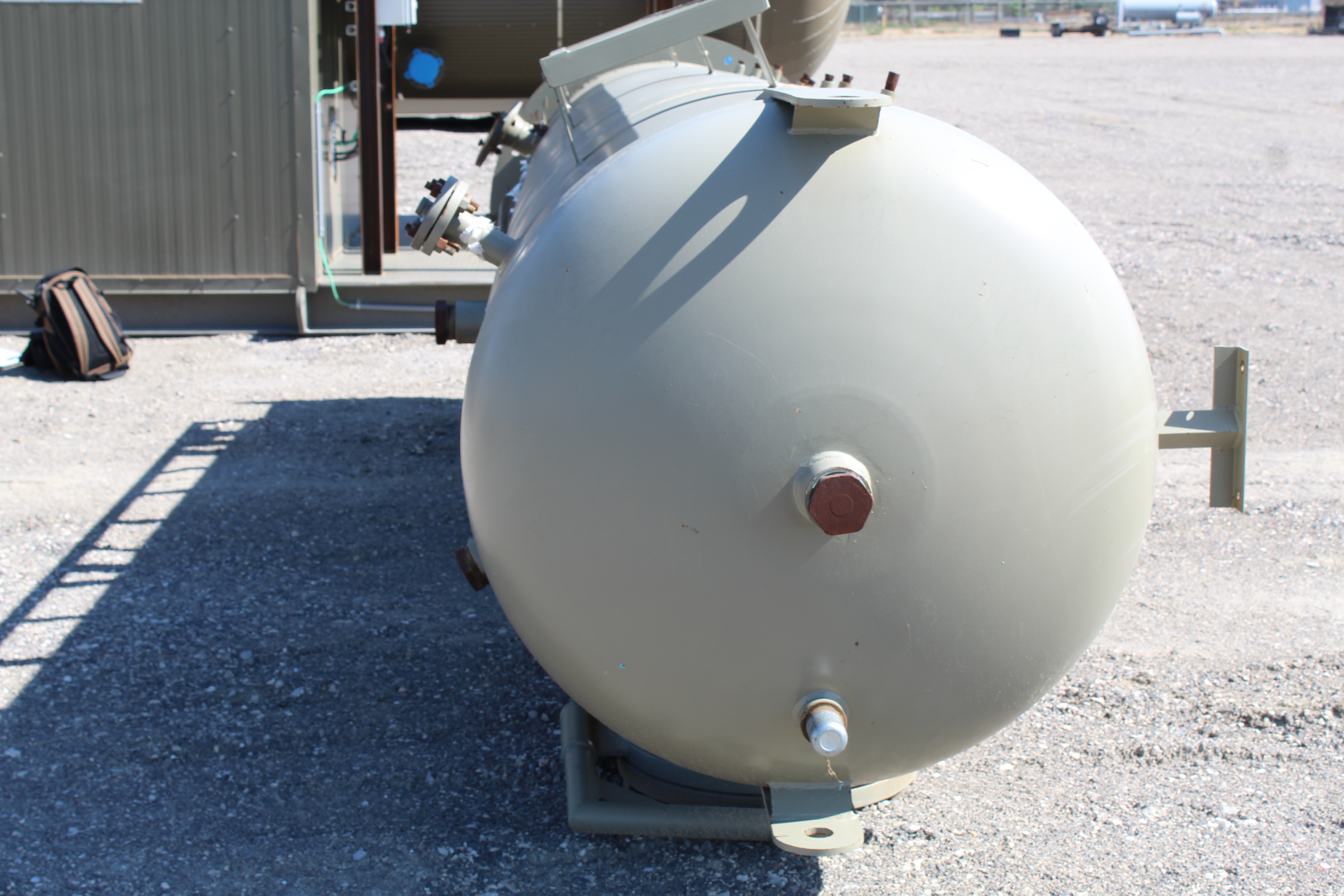

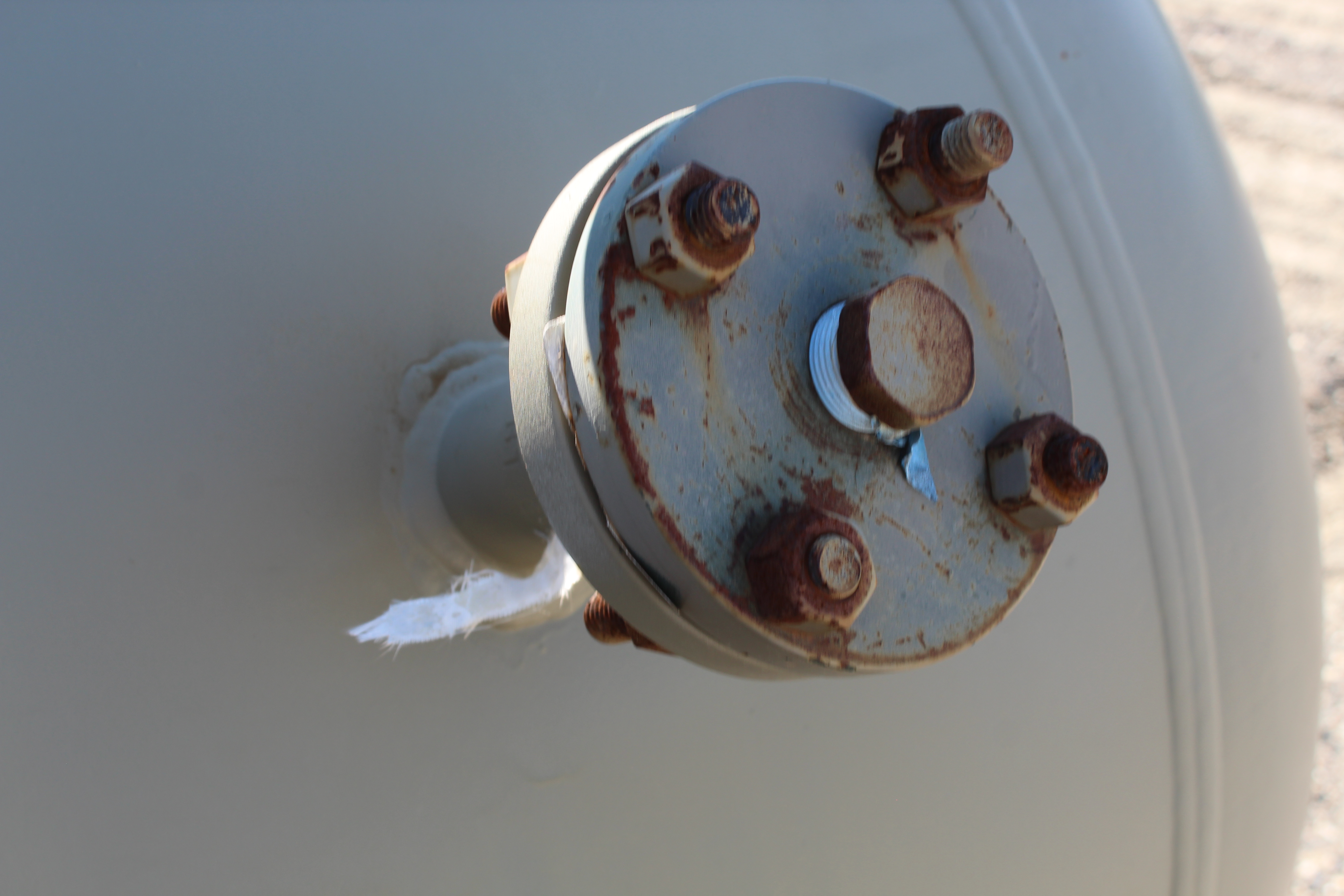

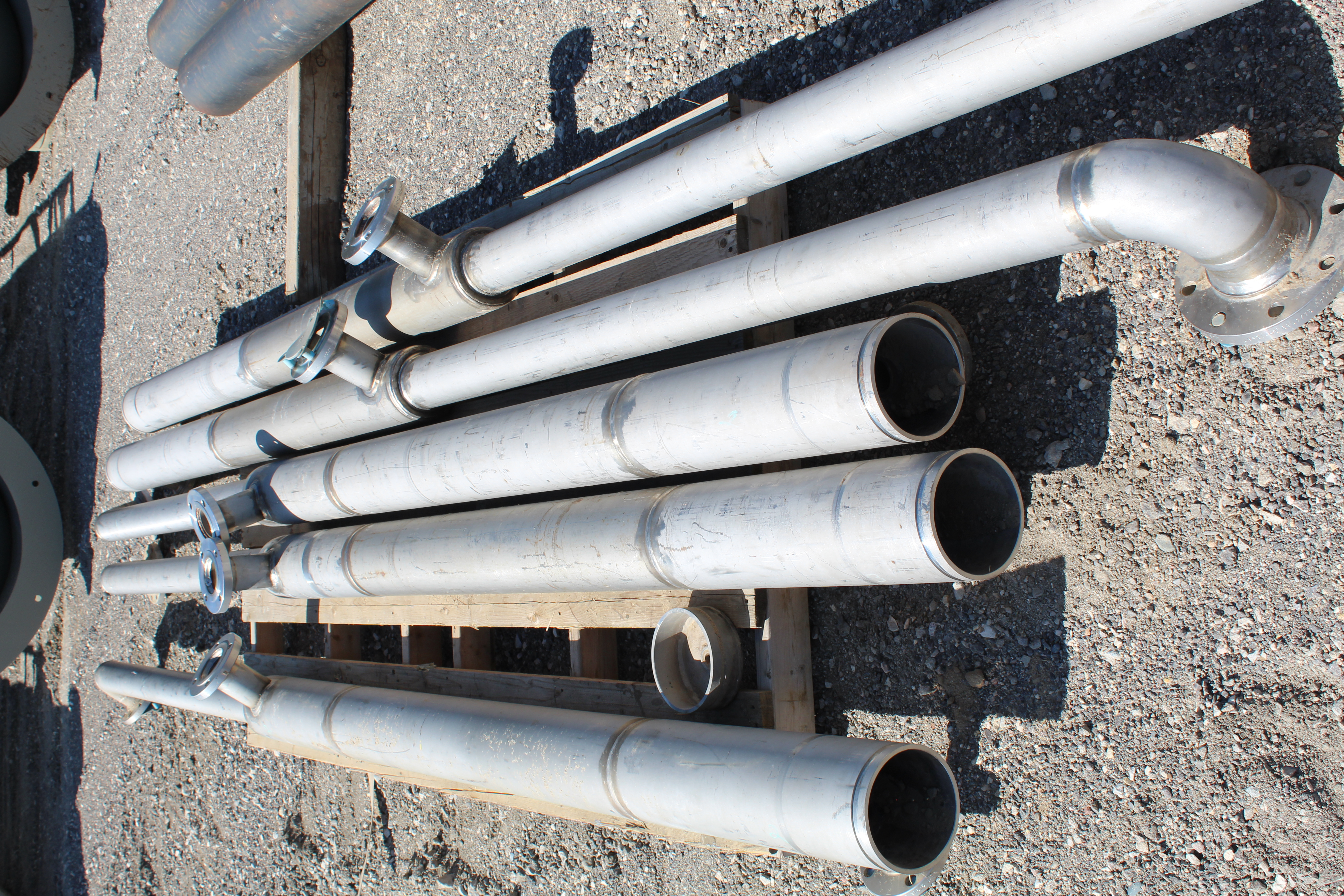

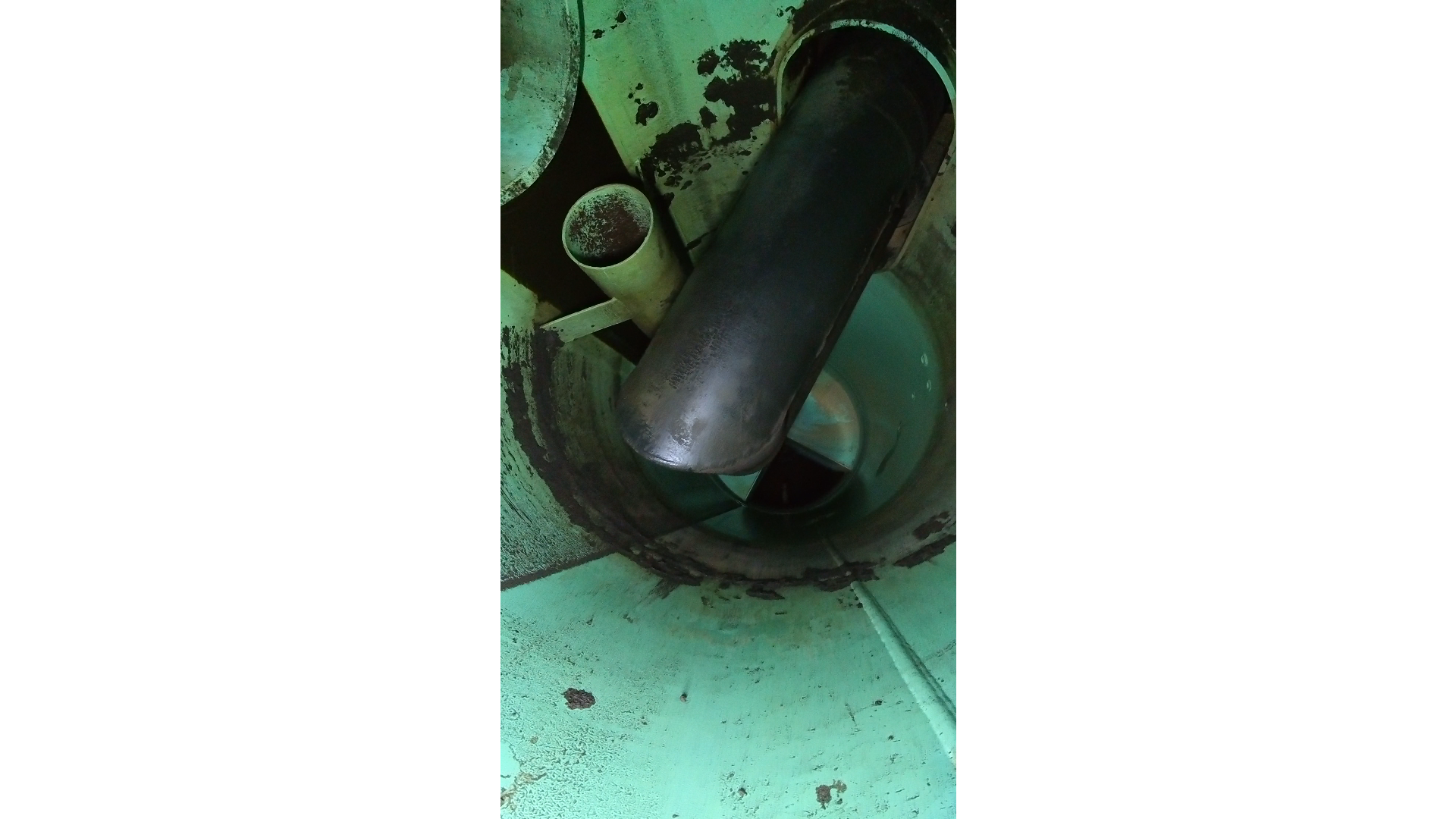

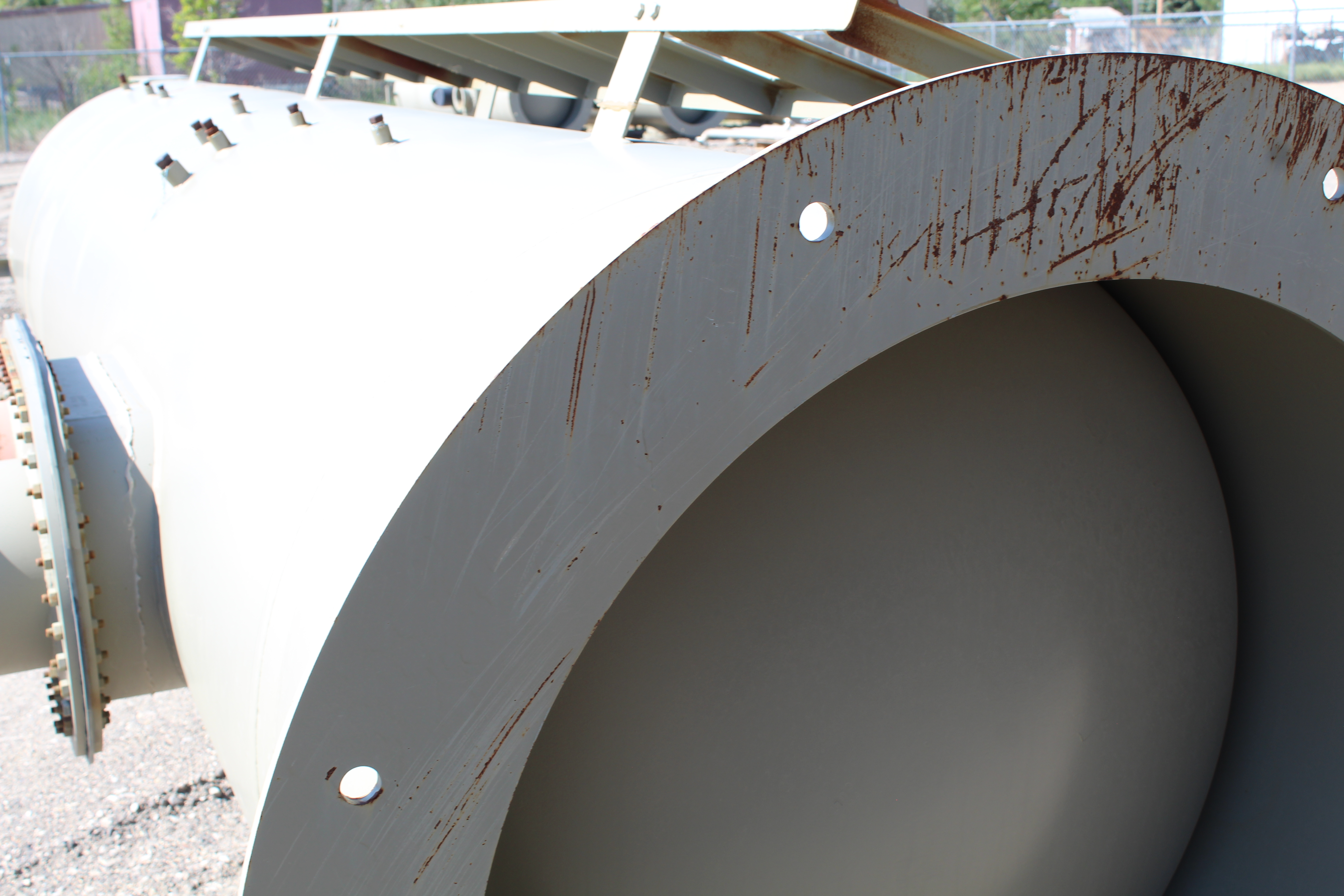

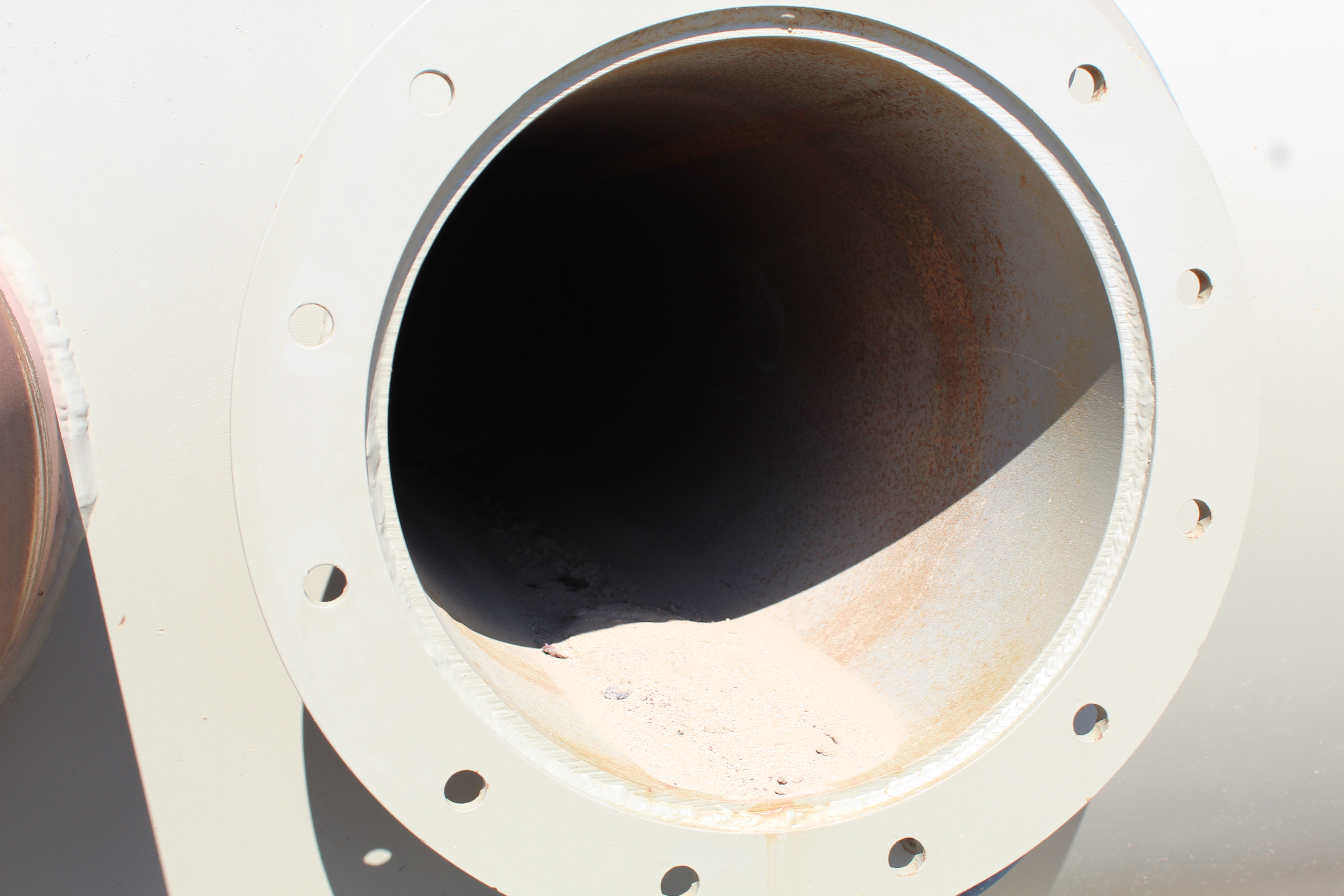

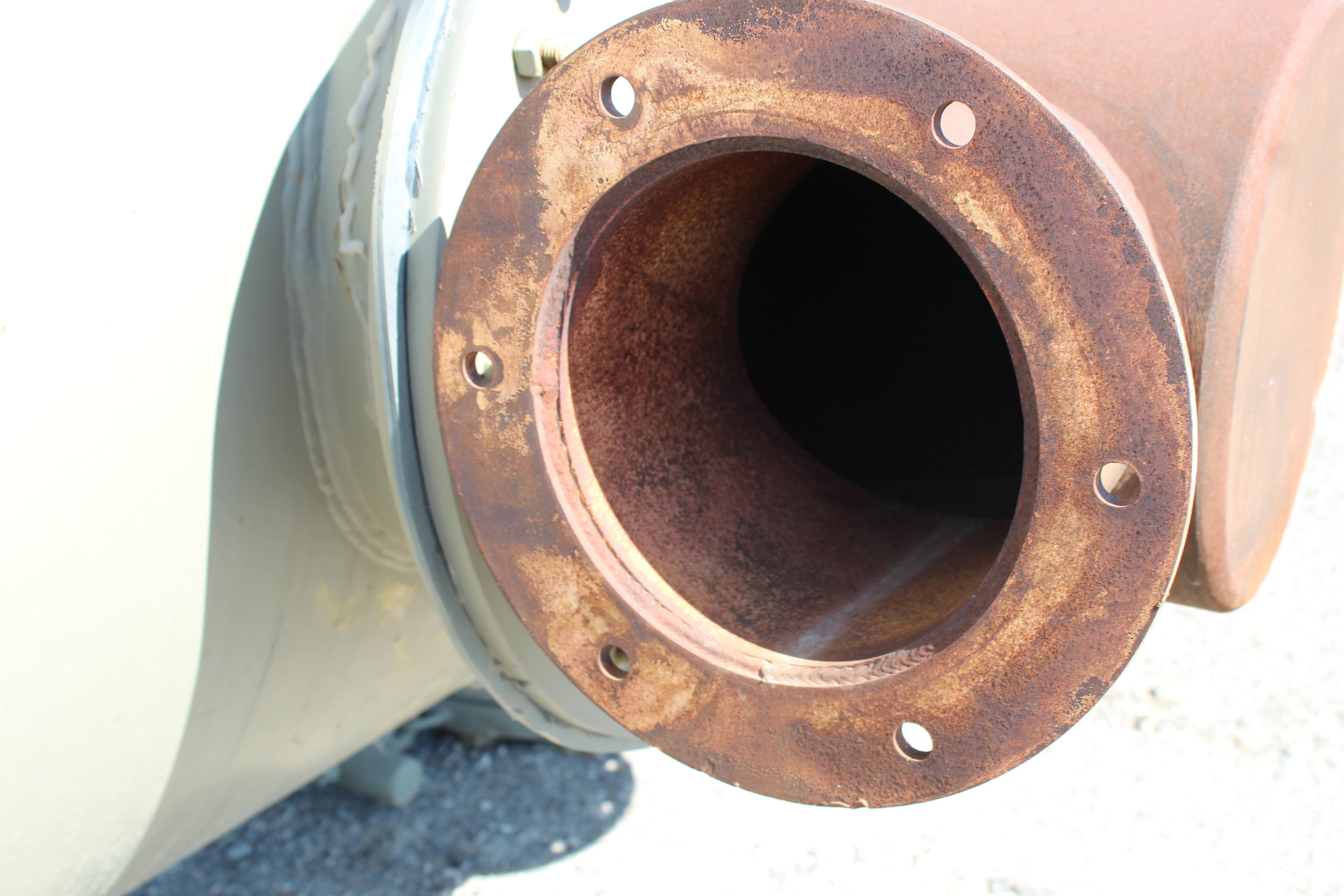

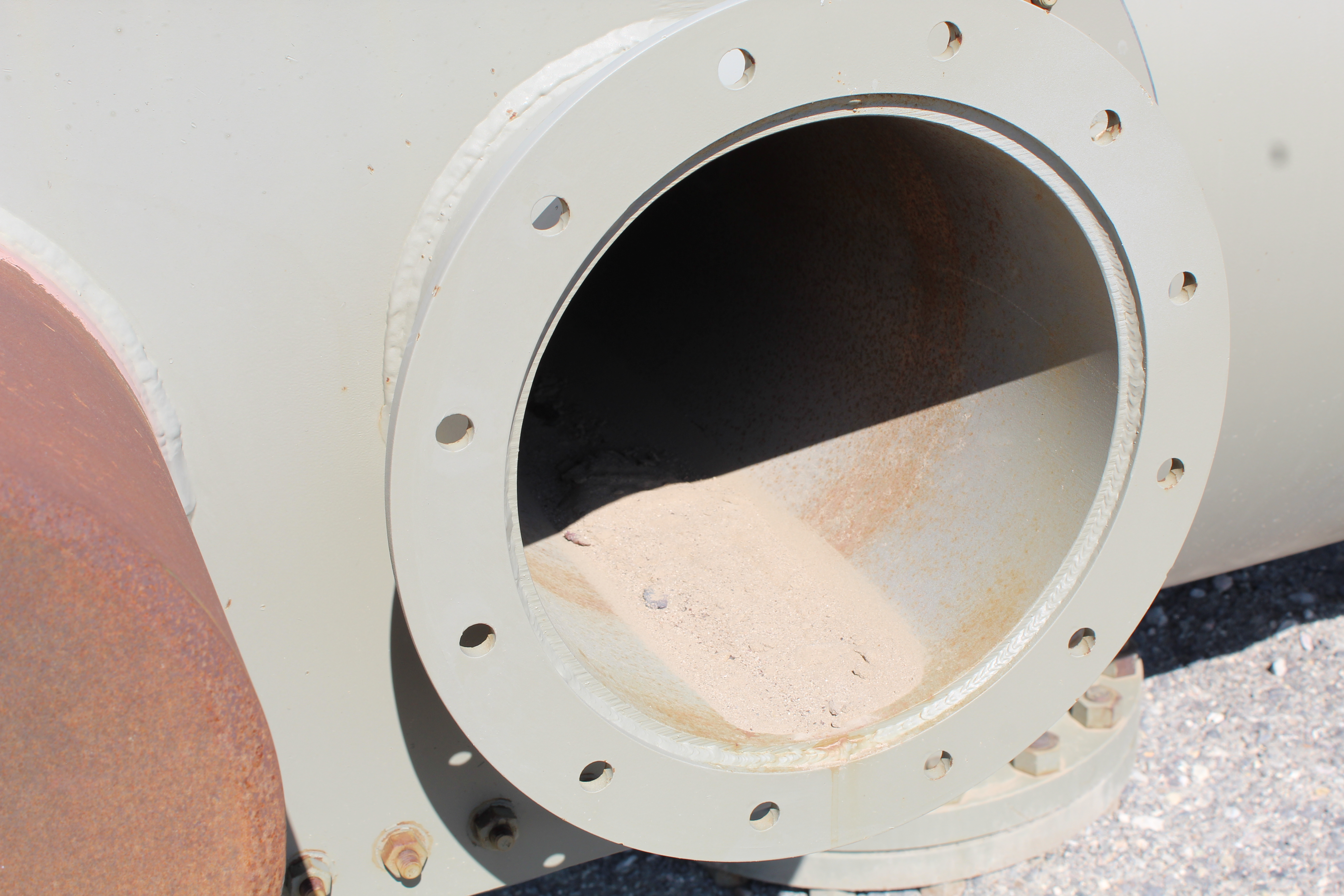

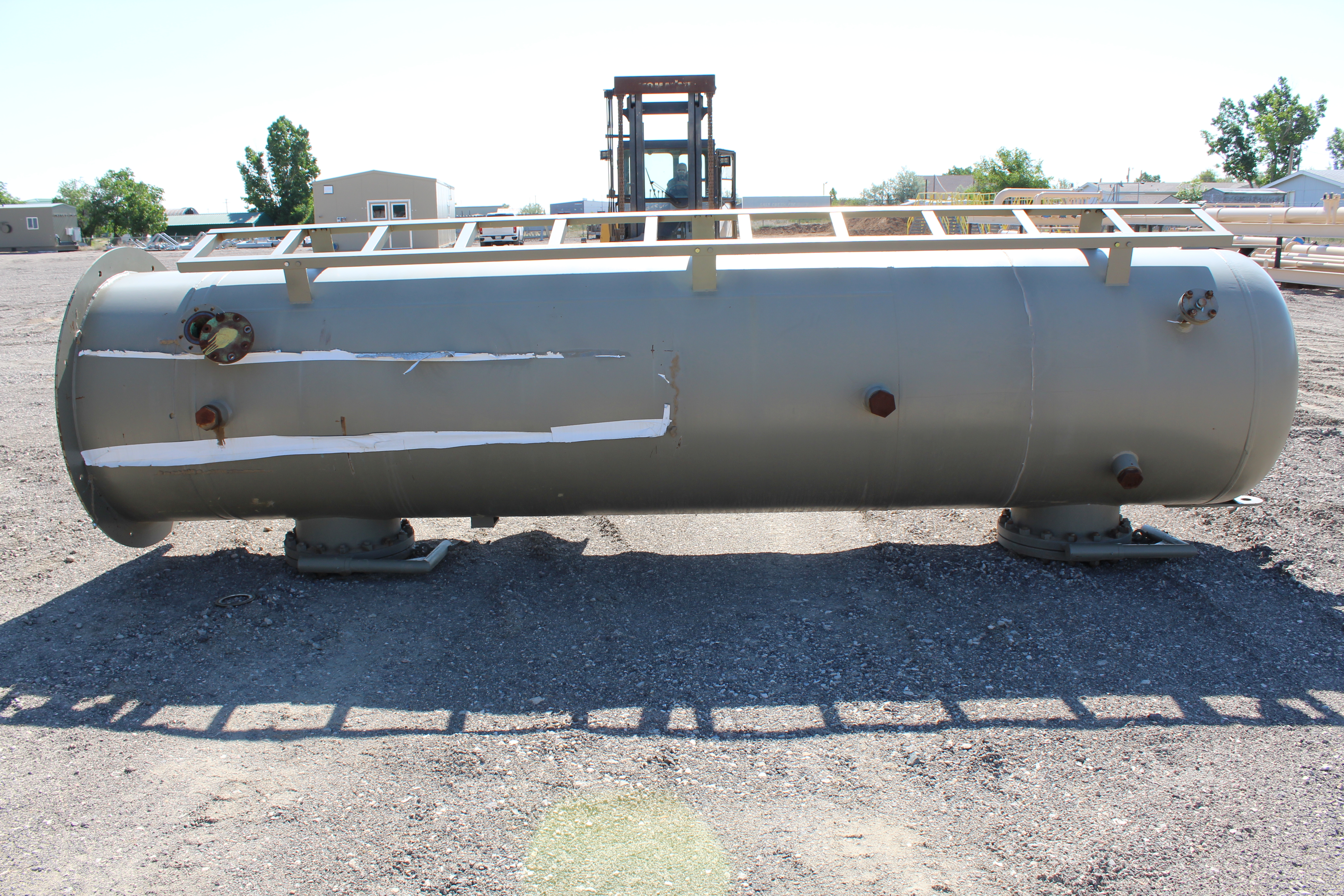

Vertical heater treater with a 4' OD x 15' S/S shell and 125 PSI MAWP. Built by Granite Peak Fabrication in 2021. Features a 12" x 3' 8 5/8" firetube with high temperature coating, 8" x 12' smoke stack, internal epoxy coating, adjustable stainless steel water leg, 15' ladder, and multiple 1/2"–5/8" stud assemblies. Firetube gasket is 1/4" thick Viton. Unit includes spiral wound CGI gaskets, double-nutted rubber-coated U-bolts, and 100# non-code fuel pot.
Call (844)564-4237 to schedule a walkthrough.
Specifications
| Manufacturer | Granite Peak Fabrication |
| Model | 125# |
| Year | 2021 |
| Condition | New |
| Serial Number | 21499 |
| Stock Number | NB1418 |
| Orientation | Vertical |
| Subcategory 2 | ASME |
| Pressure Rating (psi) | 125 |
| Vessel Outside Diameter (in.) | 48 |
| Vessel s/s Length (in.) | 180 |
| Wear and Tear | No visible wear and tear |
| Shipping Dimensions | 5'W x 18'6"L x 5'4"H |
| Weight | Approx. 5,700lbs |

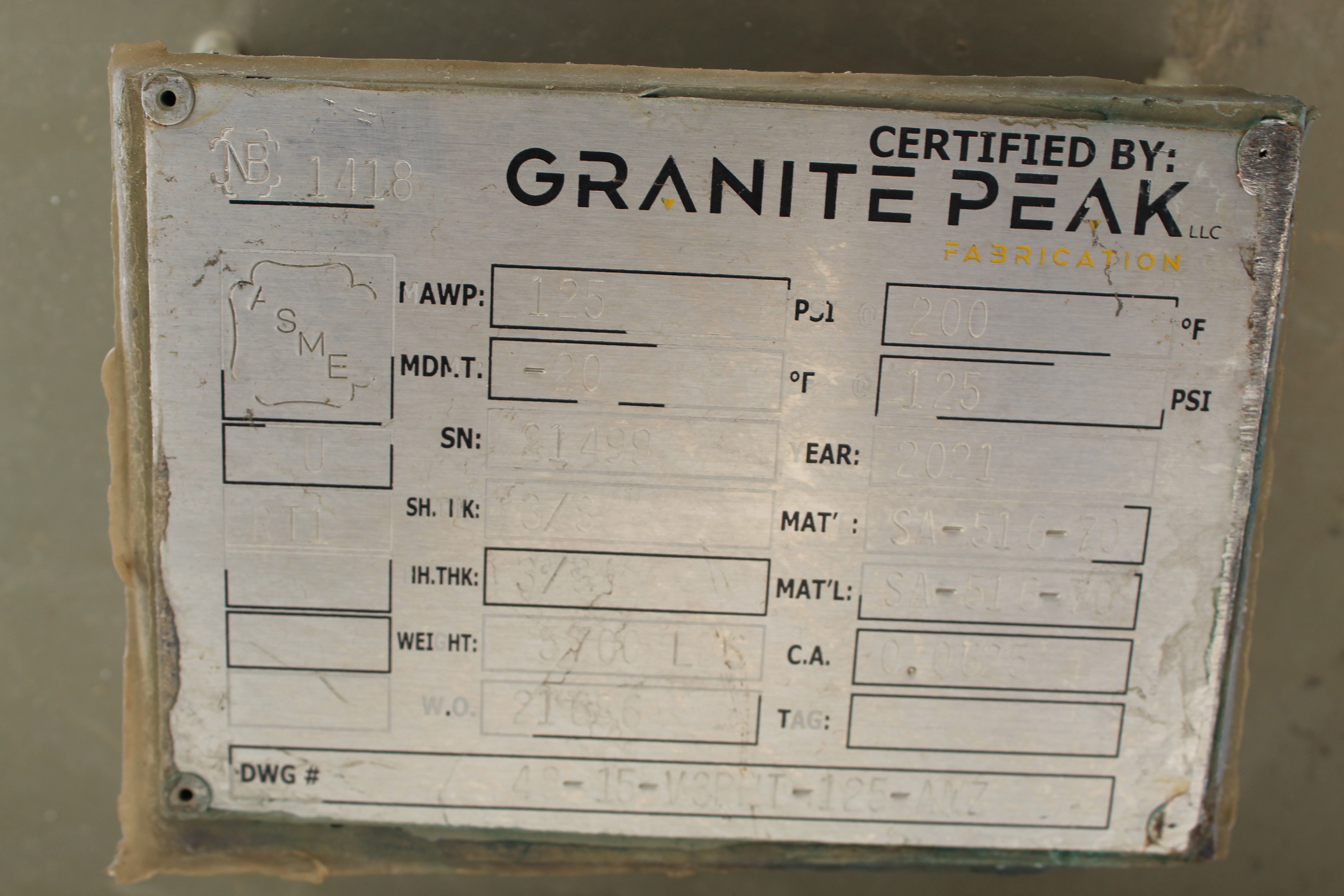

| Certification | ASME "U" |
