Sand Trap, Cyclonic, 24"x8', 5000#
Sand Trap, Cyclonic, 24"x8', 5000#
$47,941 (USD)
Location:Oklahoma
Description

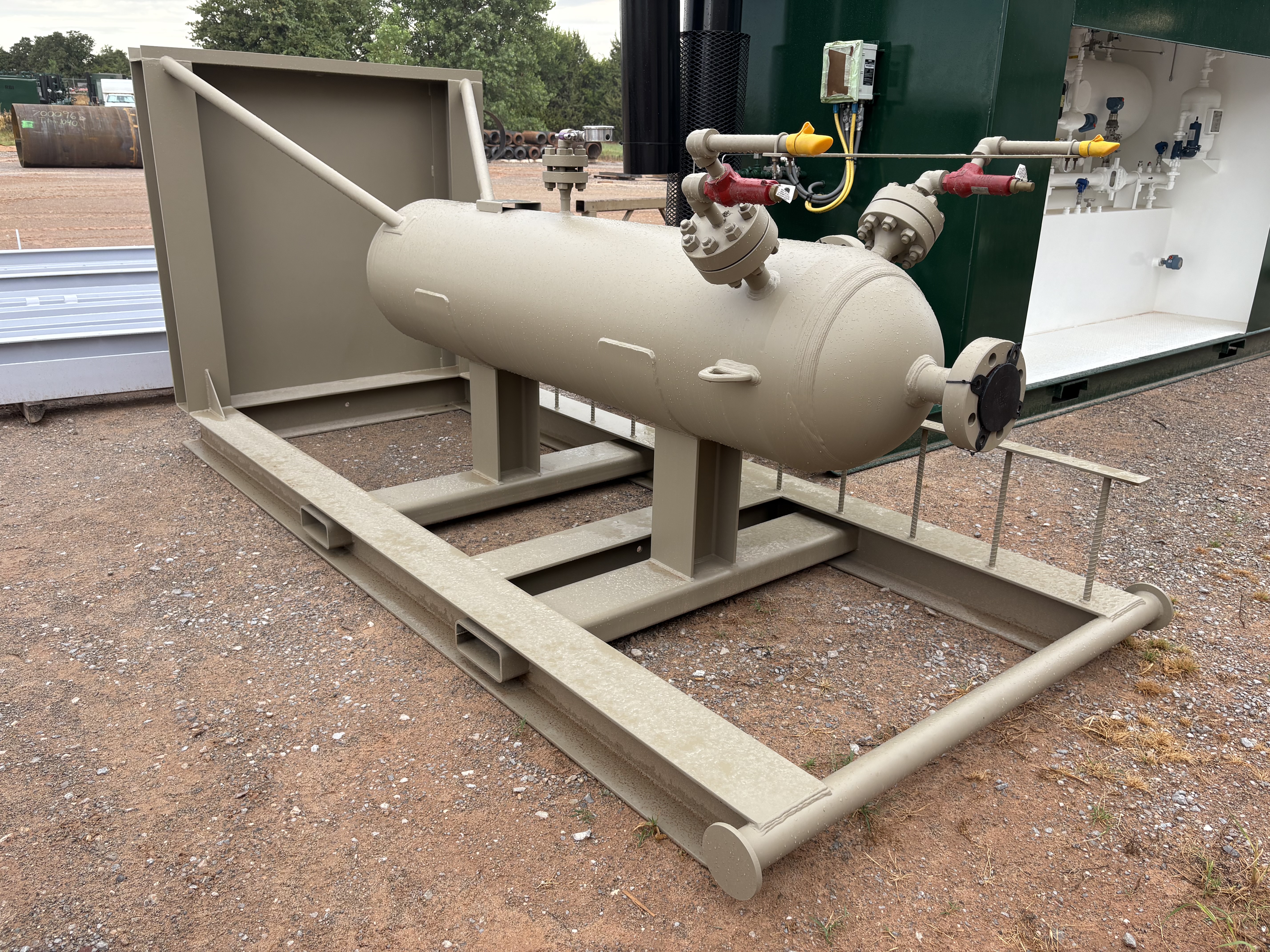

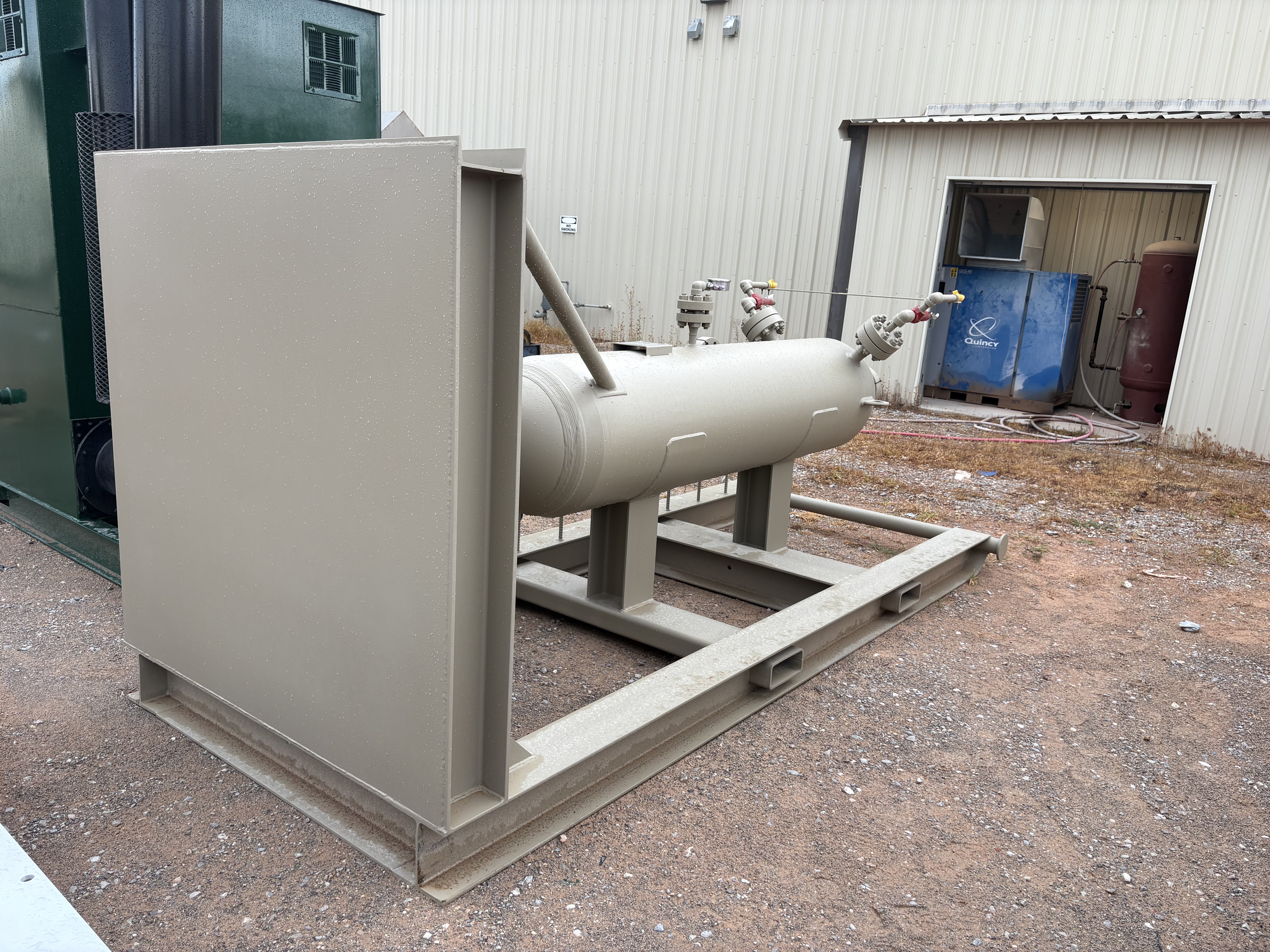

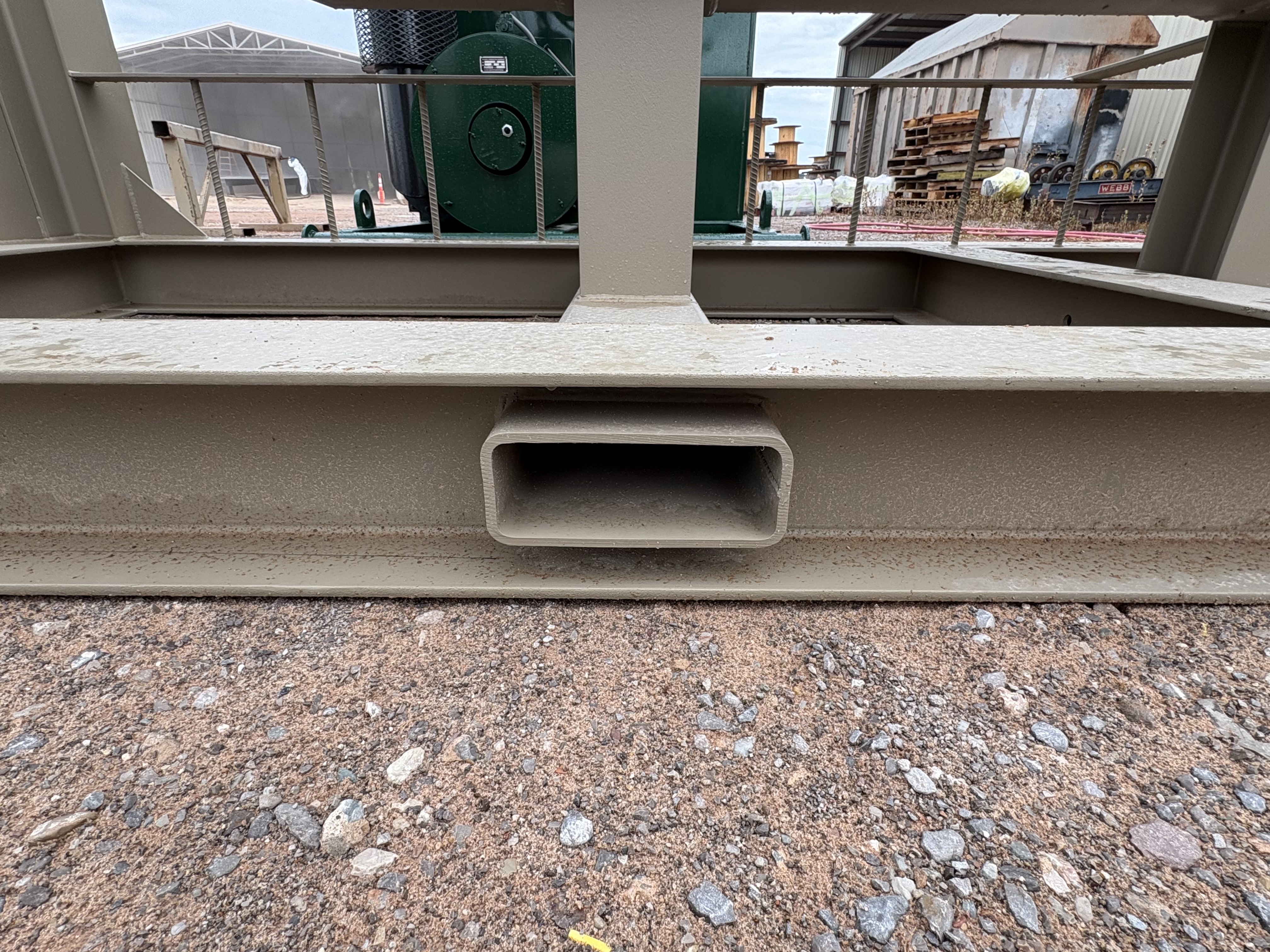

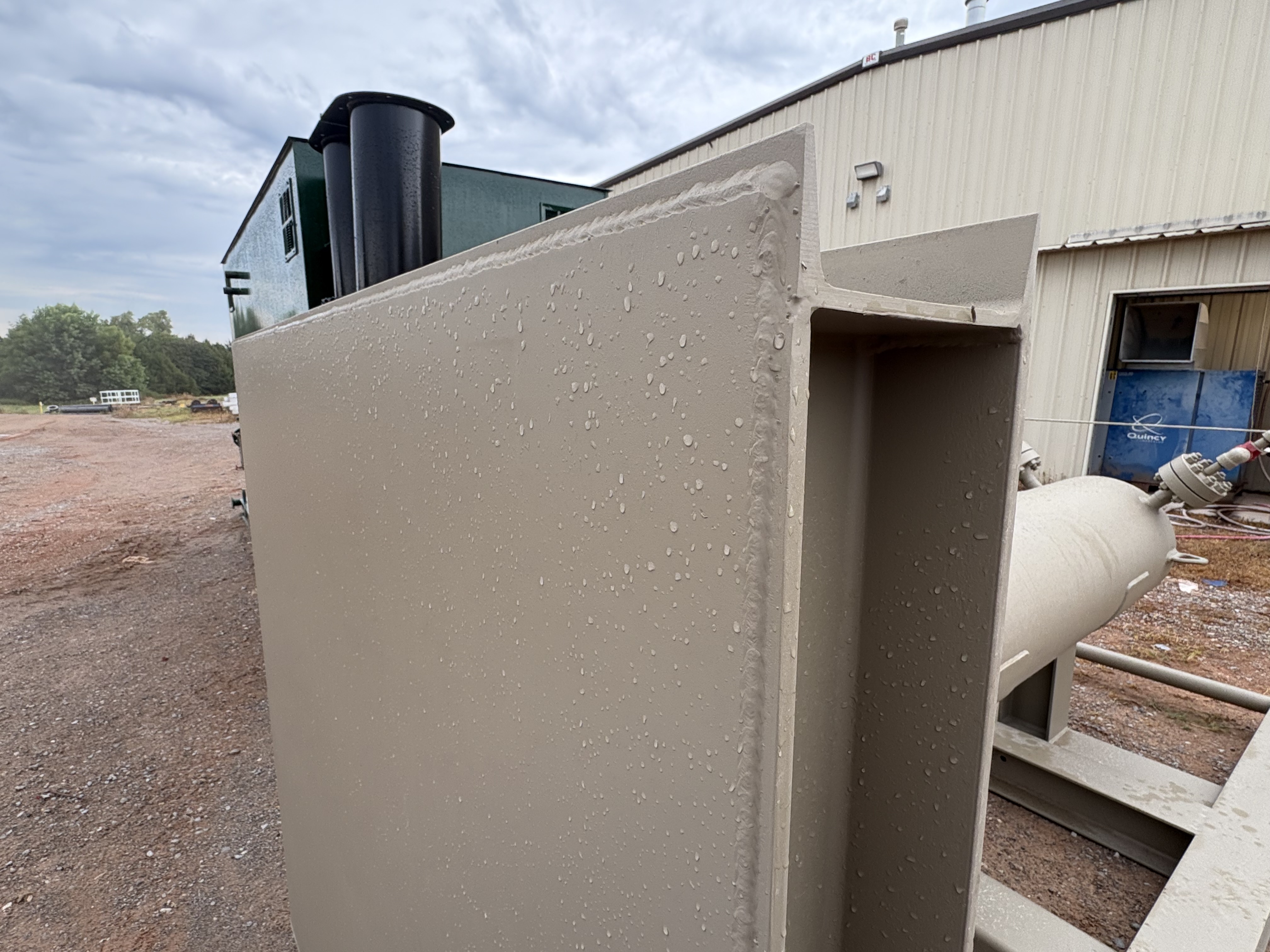

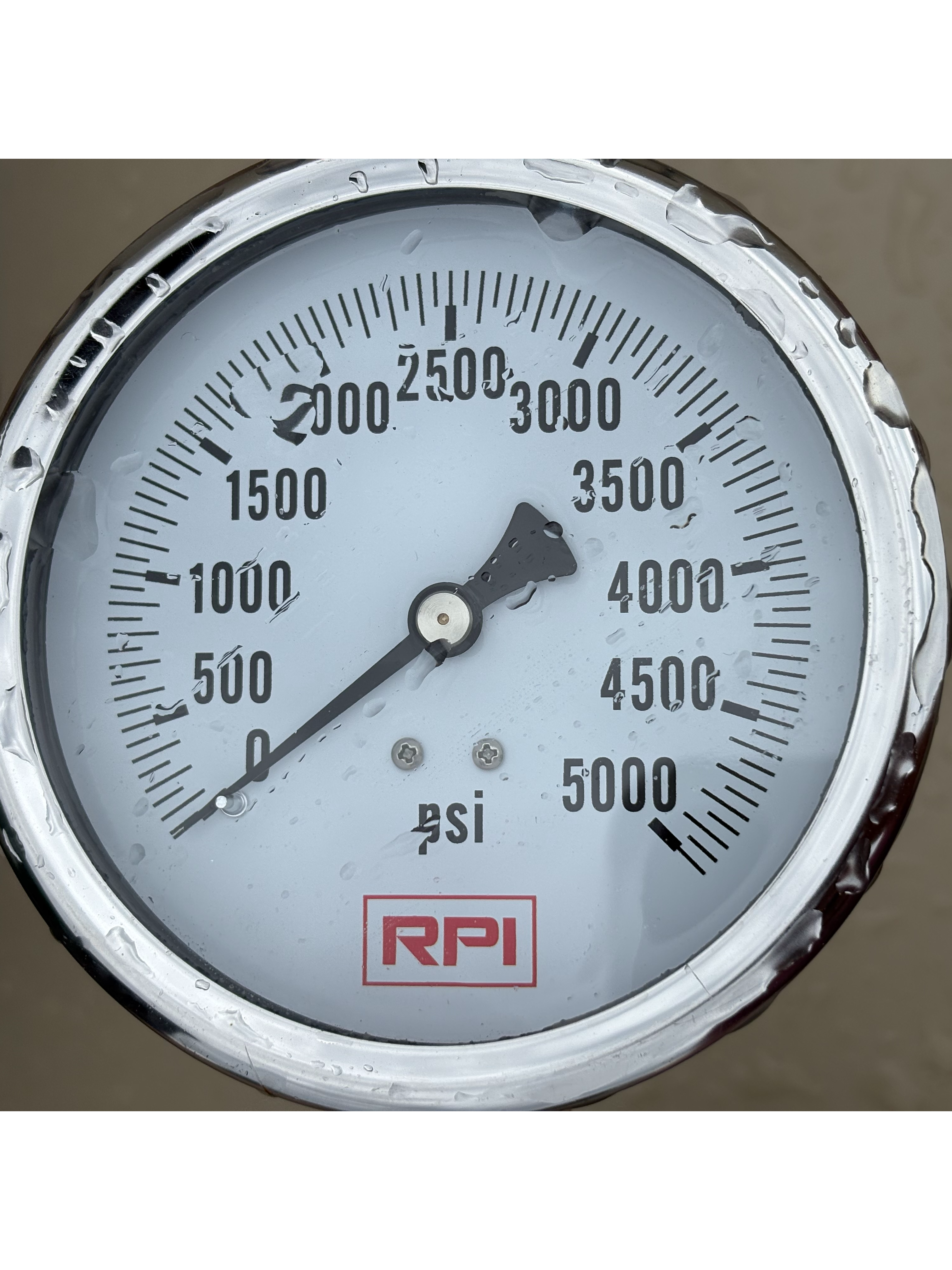

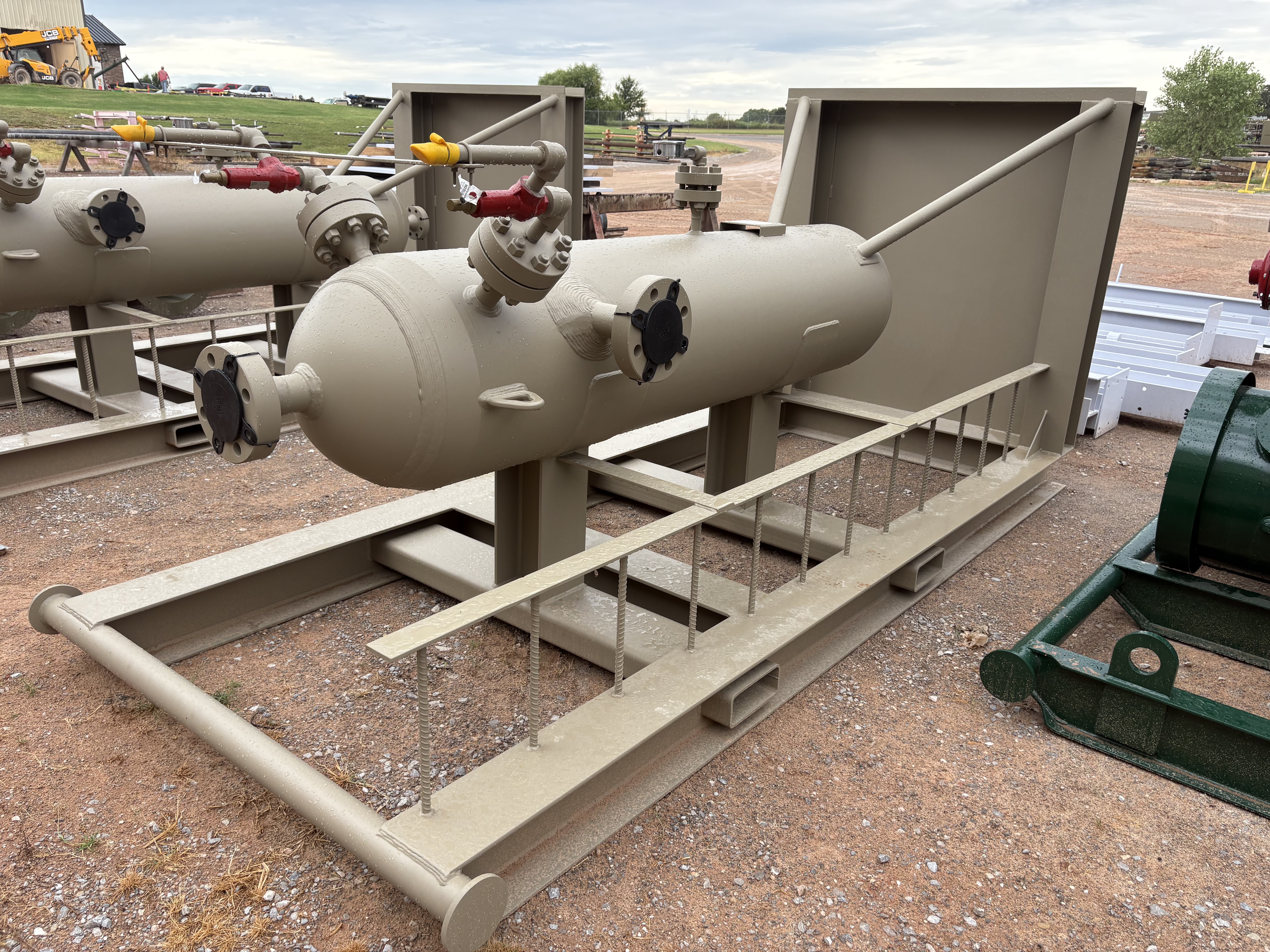

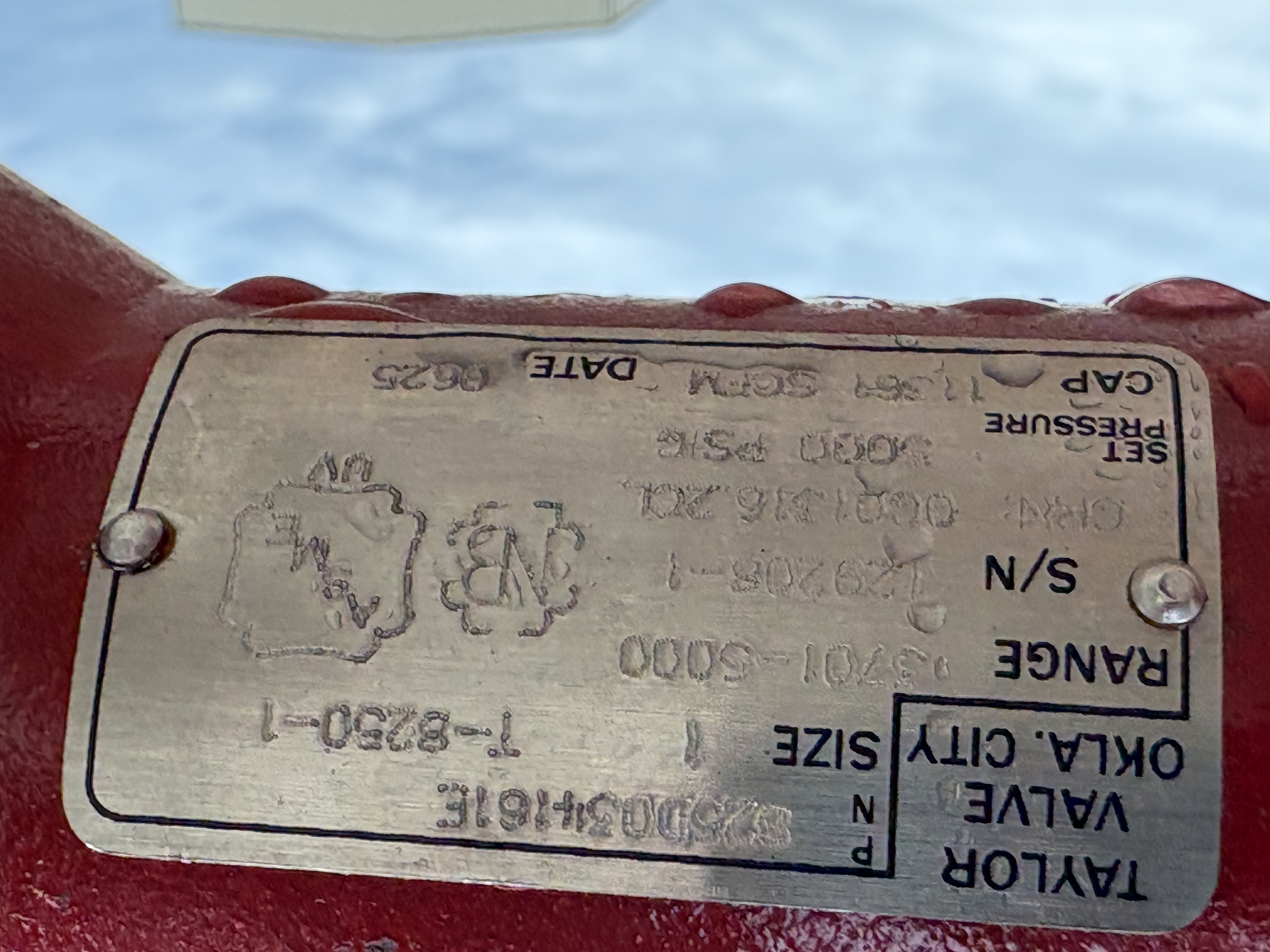

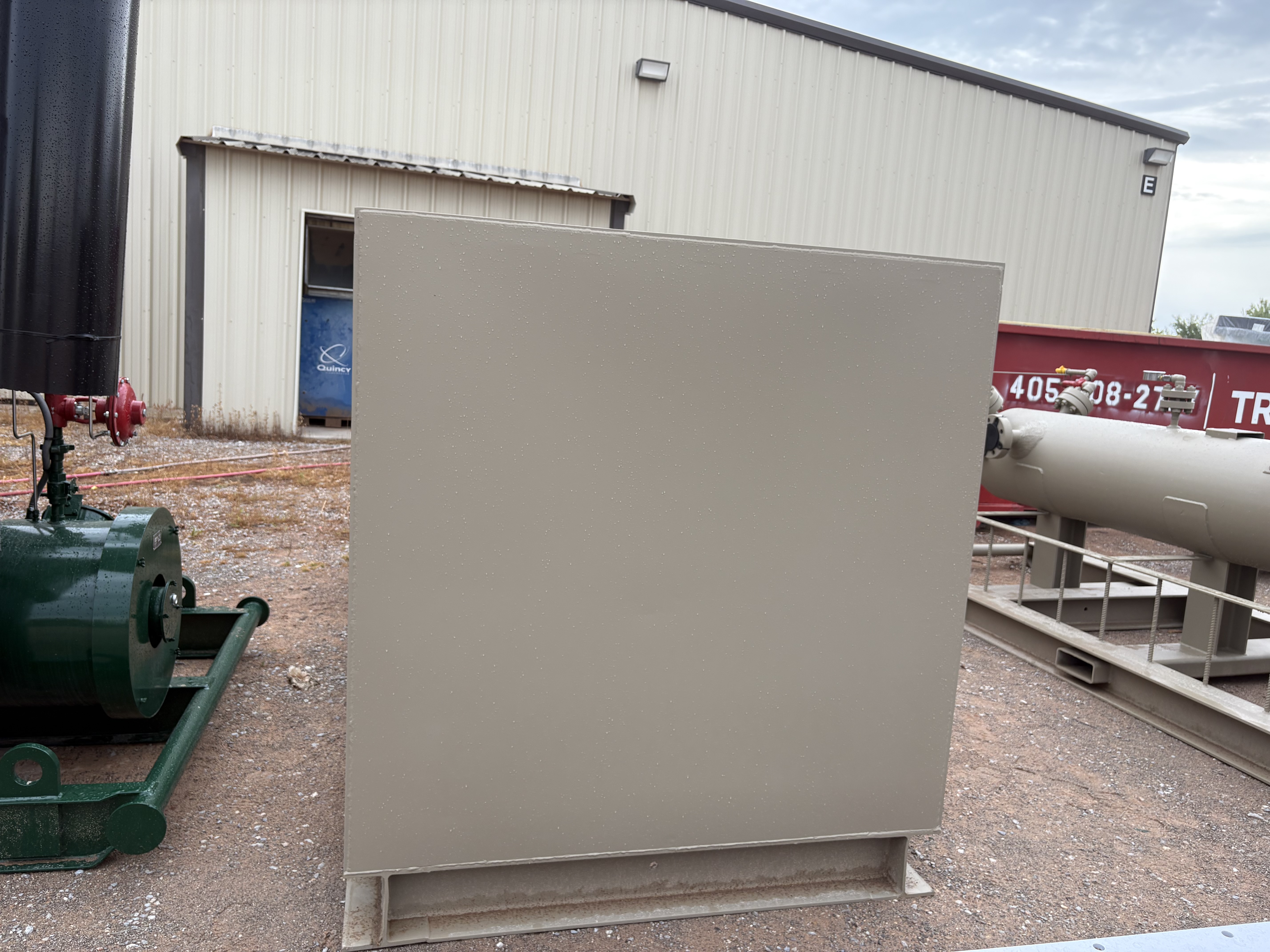

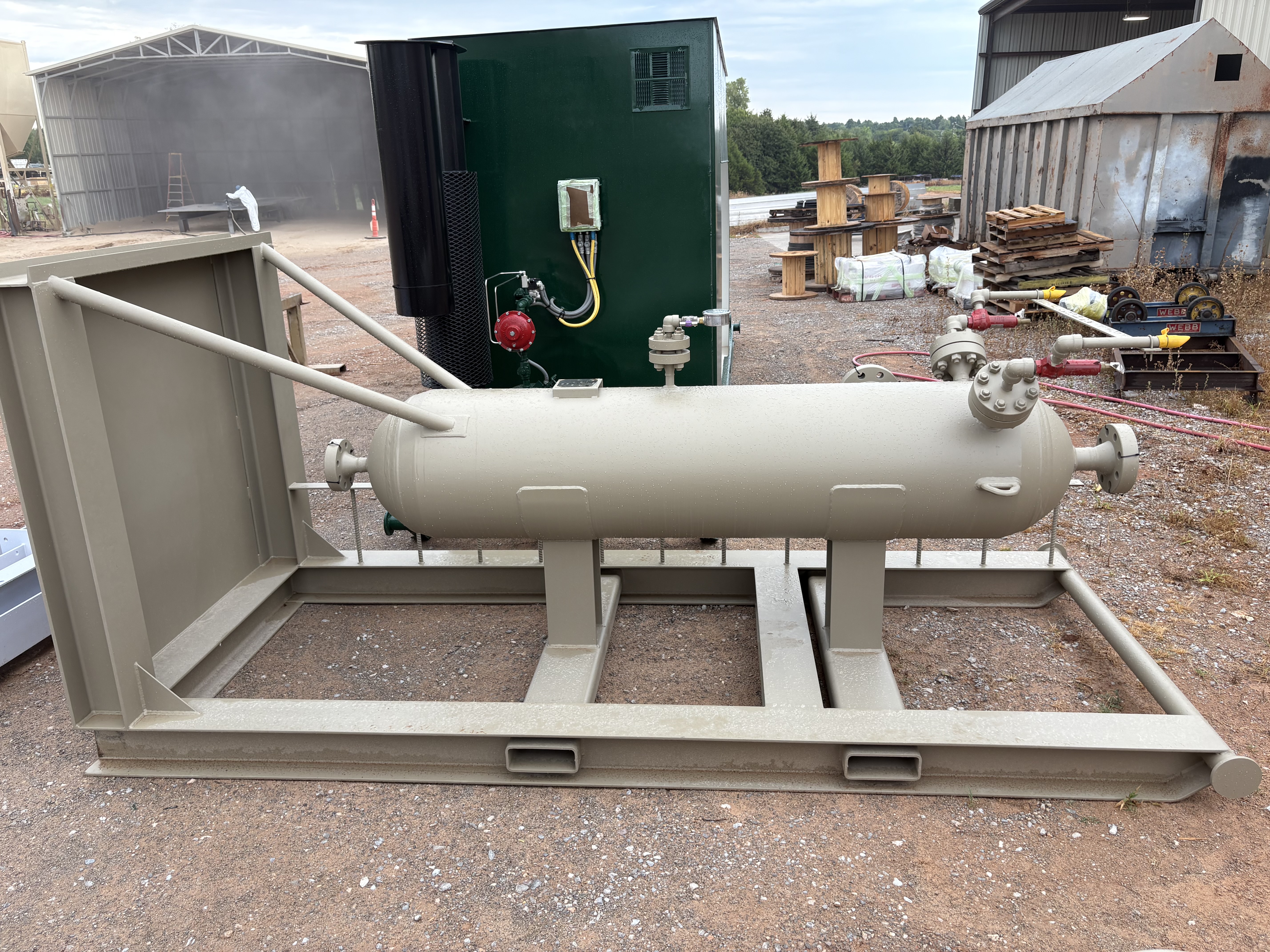

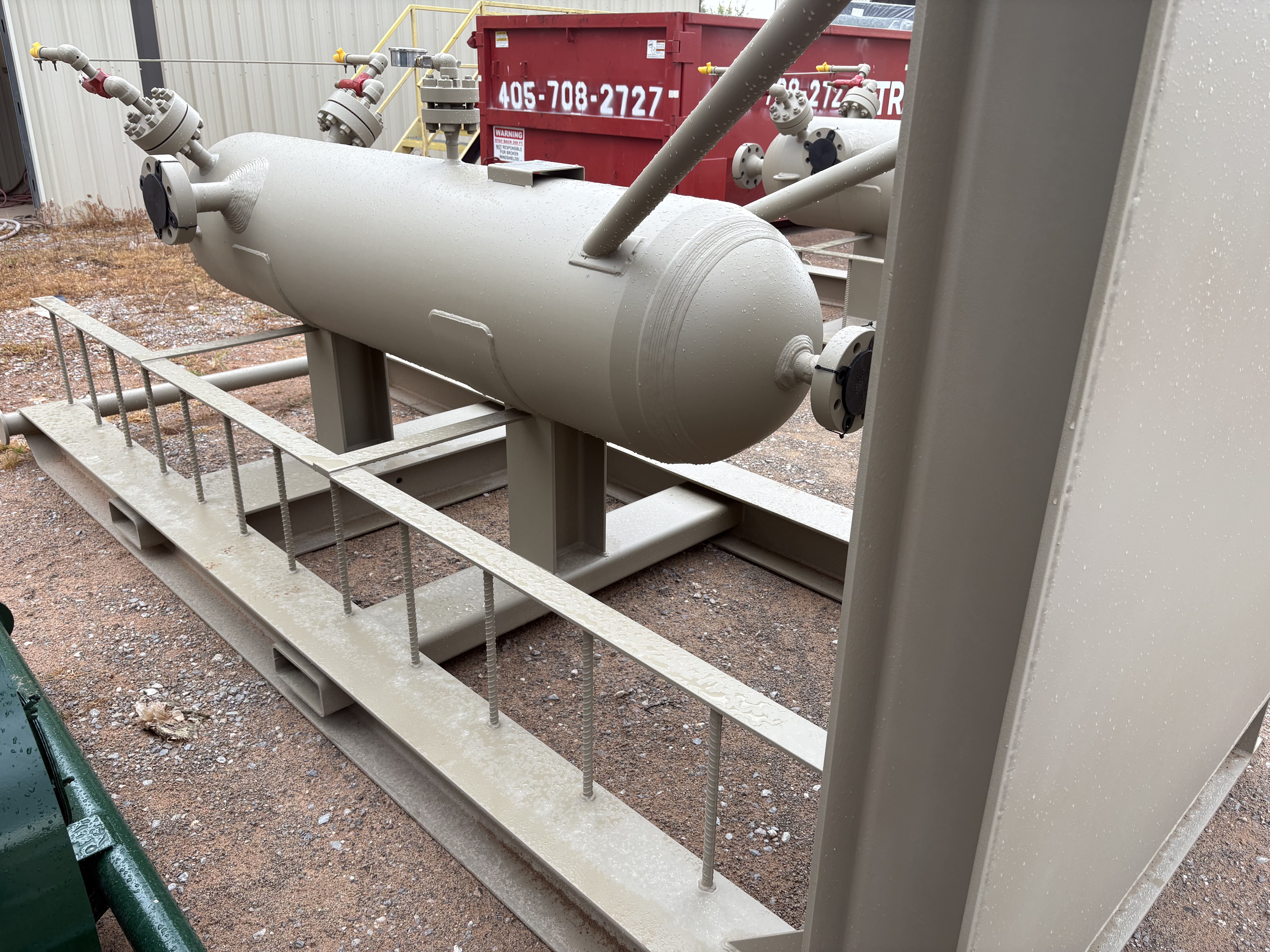

*NEW* 24"x8' 5000 psi Cyclonic Sand Trap manufactured in 2025 by River Bend Industries. Vessel is mounted to an L- skid with a ladder. Inlet and outlet connections are flanged 3" 2500 RTJ. Unit has 2" 2500 RTJ PRV and drain connection with a 1" 2500 RTJ accessory flange connection. Unit includes (2) 5000# Taylor PRV's assembled with exhausts and support brackets as well as a 5000# liquid gauge and isolation valve. Base is seal welded to act as containment. A full manufacturers data book can be found below under the documents tab.
This unit is ready for deployment today!
Call us at 844-564-4237 to schedule a walk through at our yard.
Ask us about additional services we offer to get this unit ready for your use. We can perform any level of modification to make the process easy and seamless, or ship as-is anywhere in the world.
Specifications
| Manufacturer | River Bend Industries |
| Model | 24"x8', 5000# |
| Year | 2025 |
| Condition | New |
| Serial Number | 6444 |
| Stock Number | NB6444 |
| Sand Trap Design Type | Cyclonic |
| Subcategory 2 | ASME |
| Vessel Orientation | Vertical |
| Vessel Pressure Rating (psi) | 5000 |
| Vessel Outside Diameter (in.) | 24 |
| Vessel s/s Length (in.) | 96 |
| Inlet & Outlet Diameter (in.) | 3 |
| Inlet & Outlet Connection Type | Flanged RTJ |
| Accessories | New dual 5000# PRV's. New 5000# pressure gauge and isolation valve. Skid mounted ladder. |

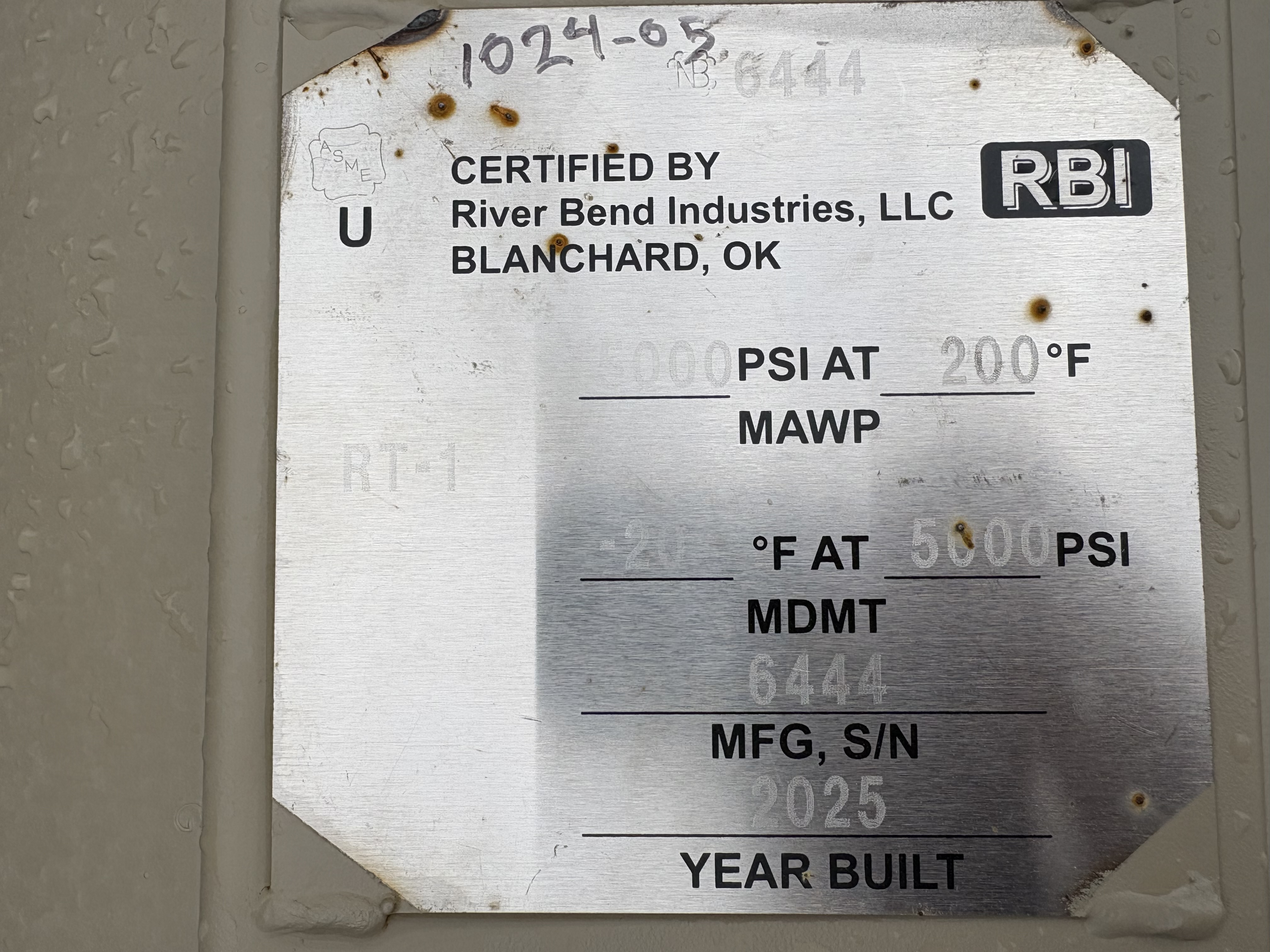

| Certification | ASME "U" |
| Horizontal Shipping Dimensions (in.) | 135"Lx72"Wx72"H |
| Work Recently Performed | New unit. All tests can be found in data book located under the documents tab. |
| Wear and Tear | None |
| Test | All tests can be found in data book located under the documents tab. |
| Origin Code | OC01 |
