Separator, Horizontal, 3P, 72"x15', 715#
Separator, Horizontal, 3P, 72"x15', 715#
$178,250 (USD)
Location:Wyoming
or
Call 1 (844) 564-4237
Description

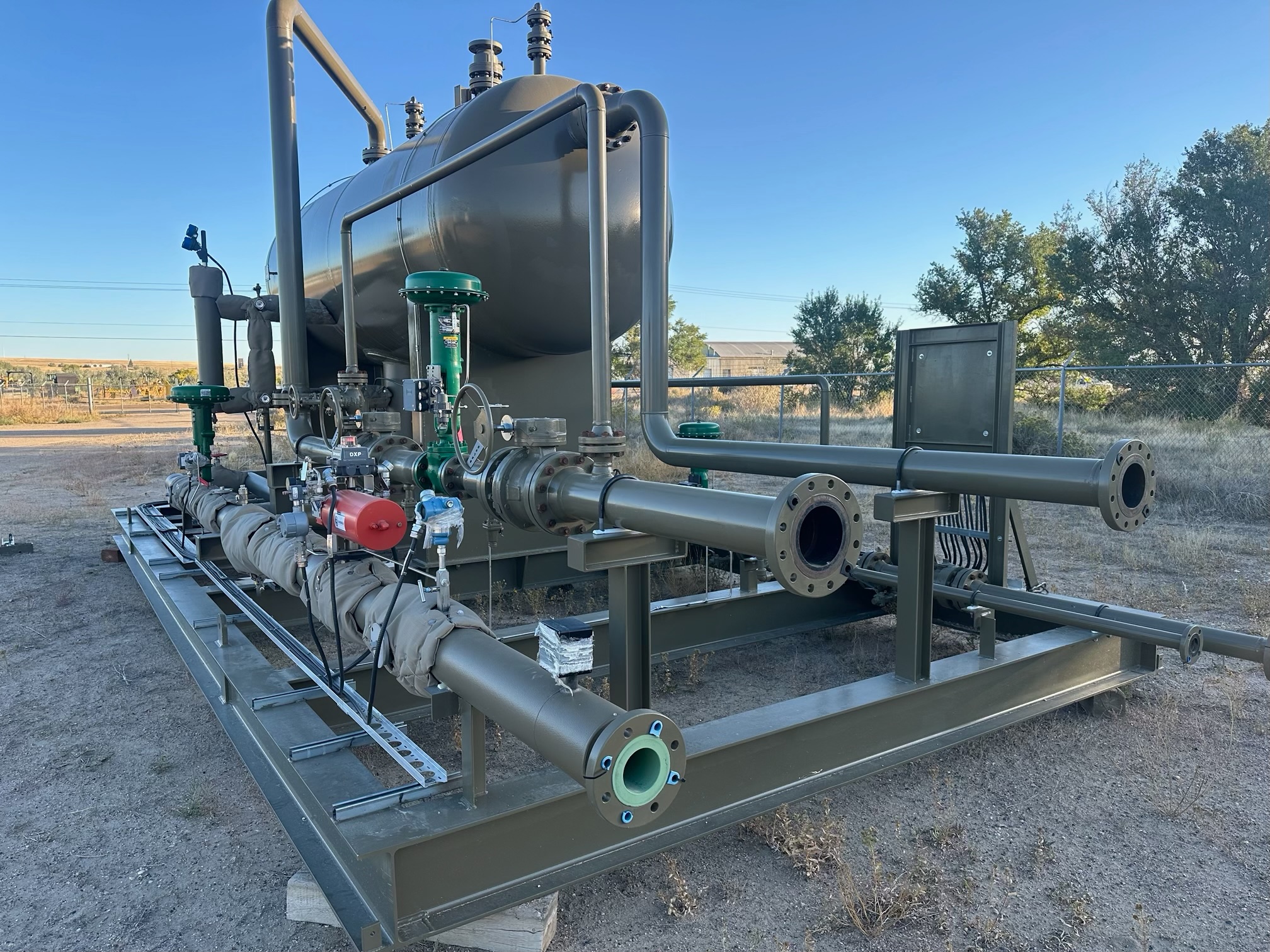

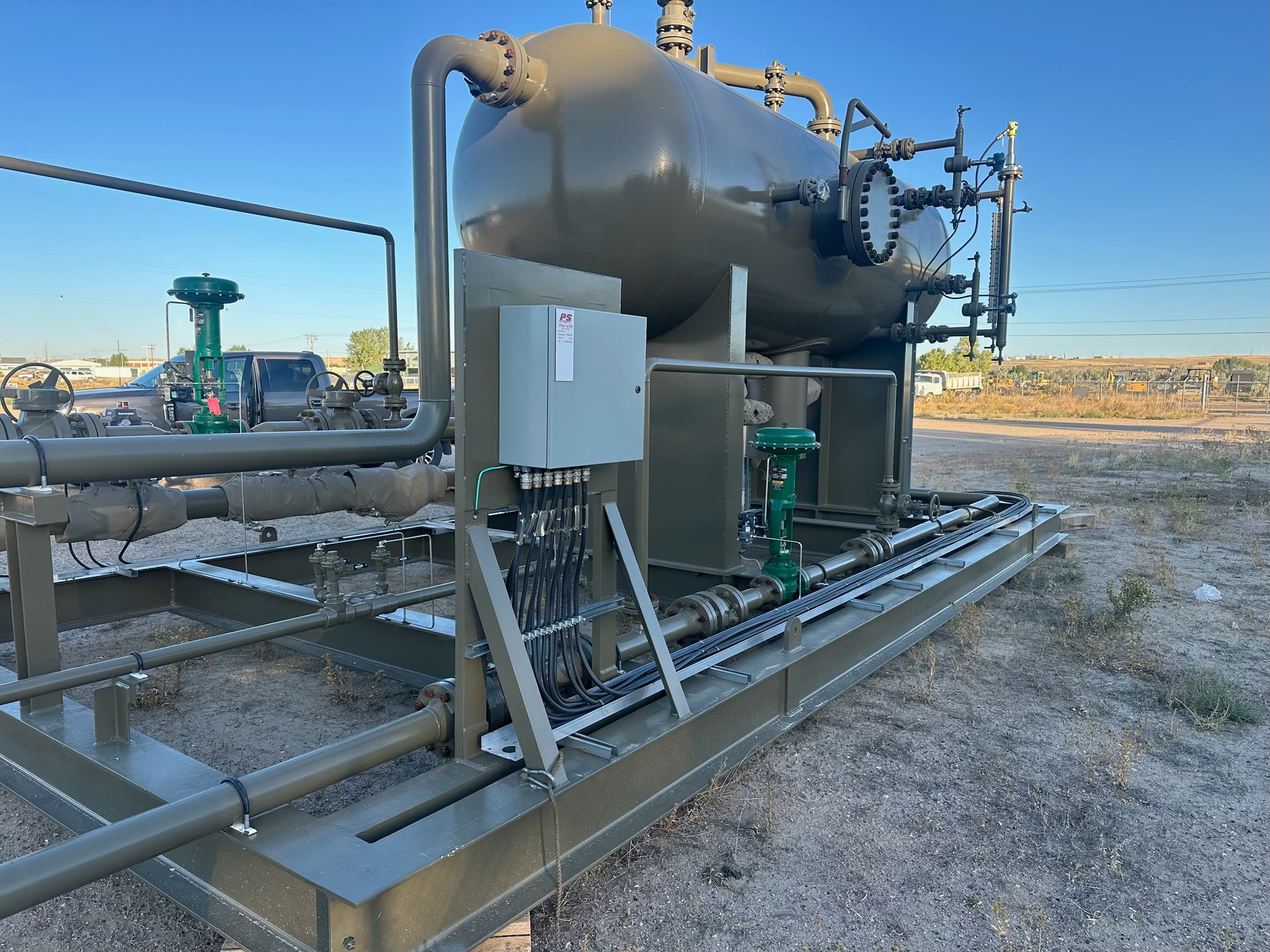

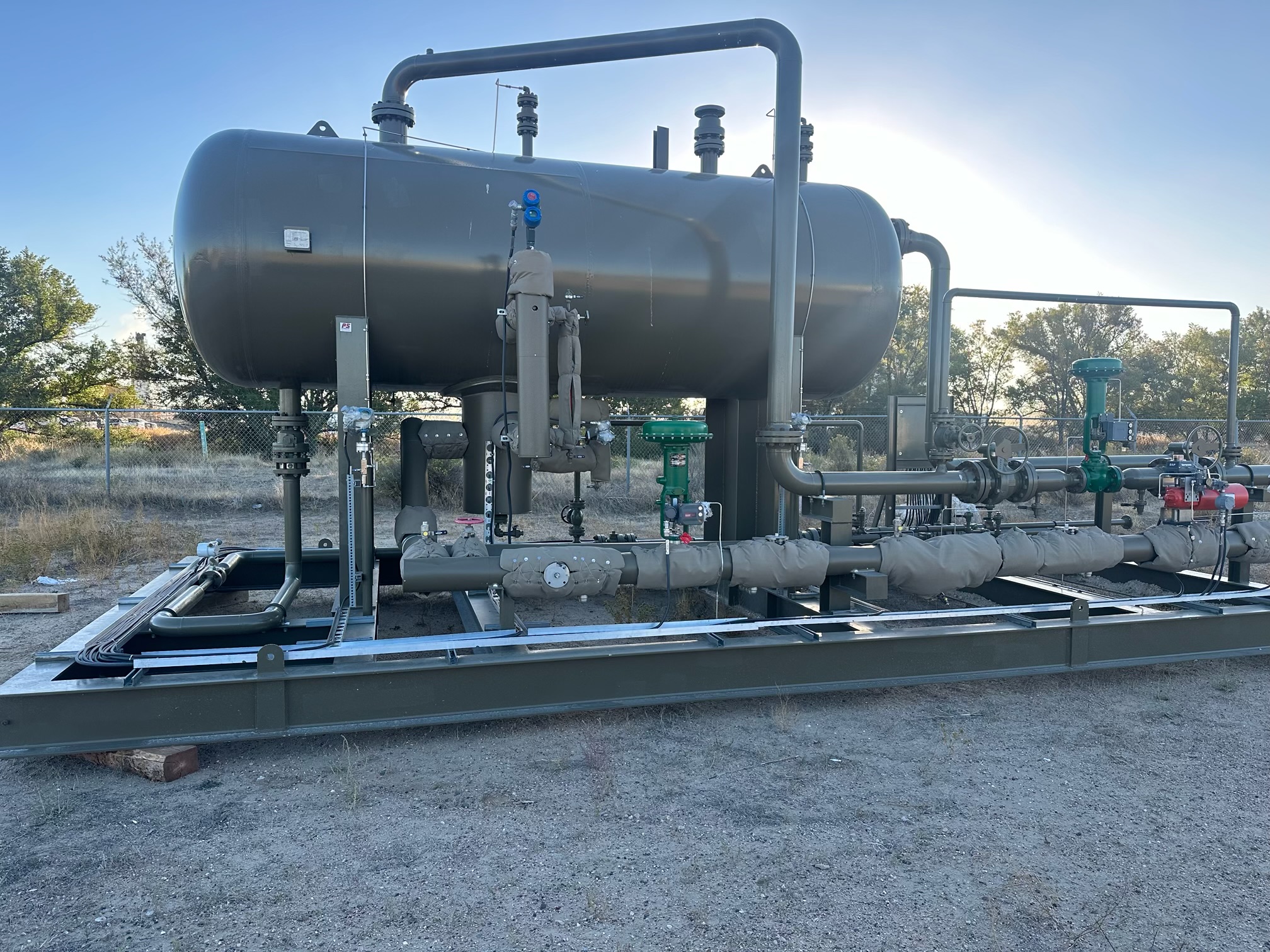

*NEW* Power Service 2020 Horizontal 3-phase 72"x15' 715# separator. 8" RF300 inlet with a 6" RF300 outlet. 4" RF300 condensate outlet and a 4" RF300 water outlet. Separator is mounted to a 14'6"x28'6" Structural steel skid. Unit is fully plumbed and ready for deployment. Unit Does not include PRV. Manufacturer drawling, P&ID, and U1A report can be found under Documents.
Specifications
| Manufacturer | Power Service |
| Model | 72"x15', 715# |
| Year | 2020 |
| Condition | New |
| Serial Number | 2744 |
| Stock Number | 2927 |
| Separator Design | 3-Phase |
| Subcategory 2 | ASME |
| Vessel Orientation | Horizontal |
| Vessel Pressure Rating (psi) | 715 |
| Vessel Outside Diameter (in.) | 72 |
| Vessel s/s Length (in.) | 180 |
| Inlet & Outlet Diameter (in.) | 8/6 |
| Inlet & Outlet Connection Type | Flange |
| Accessories | Fully plumbed |
| Certification | ASME "U" |
| Work Recently Performed | None |
| Wear and Tear | None *NEW* |
| Test | None |
| Notes | None |
| Origin Code | OC03 |
