Line Heater, 1.5 mmbtu, 3", 5000#
Line Heater, 1.5 mmbtu, 3", 5000#
$11,300 (USD)
Location:Pennsylvania
Description

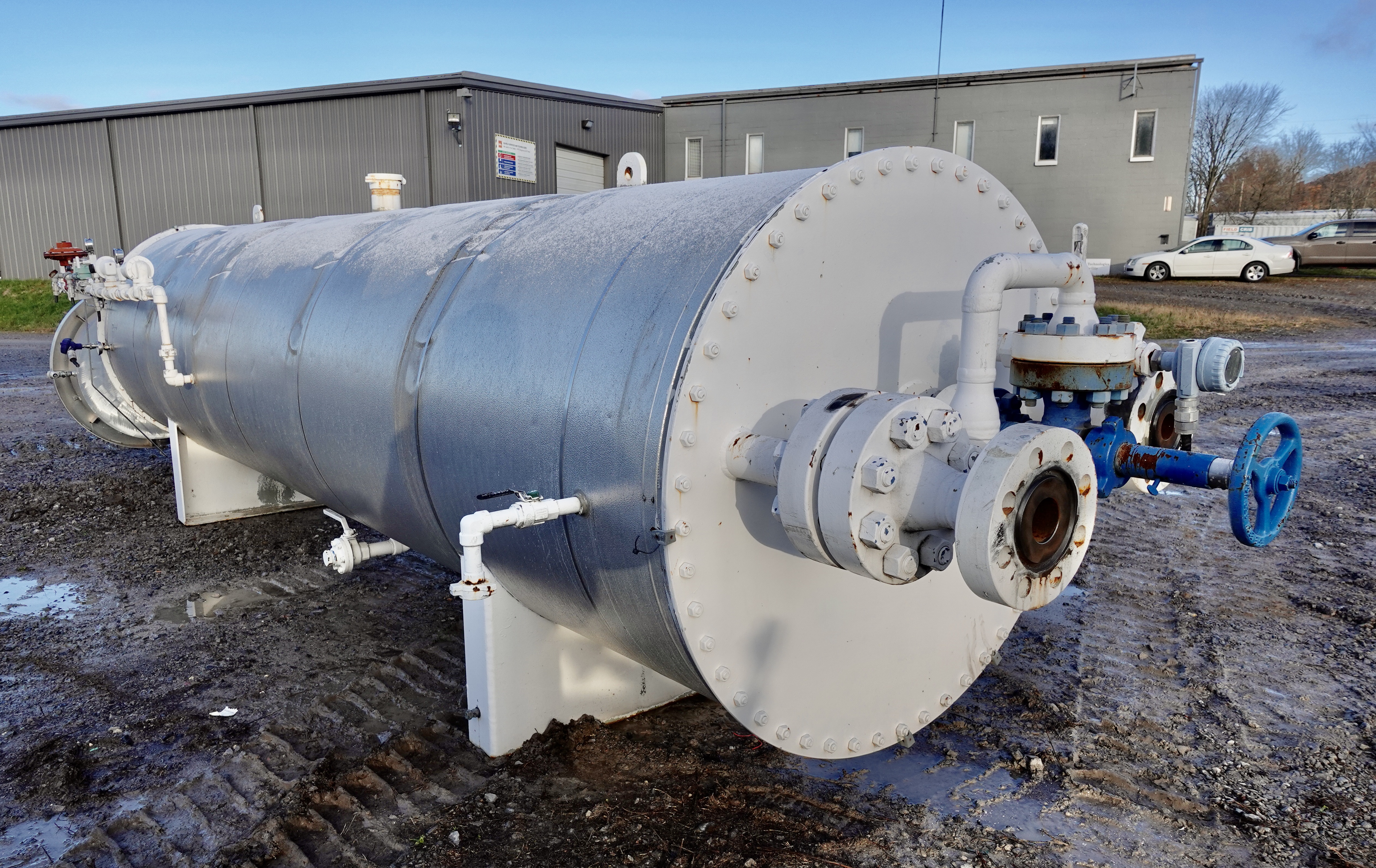

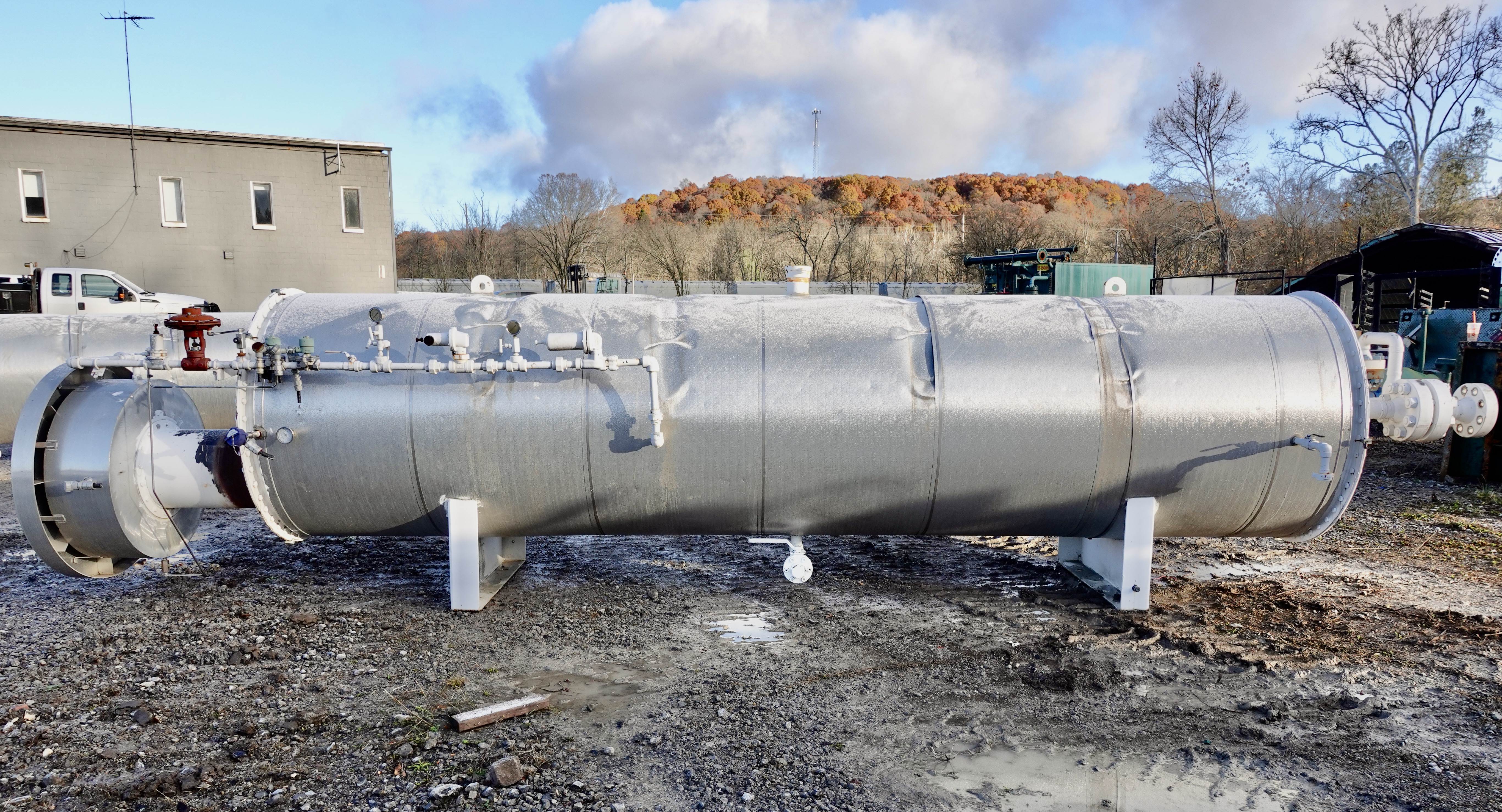

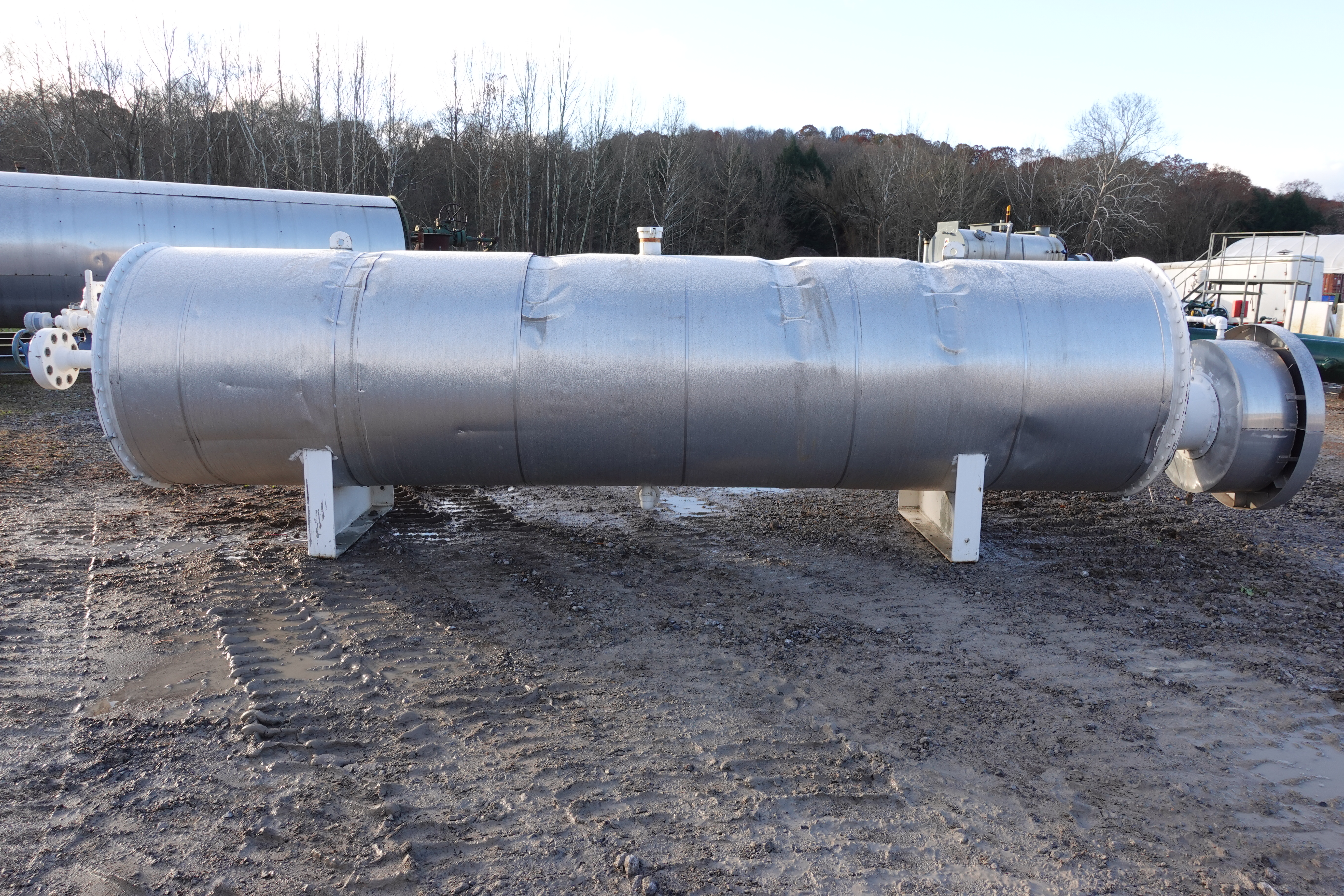

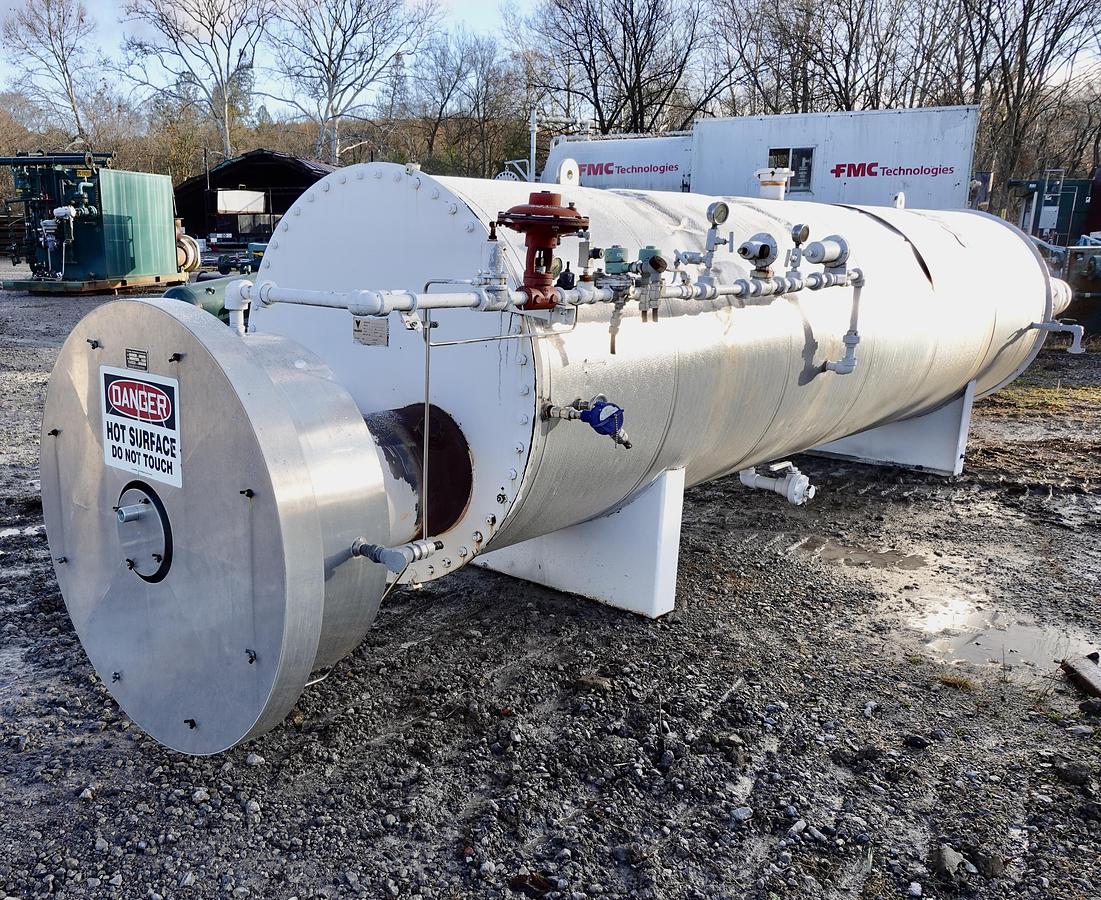

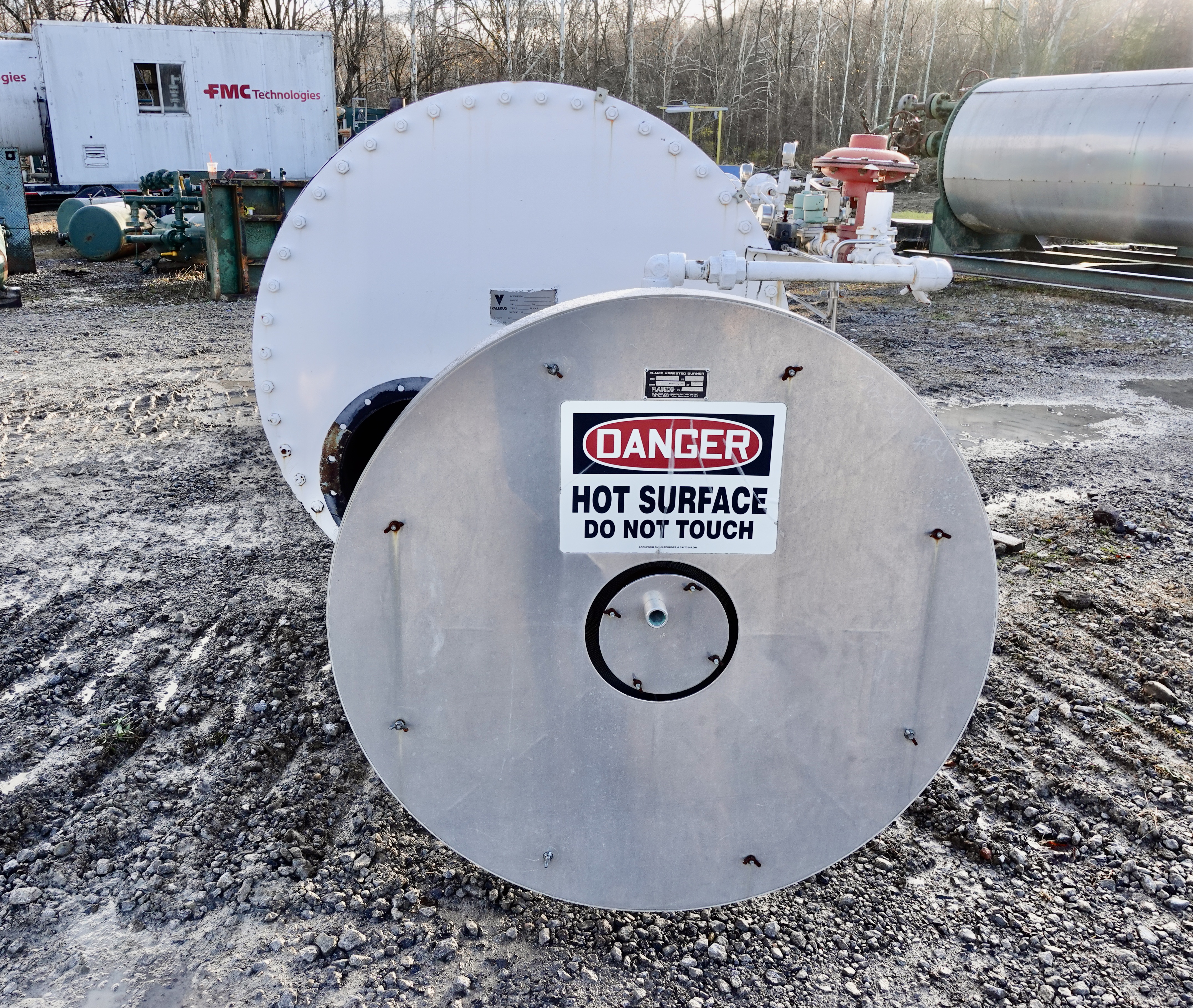

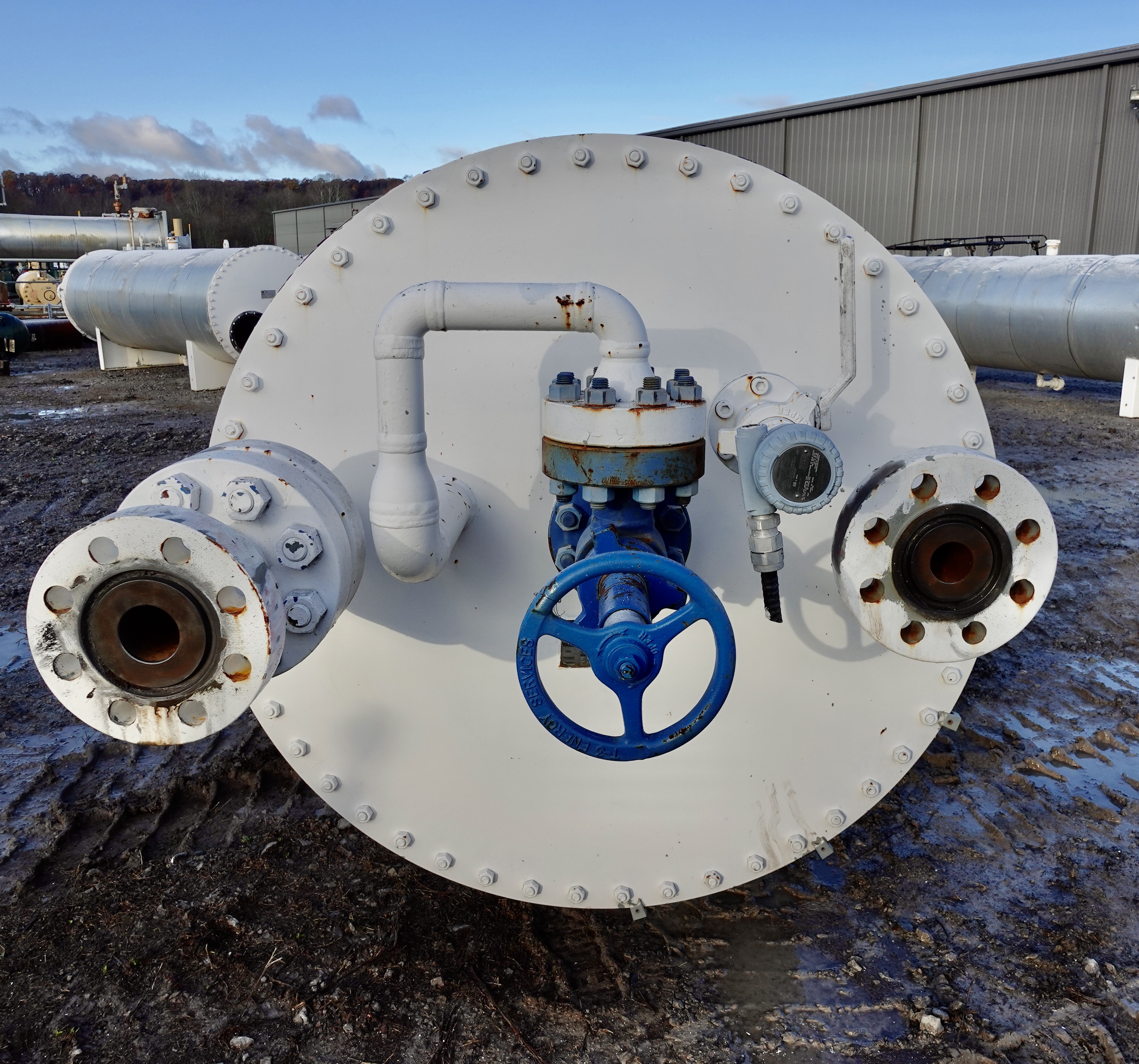

2015 Valerus 1.5 MMBTU/HR line heater, model 3" 5000# coil (serial RCH-14-17401), ideal for upstream oil and gas operations requiring efficient natural gas preheating and pressure regulation. This unit located in Pennsylvania features an robust 3-inch diameter pre-heat and expansion coils both rated to 5,000 psi MAWP. The inlet includes a spool transitioning from a 3" 2500# RTJ connection to a 3-1/8" 5000# , paired with a National Oilwell Varco 3" adjustable choke (AISI 4130 body, 5,000 psi CWP, 3-class, 5000# performance rating) for precise flow and pressure control across high-rate drops. Standard 3" 2500# RTJ inlet and outlet connections ensure seamless tie-in to existing flowlines, delivering proven performance in hydrate prevention and temperature stability.
Call us at 844-564-4237 to schedule a walk through at our yard.
Ask us about additional services we offer to get this unit ready for your use. We can perform any level of modification to make the process easy and seamless, or ship as-is anywhere in the world.
Specifications

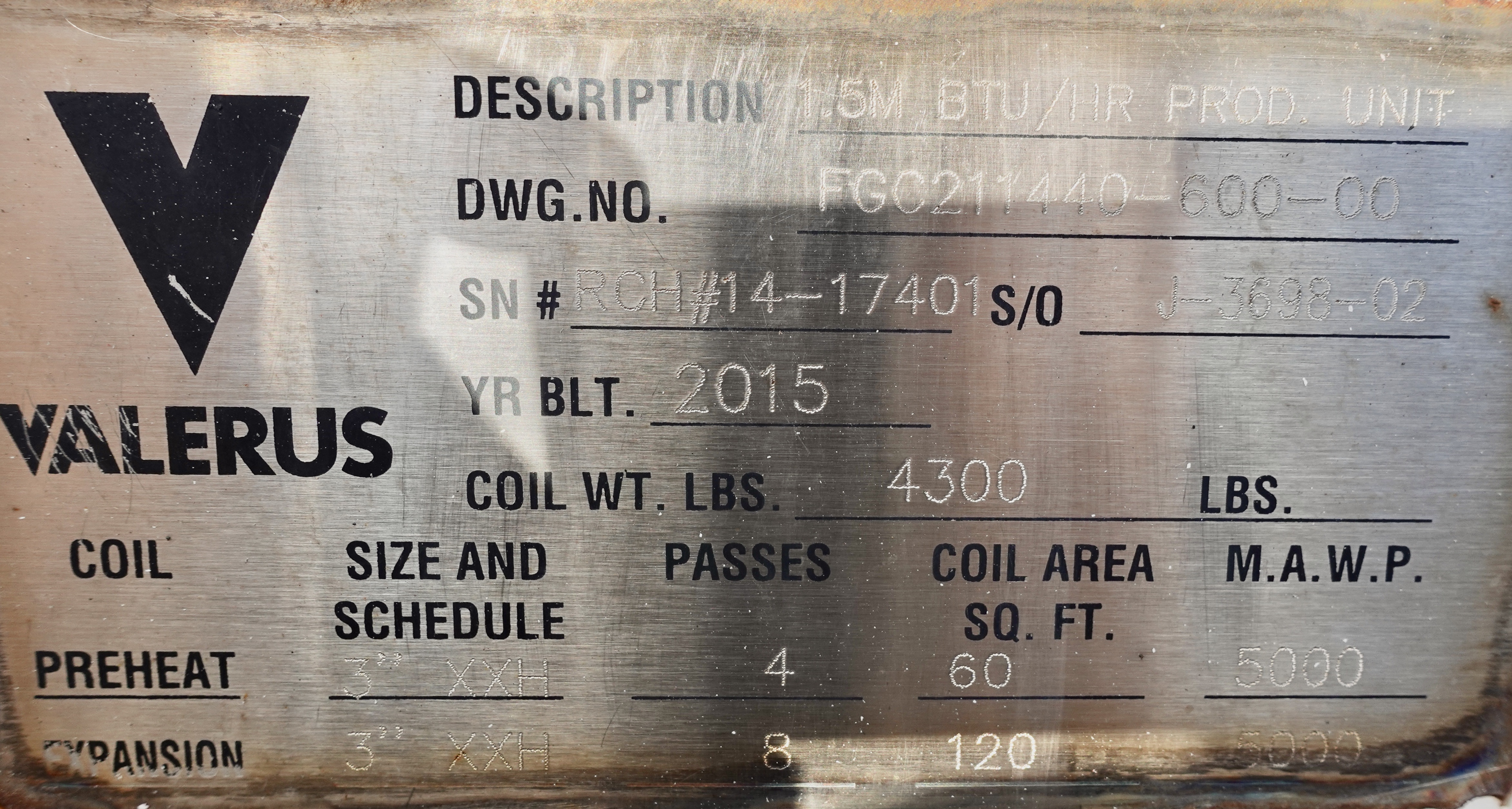

| Manufacturer | Valerus |
| Model | 3", 5000# Coil |
| Year | 2015 |
| Condition | Used |

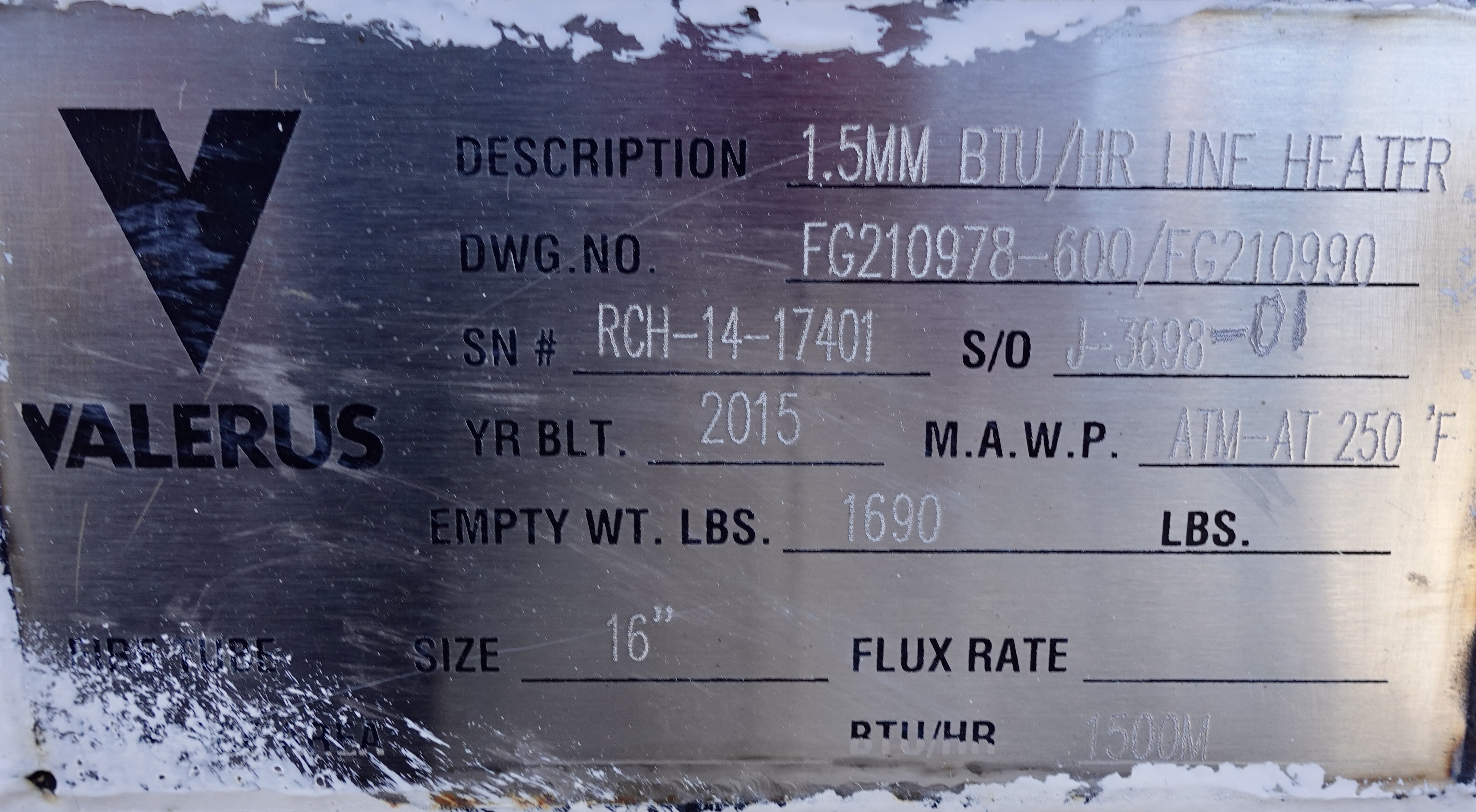

| Serial Number | RCH-14-17401 |
| Stock Number | J-3698-01 |

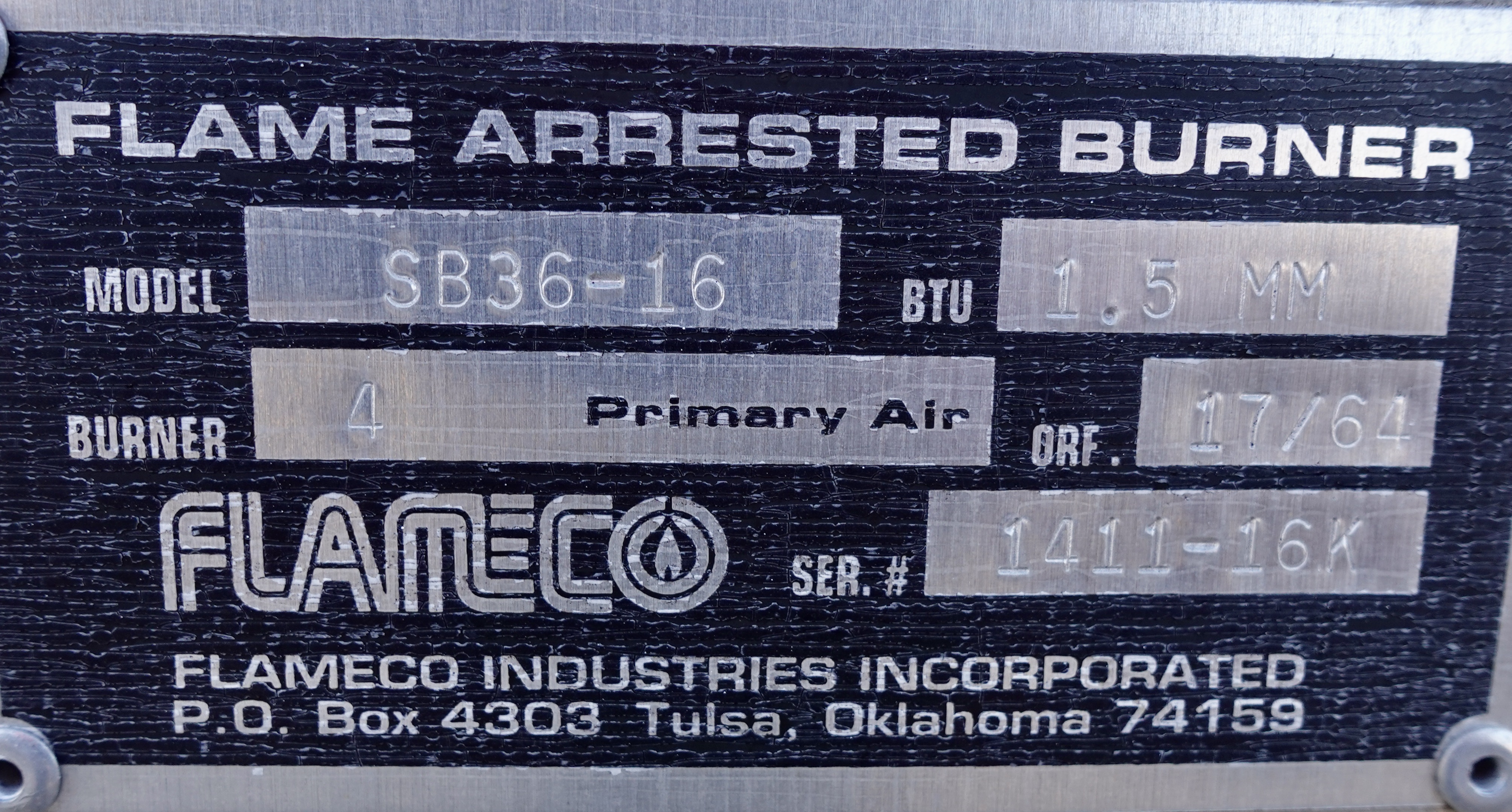

| Heater Rating | 1.5 MMBTU/HR |
| Pre-Heat Coil Diameter (in.) | 3 |
| Expansion Coil MAWP (psi) | 5,000 |
| Inlet & Outltet Gasket Type/Size | Ring Gasket, R35 |
| Pre-Heat Coil MAWP (psi) | 5,000 |

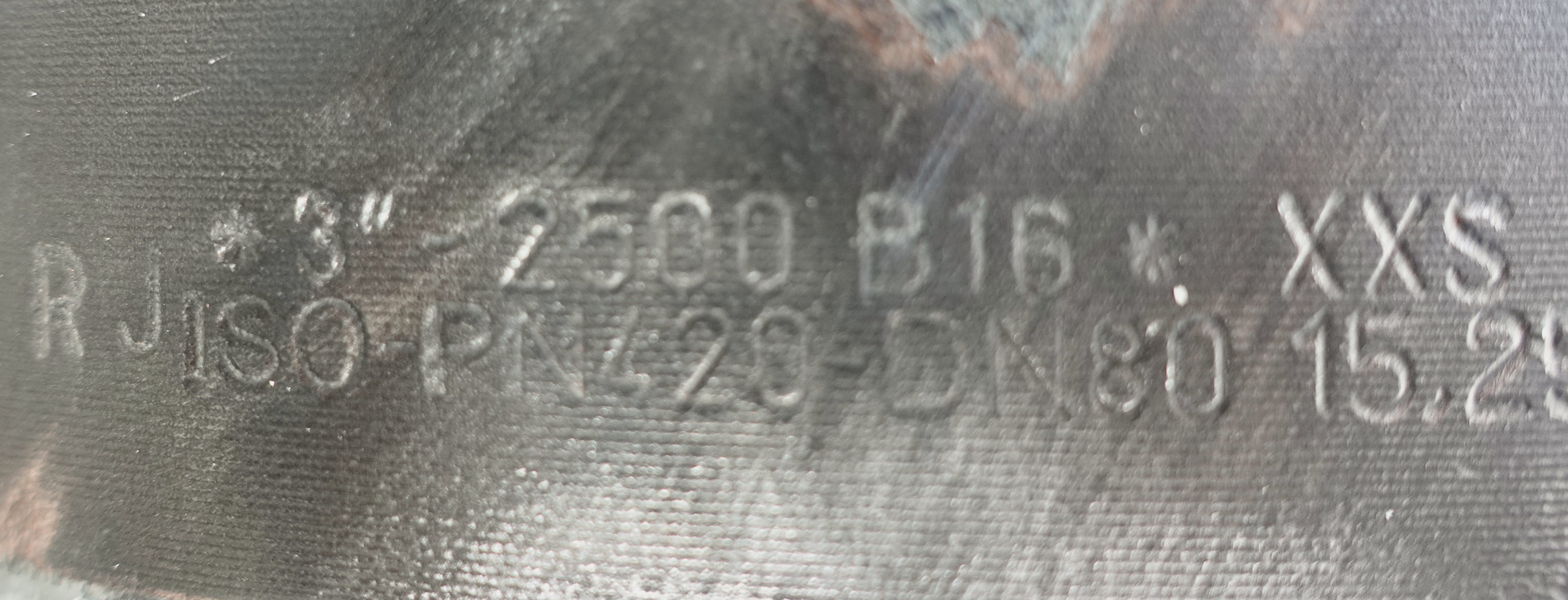

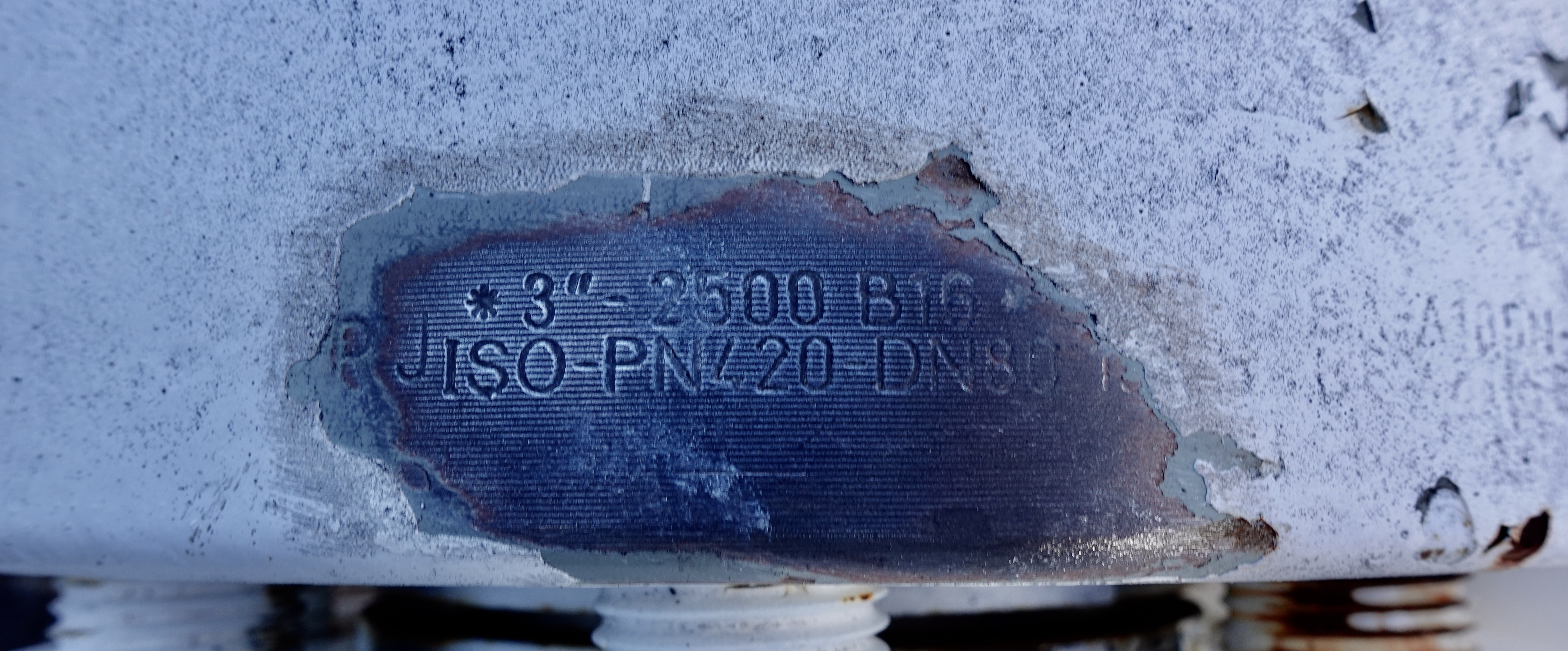

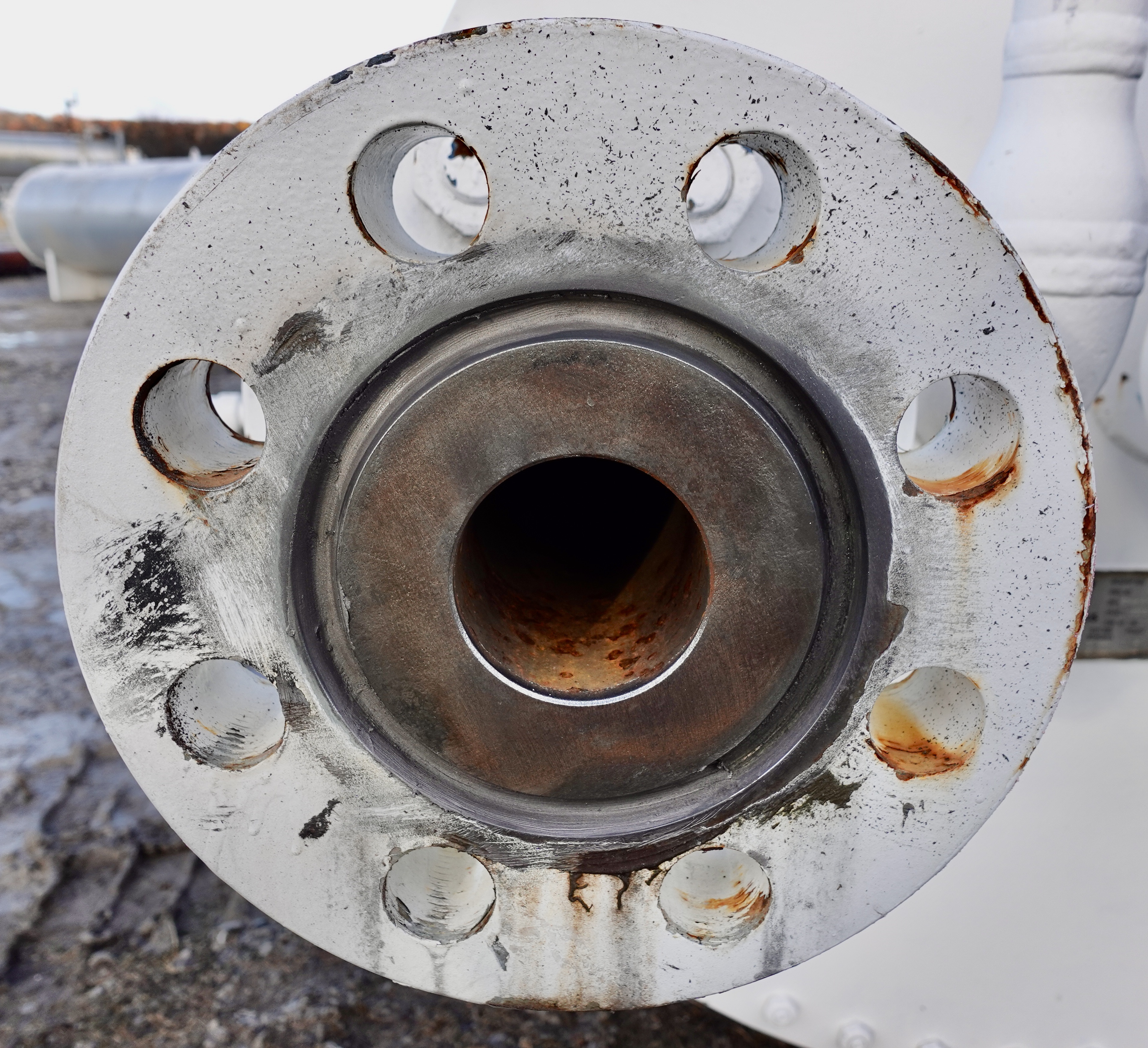

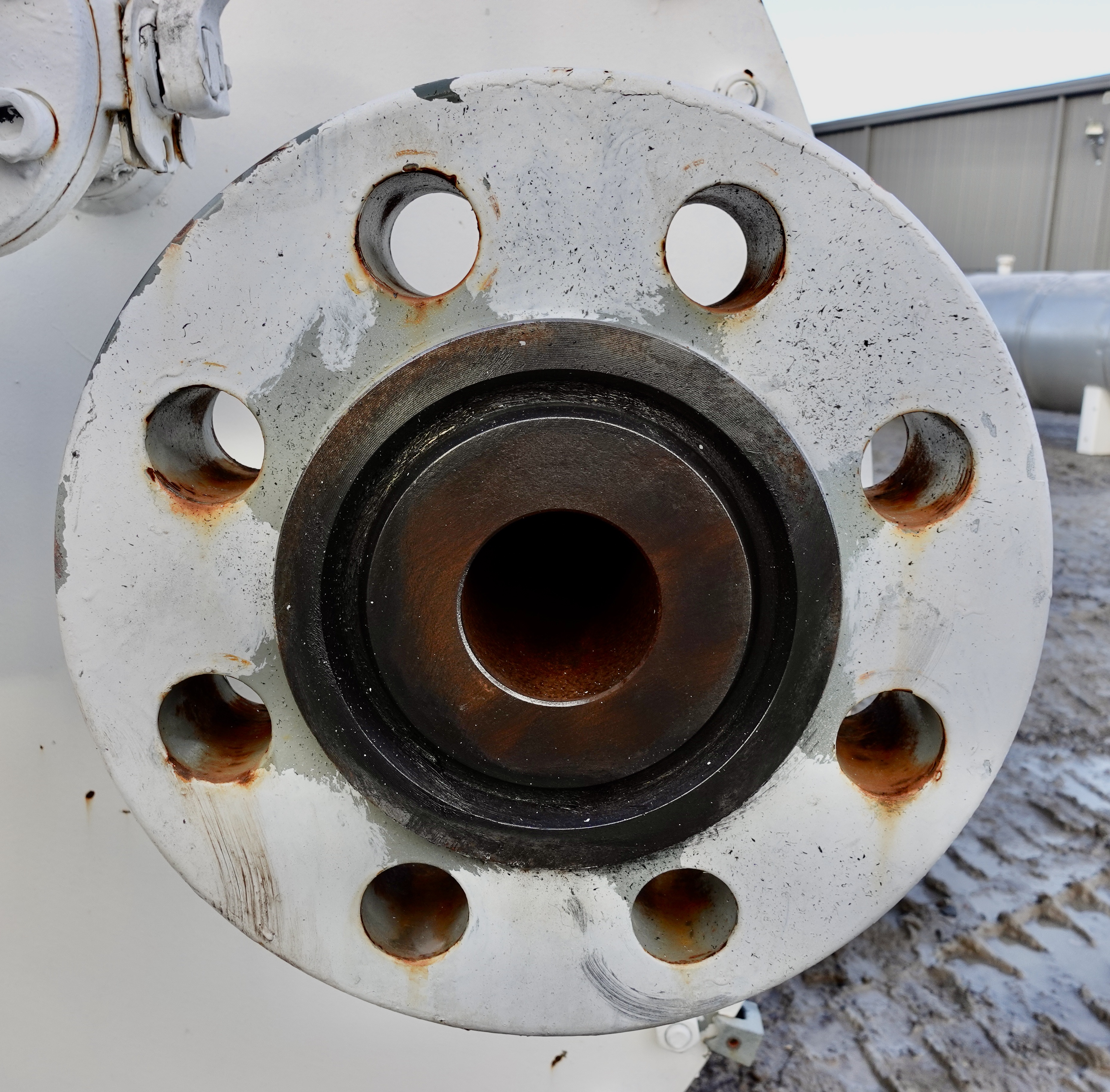

| Inlet & Outlet Connection Type | 3" 2500 RTJ |
| Expansion Coil Diameter (in.) | 3 |
| Wear and Tear | Normal with indentations on insulation jacket from ratchet straps |
| Tests | None |
| Origin Code | OC01 |
| Choke Inlet/Outlet Connection Type | 2 1/16" 5000# |

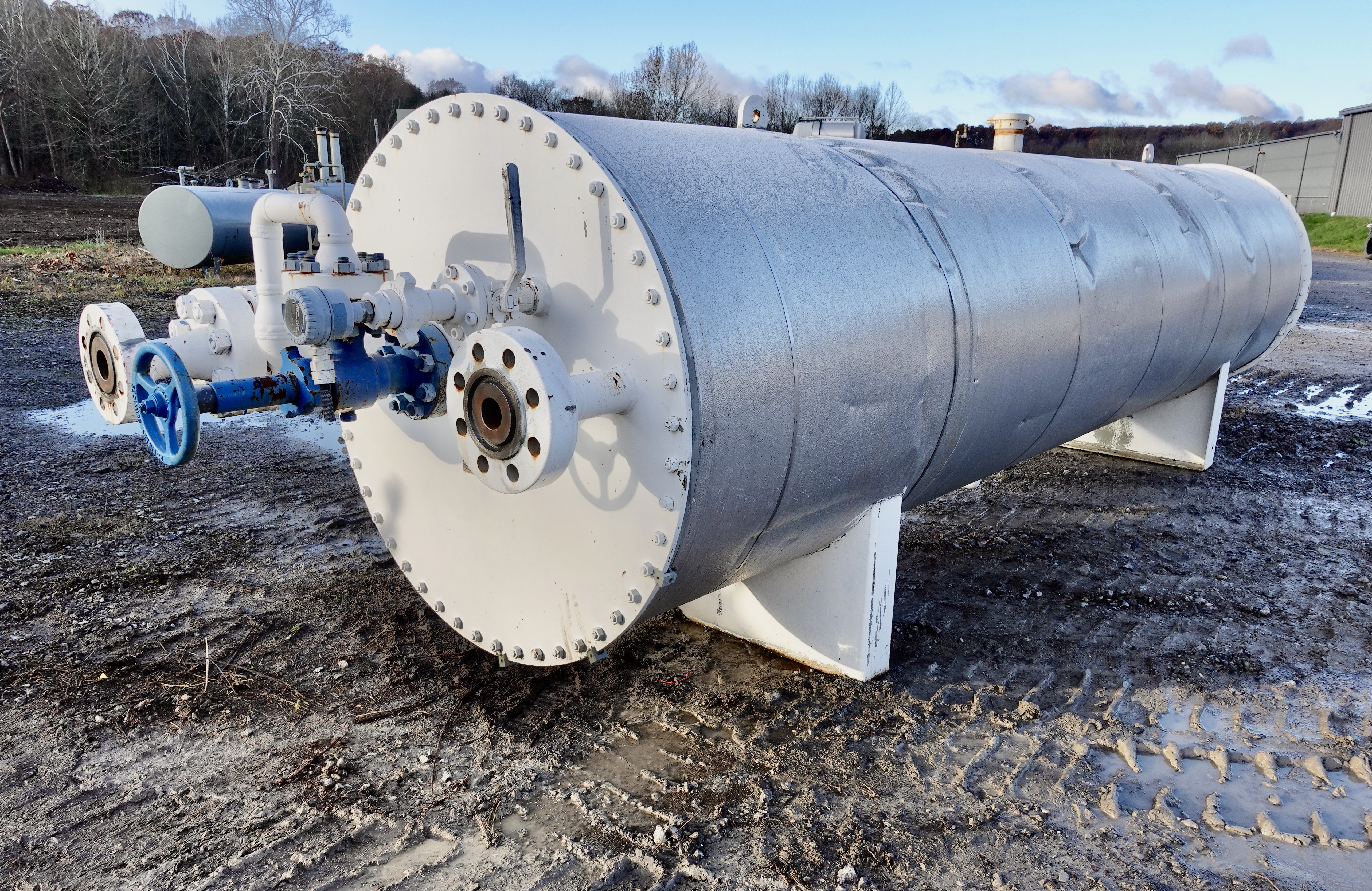

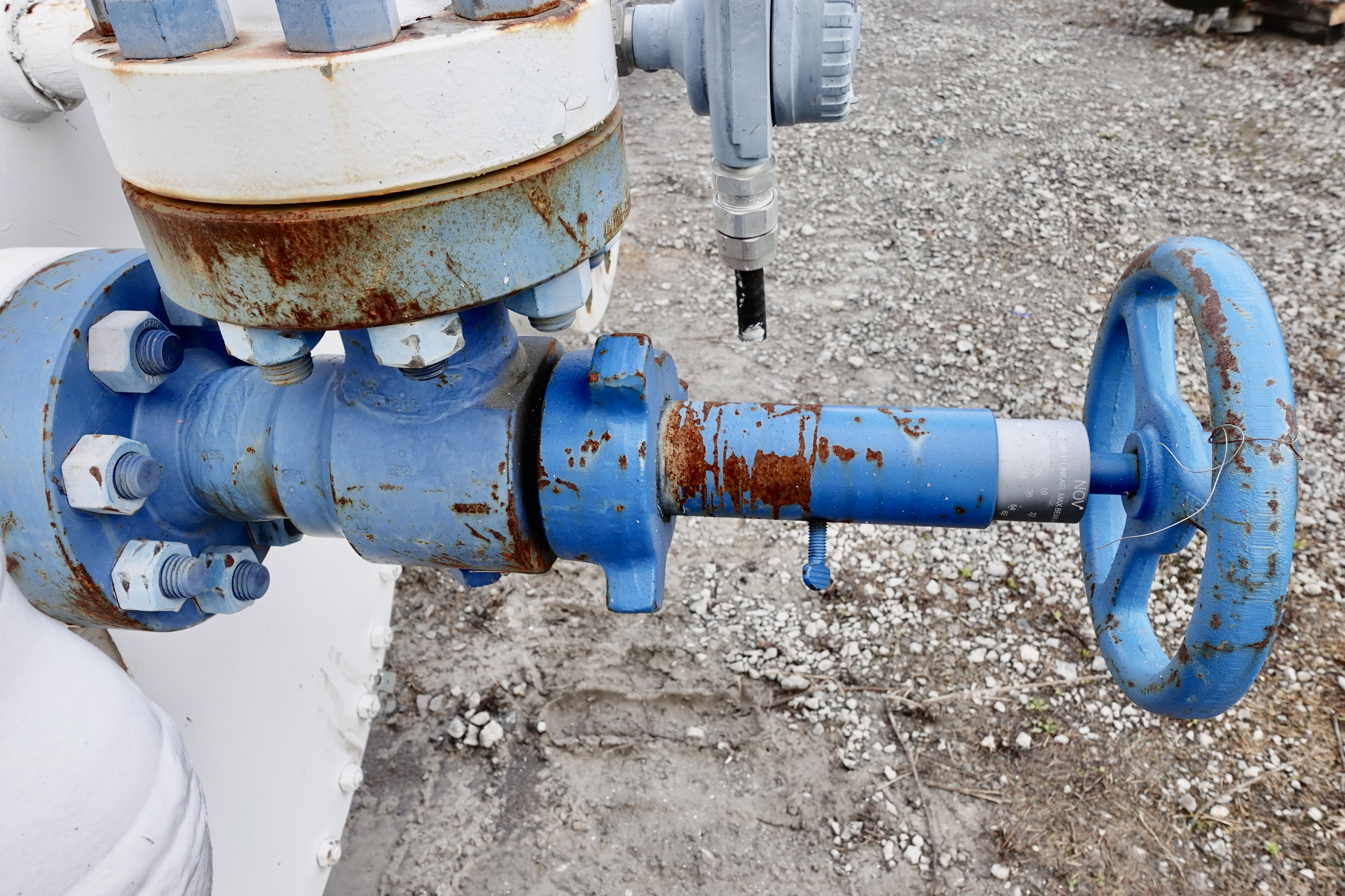

| Choke Model | National Oilwell Varco 3" adjustable choke, 5000# |
| BMS Included | No |

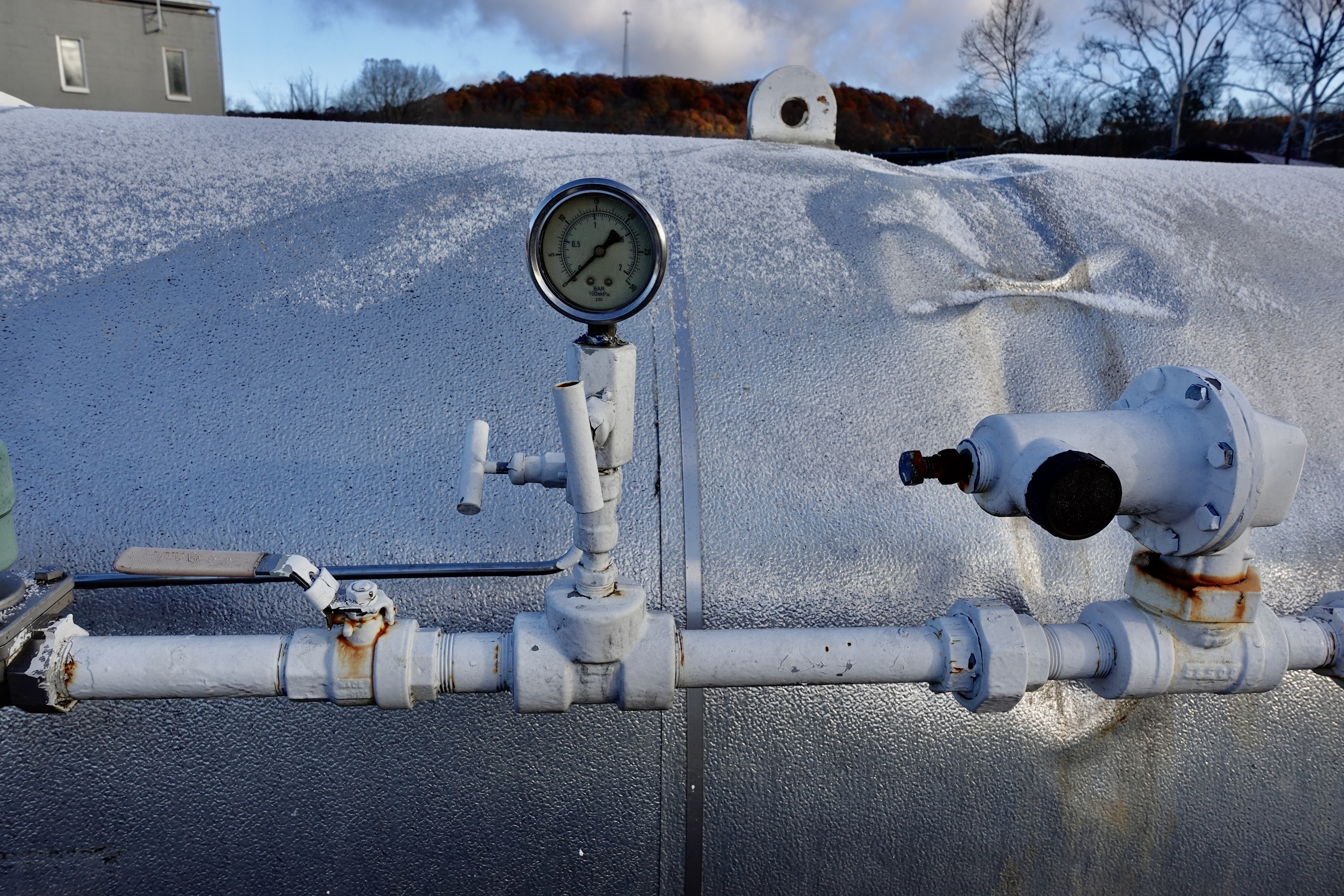

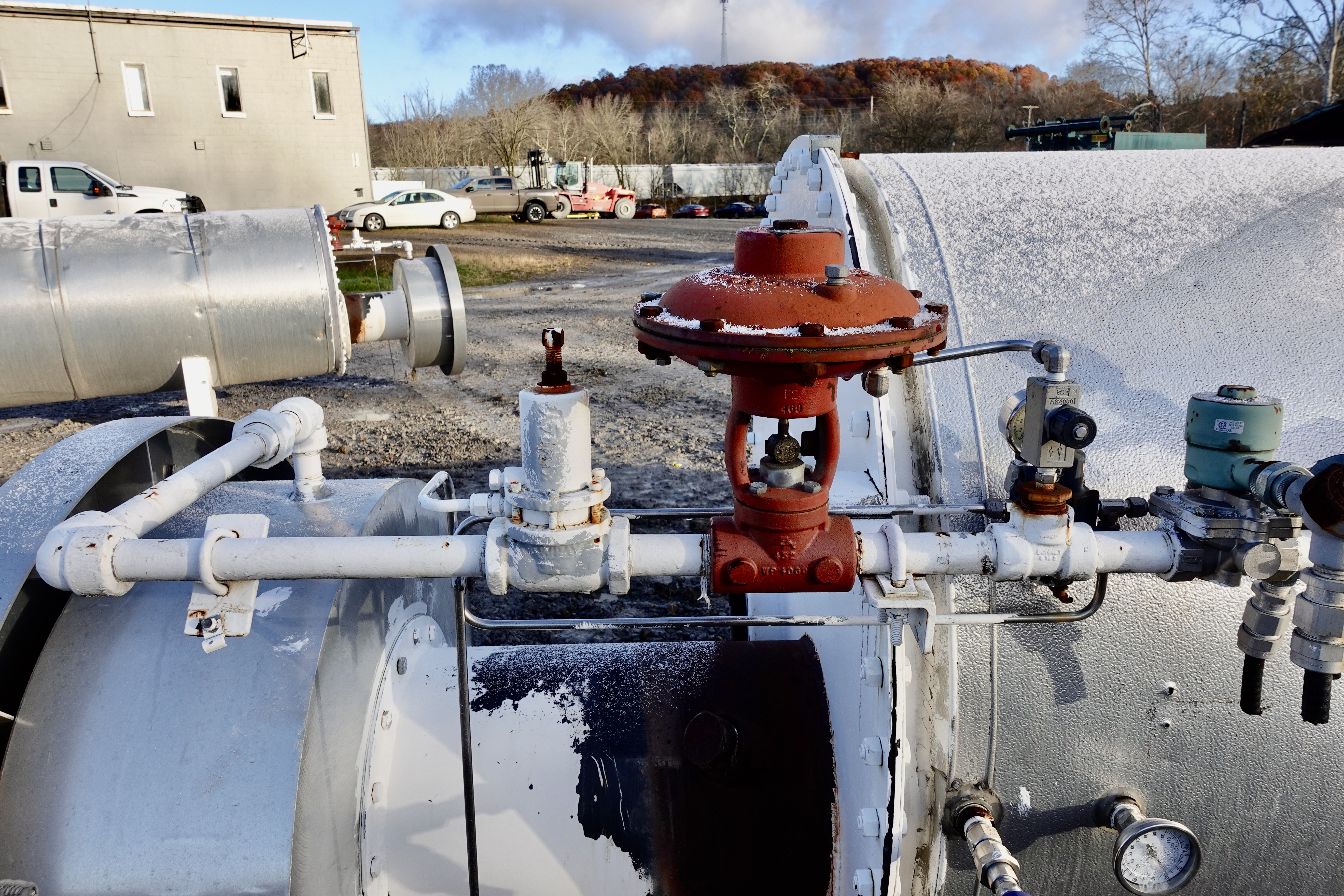

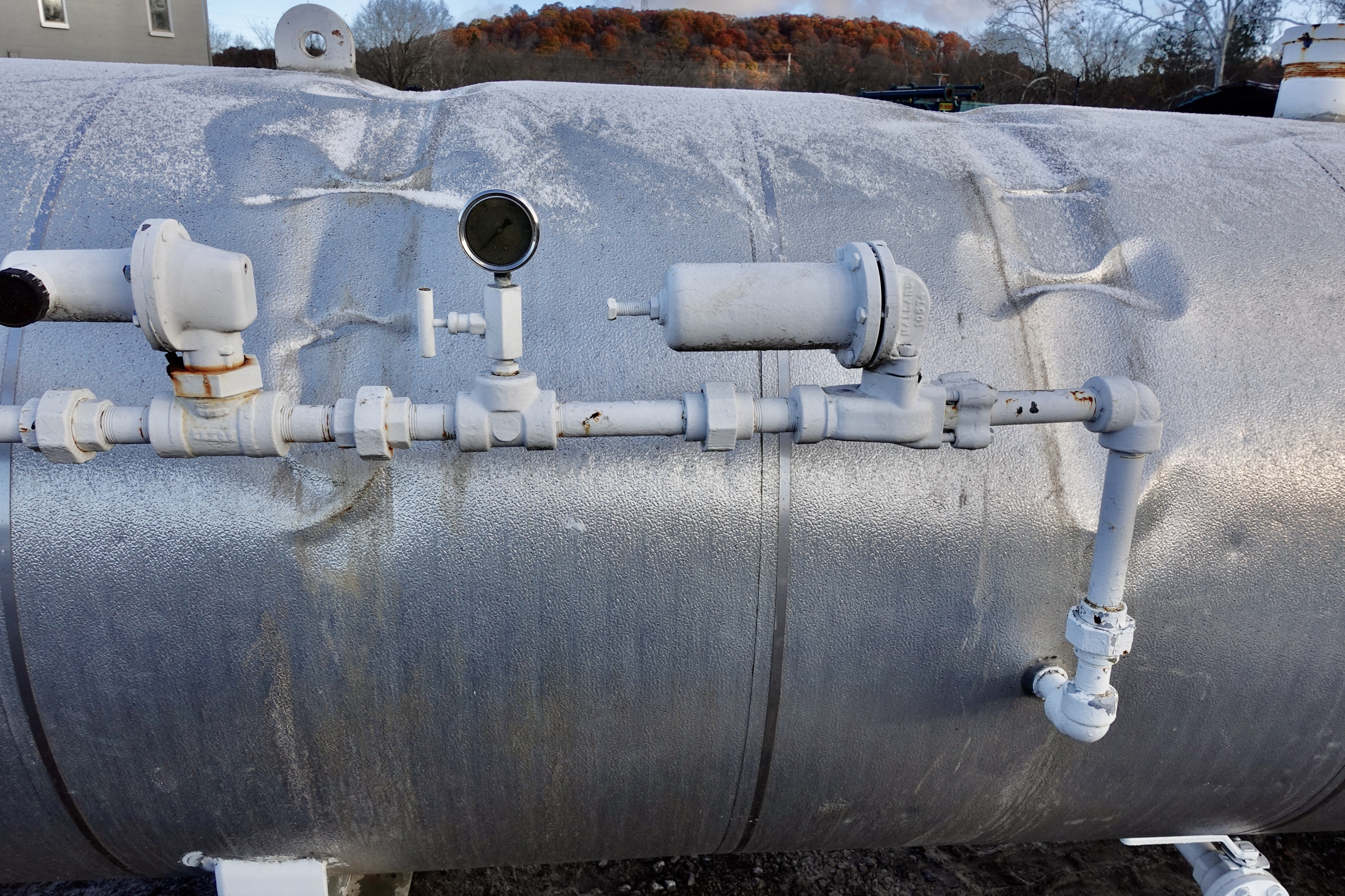

| Fuel Train Included | Yes (Complete, Untested) |

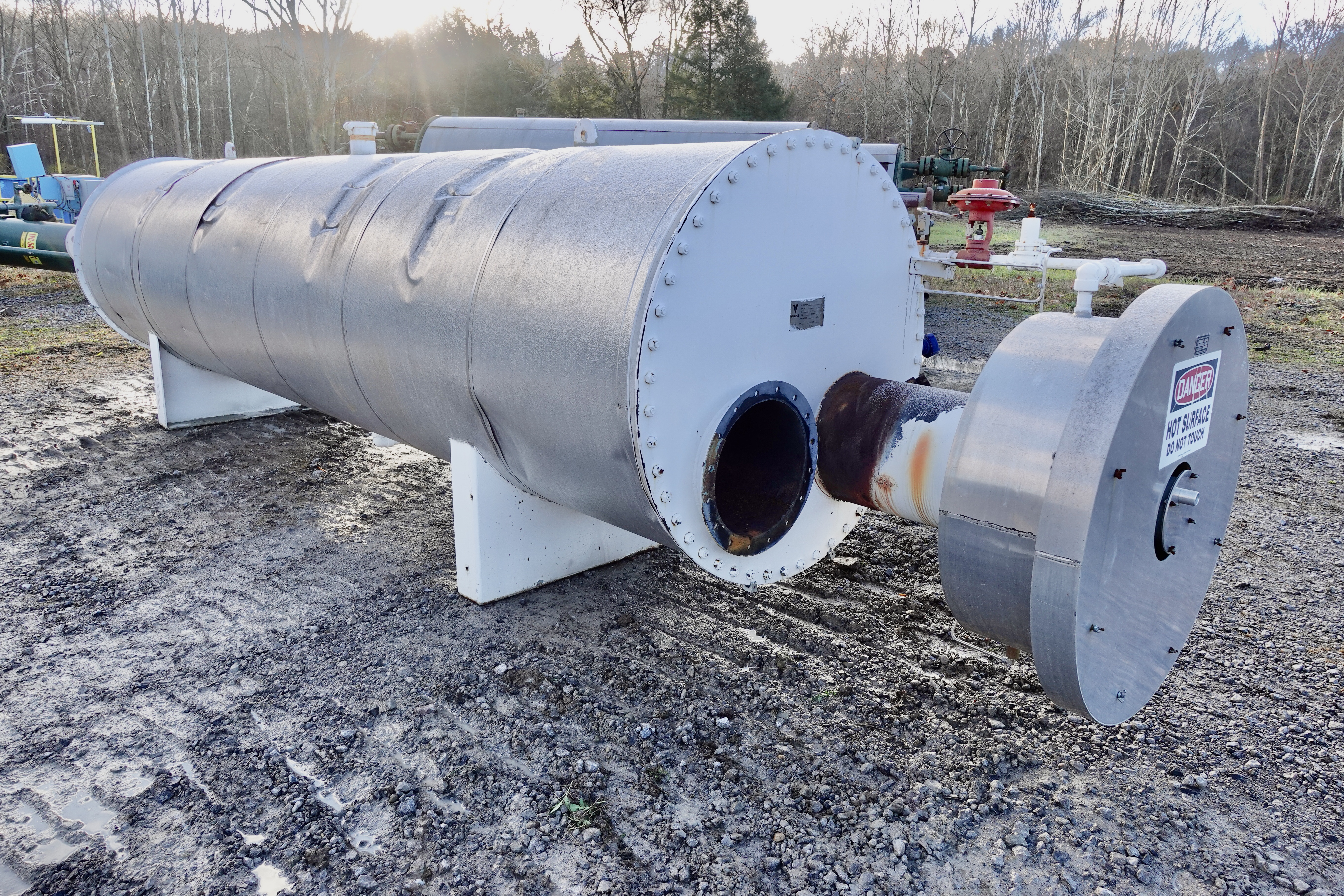

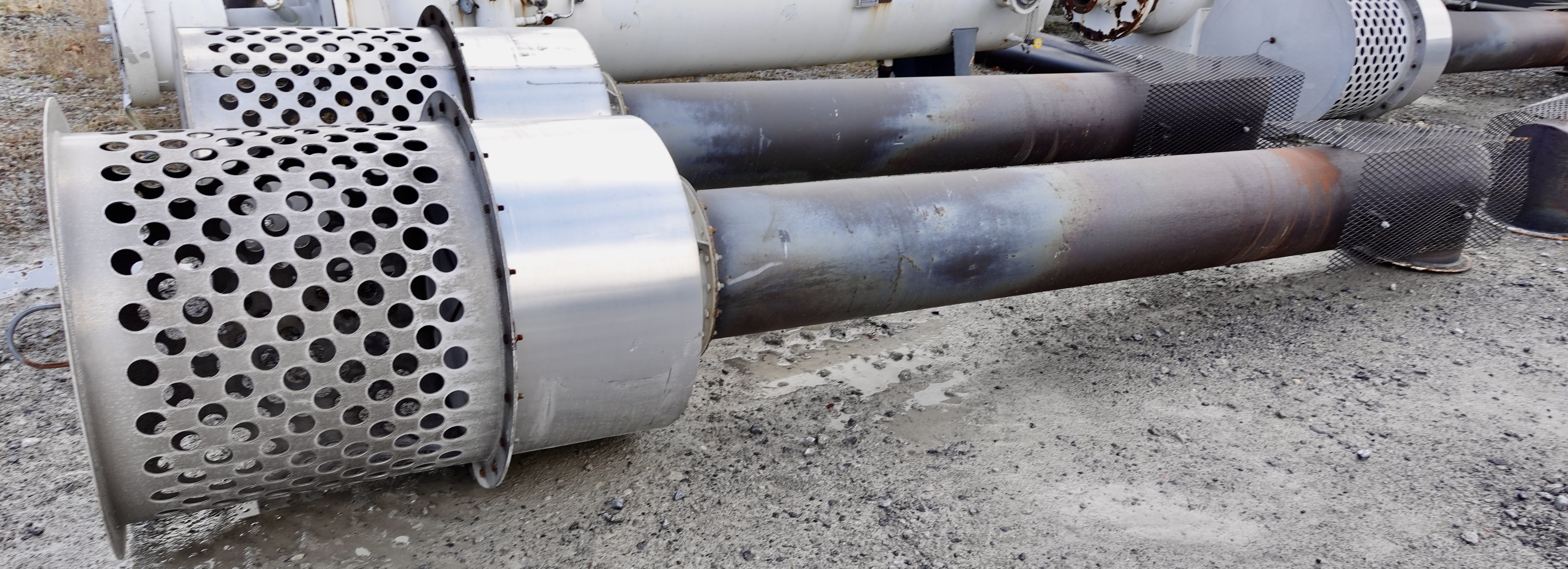

| Accessories | All Items seen in photos included, Burner Stack |
